Lawson Laboratory Ltd

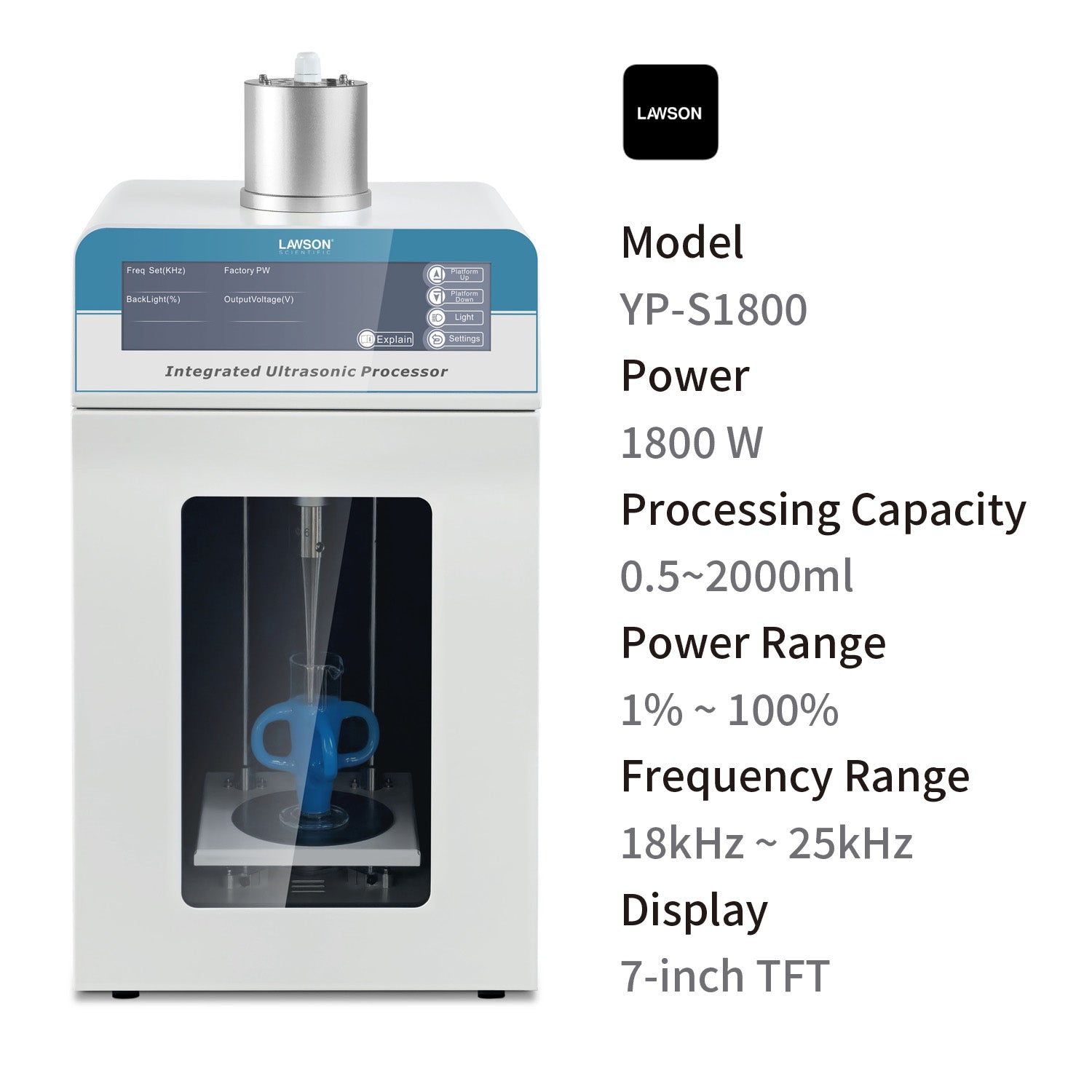

Ultrasonic mixer,Probe Sonicator,YP-S1800
Ultrasonic mixer,Probe Sonicator,YP-S1800
Regular price
$1,899.00 USD
Regular price
$2,848.00 USD
Sale price
$1,899.00 USD
Unit price
$1,899.00
/
per
item
Shipping calculated at checkout.
Couldn't load pickup availability
Product Introduction
- Typical applications include nanotechnology (production of nano-particle materials and graphene dispersions), cell disruption, sample preparation, homogenization, ChIP analysis, emulsification, dispersion, and deagglomeration, as well as applications in sonochemistry processing.
- 18～1800W ultrasonic homogenizer can safely process various organic and inorganic materials, from 100 microliters to 1000 milliliters.
Application
- YP series ultrasonic products have typical applications including nanotechnology (production of nanoparticles and graphene dispersions), cell disruption, sample preparation, homogenization, ChIP analysis, emulsification, deagglomeration and disaggregation, as well as applications in sonochemical processing.
Product Description
- Fulfil a wide variety of tasks in everyday laboratory work.
- The range of devices is correspondingly diverse. Understanding the basic design of the homogenisers and the resulting application-related selection of the individual components is the basis for successful application.
- Sonicator (ultrasonic homogenisers) is Homogenisation, deagglomeration, emulsification, suspension, acceleration of chemical reactions or disruption of cells.
- Greatly reduced process times and quickly available reproducible results make Ultraven ultrasonic homogenisers indispensable for modern processes and analytics.
Experimental Objectives
- 1. Understand the basic principles of ultrasonic cell crushing.
- 2. Master the basic techniques of ultrasonic cell crushing.
Experimental Principle
- When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.
Materials and Reagents
- 10ml culture, beaker, ice shaver, 75% alcohol cotton ball.
Note
The results may vary depending on the sample type and operating conditions.
This instrument is intended for Research Use Only (RUO) and is not for diagnostic or human therapeutic use.
Technical Parameters
| Model | YP-S1800 |
| Power | 1800W |
| Processing capacity | 20-2000ml |
| Ultrasonic Generator | Frequency Automatic Search |
| Resonant Frequency | Real-time Tracking and Display |
| Frequency Tracking Accuracy | 1Hz, Real-time Tracking and Display |
| Electric Soundproof Box | Electric Lifting and Lighting Device for the Workbench |
| Temp protection for materials | 1. Temperature setting: 0-99℃ 2. When the material temperature reaches the set value, the ultrasound will stop working, and when the material temperature is 2℃ lower than the set value, the ultrasound will automatically resume working. |
| Power range | 1%~100% |
| Storage documents | 99 groups |
| Protection alarm | Over-temperature, over-current, overload, transducer abnormality, etc. |
| transducer weight | 18kg |
| Probe | Φ20 |
| Power supply | AC110/220V F50/60Hz |
| Overall dimensions | 280*280*495 |
| External packaging dimensions | 534*295*435mm |
Other Parameters
| Transducer Weight | 1920 g |
| Transducer Size | 256mm×88.5mm |
| Random Amplitude Bar Weight | 495 g |
| Random Amplitude Bar Size | 140mm×6mm |
| Amplitude Bar Material | Titanium Alloy Ti-6Al-4V |
Package
| Host ultrasonic homogenizer | 1 Unit |
| Standard Horn | 1 set |
| Replacement Converter Cable | 1 Set |
| Probe(Standard) | 1 set |
| Replacement Wrench Set | 1 set |
| Temperature Probe | 1 set |
| Rosette Glass Cooling Cells | Optional |
| Jacketed Beakers | Optional |
