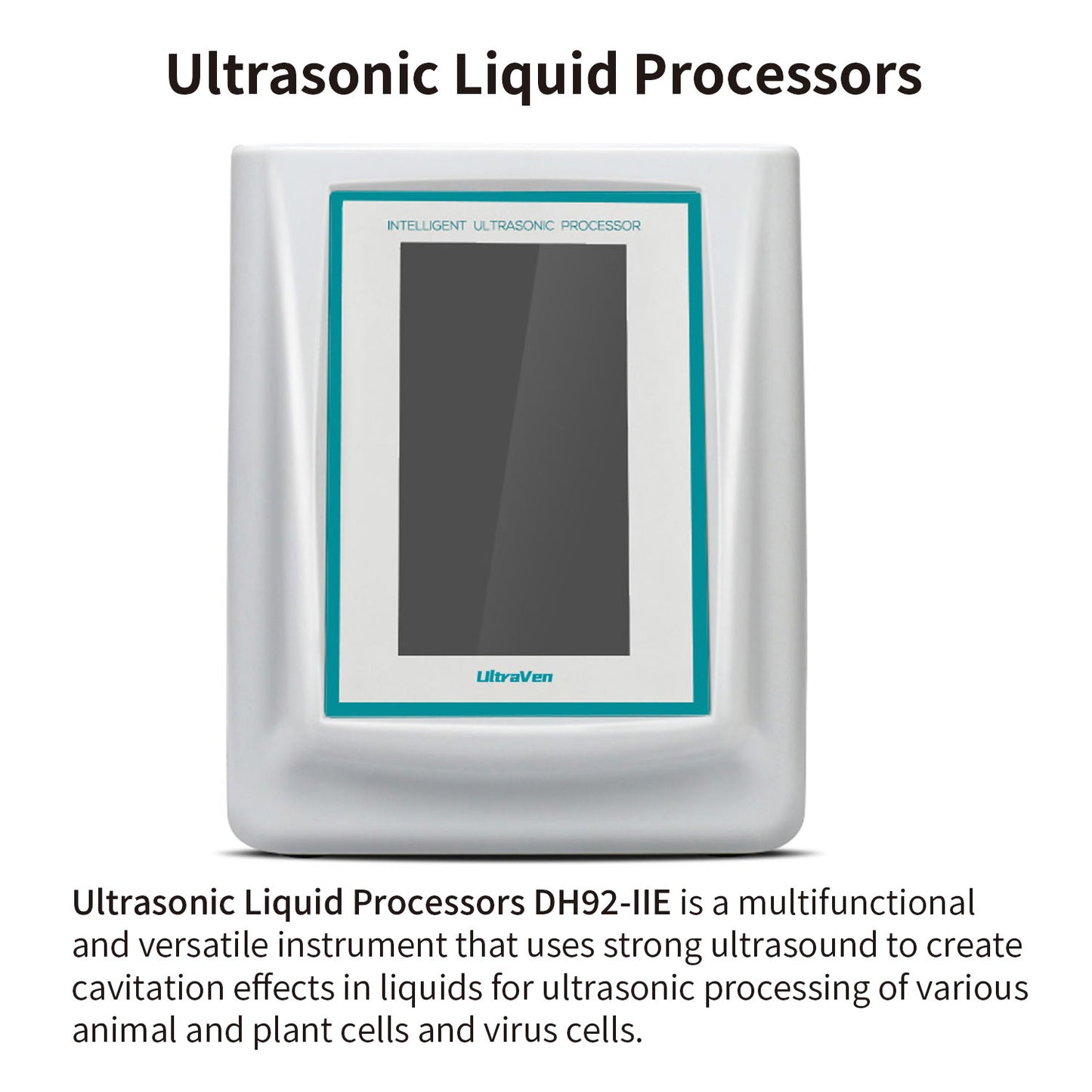

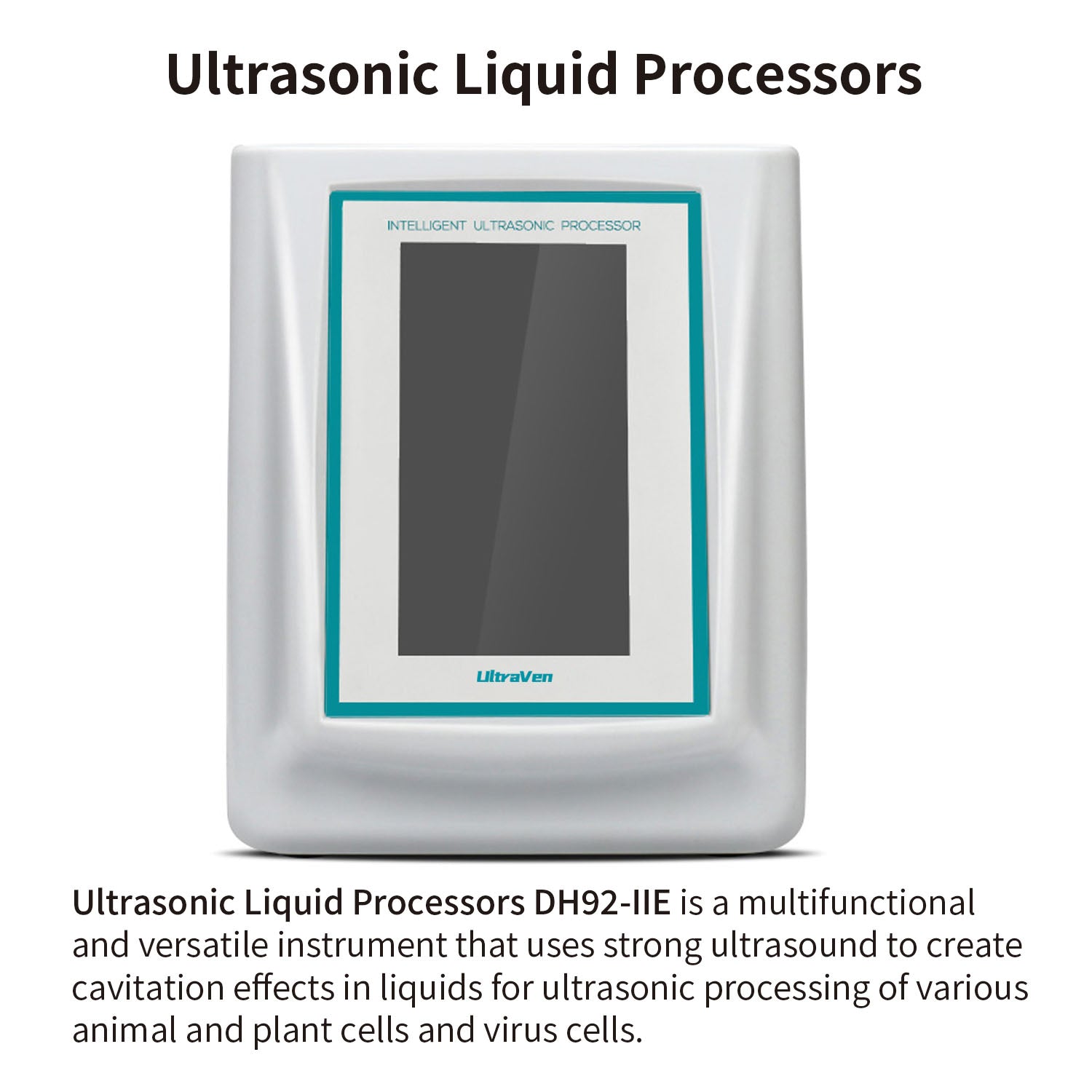

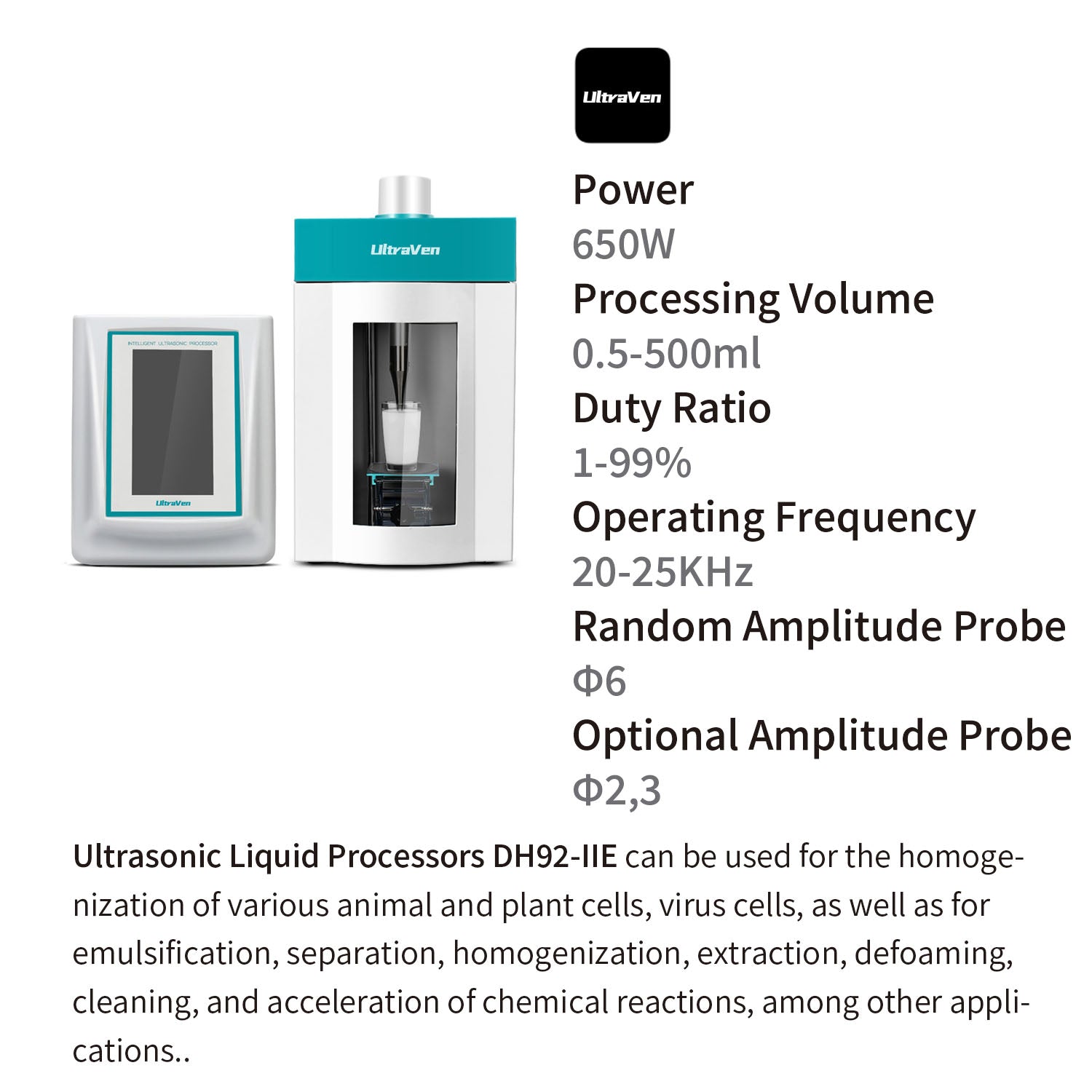

Ultrasonic Liquid Processors DH92-IIE is a multifunctional instrument that uses strong ultrasound to produce cavitation effects in liquids, and to perform ultrasonic treatment on substances. It can be used for the disruption of various animal and plant cells, cells, as well as for emulsification, separation, homogenization, extraction, degassing, cleaning, and acceleration of chemical reactions.
Product Features
◆7-inch large screen display for more intuitive parameter display and more convenient touch operation
◆Display of simulated data waveform of ultrasonic power and time width
◆Rich functions: cell crushing, homogenization, separation, extraction, defoaming, cleaning and acceleration of chemical reactions
◆Alarm function: time, overload, no-load, and over-temperature
◆Customizable settings for ultrasonic time, interval time, total time, and power ratio
◆Easy operation: centrally controlled by microcomputer for optimized user experience
◆Low noise: equipped with soundproof box to reduce noise disturbance
◆Long operation time: supports continuous operation for more than 1 hour
Experimental Objectives
1. Understand the basic principles of ultrasonic cell crushing.
2. Master the basic techniques of ultrasonic cell crushing.
Experimental Principle
When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.
