Product Introduction
Ultrasonic Cell homogenizer DH92-IIDE is a multifunctional instrument that uses strong ultrasound to produce cavitation effects in liquids, and to perform ultrasonic treatment on substances. It can be used for the disruption of various animal and plant cells, cells, as well as for emulsification, separation, homogenization, extraction, degassing, cleaning, and acceleration of chemical reactions(Laboratory & Research Use).
Product Features
◆7-inch large screen display for more intuitive parameter display and more convenient touch operation
◆Display of simulated data waveform of ultrasonic power and time width
◆Alarm function: time, overload, no-load, and over-temperature
◆Customizable settings for ultrasonic time, interval time, total time, and power ratio
◆Easy operation: centrally controlled by microcomputer for optimized user experience
◆Low noise: equipped with soundproof box to reduce noise disturbance
◆Long operation time: supports continuous operation for more than 1 hour
Experimental Objectives
1. Understand the basic principles of ultrasonic cell crushing.
2. Master the basic techniques of ultrasonic cell crushing.
Experimental Principle
When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.
Technical Parameters
Model
DH92-IIE | DH92-IIDE | DH98-IIIDE | DH99-IIDE
Frequency
20-25KHz (Automatic tracking)
Power
650W | 900W | 1200W | 1800W
Standard Horn
Φ6 | Φ10 | Φ15 | Φ25

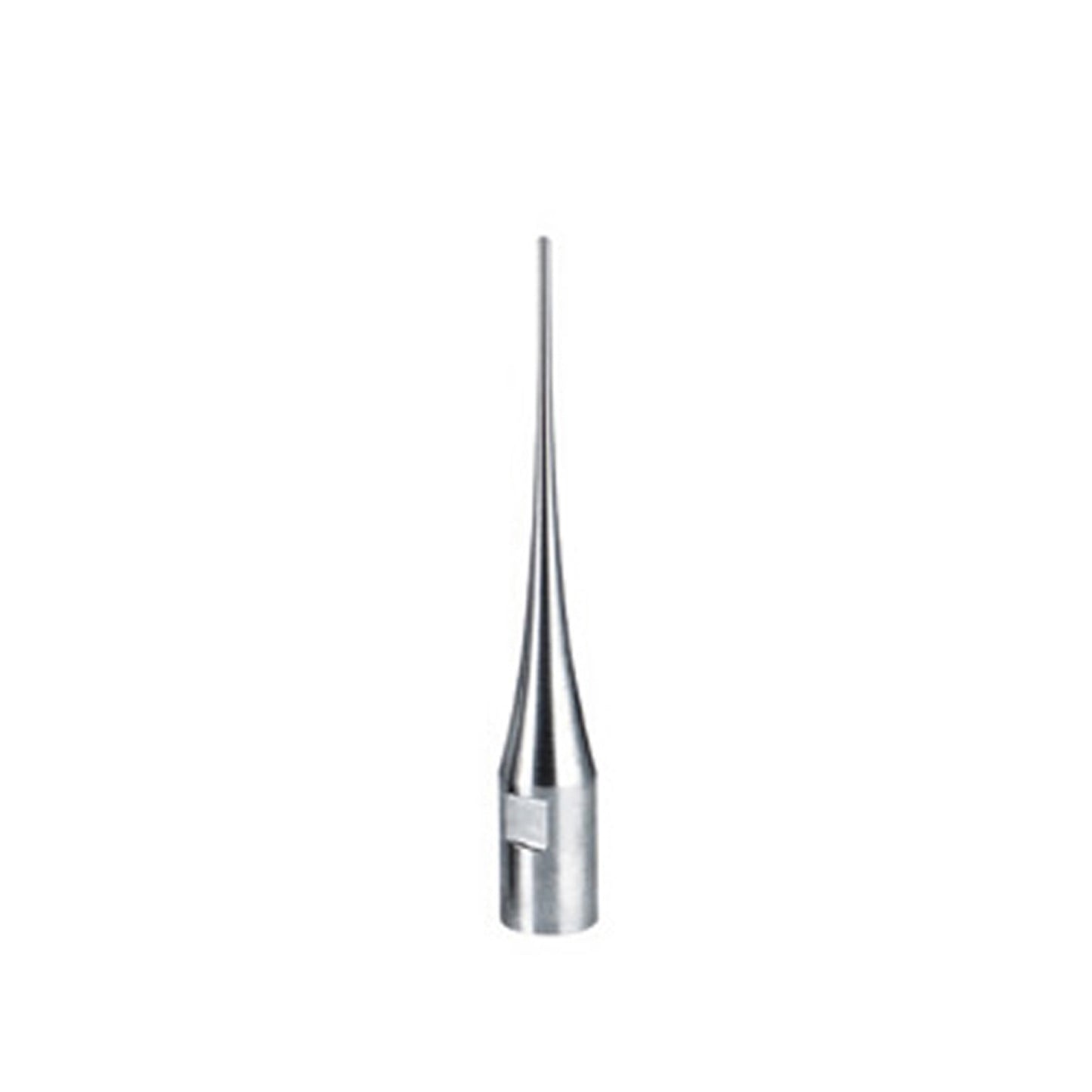

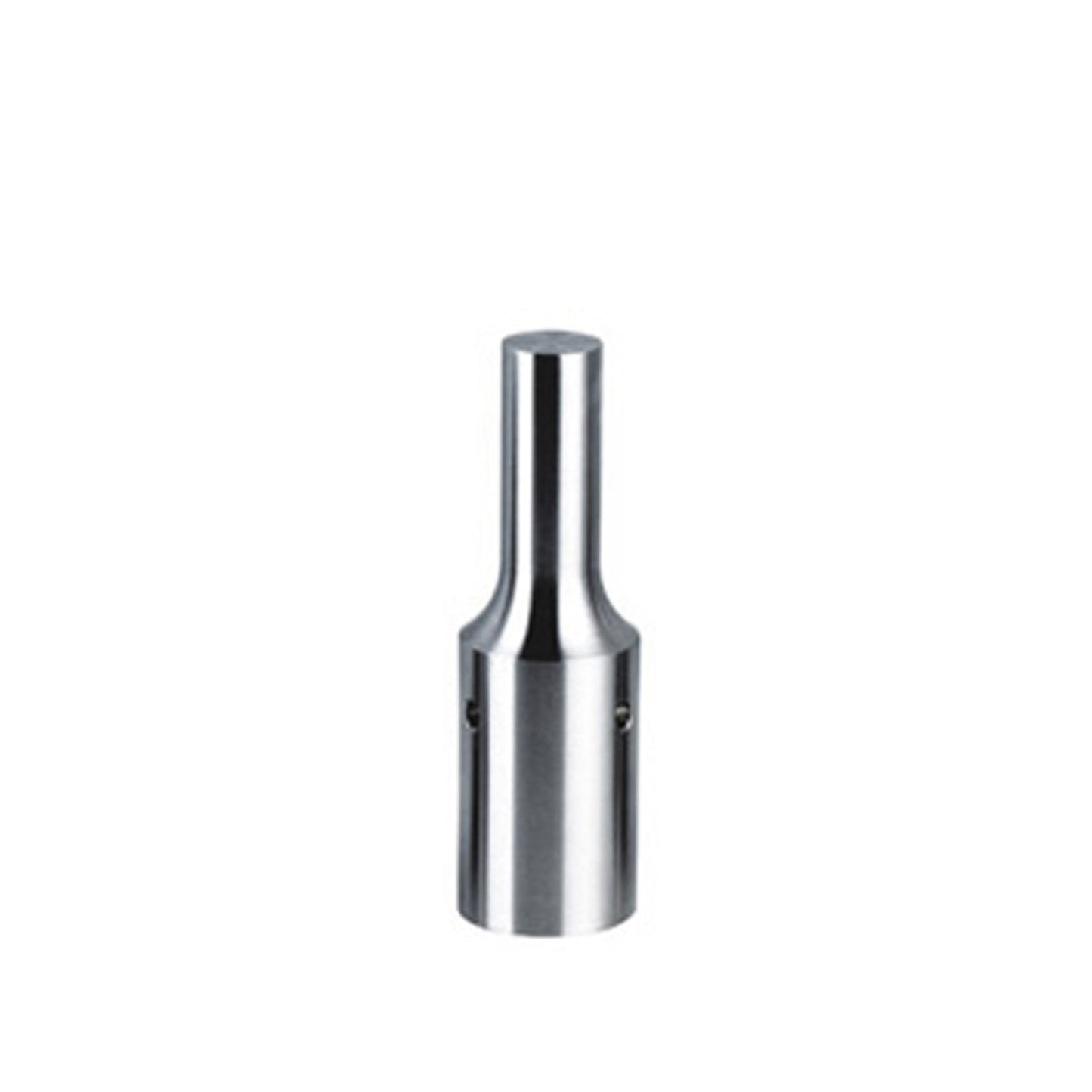

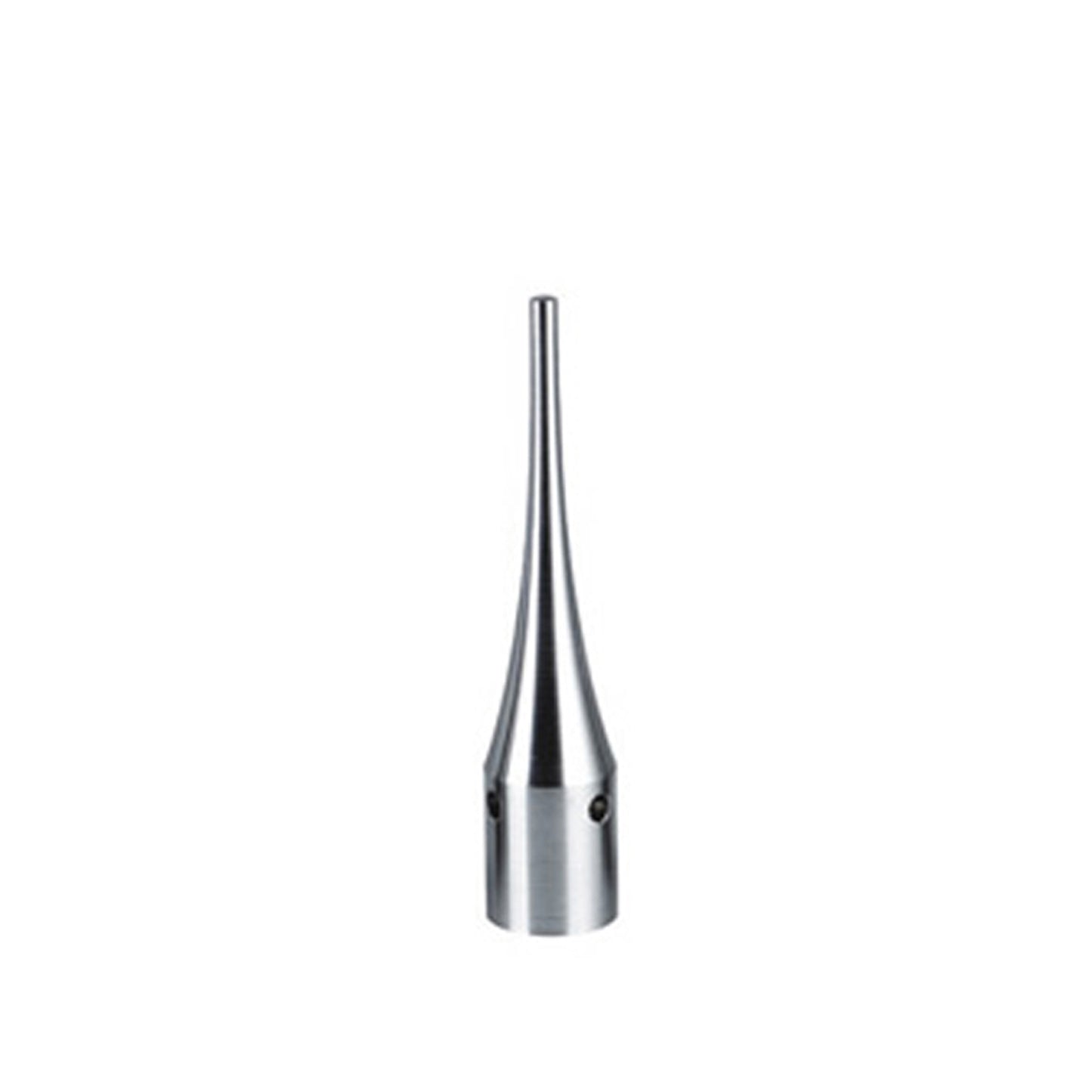

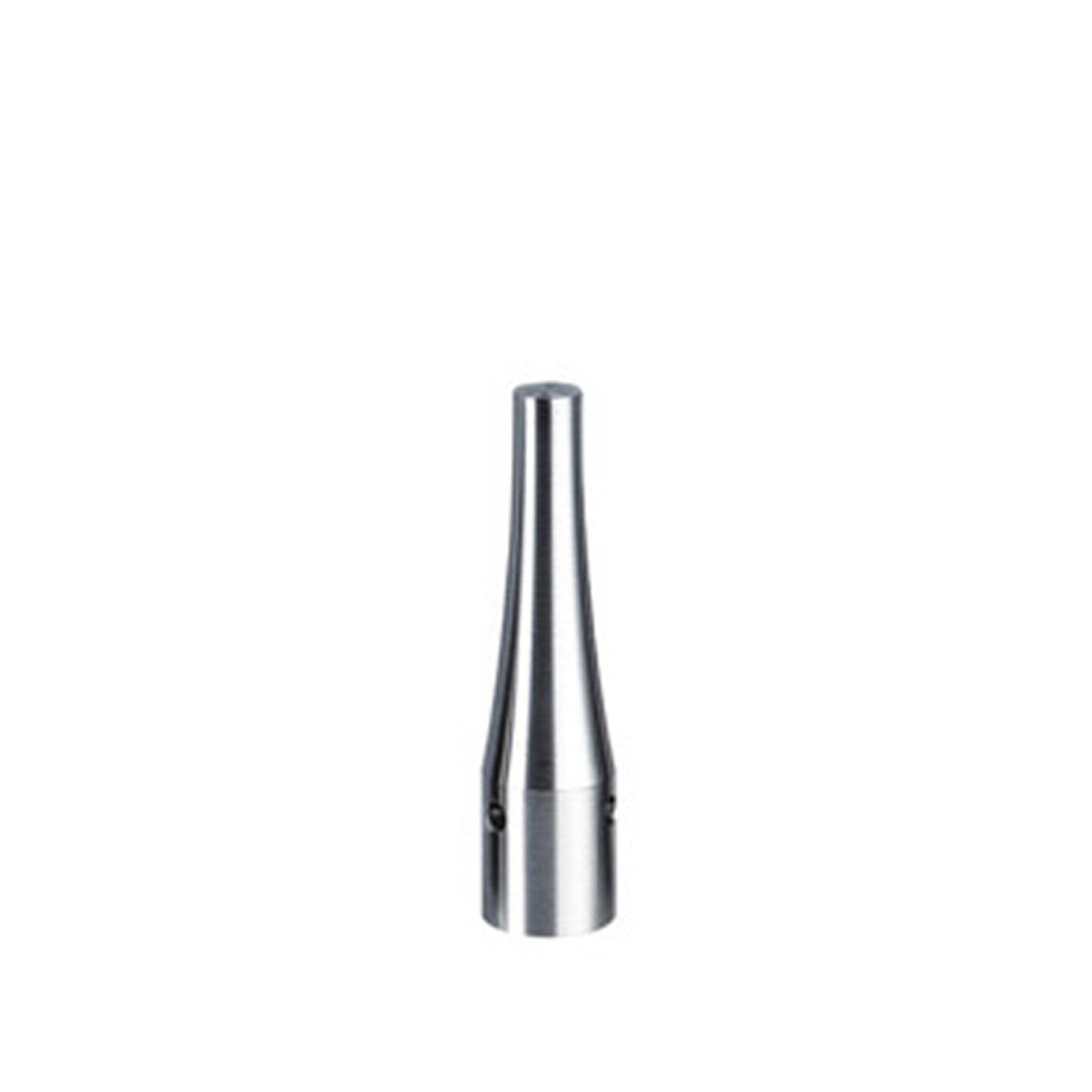

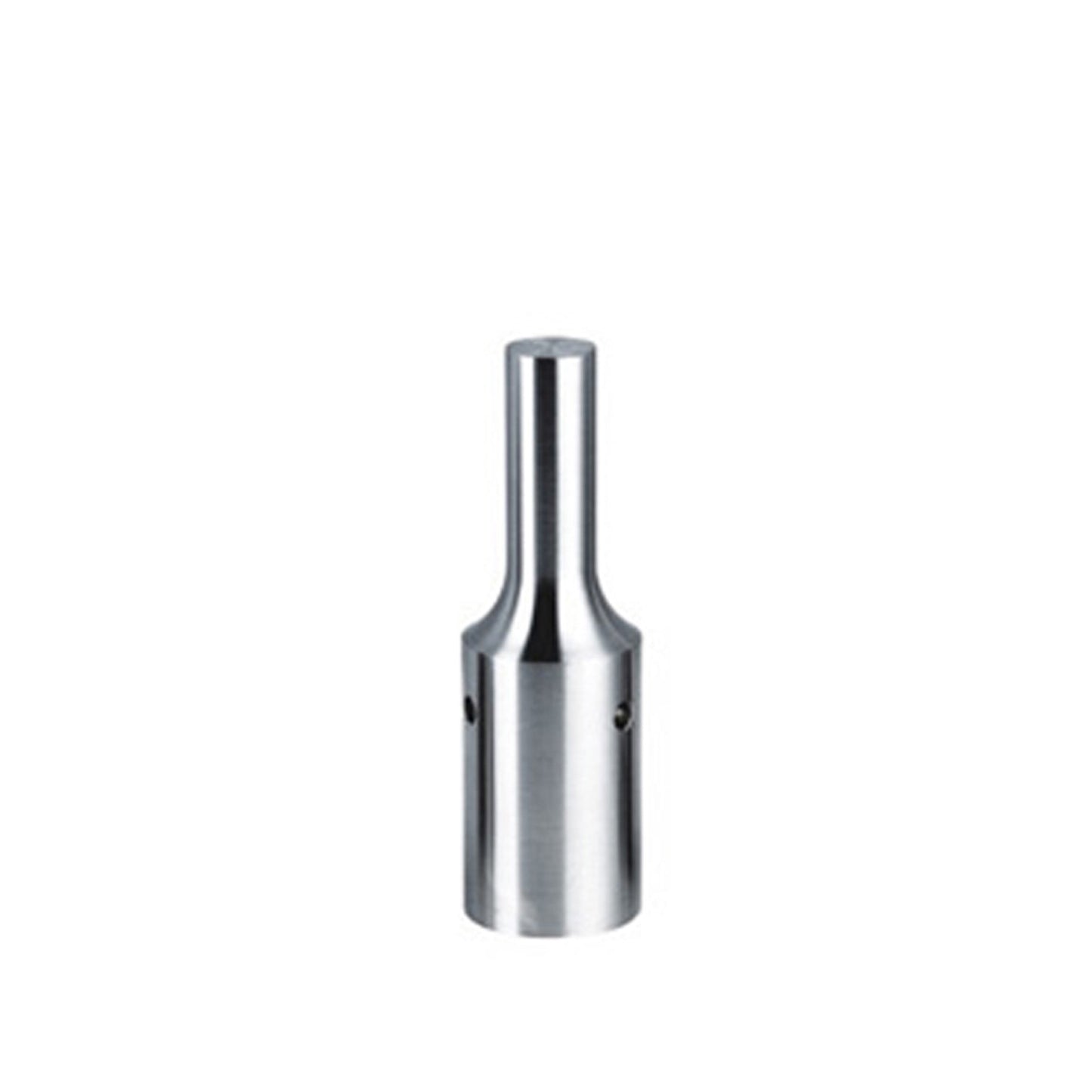

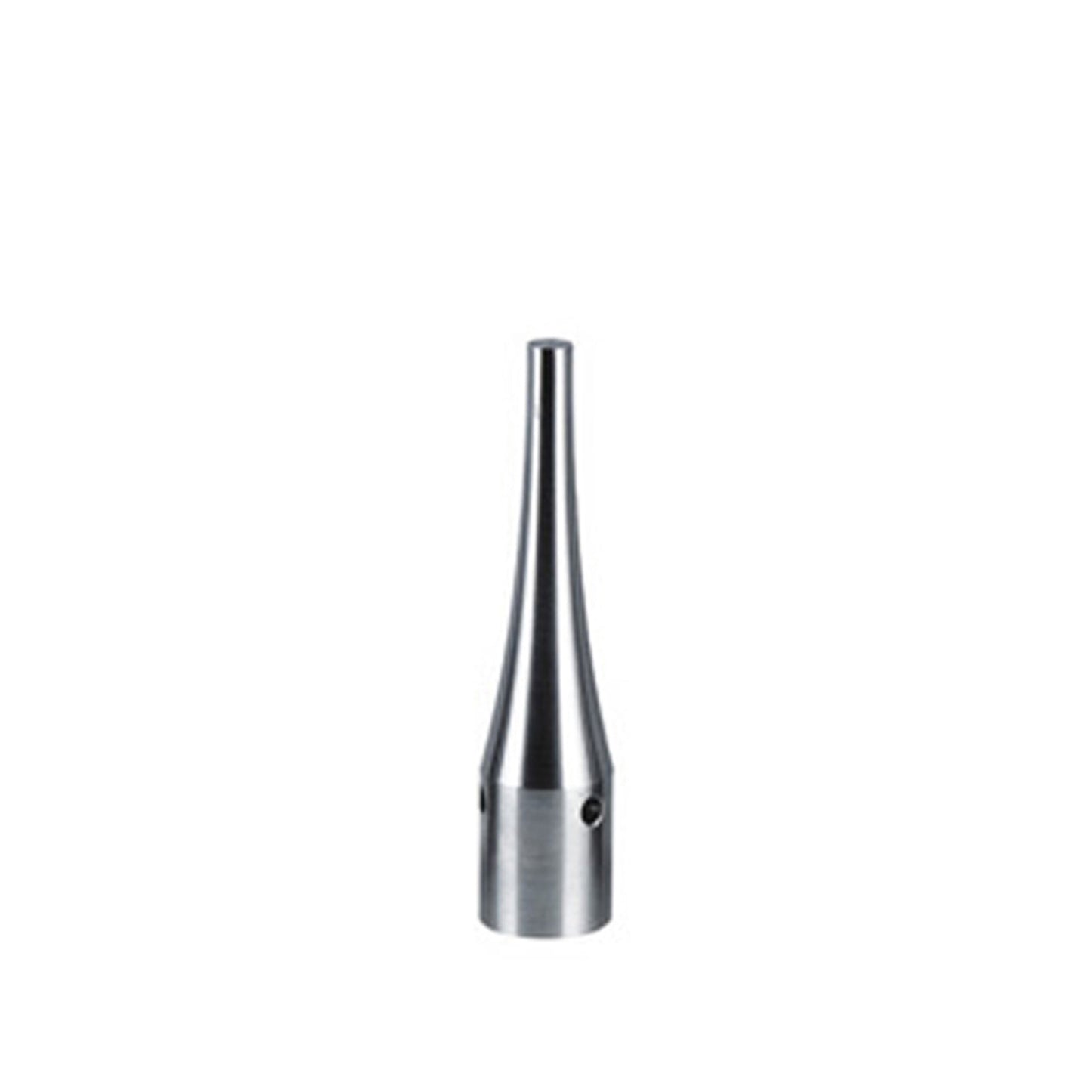

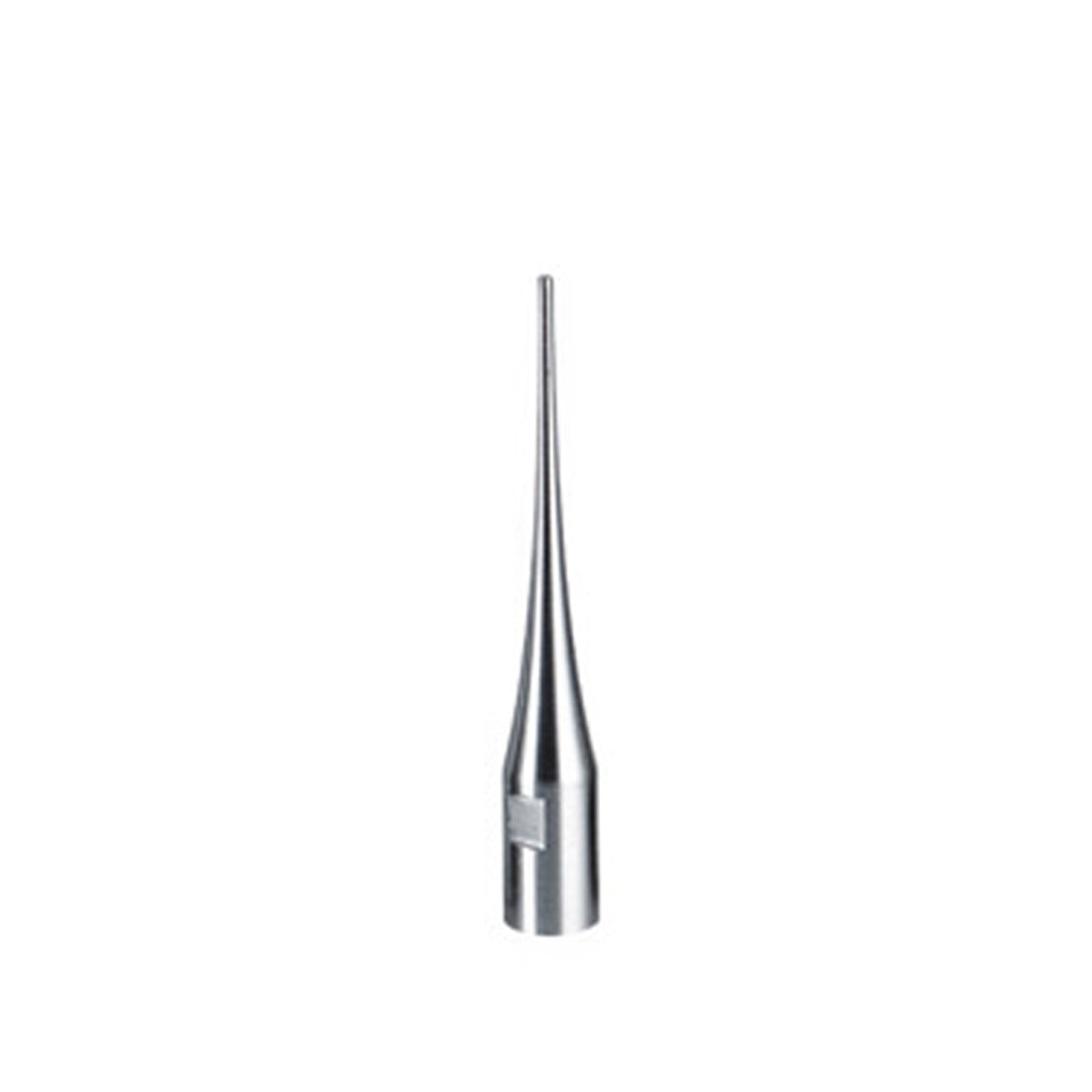

Optional Horns
Φ2, 3, 6, 10, 15, 20, 25
Crushing Capacity
0.5-500ml | 0.5-700ml | 0.5-1000ml | 0.5-2000ml
Duty Ratio
1-99%
Screen Size Material
7 inches High-definition TFT touch screen
Single Ultrasonic Time
0.1-99.9s
Single Interval Time
0.1-99.9s
Total Time
1-99H59M59S
Temperature Control Function
Yes (automatically pause ultrasound when reaching preset temperature)
Optional functions
PC communication+remote control+user password protection+data printing+automatic lifting soundproof box+lighting or sterilization
Data storage
20 groups
Power supply
220/110V,50/60Hz
Power supply chassis size
410*225*290mm
For laboratory and research use only. Not intended for clinical, medical, or direct food processing use.
