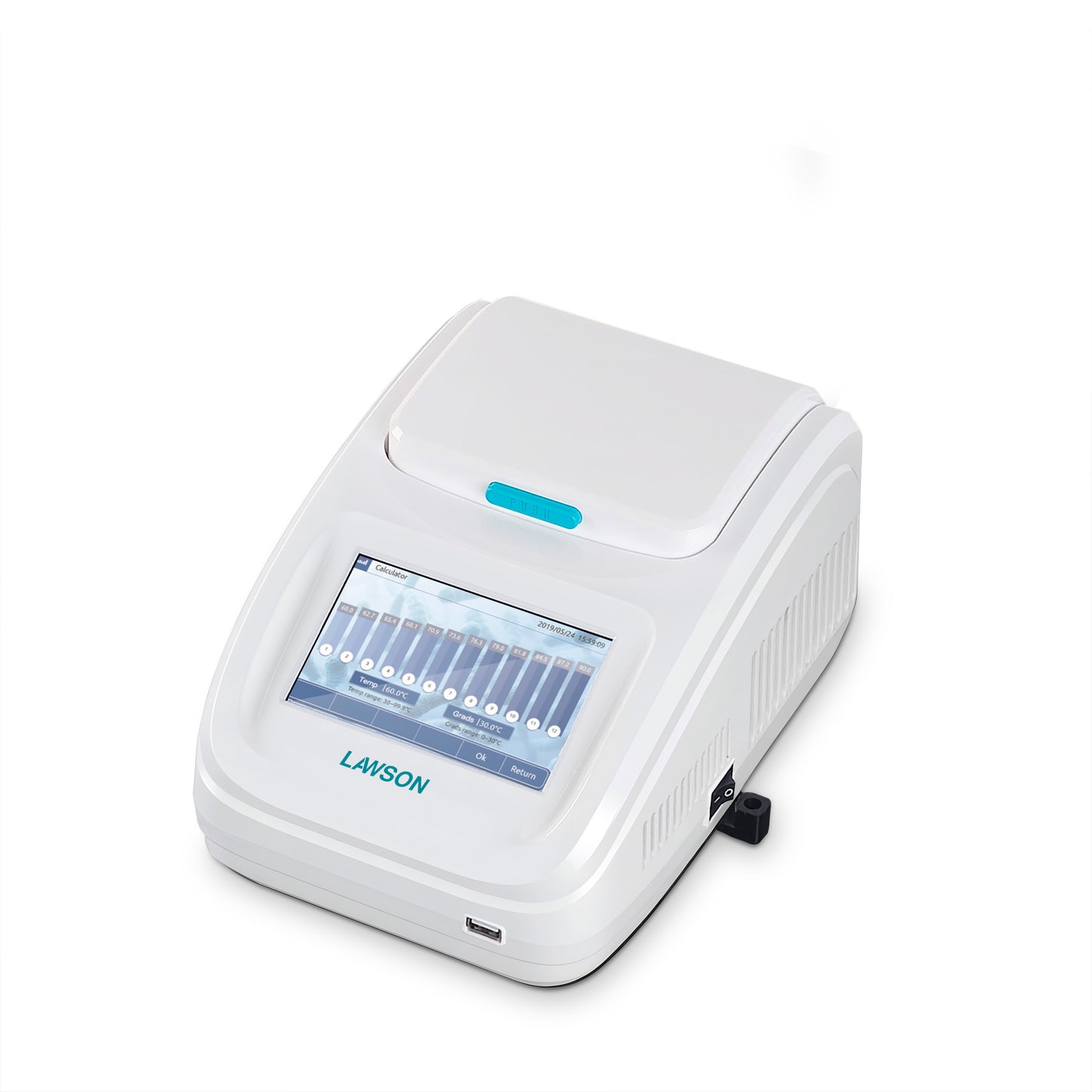

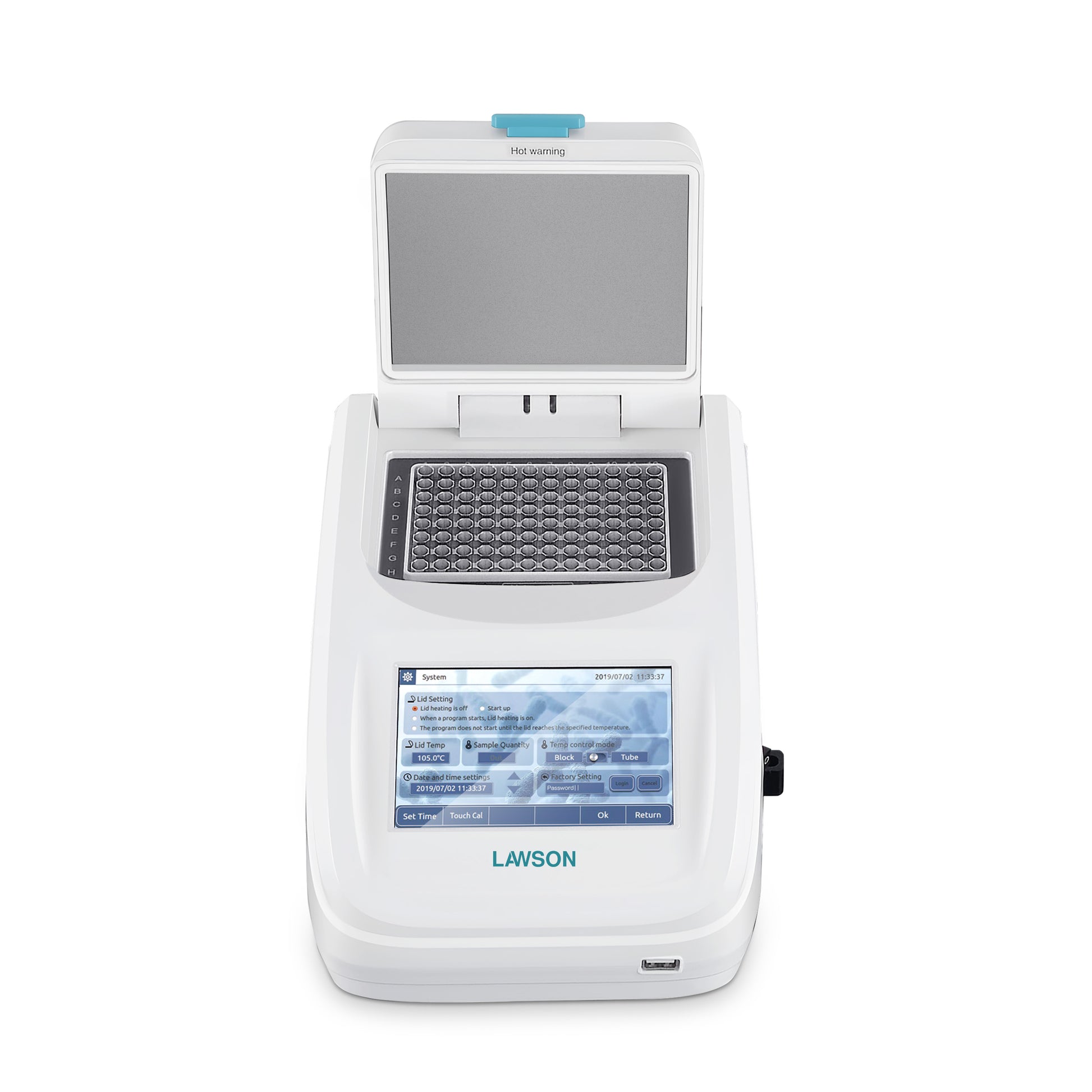

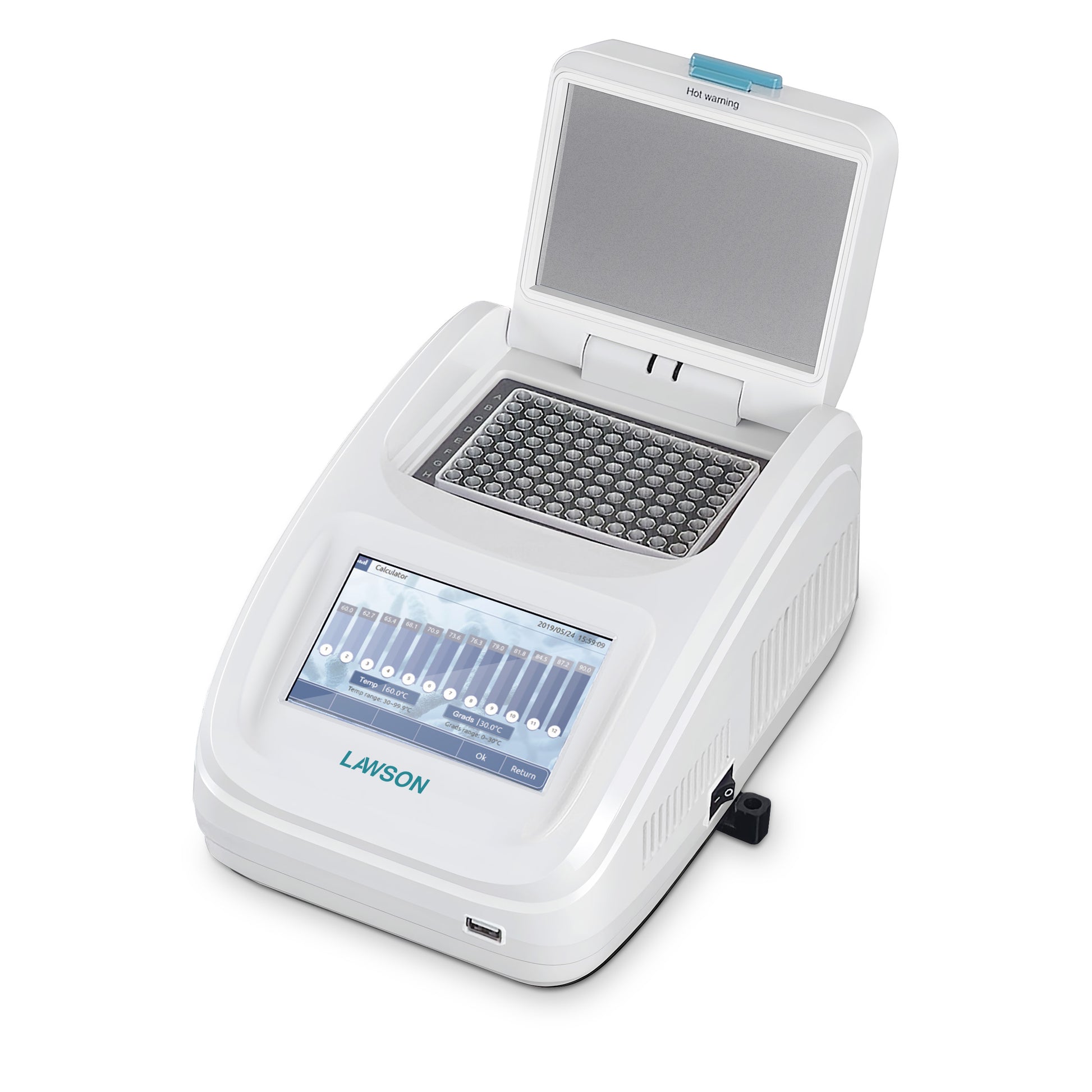

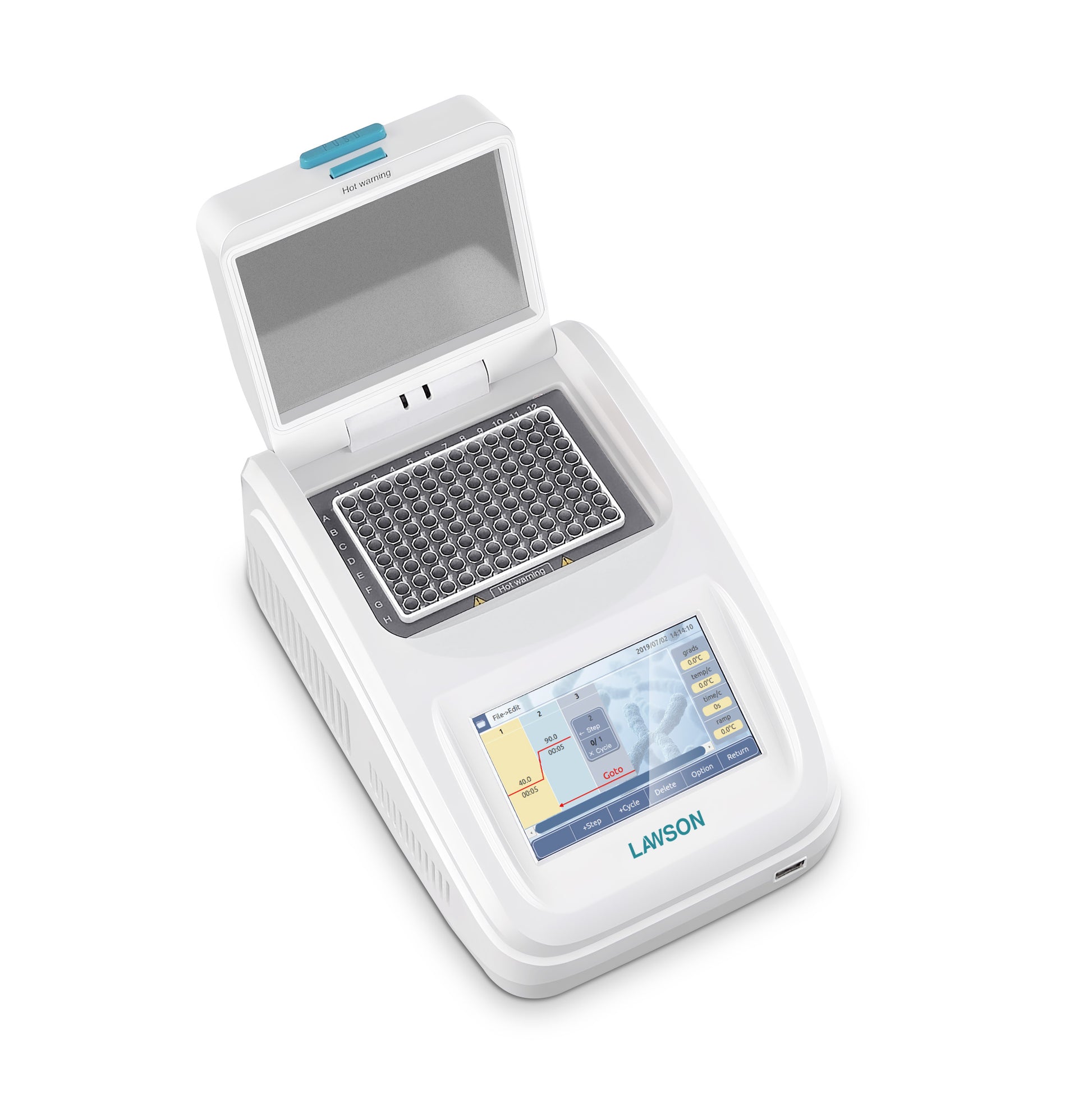

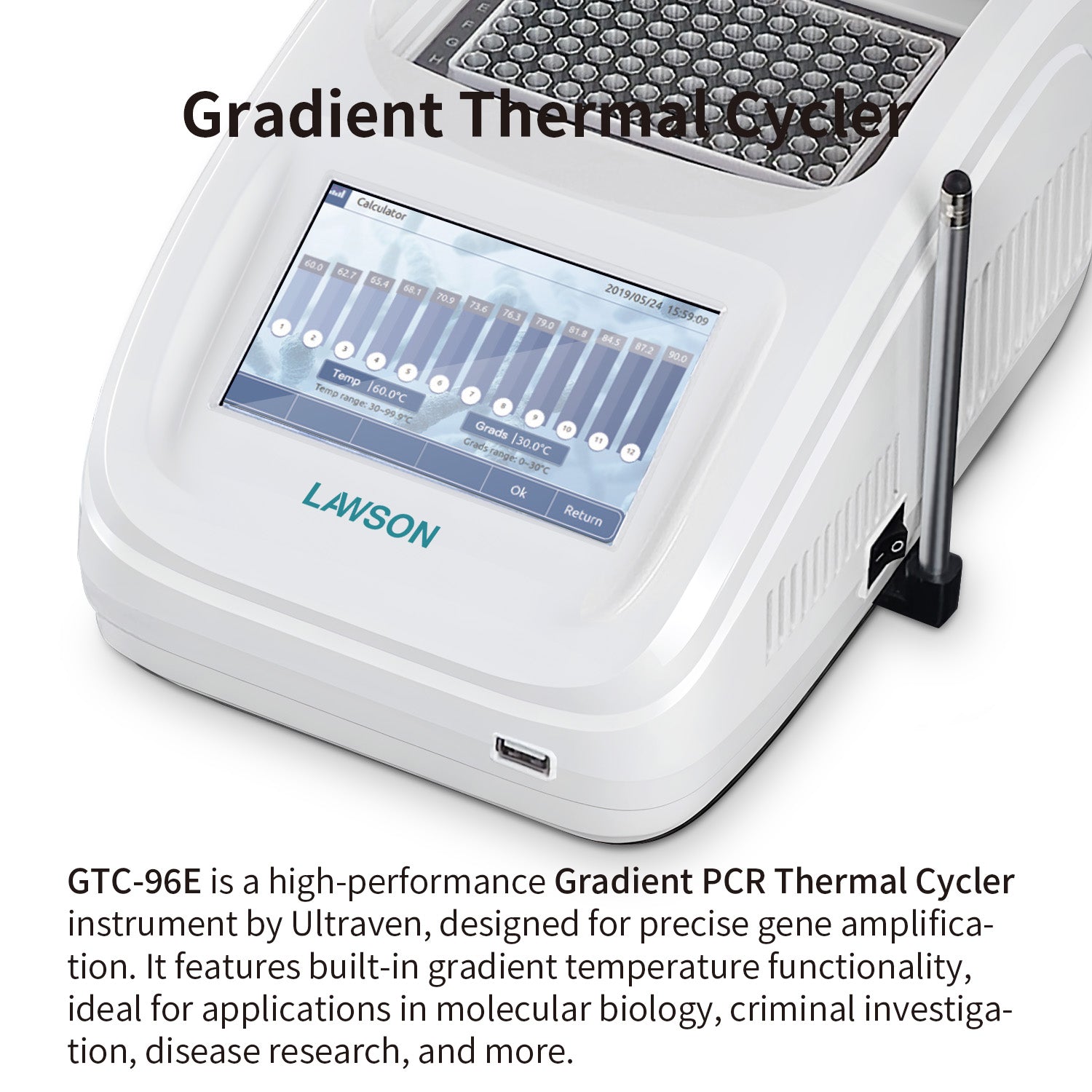

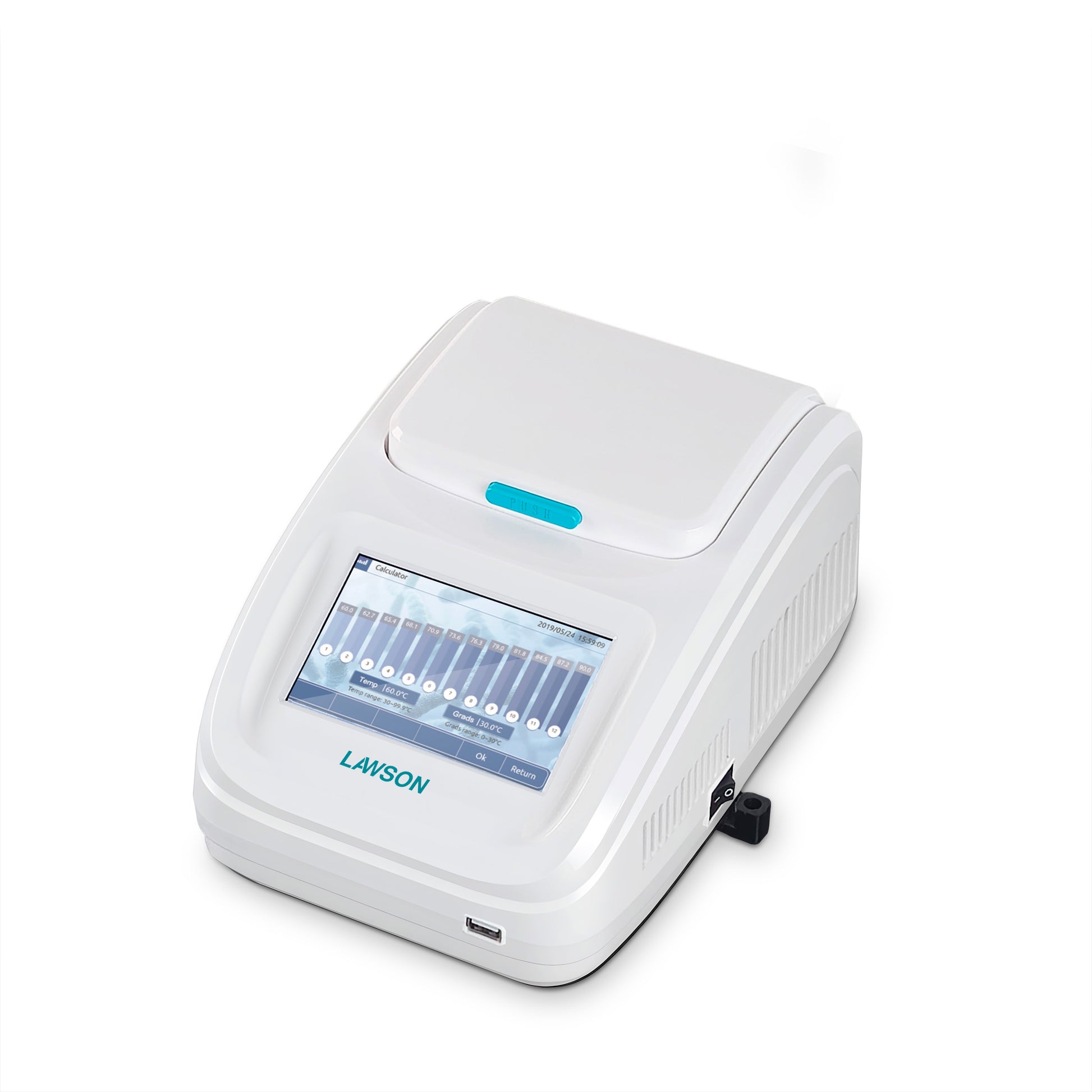

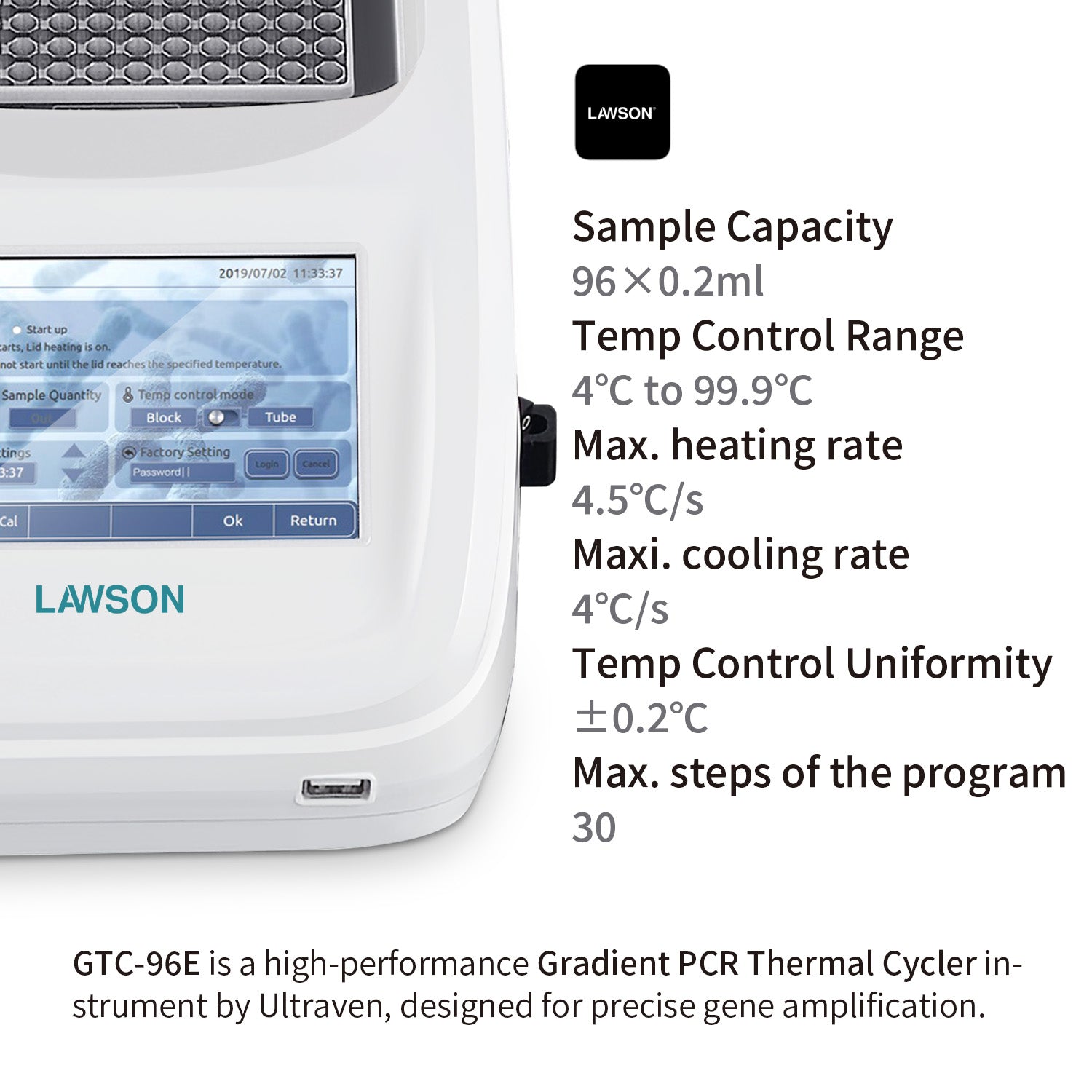

GTC‑96E is a high-performance PCR Gradient Thermal Cycler instrument by Ultraven, designed for precise gene amplification.
It features built-in gradient temperature functionality, ideal for applications in molecular biology, criminal investigation, disease research, and more.
Product Features
Advanced Semiconductor Heating Module
Utilizes next‑gen semiconductor technology for uniform temperature distribution and minimal edge effects, supported by multi-sensor feedback and refrigeration film.
5″ Full‑Touch Color TFT Display
Intuitive interface with real‑time visualization of temperature curves and run status for easy programming.
Integrated Gradient Calculator
Automatically optimizes annealing temperatures across wells to streamline experimental setup.
Secure Multi‑User System
Supports user login, role-based permissions, password protection, and stores over 100 protocols for data integrity.
Adaptive Elastic Heated Lid
Ensures optimal contact with tubes of varying heights by intelligently adjusting lid pressure.
Configurable Temperature Modes
Allows hot-lid control on/off and offers block or tube temperature control to fit diverse protocol needs.

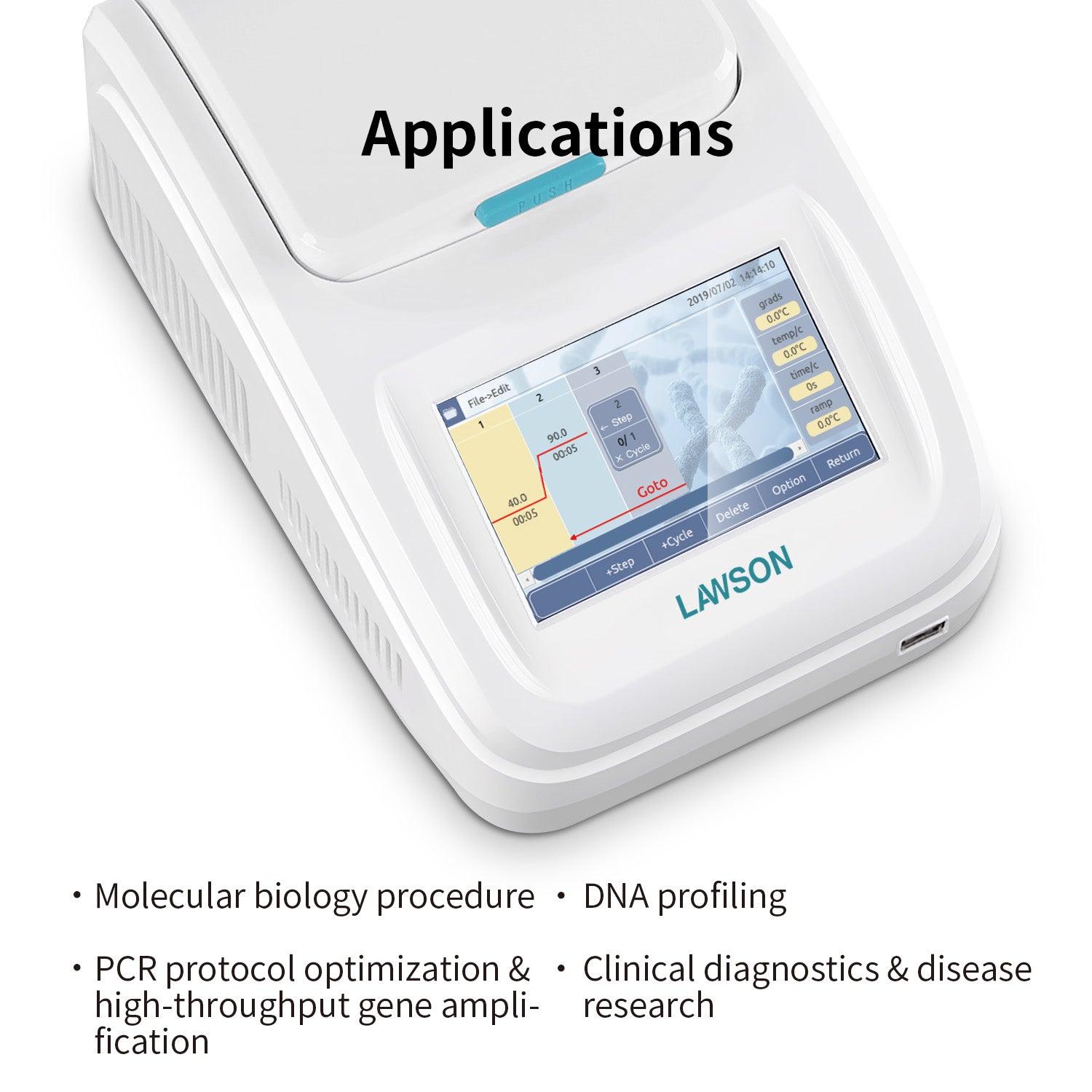

Application Range
Routine PCR workflows
On-site genetic testing
field labs
Teaching and education
agricultural screening
Note
The results may vary depending on the sample type and operating conditions.
This instrument is intended for Research Use Only (RUO) .

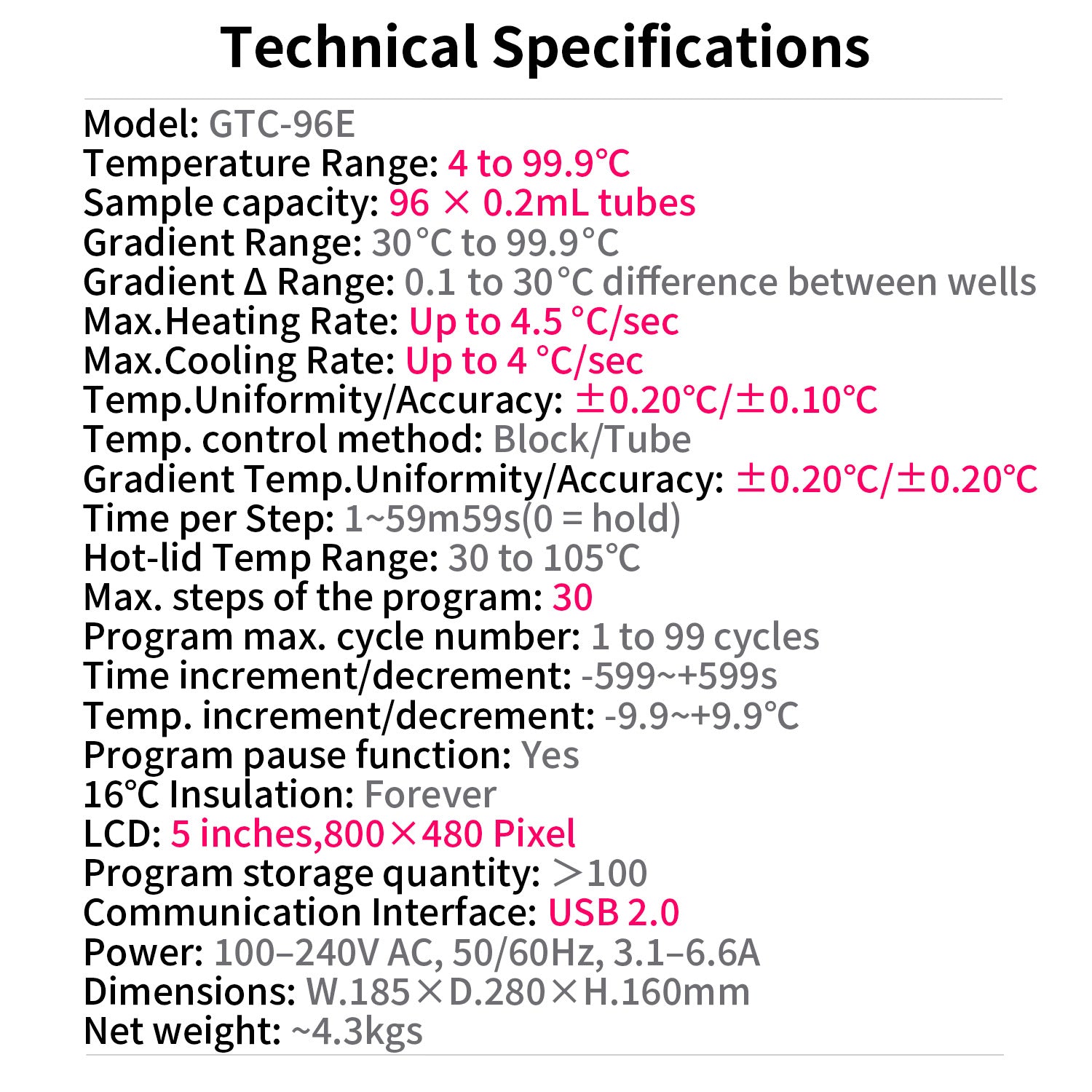

Technical Specifications
Model
GTC-96E
Temperature Range
4 to 99.9℃
Sample capacity
96 × 0.2ml tubes
Gradient Range
30 °C to 99.9 °C
Gradient Δ Range
0.1 to 30 °C difference between wells
Max.Heating Rate
Up to 4.5 °C/sec
Max.Cooling Rate
Up to 4 °C/sec
Temp.Uniformity
±0.20℃
Temp.Accuracy
±0.10℃
Temp. display resolution
0.1℃
Temp. control method
Block/Tube
Gradient Temp.Uniformity
±0.20℃
Gradient Temp.Accuracy
±0.20℃
Time per Step
1~59m59s(0 = hold)
Hot‑lid Temp Range
30 to 105℃
Max. steps of the program
30
Program max. cycle number
1 to 99 cycles
Time increment/decrement
-599~+599s
Temp. increment/decrement
-9.9~+9.9℃
Program pause function
Yes
16℃ Insulation
Forever
LCD
5 inches,800×480 Pixel
Program storage quantity
＞100
Communication Interface
USB 2.0
Power
100–240V AC, 50/60Hz, 3.1–6.6A
Dimensions
W.185×D.280×H.160mm
Net weight
~4.3kgs

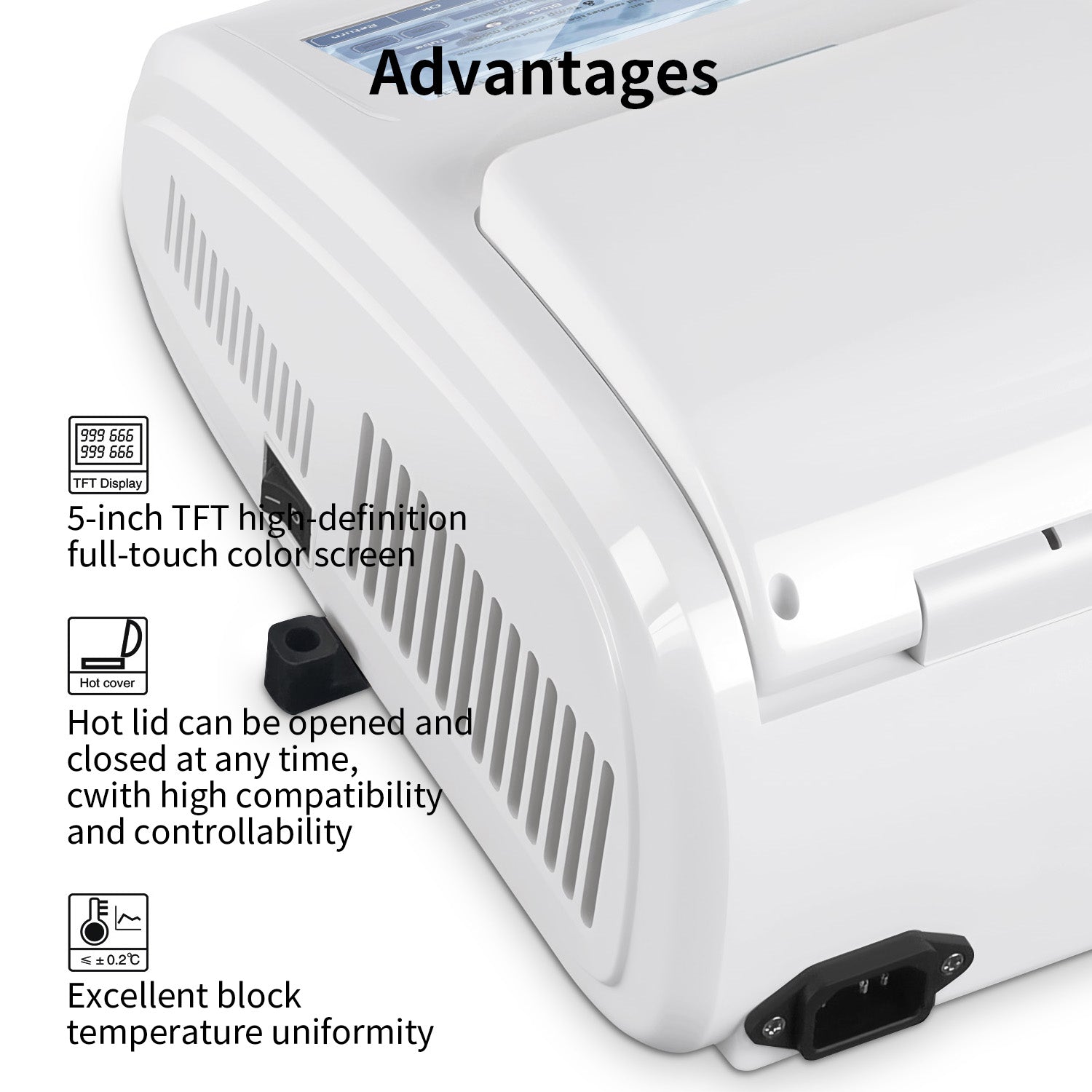

Why Choose GTC-96E

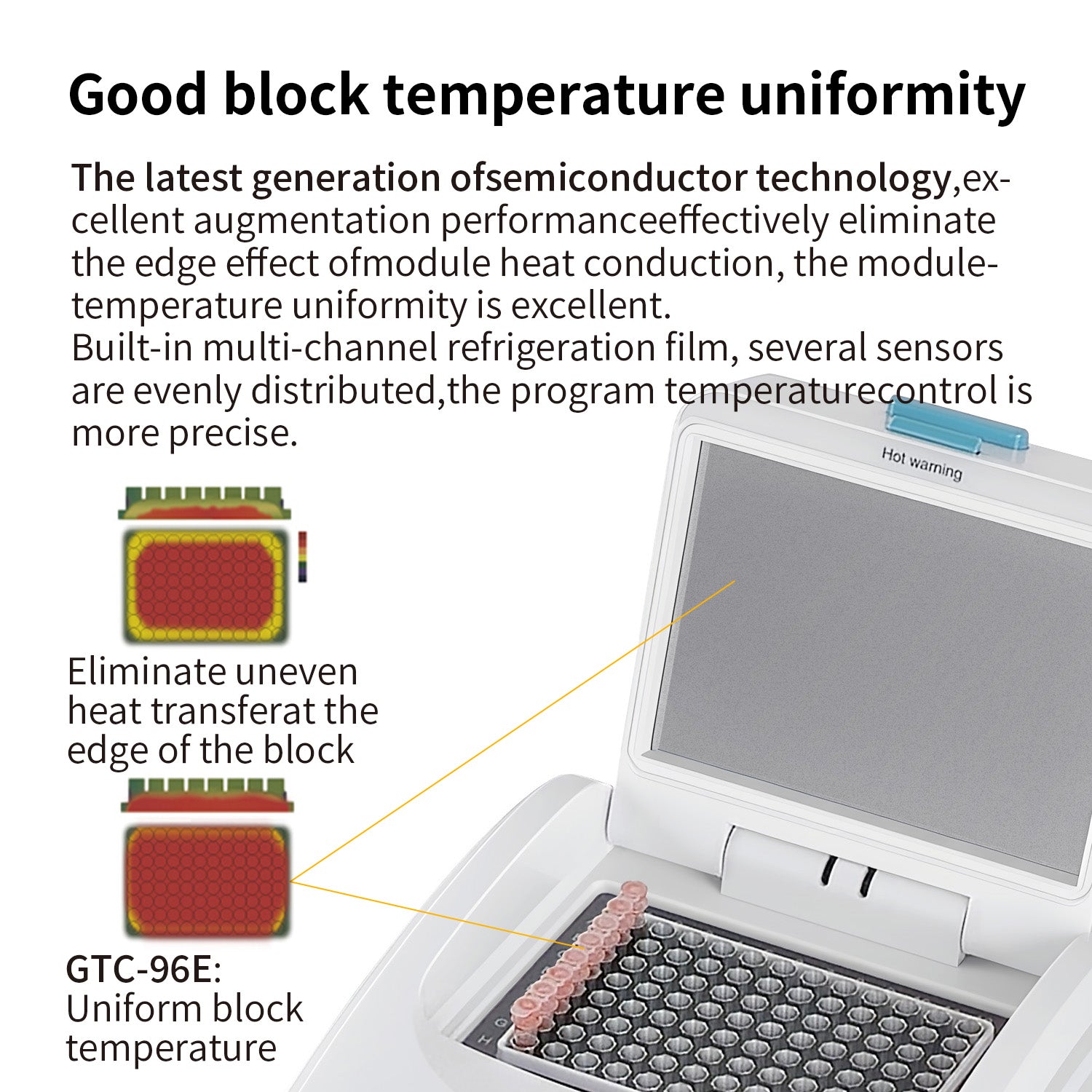

Good block temperature uniformity
The latest generation ofsemiconductor technology,excellent augmentation performanceeffectively eliminate the edge effect ofmodule heat conduction, the moduletemperature uniformity is excellent.
Built-in multi-channel refrigeration film, several sensors are evenly distributed,the program temperaturecontrol is more precise.
Gradient real-time distribution
The system has a built-in gradient calculator, whichcan easily obtain accurate annealing temperaturefor different experimental samples to optimize PCRreaction conditions.
Real-time display of gradient temperature distribution,real-time temperature display, moreconducive to controlling the sample temperature.
