Product Introduction

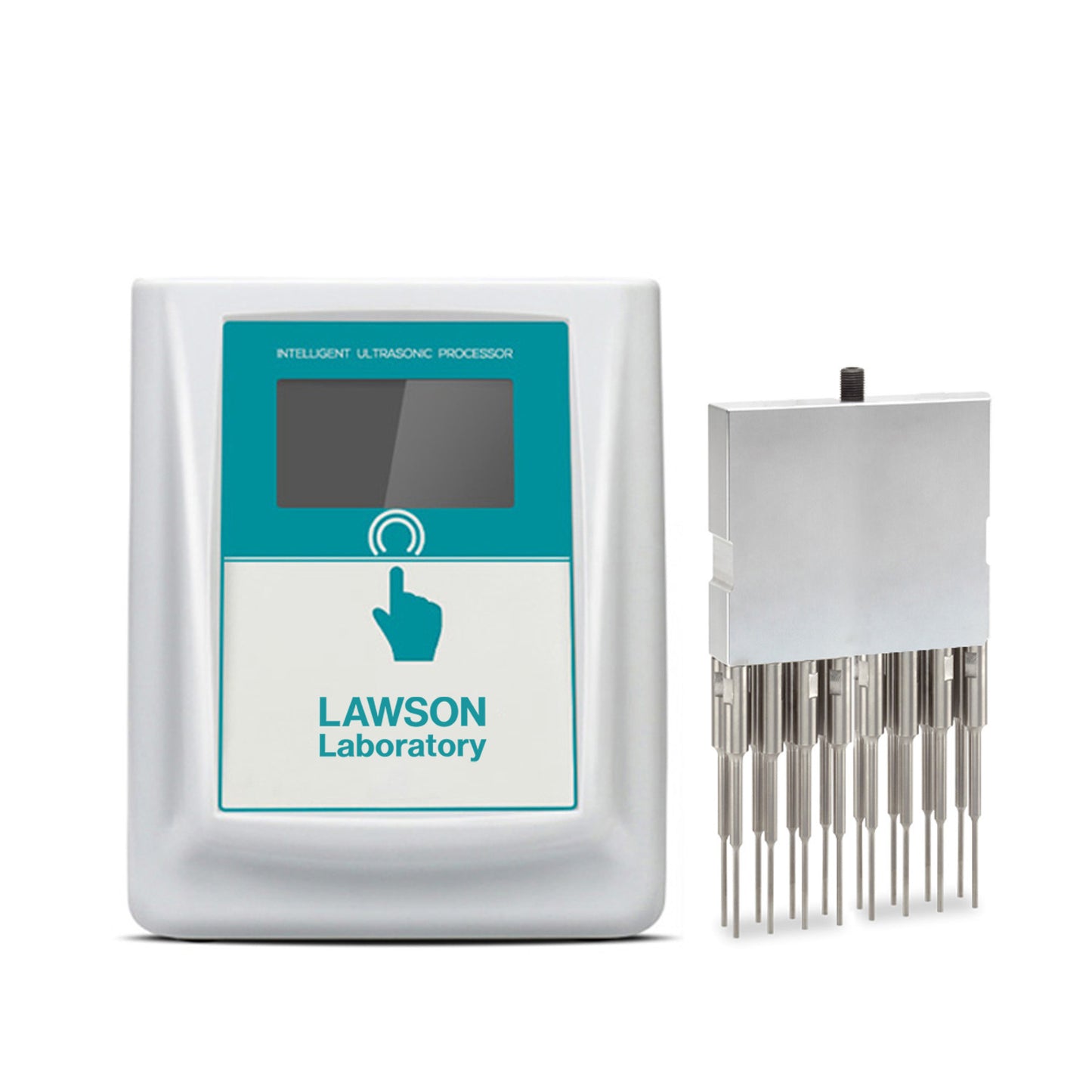

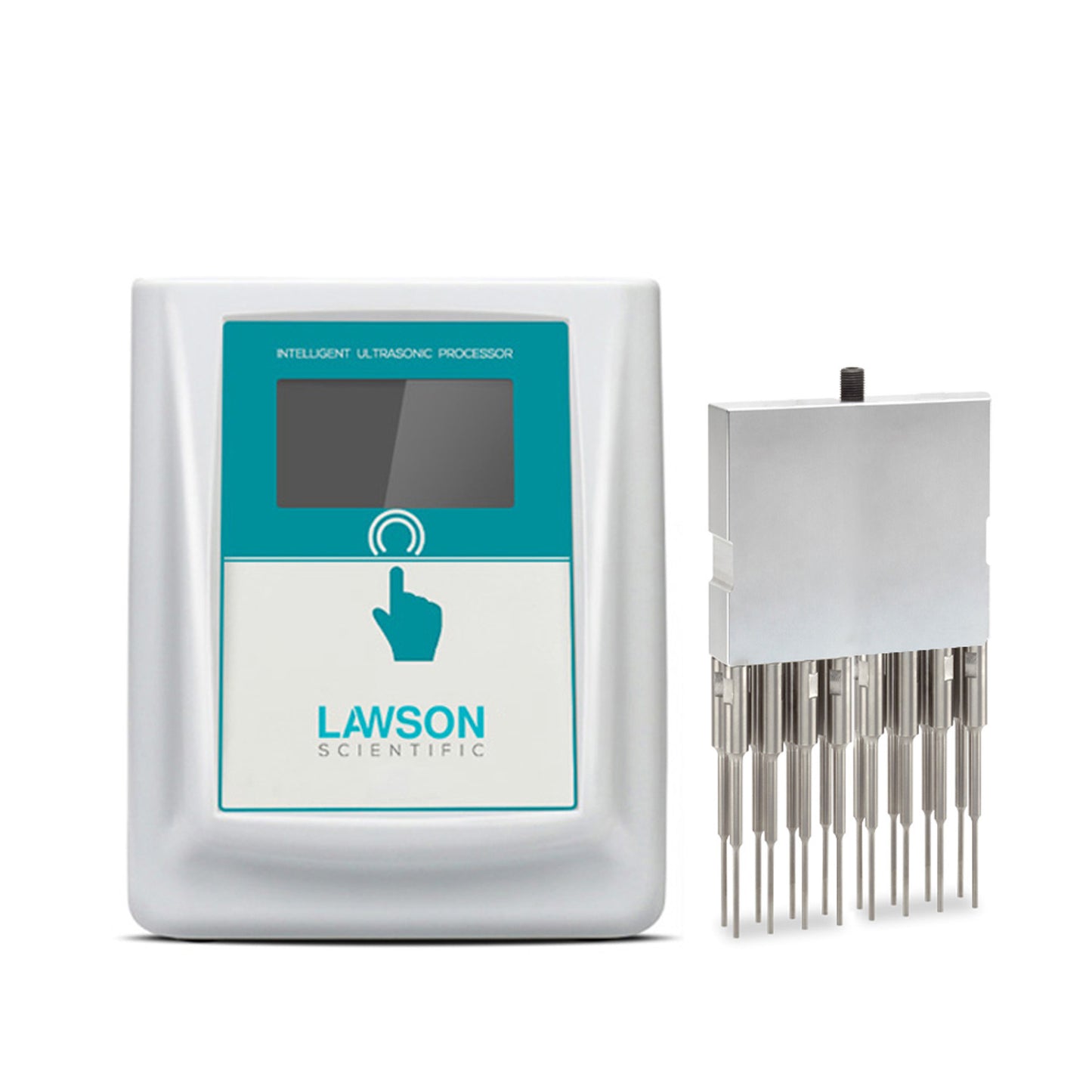

DH4S-1000 / DH8S-2000 / DH16S-3000is a 4/8/16-channelMultiple Probe Sonicatorwith an innovative customized 4/8/16-channel amplitude probe, capable of processing 4/8/16 samples simultaneously.
This instrument ensures sample uniformity and significantly improves experimental efficiency. By utilizing the cavitation effect of strong ultrasound in liquids, this multifunctional and versatile instrument can be used for the disruption of various animal and plant cells as well as viral cells(Laboratory & Research Use).
Multiple Probe Sonicatorcan also be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions, among other applications. It is widely used in the fields of biochemistry, microbiology, surface chemistry, physics, and zoology(Laboratory & Research Use).
Product Features
Central computer centralized control
Create and store up to 20 operating programs
Process multiple samples at once, fast, efficiently, and consistently
Selectable gap or continuous pulse mode
Ultrasonic time, power continuously adjustable, good stability
With program automatic error correction, overload and over-temperature protection display
Experimental Objectives
1. Understand the basic principles of ultrasonic cell crushing.
2. Master the basic techniques of ultrasonic cell crushing.
Experimental Principle
When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.
Technical Parameters
Model
DH4S-1000 / DH8S-2000 / DH16S-3000
Random amplitude Probes
Φ3 ×4 pcs / Φ3 ×8 pcs / Φ6 ×16 pcs
Optional amplitude Probes
Φ2,Φ6 ×4 pcs / Φ2,Φ6 ×8 pcs / Φ2,Φ3 ×16 pcs
Processing Volume
1-10ml ×4 / 1-10ml ×8 / 1-10ml ×16
Operating Frequency
20-25KHz
Power
1000W / 2000W / 3000W
Power Control Range
1-100%
Duty Ratio
1-99%
Protection function
Over-temperature, Over-power, Over-time
Total Time Setting
0.1-999 min
Pulser Time
0.1-99.9s
Intermittent Time
0.1-99.9s
Temperature sensor
yes
Storage data
20 groups
Main Unit Size
400×280×220mm
Main unit + transducer weight
16kg / 18kg / 22kg
For laboratory and research use only. Not intended for clinical, medical, or direct food processing use.
