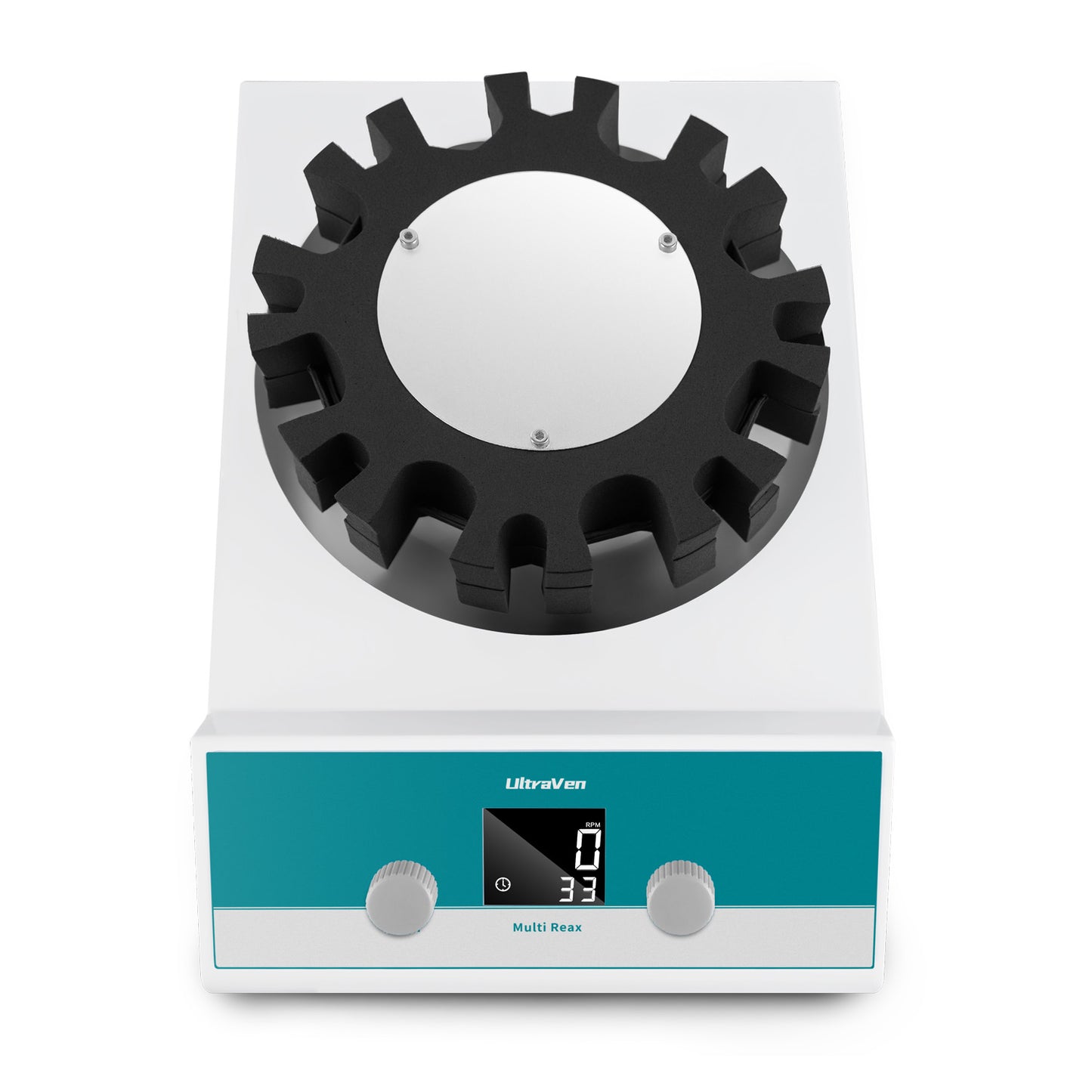

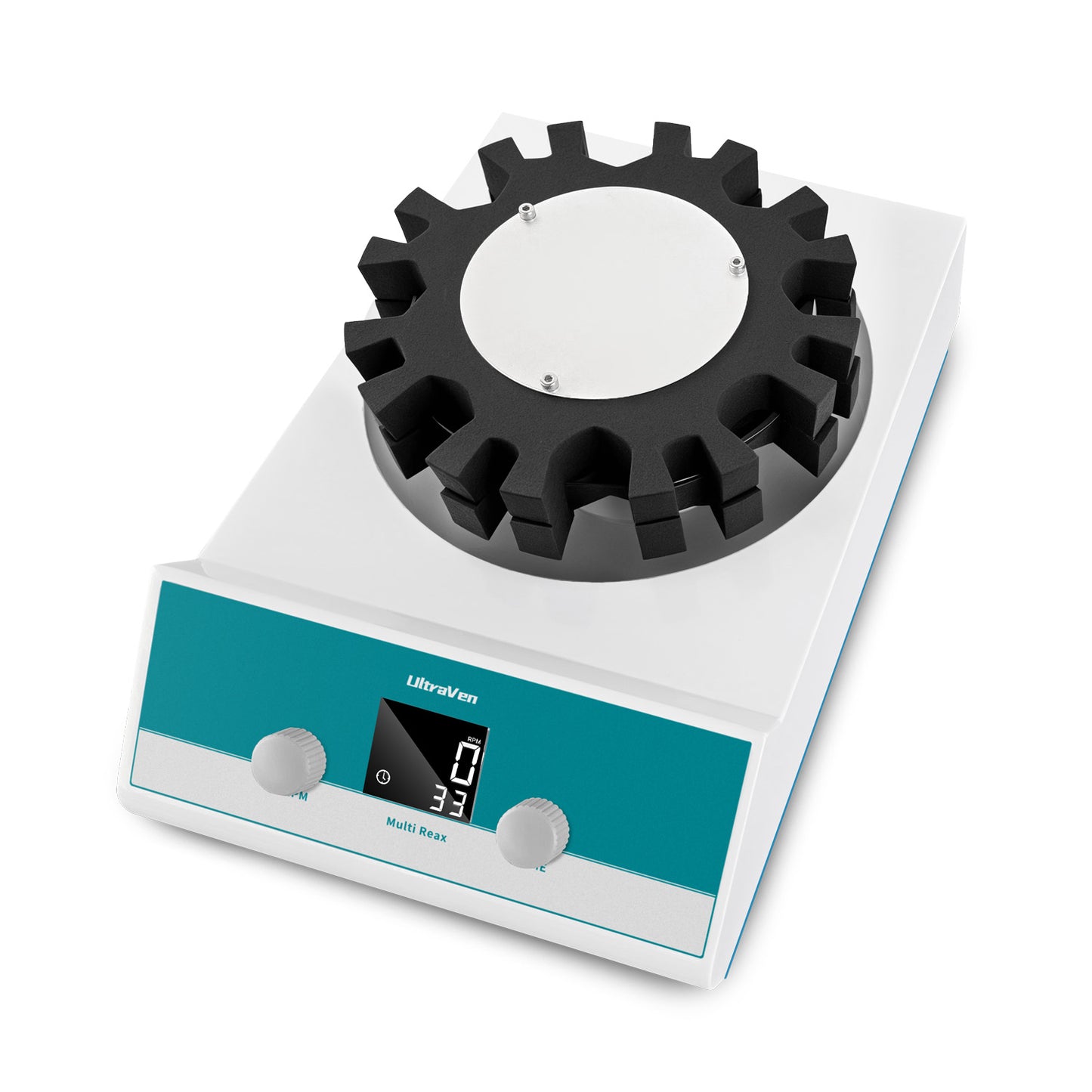

Multi Reax Vortex Mixer,Multi Reax,DMR-M200

Product Introduction

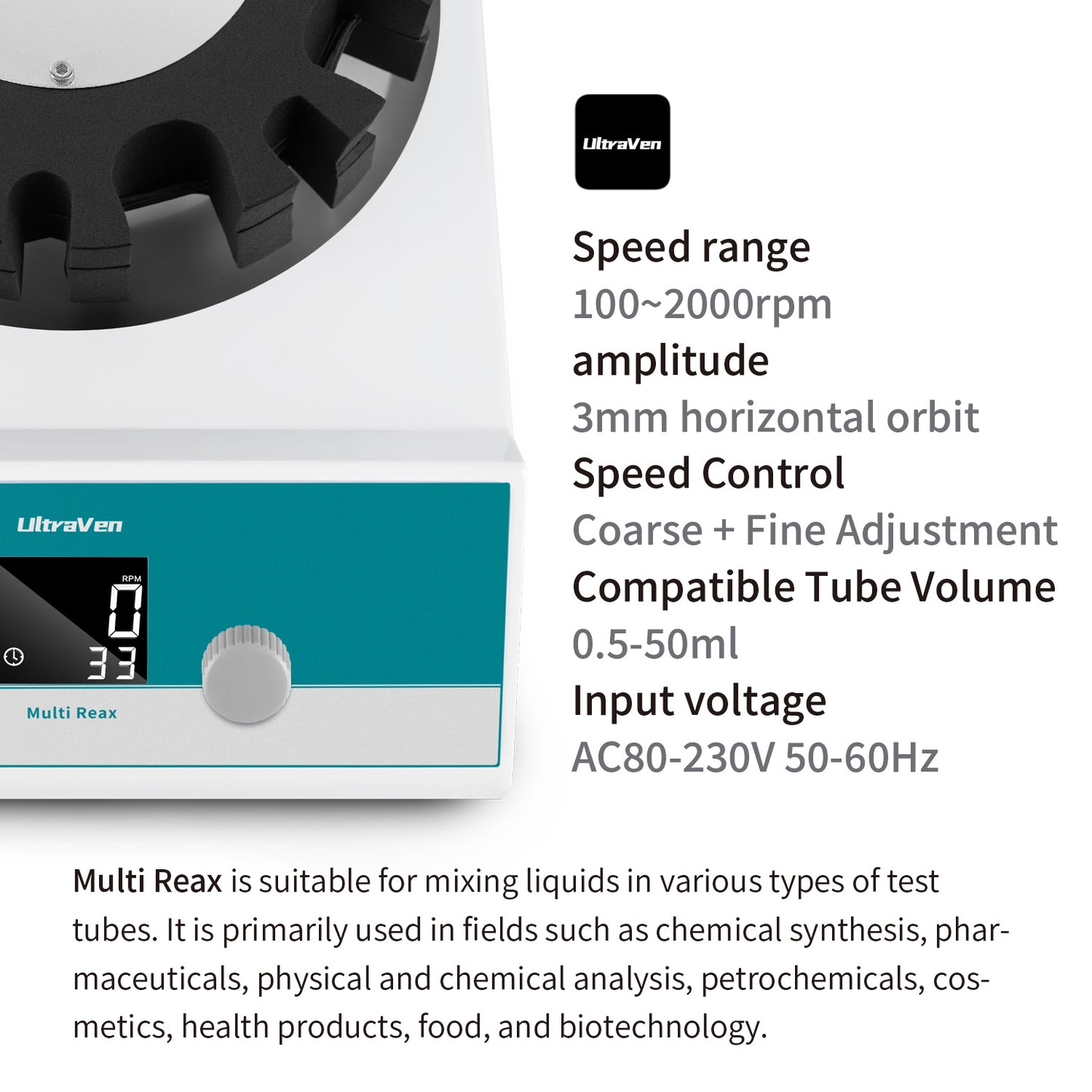

Multi Reax is suitable for mixing liquids in various types of test tubes. It is primarily used in fields such as chemical synthesis, pharmaceuticals, physical and chemical analysis, petrochemicals, cosmetics, health products, food, and biotechnology.

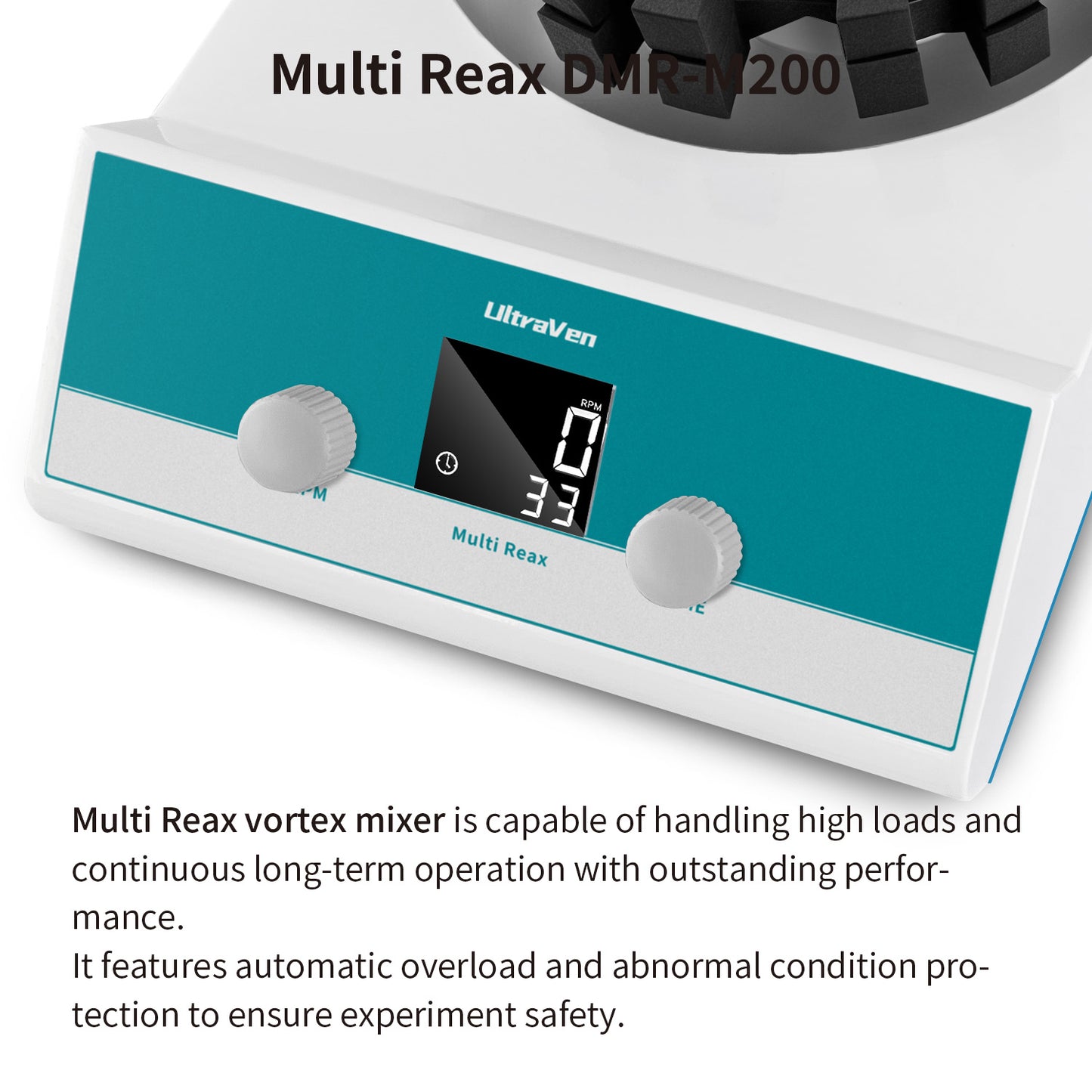

This Multi Reax vortex mixer is capable of handling high loads and continuous long-term operation with outstanding performance.
It features automatic overload and abnormal condition protection to ensure experiment safety.

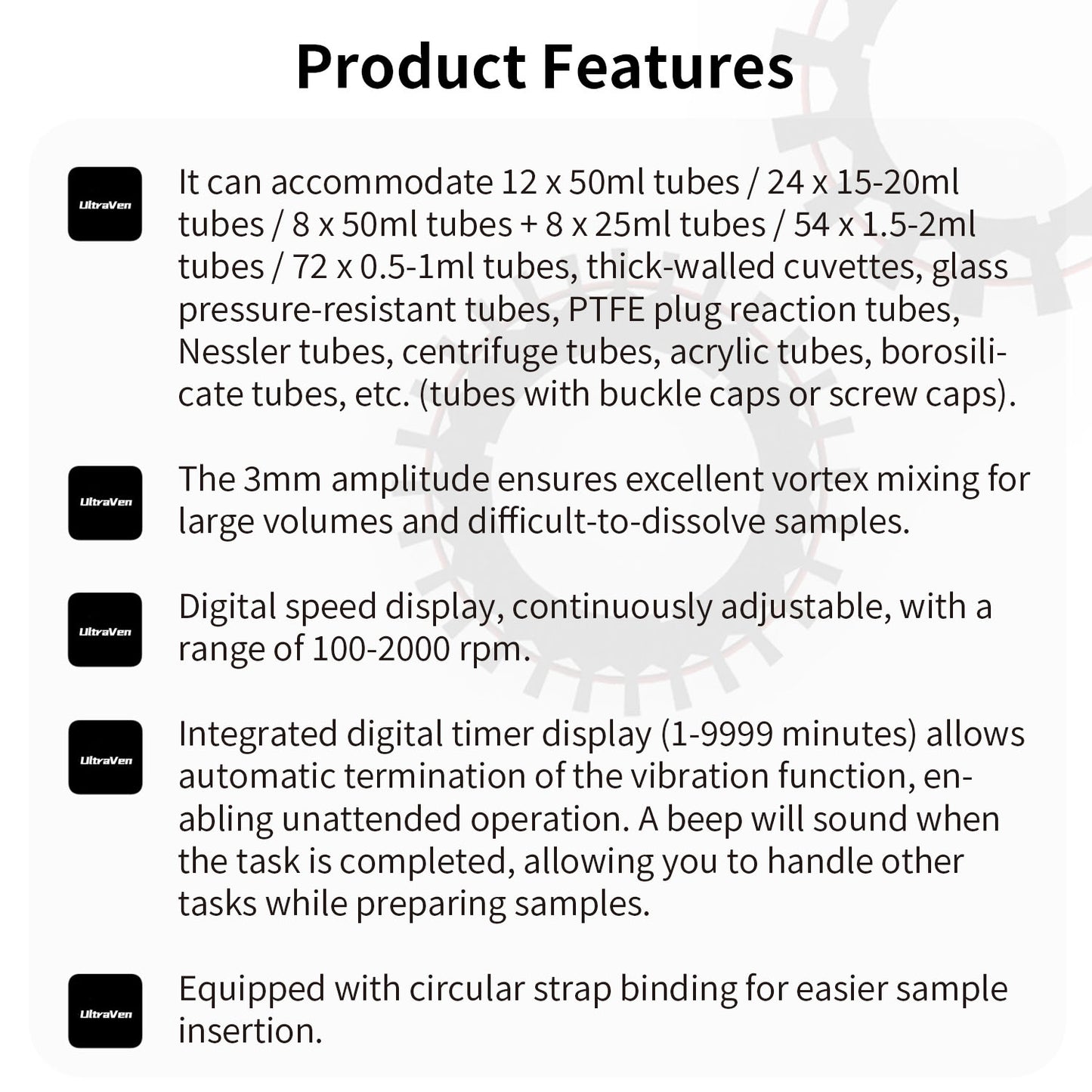

Product Features
· It can accommodate 12 x 50ml tubes / 24 x 15-20ml tubes / 8 x 50ml tubes + 8 x 25ml tubes / 54 x 1.5-2ml tubes / 72 x 0.5-1ml tubes, thick-walled cuvettes, glass pressure-resistant tubes, PTFE plug reaction tubes, Nessler tubes, centrifuge tubes, acrylic tubes, borosilicate tubes, etc. (tubes with buckle caps or screw caps).
· The 3mm amplitude ensures excellent vortex mixing for large volumes and difficult-to-dissolve samples.
· Digital speed display, continuously adjustable, with a range of 100-2000 rpm.
· Integrated digital timer display (1-9999 minutes) allows automatic termination of the vibration function, enabling unattended operation. A beep will sound when the task is completed, allowing you to handle other tasks while preparing samples.
· Equipped with circular strap binding for easier sample insertion.

Application Range
1. Food: Additive content, organic hazardous substances
2. Pharmaceutical analysis: Residues in traditional Chinese medicine, biochemical analysis of Western medicine
3. Agricultural product testing: QuEchERS, agricultural product residues, veterinary food residues
4. Environmental testing: Water quality, soil

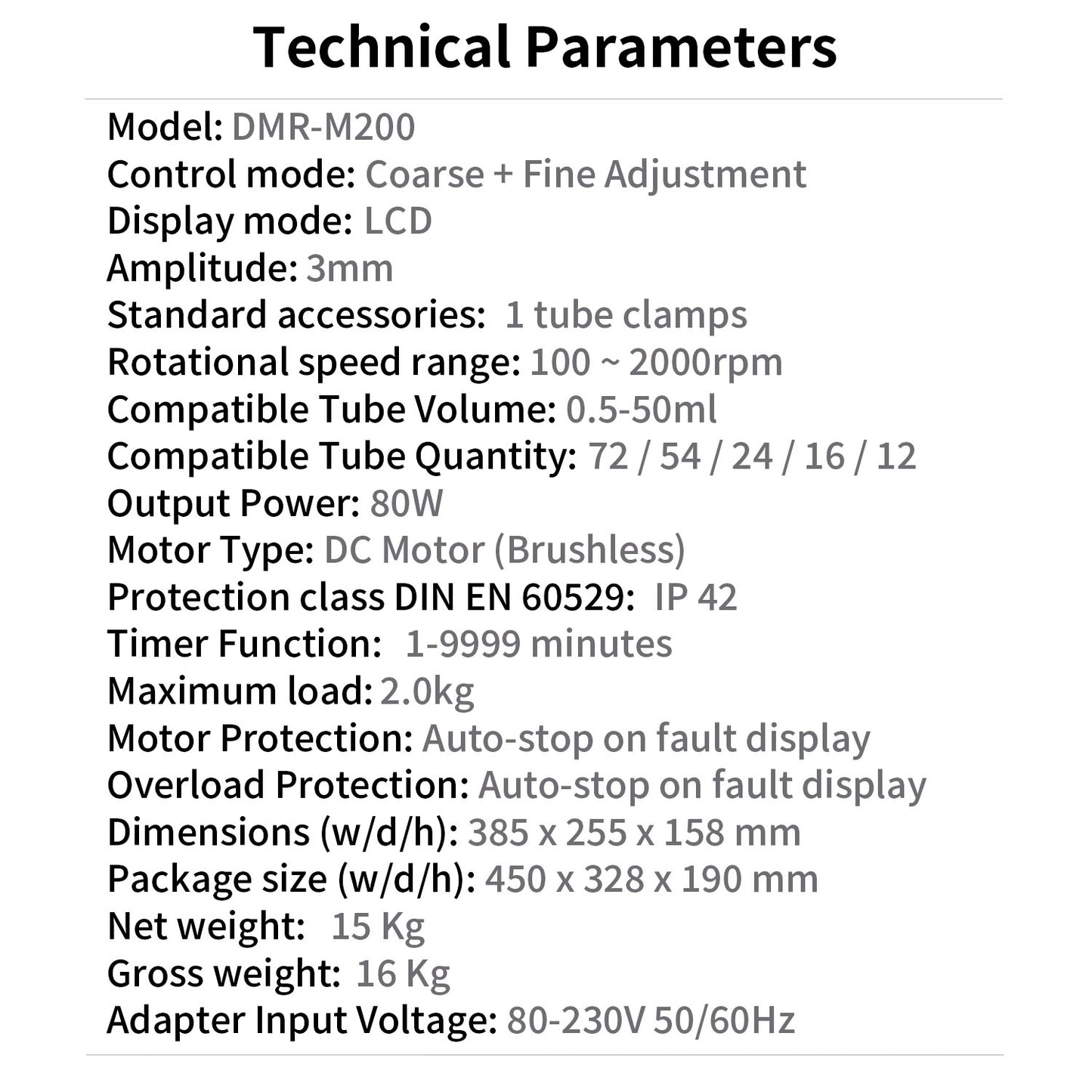

Technical Specifications
Model:    DMR-M200
Display:    LCD
Operation Mode:    Amplitude
Amplitude:    3mm
Adapter Input Voltage:    80-230V
Frequency:    50-60Hz
Speed Control:    Coarse + Fine Adjustment
Speed Range:    100-2000rpm
Compatible Tube Volume:    0.5-50ml
Compatible Tube Quantity:    72/54/24/16/12
Output Power:    80W
Motor Type:    DC Motor (Brushless)
Protection Class:    IP 42
Timer Function:    1-9999 minutes
Maximum Load:    2kg
Motor Protection:    Auto-stop on fault display
Overload Protection:    Auto-stop on fault display
Permissible Environmental Conditions:    Maximum 80% relative humidity at 5-35 °C
Linear decrease to a maximum of 50% relative humidity at 36-40°C
Dimensions (w/d/h):    385 x 255 x 158 mm
Package size (w/d/h):    450 x 328 x 190 mm
Net weight:    15 Kg
Gross weight:    16 Kg

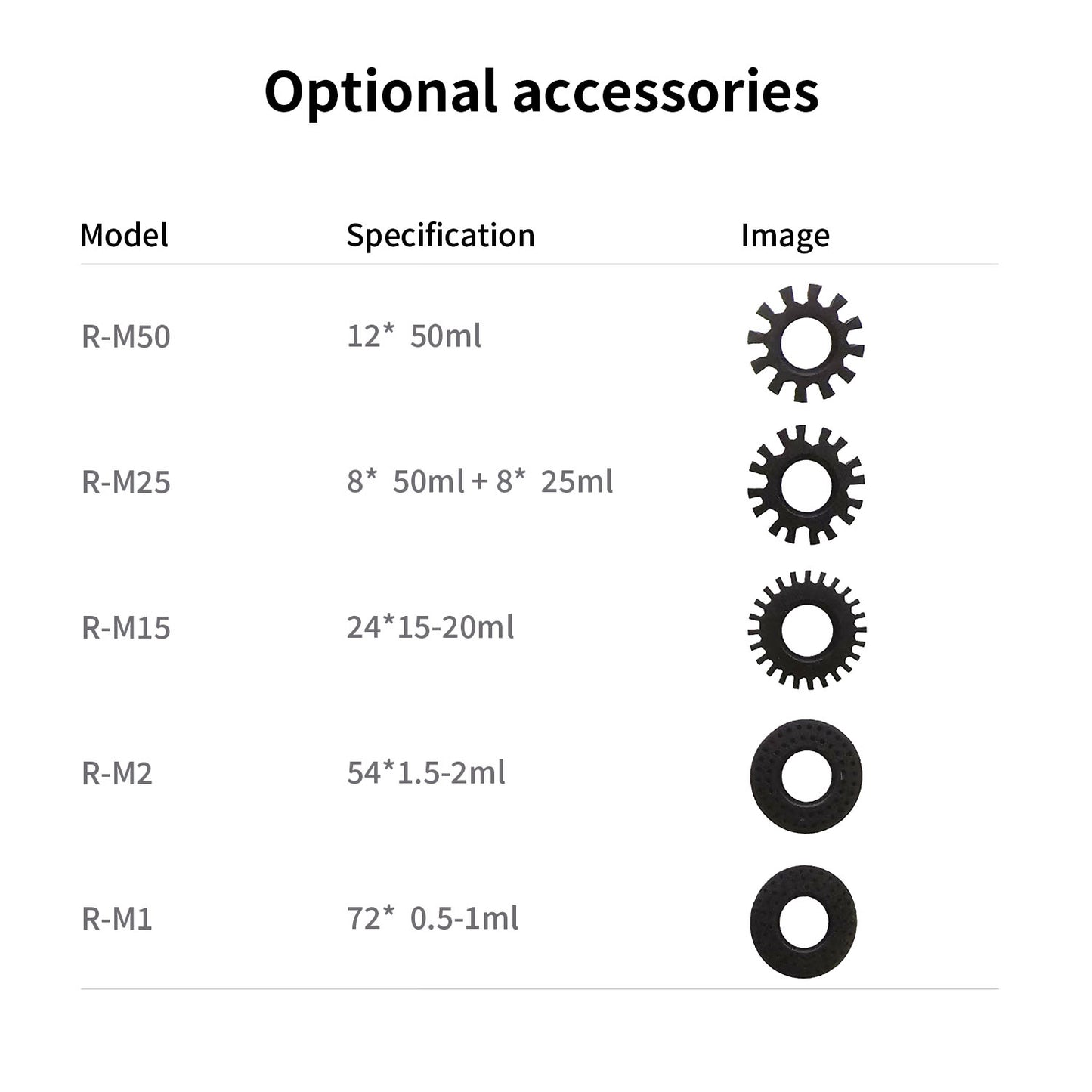

Adapter bracket selection
