LAWSON Laboratory

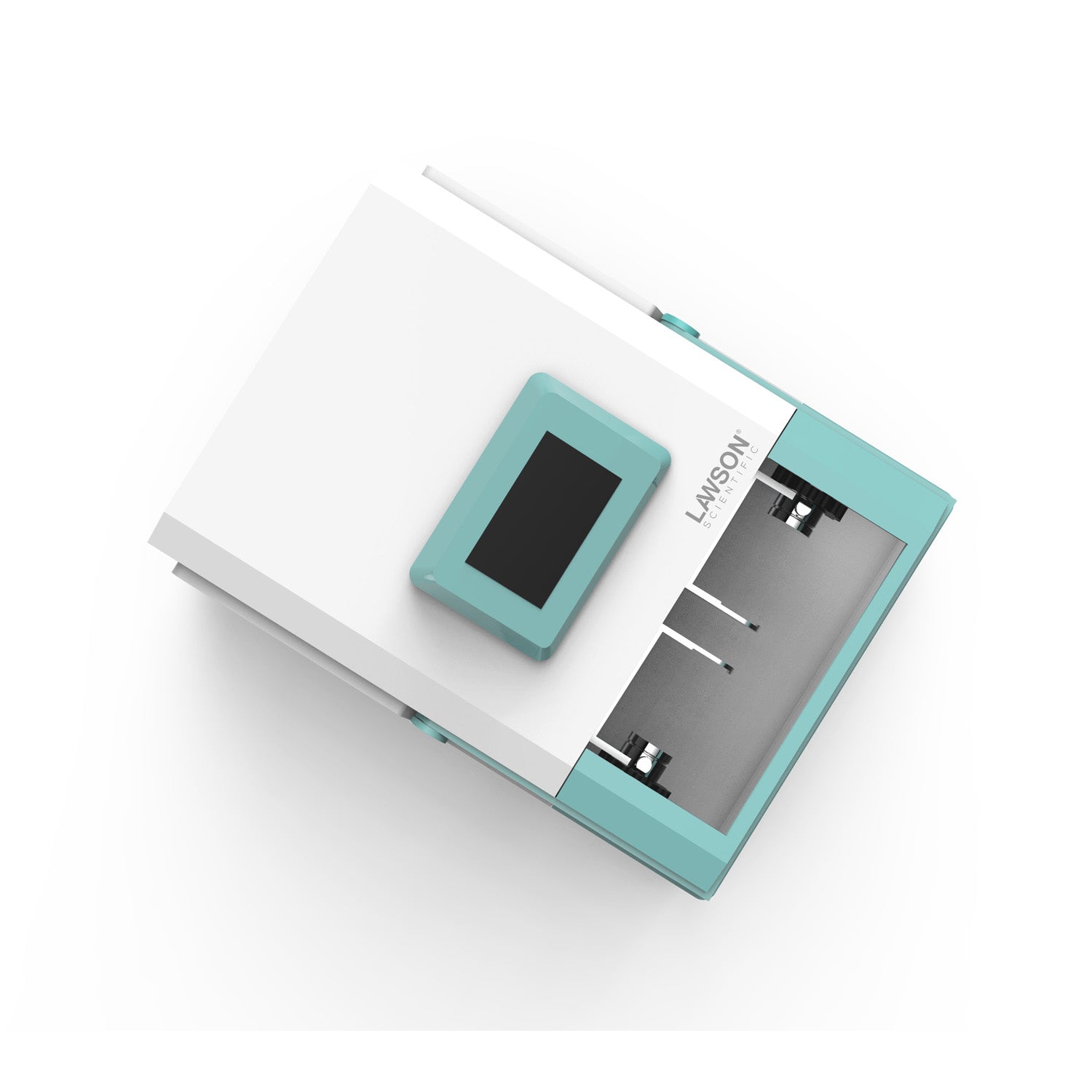

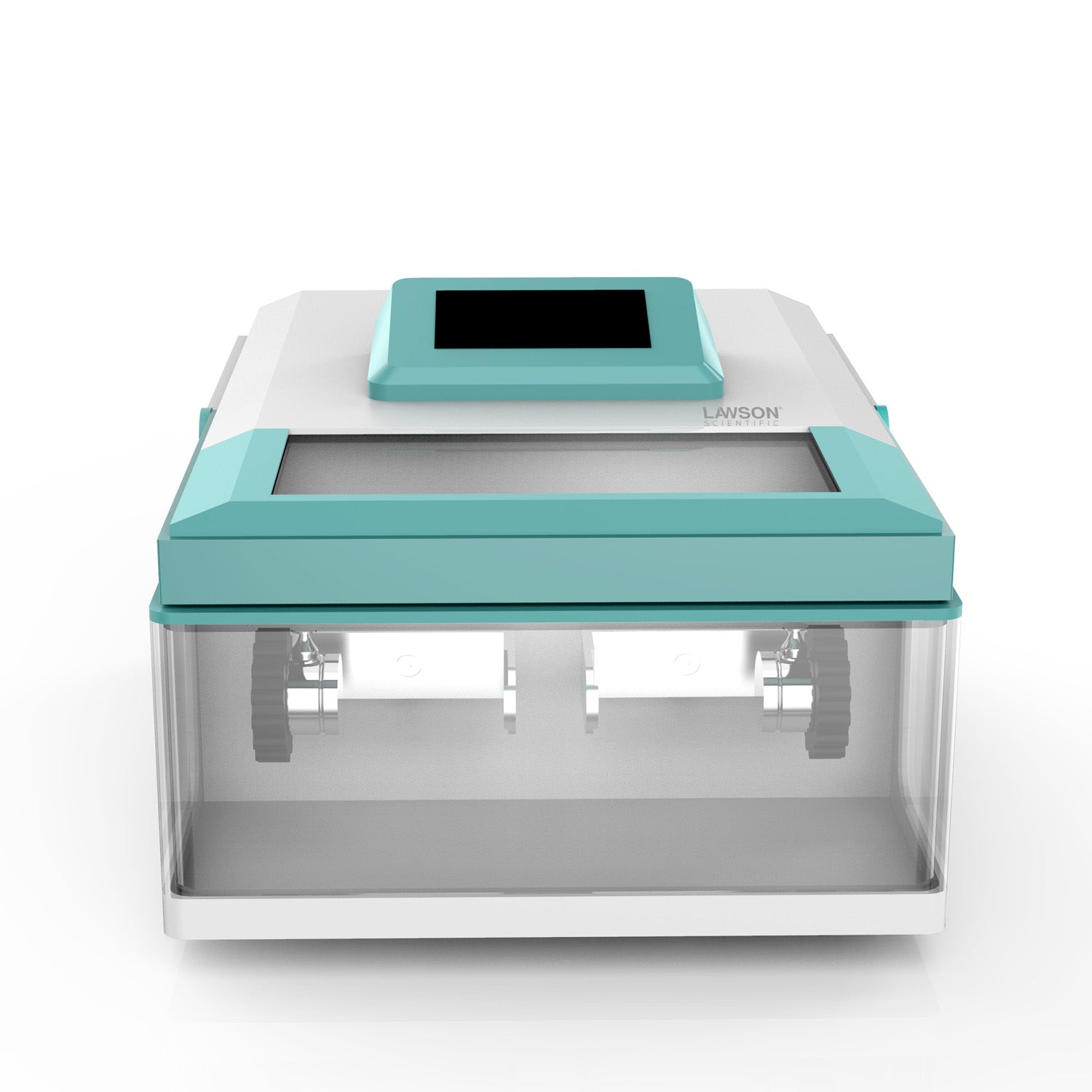

Mixer mill,lab mills,laboratory mixer mill,DH-S2010

Mixer mill,lab mills,laboratory mixer mill,DH-S2010

Regular price $2,850.00 USD
Now Sold out
Sale price $2,850.00 USD Regular price
Free shipping Customs duties and taxes may apply depending on destination and are the responsibility of the customer.

Fast lead time available

Multiple configurations available

Product Introduction

  • LAWSON Laboratory Mixer mill offers a comprehensive range of the most modern mills and crushers for coarse, fine and ultra-fine size reduction of almost any material.

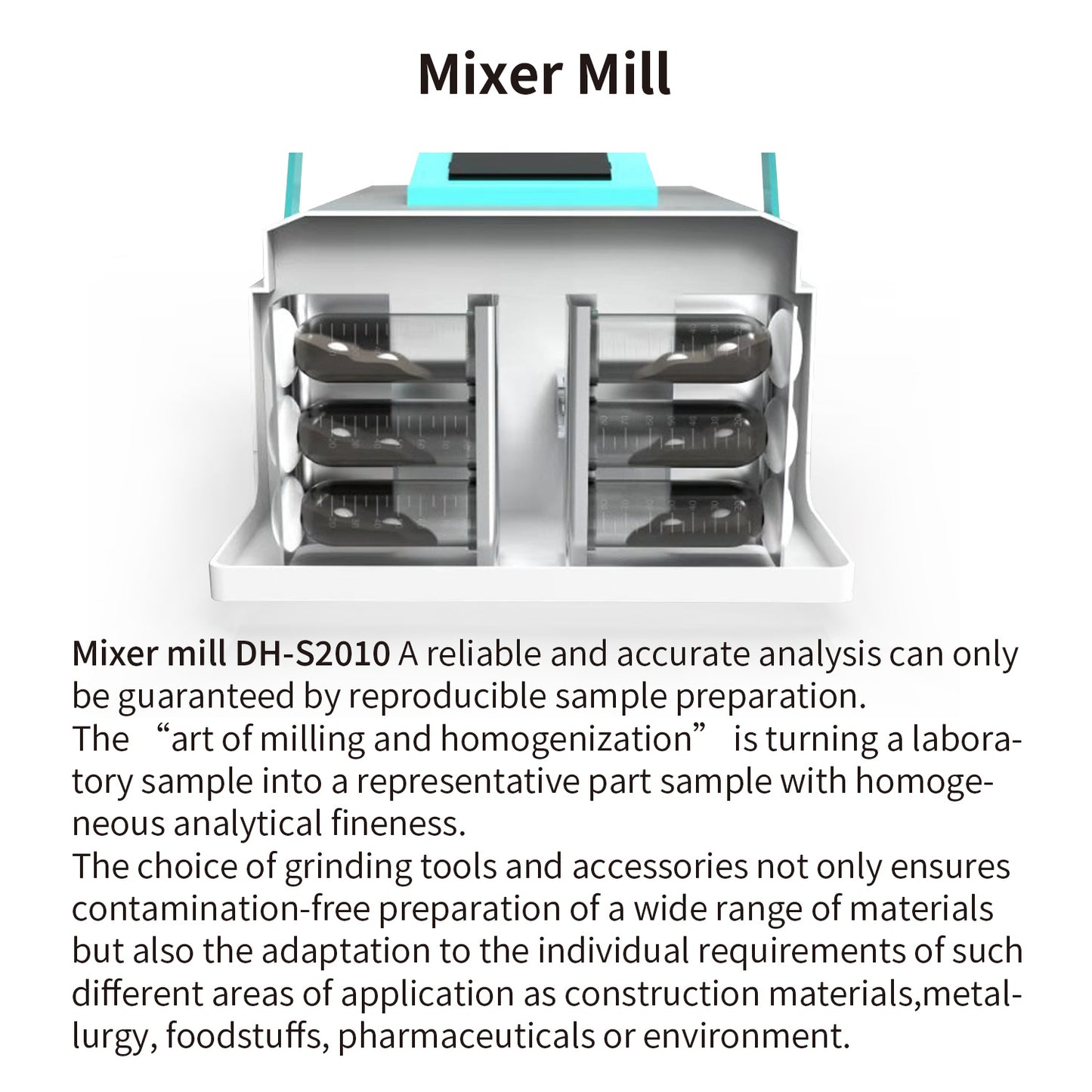

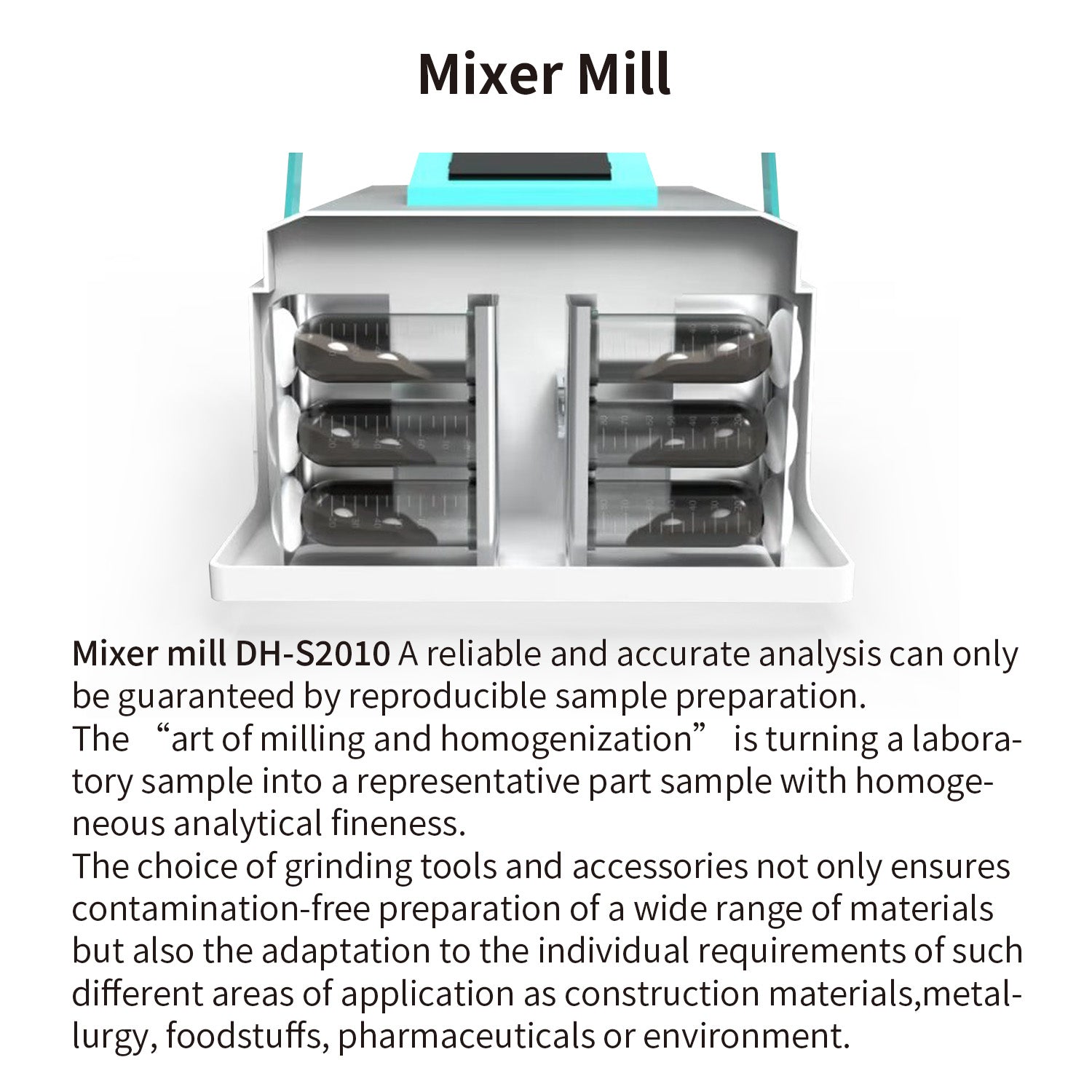

  • Mixer mill DH-S2010 A reliable and accurate analysis can only be by reproducible sample preparation.

Overview

  • The “art of milling and homogenization” is turning a laboratory sample into a representative part sample with homogeneous analytical fineness.
  • The choice of grinding tools and accessories not only preparation of a wide range of materials but also the adaptation to the individual requirements of such different areas of application as construction materials,metallurgy (Laboratory & Research Use).

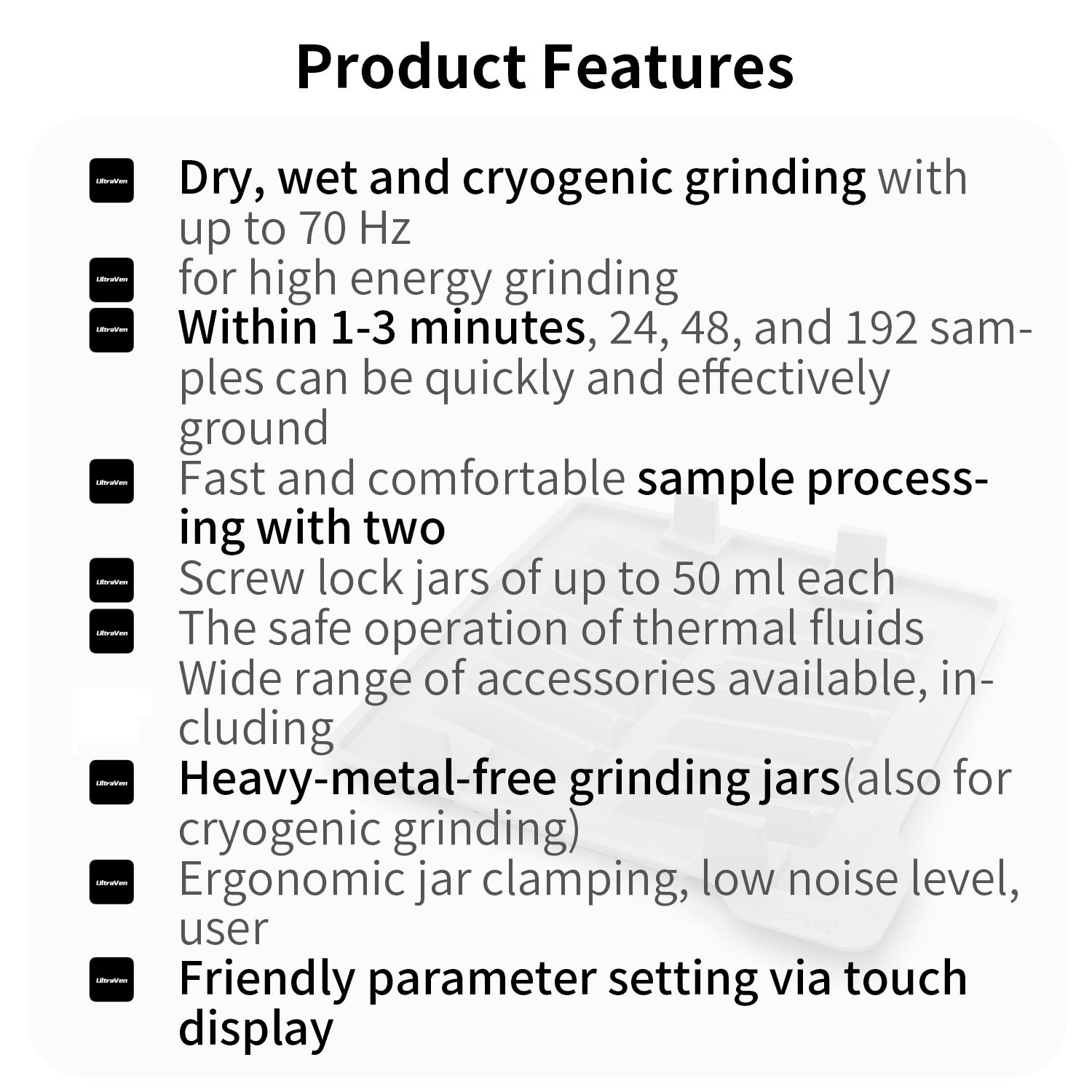

Product Features

  • Dry, wet and cryogenic grinding with up to 70 Hz
  • for high energy grinding
  • Within 1-3 minutes, 24, 48, and 192 samples can be quickly and effectively ground
  • Fast and comfortable sample processing with two
  • Screw lock jars of up to 50 ml each
  • The safe operation of thermal fluids
  • Wide range of accessories available, including
  • Heavy-metal-free grinding jars(also for cryogenic grinding)
  • Jar clamping, low noise level, user
  • Friendly parameter setting via touch display

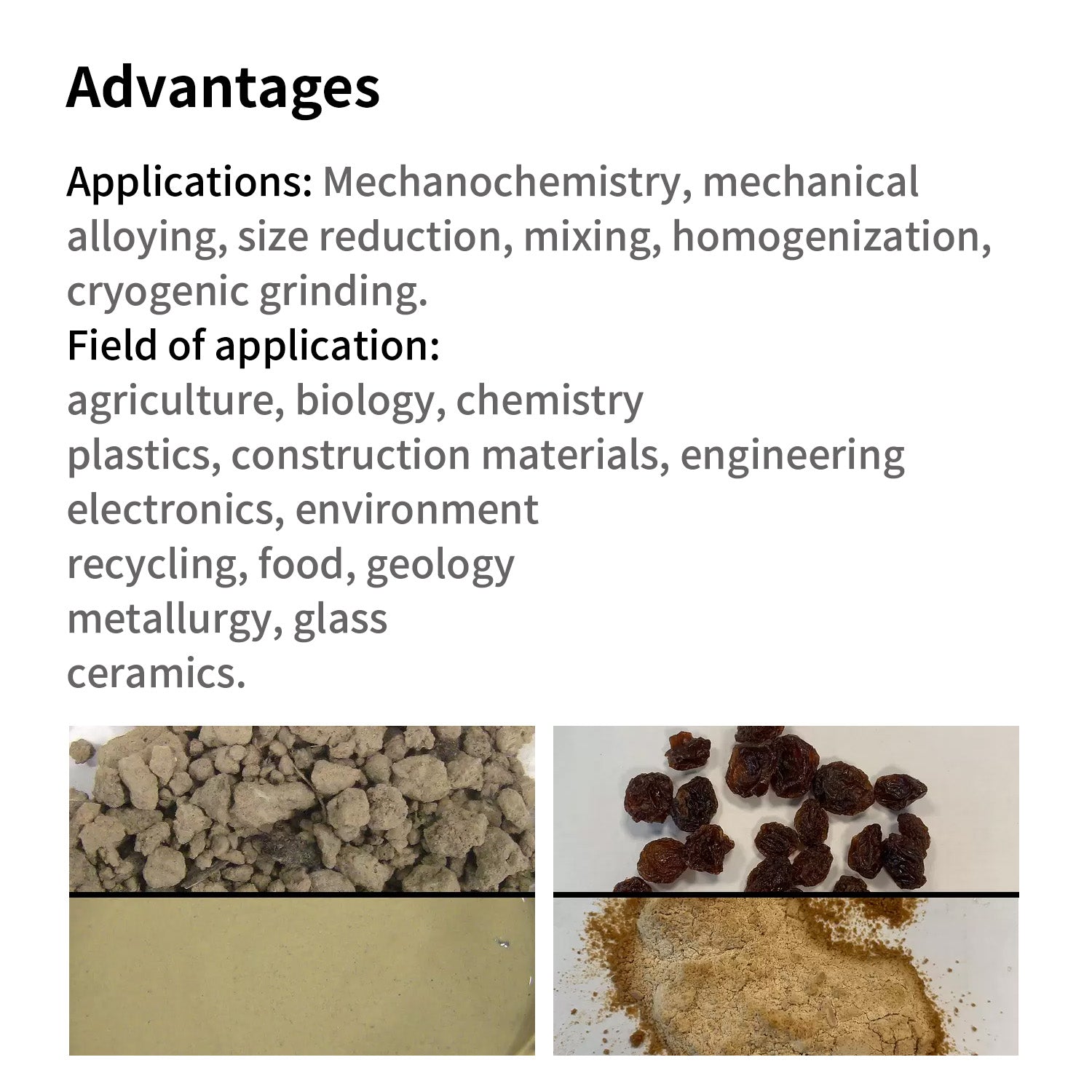

Application Range

  • DH-S2010 Mixer mill can rapidly and effectively perform dry or wet grinding on hard, soft, and elastic samples within 1-3 minutes.
  • As the DH-S2010 control can be used with or without cooling, the mill offers a wide variety of applications. It can be used to homogenize, for example, waste, soil, chemical products, ores, grain, tissue, glass, hair, ceramics, bones, plastics, alloys, minerals, plants, textiles, wool etc (Laboratory & Research Use).

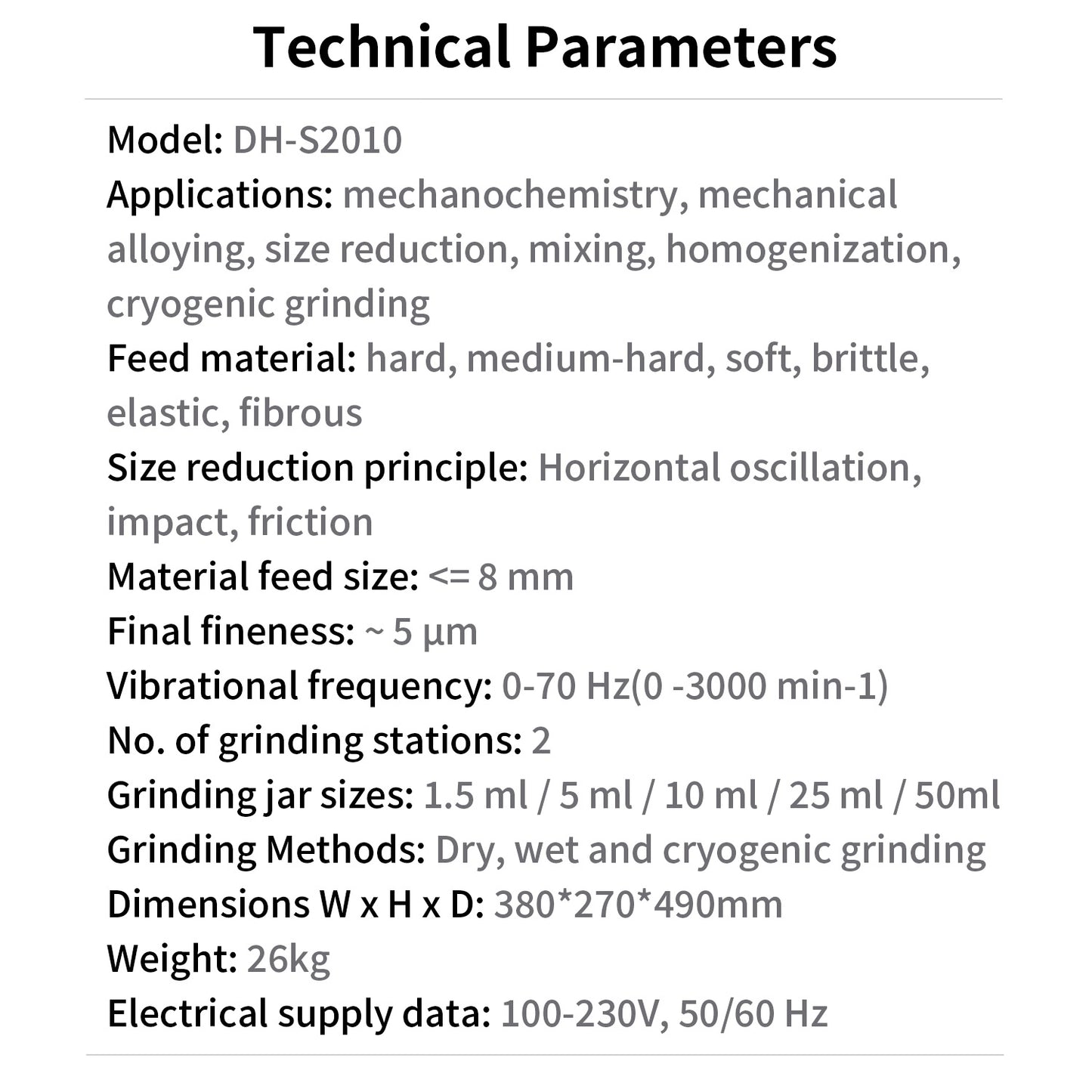

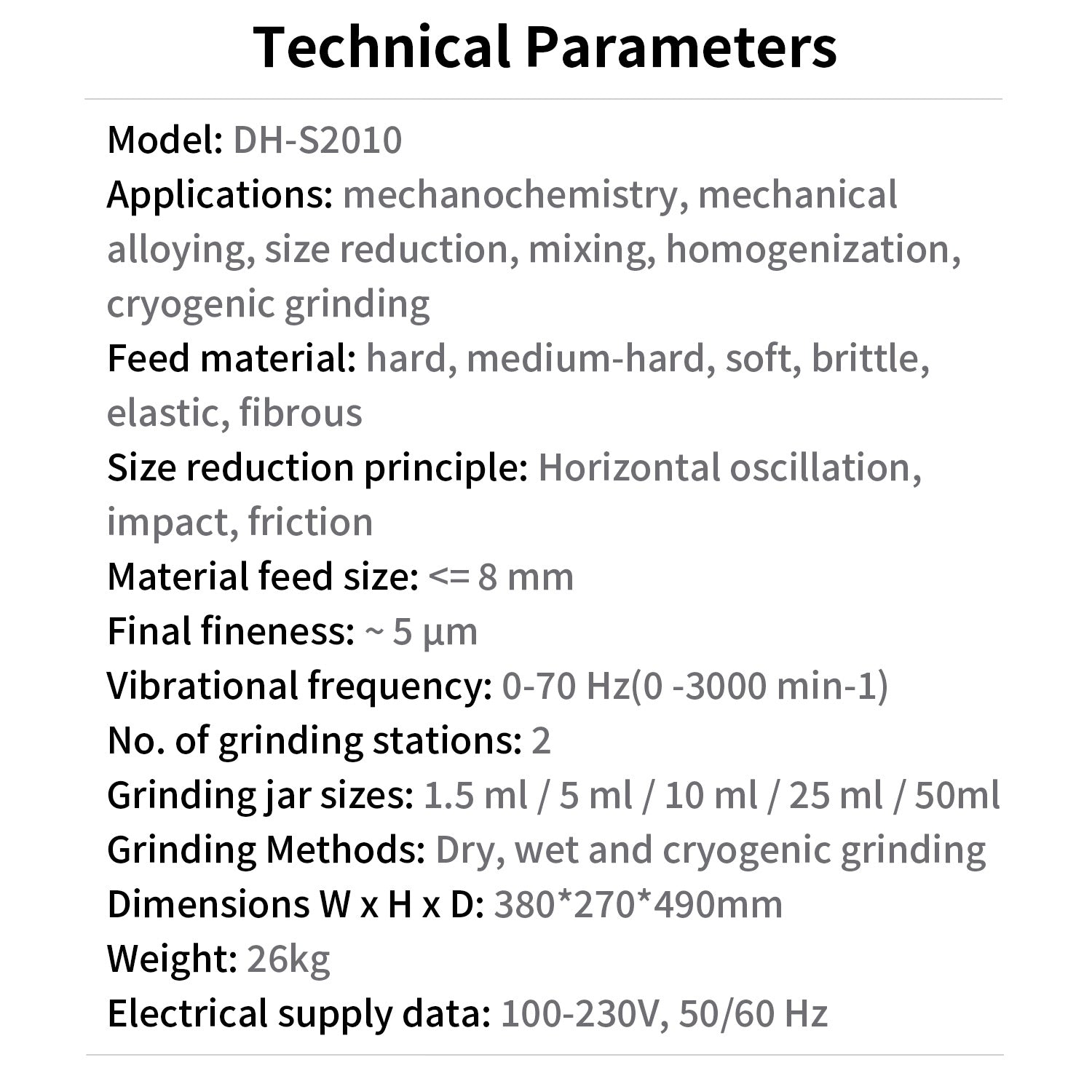

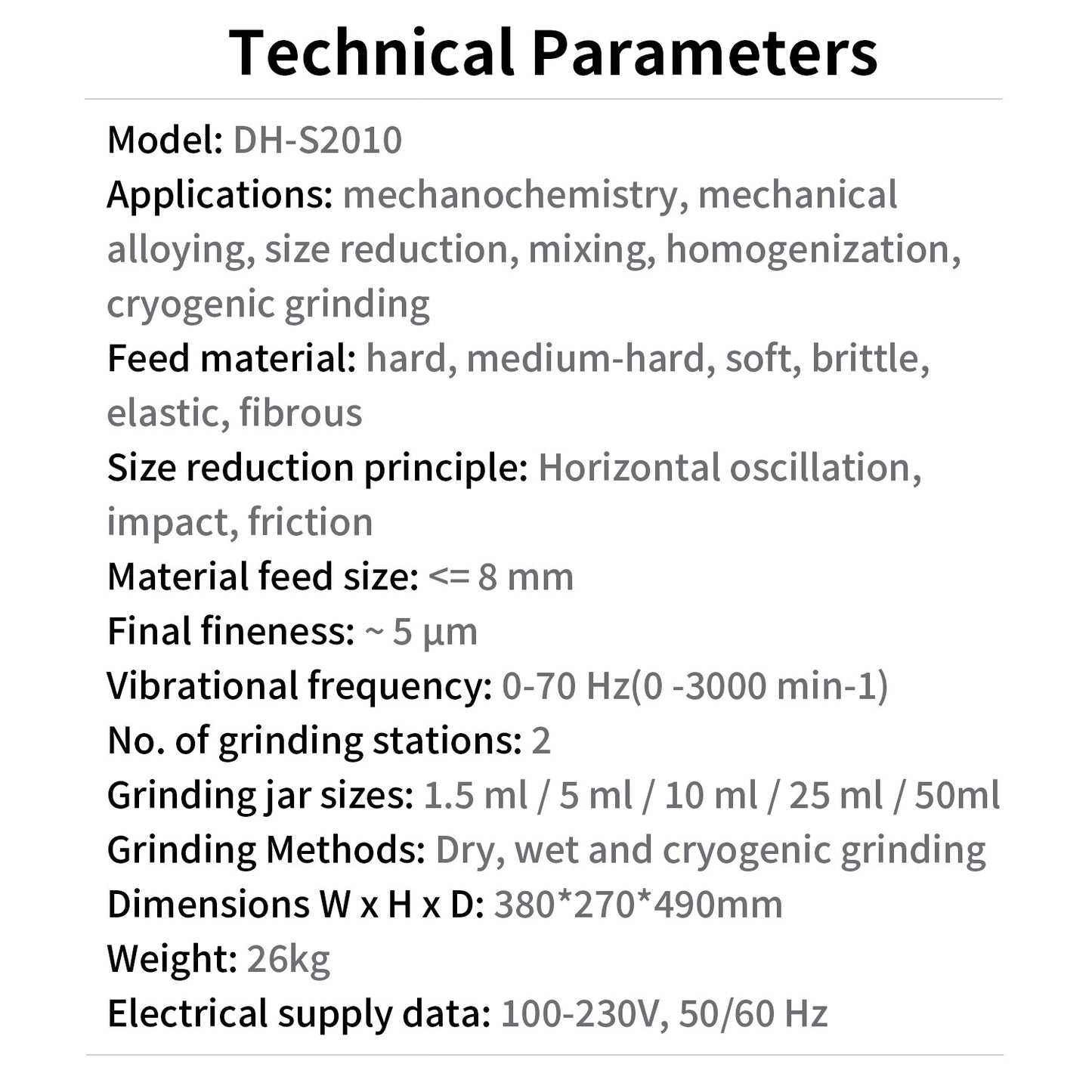

Technical Parameters

Model: DH-S2010
Applications: size reduction, mixing, homogenization, cell disruption, cryogenic grinding
Field of application: Biology, chemistry / plastics, construction materials, engineering / electronics, geology / metallurgy, glass / ceramics (Laboratory & Research Use)
Feed material: hard, medium-hard, soft, brittle, elastic, fibrous
Size reduction principle: impact, friction
Material feed size: ≤8 mm
Final fineness: ~ 5 µm
Batch size / feed quantity: max. 2 x 50 ml
No. of grinding stations: 2

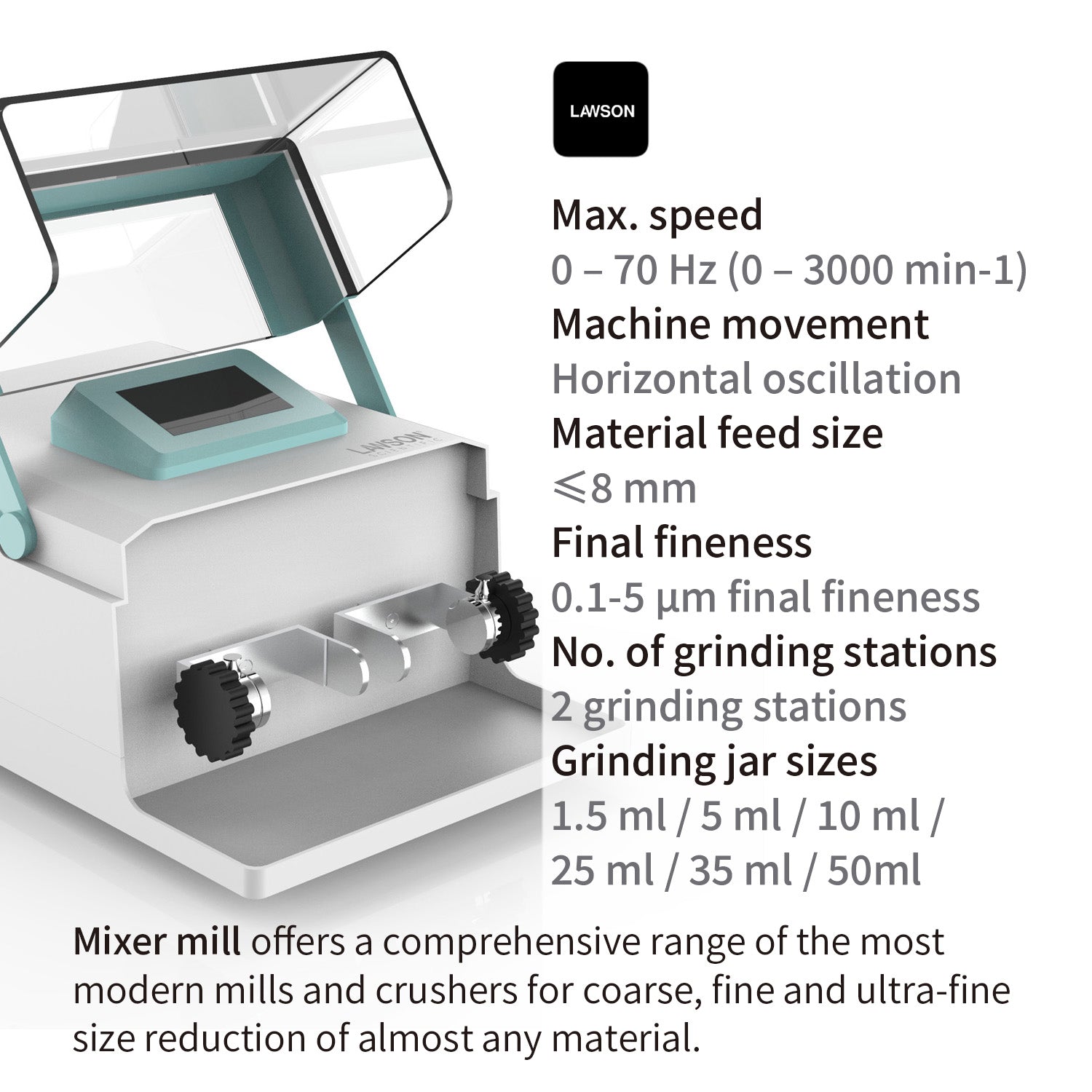

Setting of vibrational frequency: digital, 0 – 70 Hz (0 – 3000 min-1)
Typical mean grinding time: 30 s – 2 min
Grinding method: Dry grinding/Wet grinding/Cryogenic grinding
Cell disruption with reaction vials: yes, up to 96 x 2.0 ml
Self-centering clamping device: yes
Type of grinding jars: screw top design
Material of grinding tools: hardened steel, stainless steel, tungsten carbide, agate, zirconium oxide, PTFE
Grinding ball material: Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand

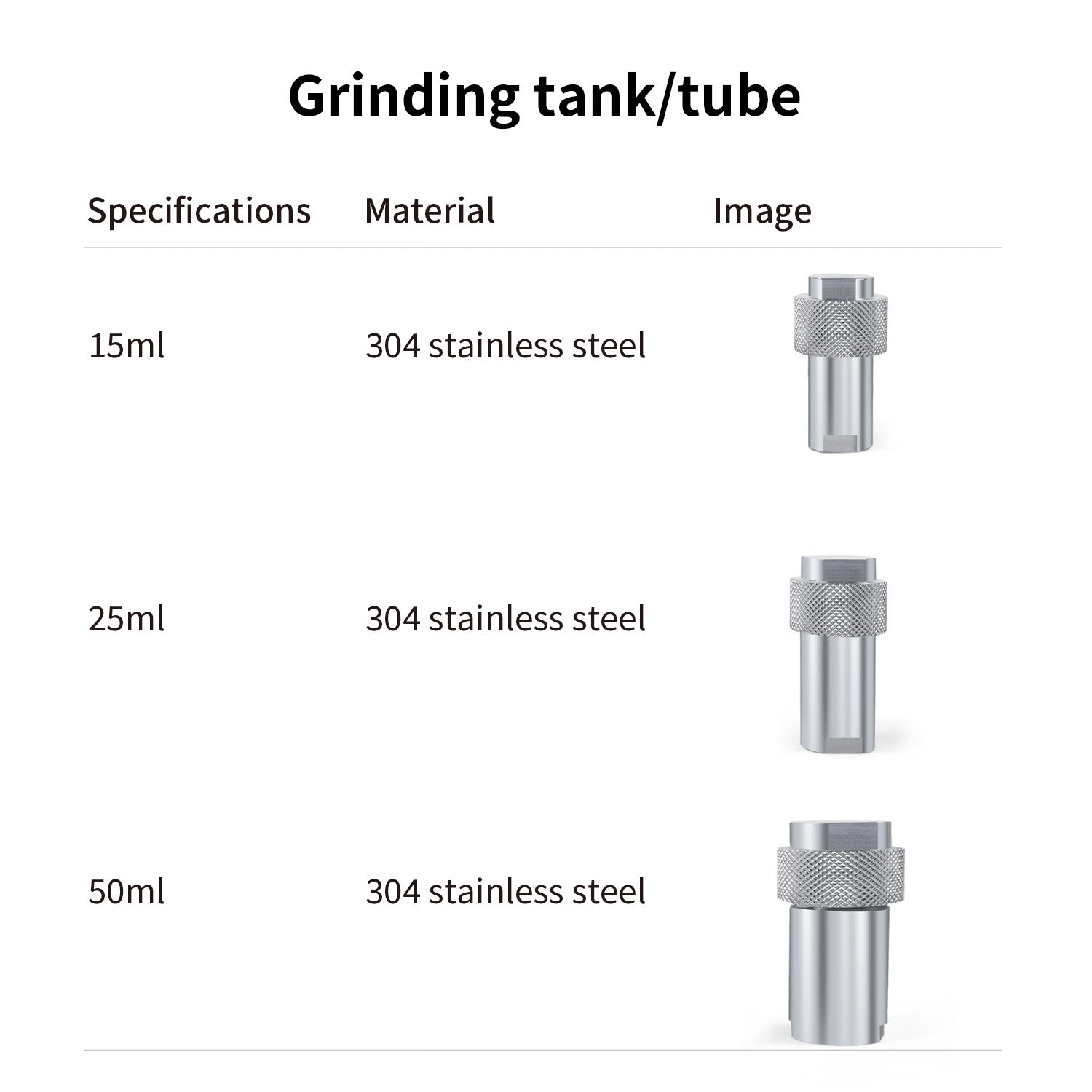

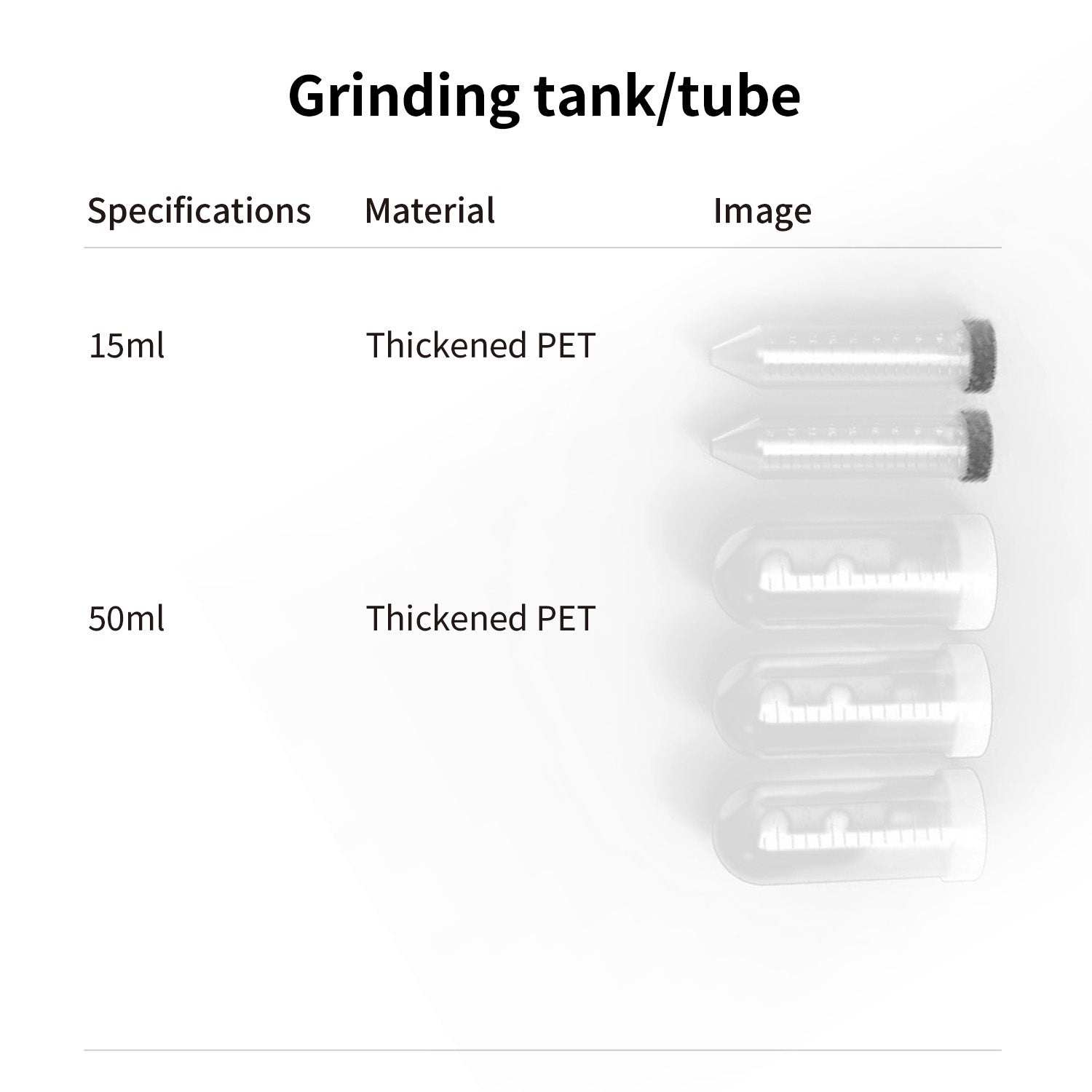

Grinding jar sizes: 1.5 ml / 5 ml / 10 ml / 25 ml / 35 ml / 50ml
Setting of grinding time: digital, 10 s – 99 min
Storable SOPs: 20
Power consumption: 150 W
W x H x D closed: 380*270*490
Net weight: 26kg
Electrical supply data: 100-240 V, 50/60 Hz


For laboratory and research use only. Not intended for clinical, medical, or direct food processing use.
