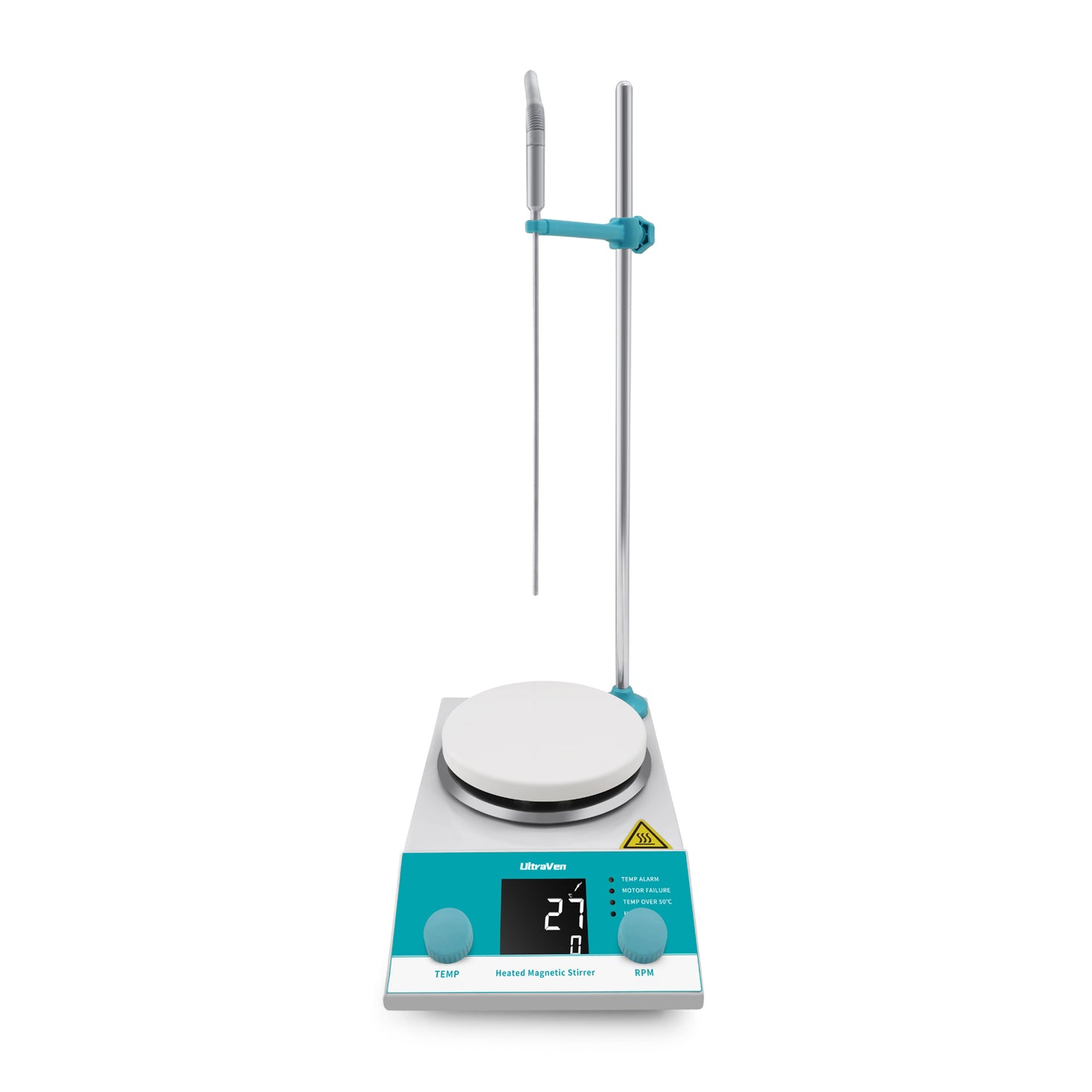

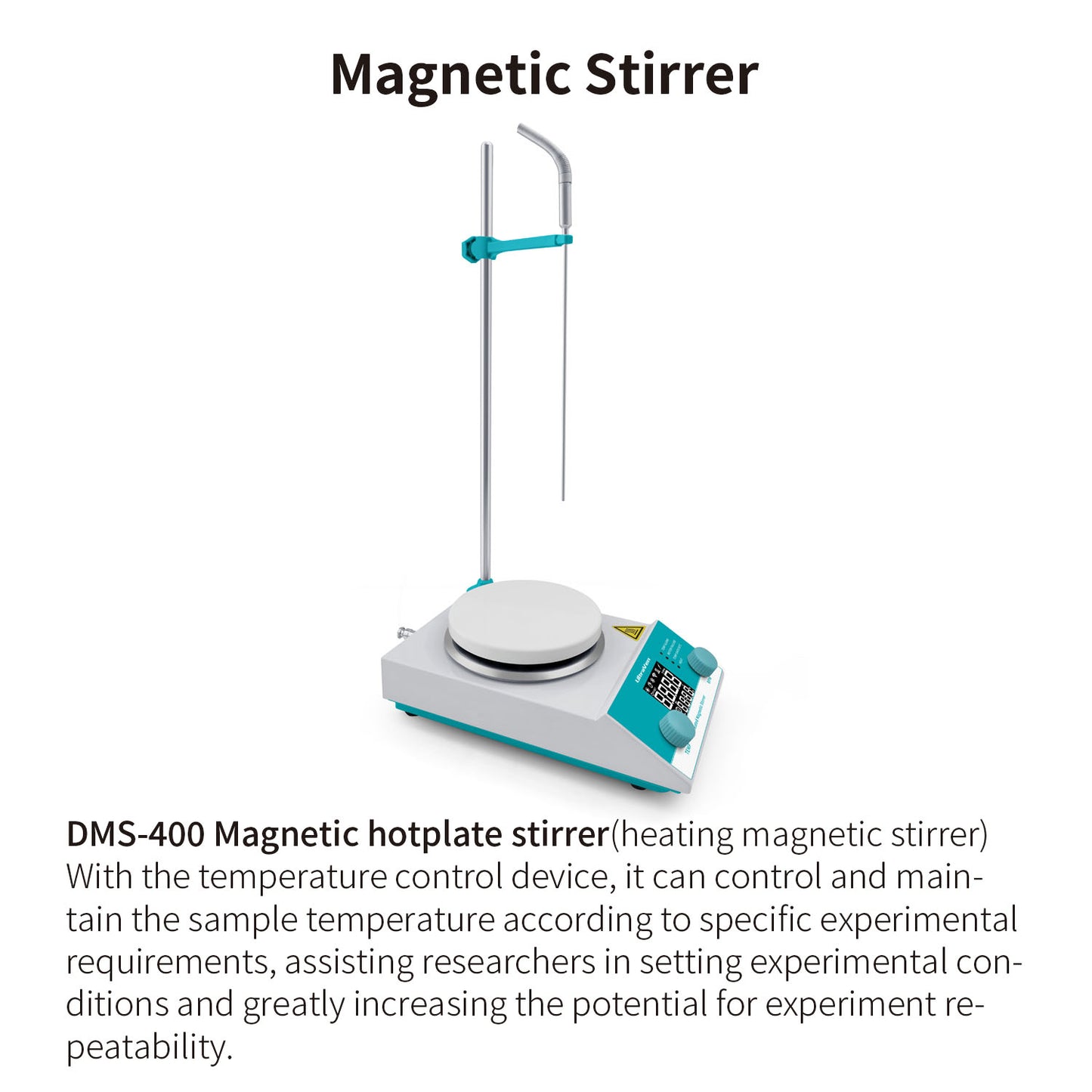

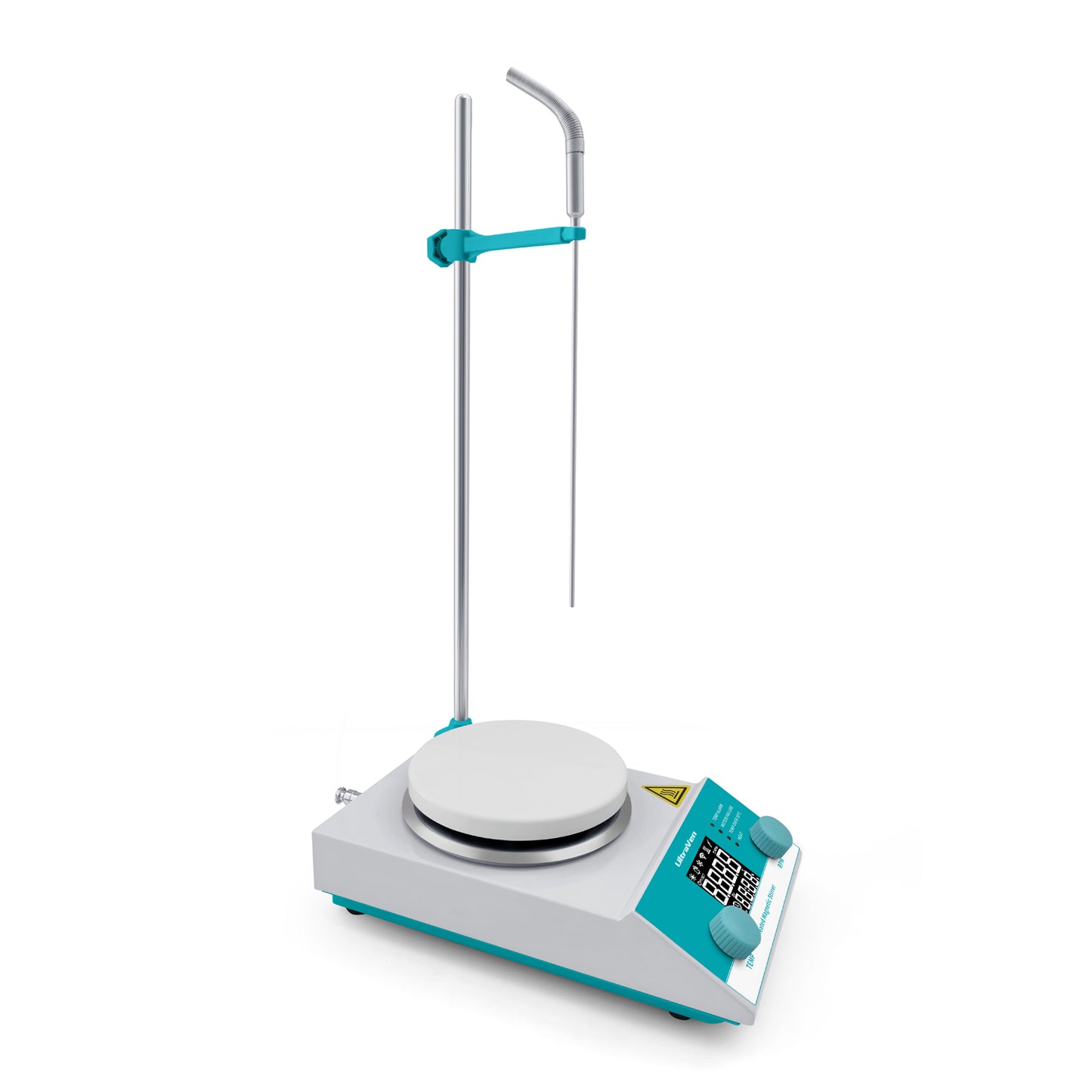

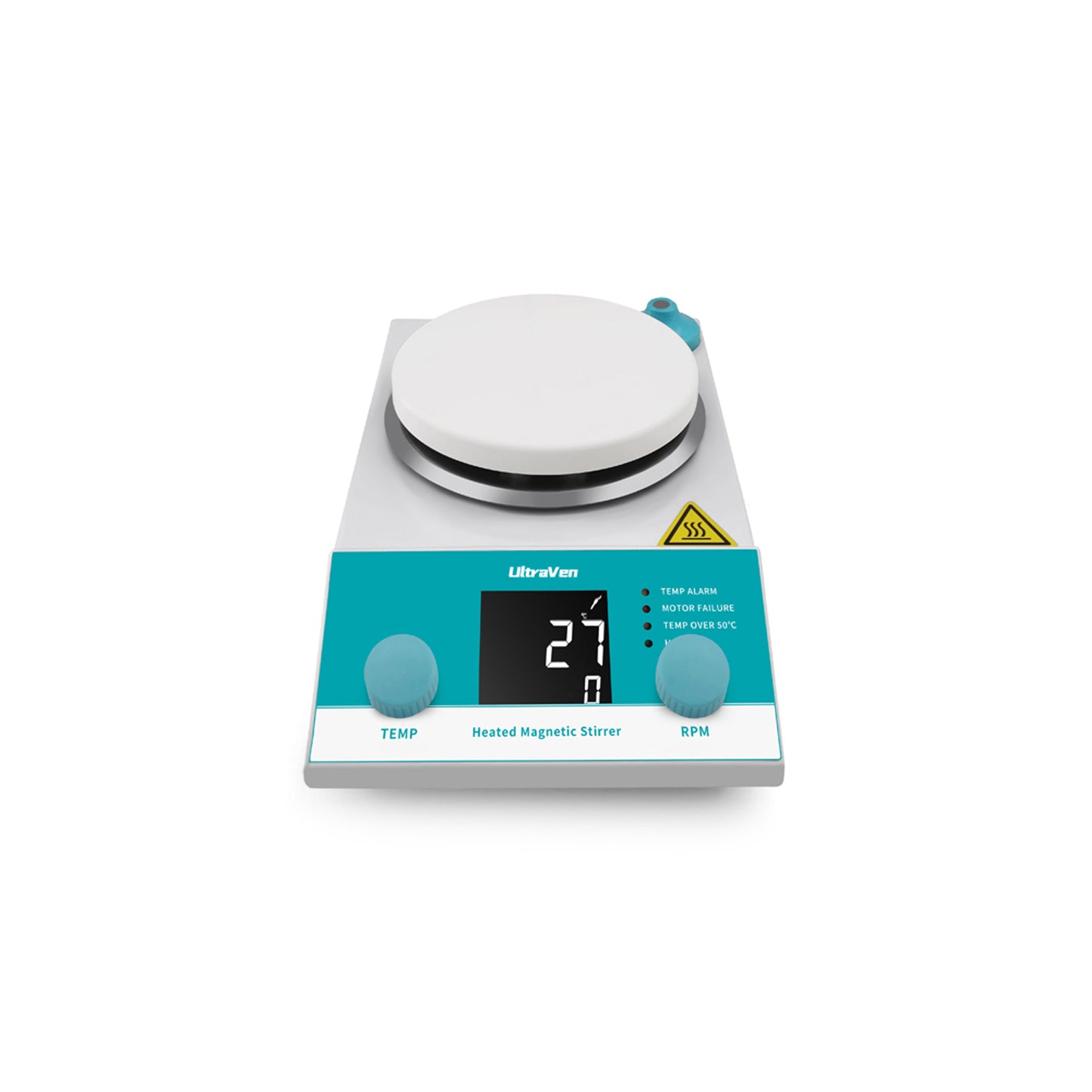

Product Introduction DMS-400 Magnetic hotplate stirrer(heating magnetic stirrer) is specifically designed for samples that require heating. It is available in two models: the digital display timer type and the basic type. It is suitable for stirring or heating and stirring simultaneously, especially for liquids or solid-liquid mixtures that are not highly viscous. With the temperature control device, it can control and maintain the sample temperature according to specific experimental requirements, assisting researchers in setting experimental conditions and greatly increasing the potential for experiment repeatability. It is widely used in universities, research institutions, chemical industry, pharmaceuticals, and other fields.

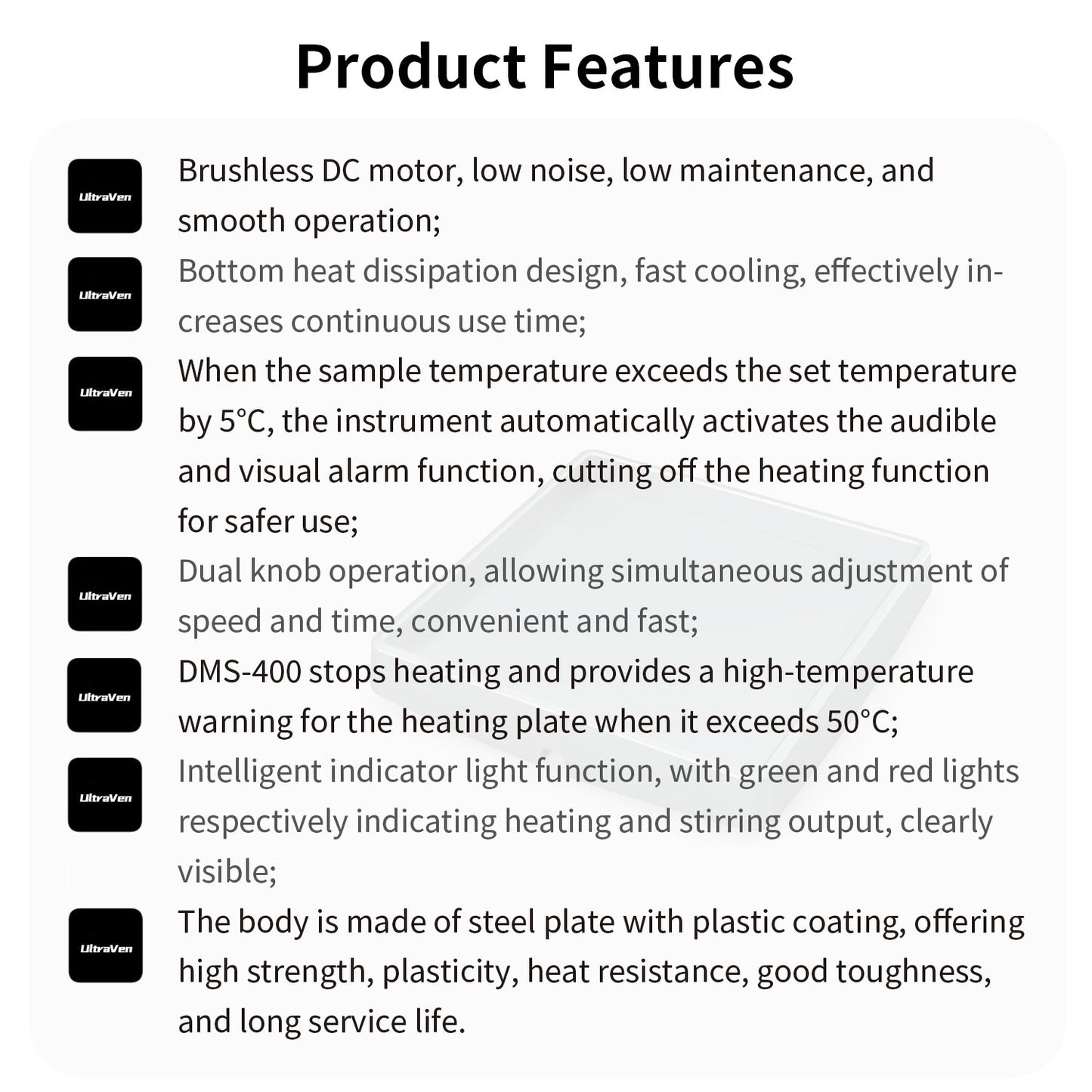

Product Features ○ Brushless DC motor, low noise, low maintenance, and smooth operation; ○ Bottom heat dissipation design, fast cooling, effectively increases continuous use time; ○ When the sample temperature exceeds the set temperature by 5°C, the instrument automatically activates the audible and visual alarm function, cutting off the heating function for safer use; ○ Dual knob operation, allowing simultaneous adjustment of speed and time, convenient and fast; ○ DMS-400 stops heating and provides a high-temperature warning for the heating plate when it exceeds 50°C; ○ Intelligent indicator light function, with green and red lights respectively indicating heating and stirring output, clearly visible; ○ The body is made of steel plate with plastic coating, offering high strength, plasticity, heat resistance, good toughness, and long service life.

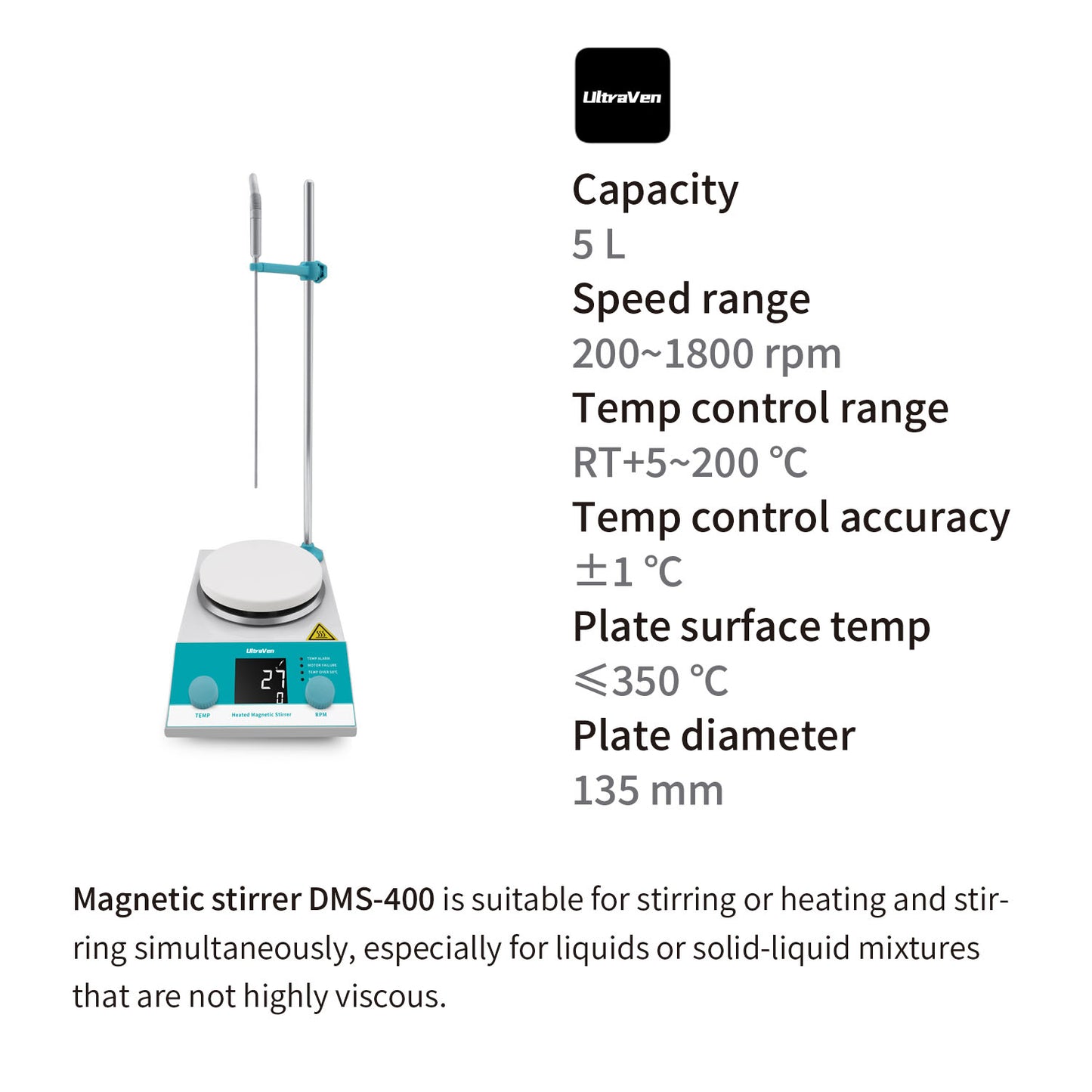

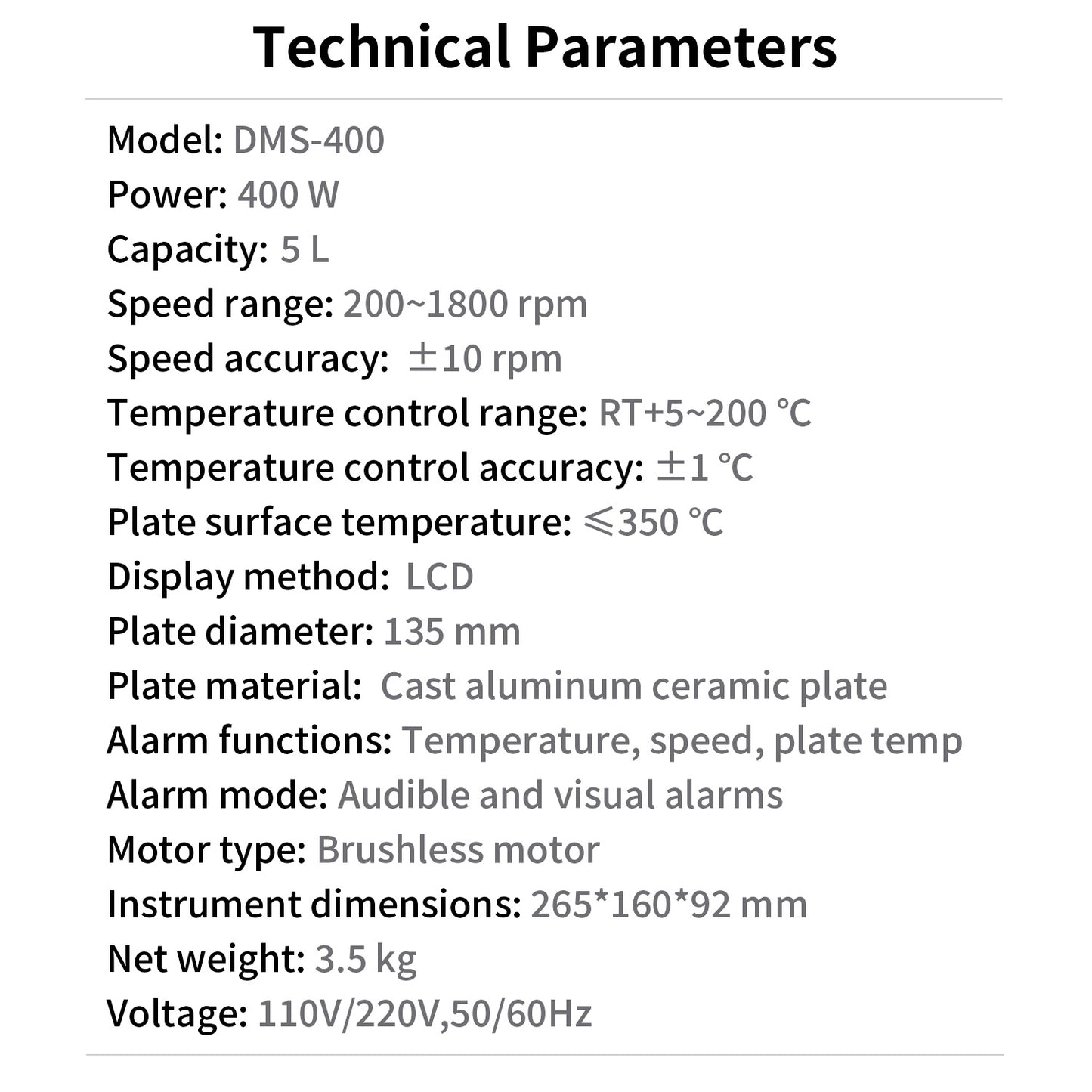

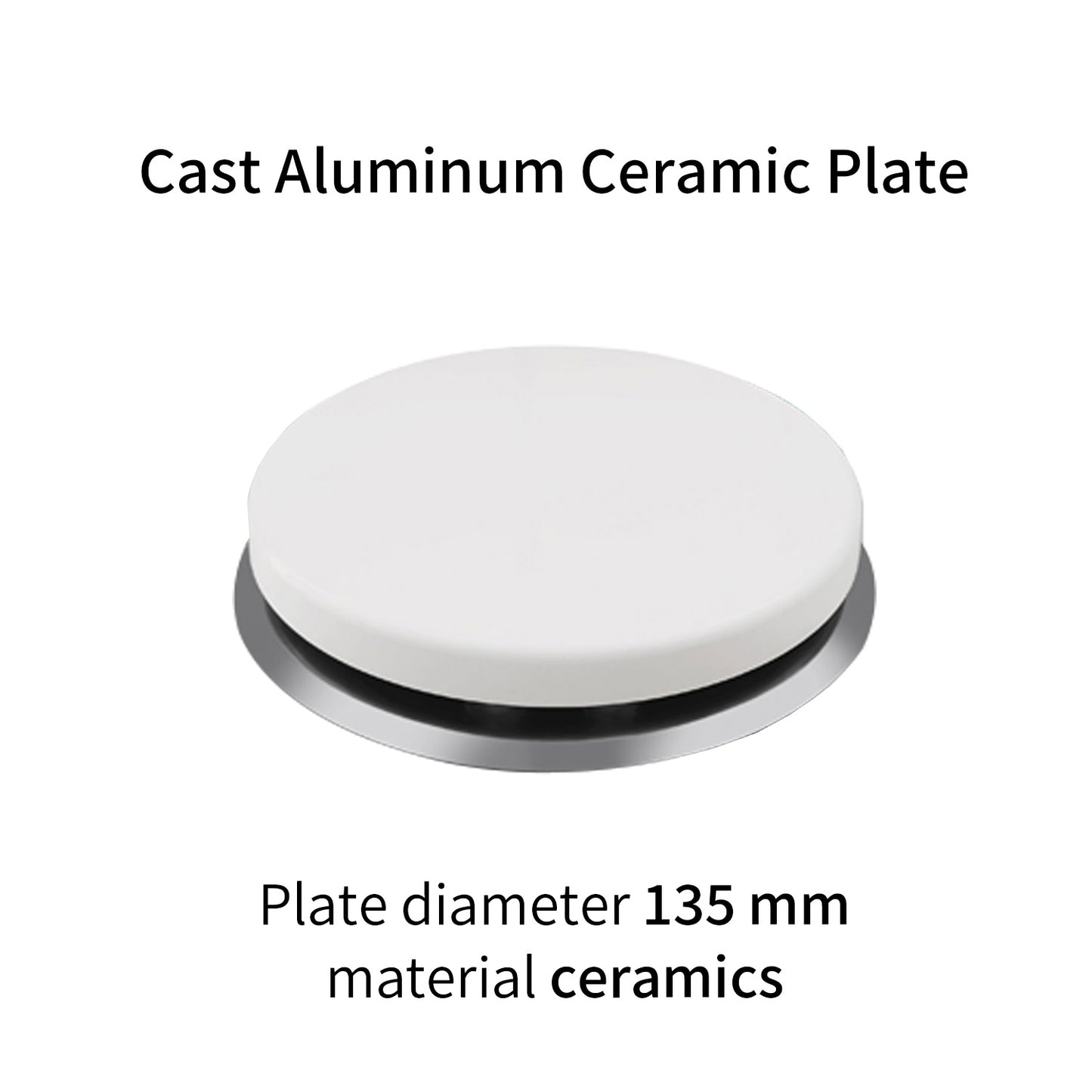

Technical Parameters Model: DMS-400 Voltage: 220 V Frequency: 50 Hz Power: 400 W Capacity: 5 L Speed range: 200~1800 rpm Speed accuracy: ±10 rpm Adjustment method: Dual knobs Display method: LCD Plate diameter: 135 mm Plate material: Cast aluminum ceramic plate Alarm functions: Temperature, speed, plate temperature Alarm mode: Audible and visual alarms Motor type: Brushless motor External sensor: PT100 Temperature control range: RT+5~200 ℃ Temperature control accuracy: ±1 ℃ Plate surface temperature: ≤350 ℃ Allowable ambient temperature: 5~40 ℃ Allowable ambient humidity: 80 % Instrument dimensions: 265*160*92 mm Packaging dimensions: 370*370*150 mm Net weight: 3.5 kg Gross weight: 4.5 kg Enclosure protection class: IP21

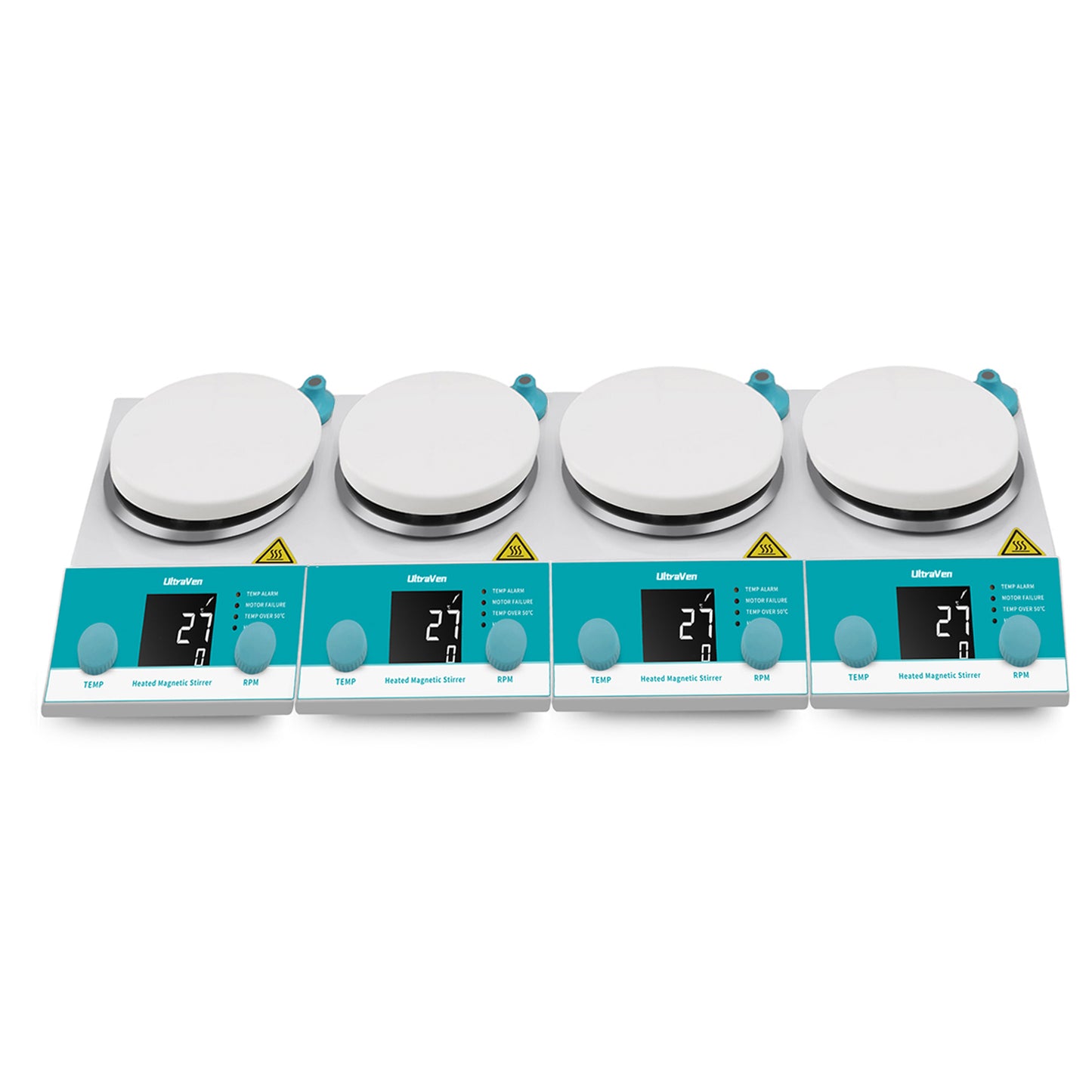

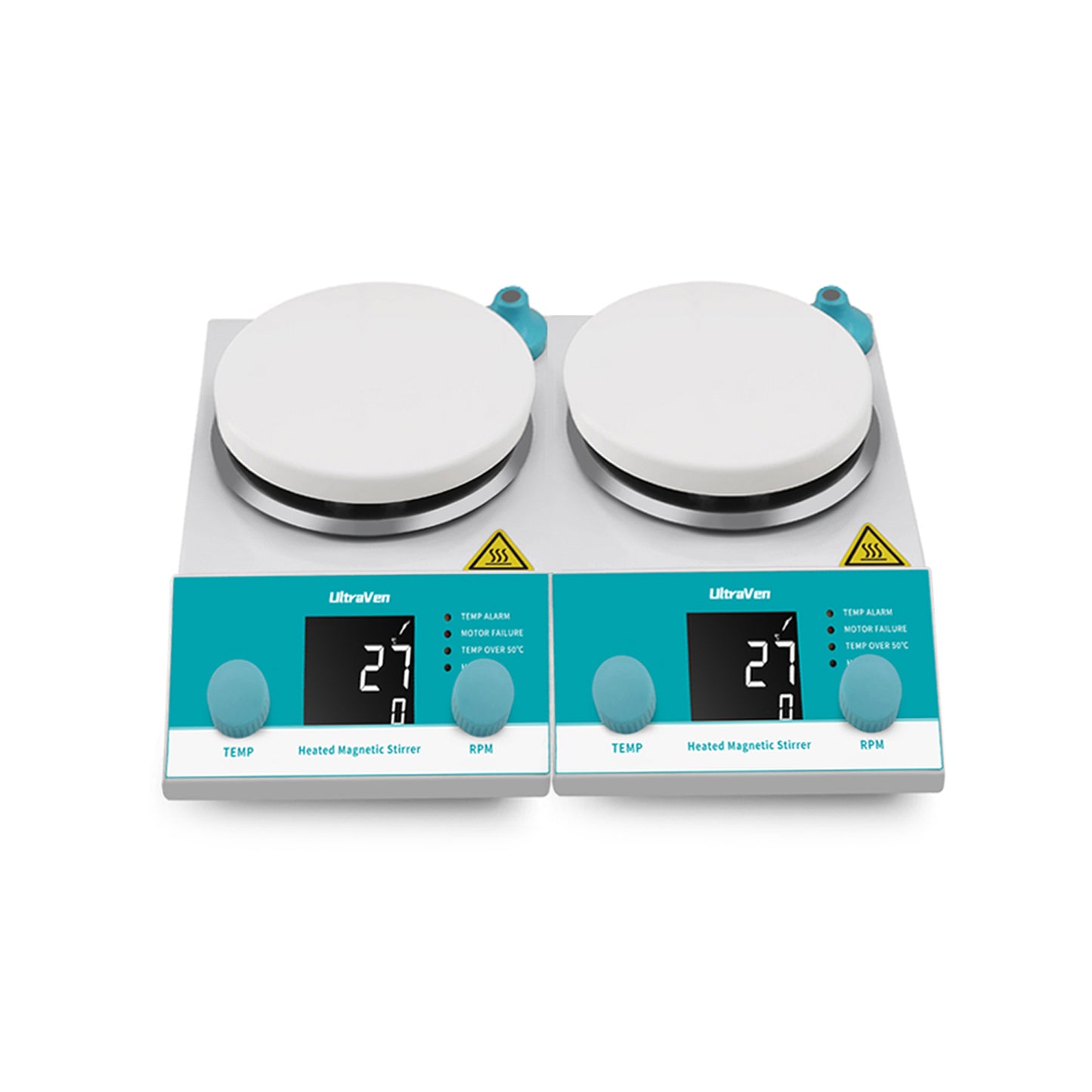

Optional ◆ Two-position Magnetic hotplate stirrer; ◆ Four-position Magnetic hotplate stirrer; ◆ Six-position Magnetic hotplate stirrer;
