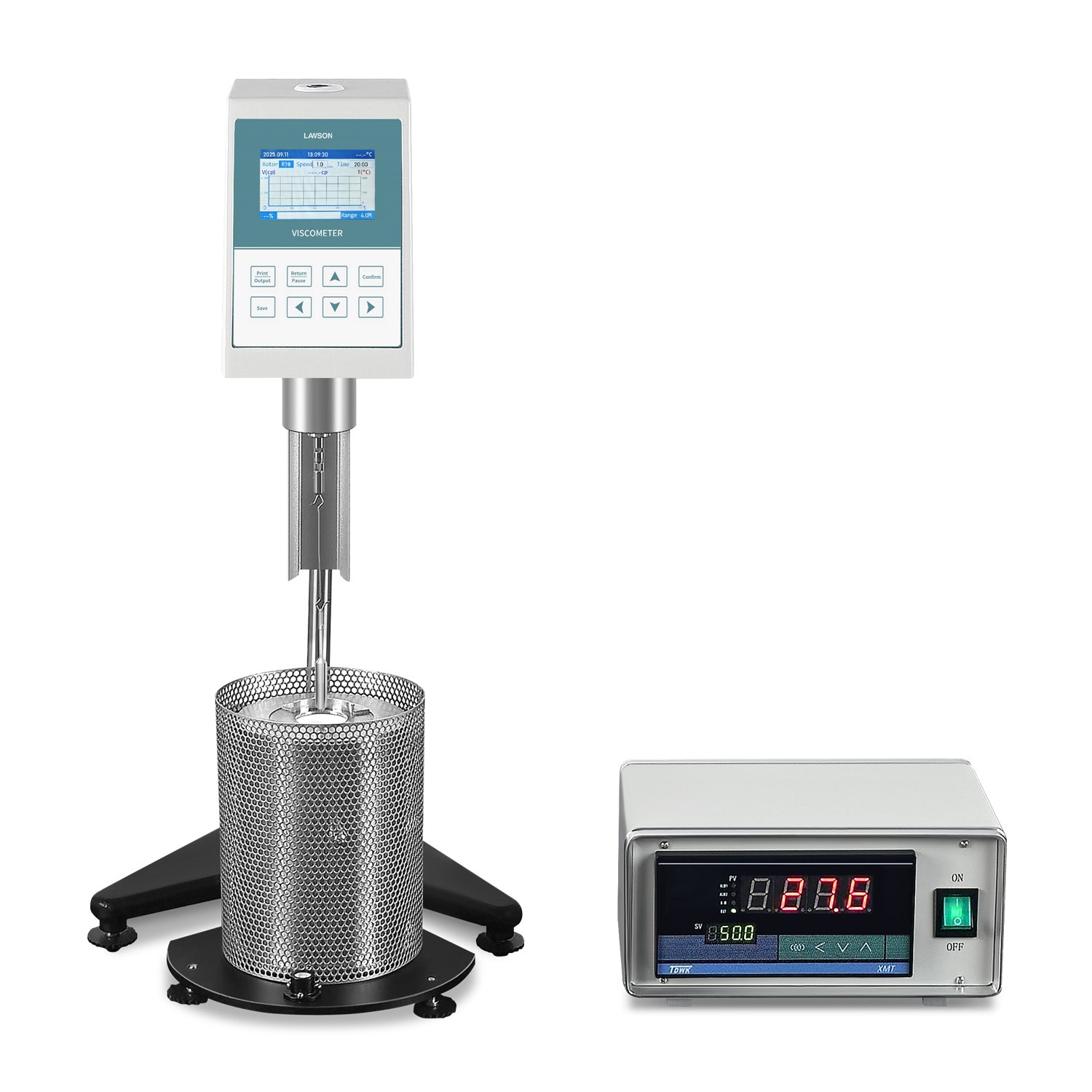

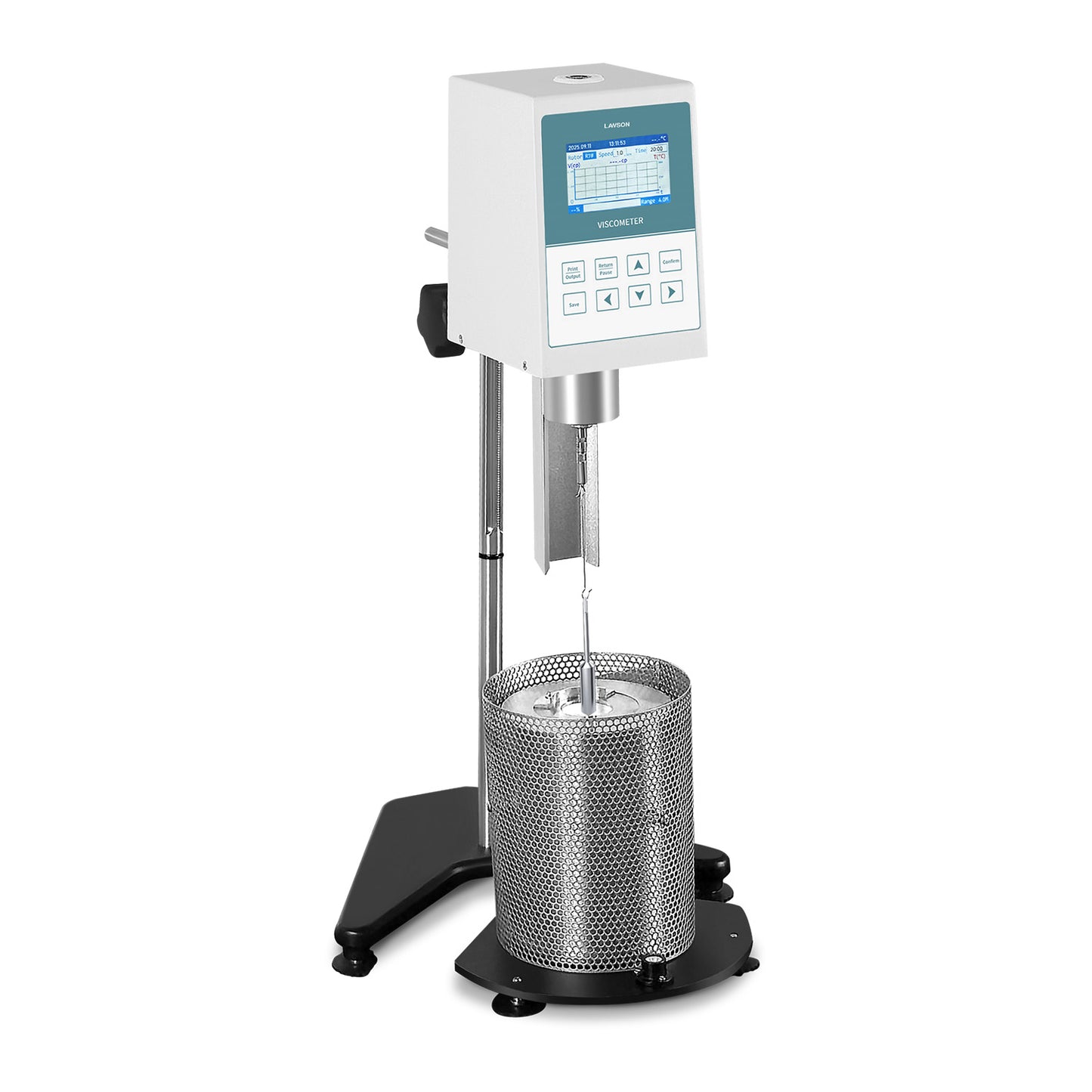

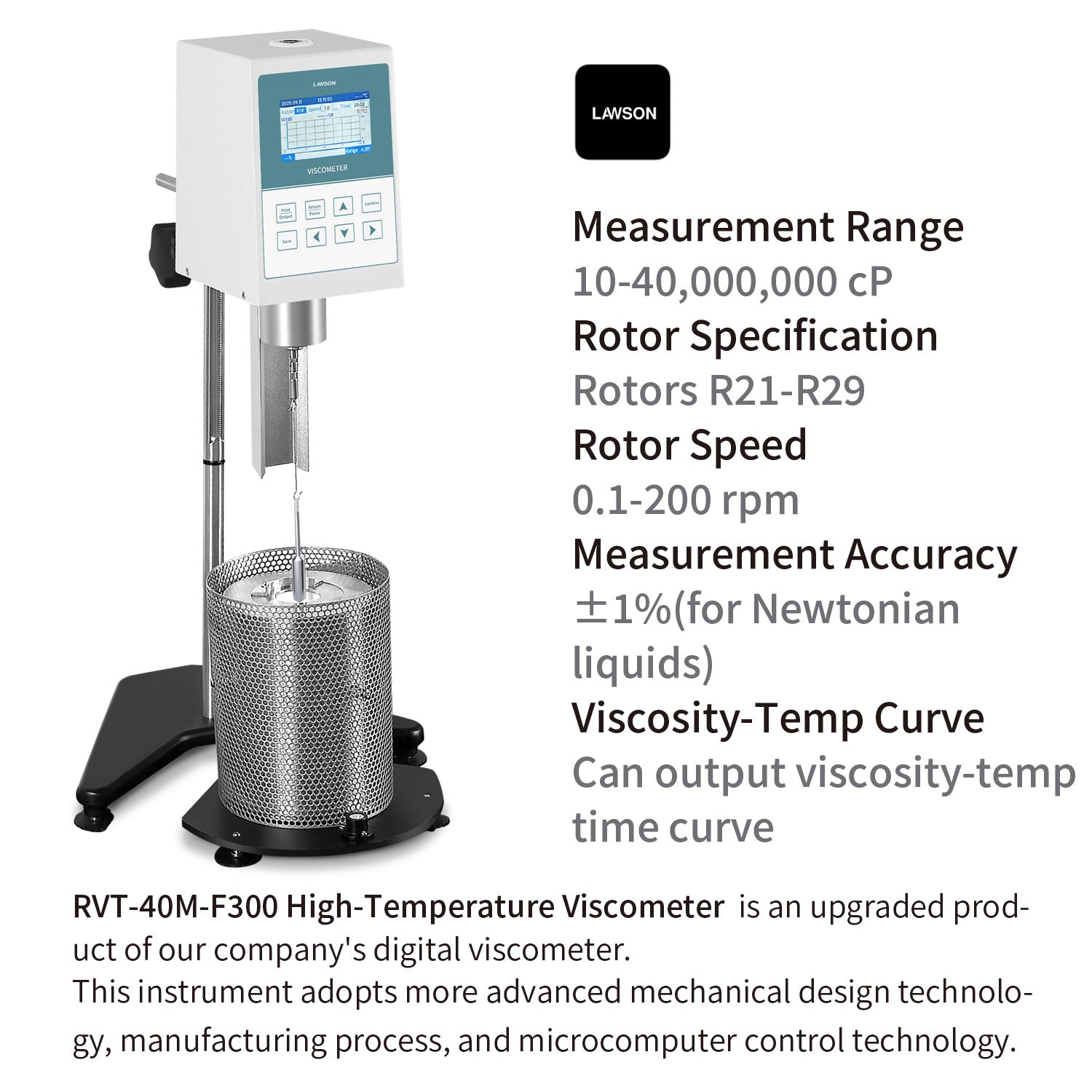

High-Temperature Viscometer RVT-40M-F300

Product Introduction

• RVT-40M-F300 high-temperature viscometer is an upgraded product of our company's digital viscometer.
• High-temperature viscometer adopts more advanced mechanical design technology, manufacturing process, and microcomputer control technology, with accurate data acquisition and a high-resolution TFT display screen for clear data display and more comprehensive functions.

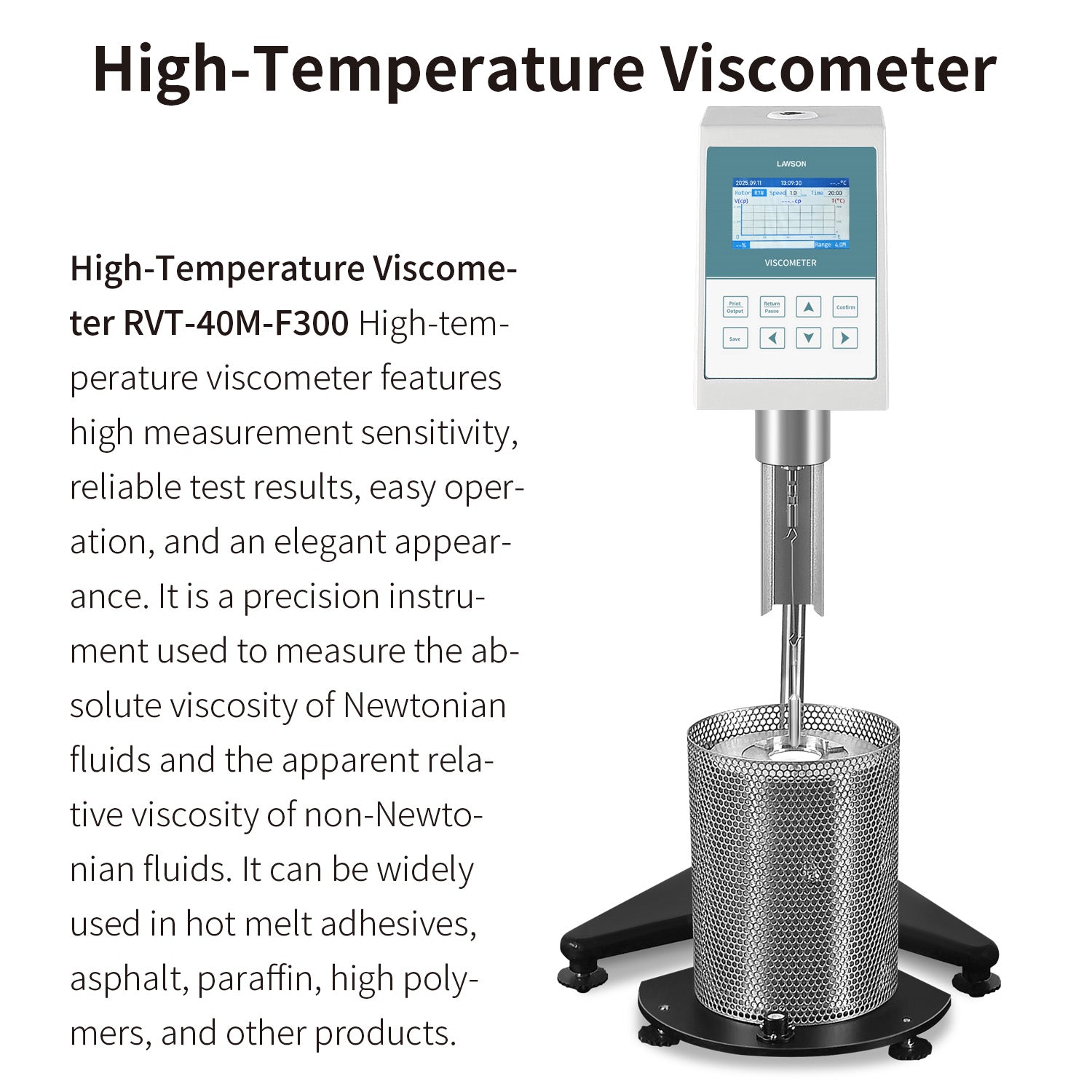

• High-temperature viscometer features high measurement sensitivity, reliable test results, easy operation, and an elegant appearance. It is a precision instrument used to measure the absolute viscosity of Newtonian fluids and the apparent relative viscosity of non-Newtonian fluids. It can be widely used in hot melt adhesives, asphalt, paraffin, high polymers, and other products.

Torque Description

• RVT series: widely applicable to hot melt adhesive, asphalt, paraffin, high polymer, and other products.

Product Features

• High Throughput and Effective Results. Efficient and rapid processing allows for the grinding from 0.2 - 50 ml samples within one minute, saving time and effort with minimal batch-to-batch and within-batch variation.
• No Cross: During the grinding process, the sample tubes remain completely sealed. Disposable centrifuge tubes and beads can be used, ensuring that the samples remain intact within the tubes, thereby preventing cross-contamination between samples and contamination from external sources.

Performance,design,Flexibility

• High-temperature viscometer has the characteristics of high measurement sensitivity, reliable test results, easy operation, and elegant appearance. It is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids. It can be widely used in products such as oils, paints, plastics, medicines, foods, coatings, adhesives, viscometers, resins, and chemical raw materials.

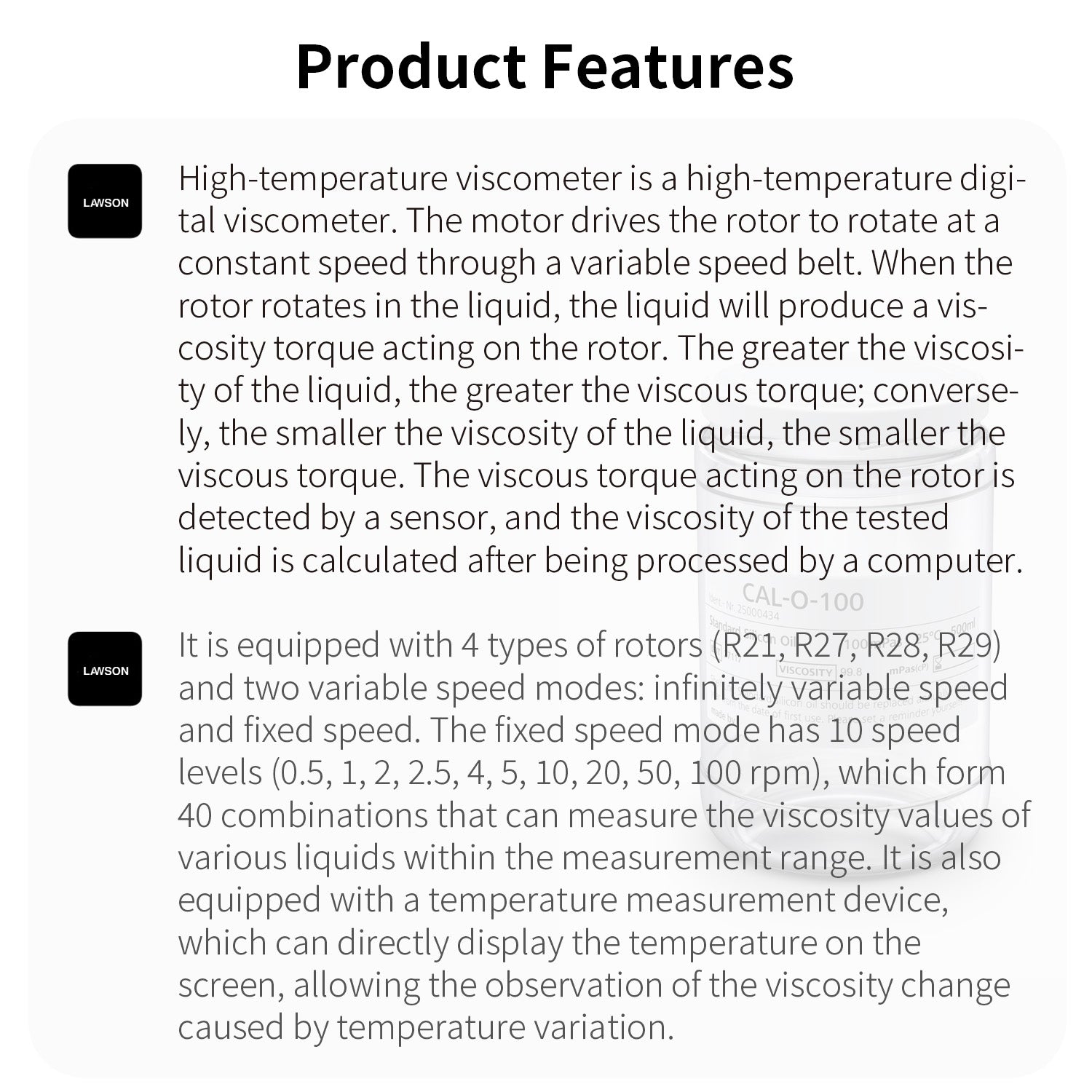

• High-temperature viscometer is a high-temperature digital viscometer. The motor drives the rotor to rotate at a constant speed through a variable speed belt. When the rotor rotates in the liquid, the liquid will produce a viscosity torque acting on the rotor. The greater the viscosity of the liquid, the greater the viscous torque; conversely, the smaller the viscosity of the liquid, the smaller the viscous torque. The viscous torque acting on the rotor is detected by a sensor, and the viscosity of the tested liquid is calculated after being processed by a computer.

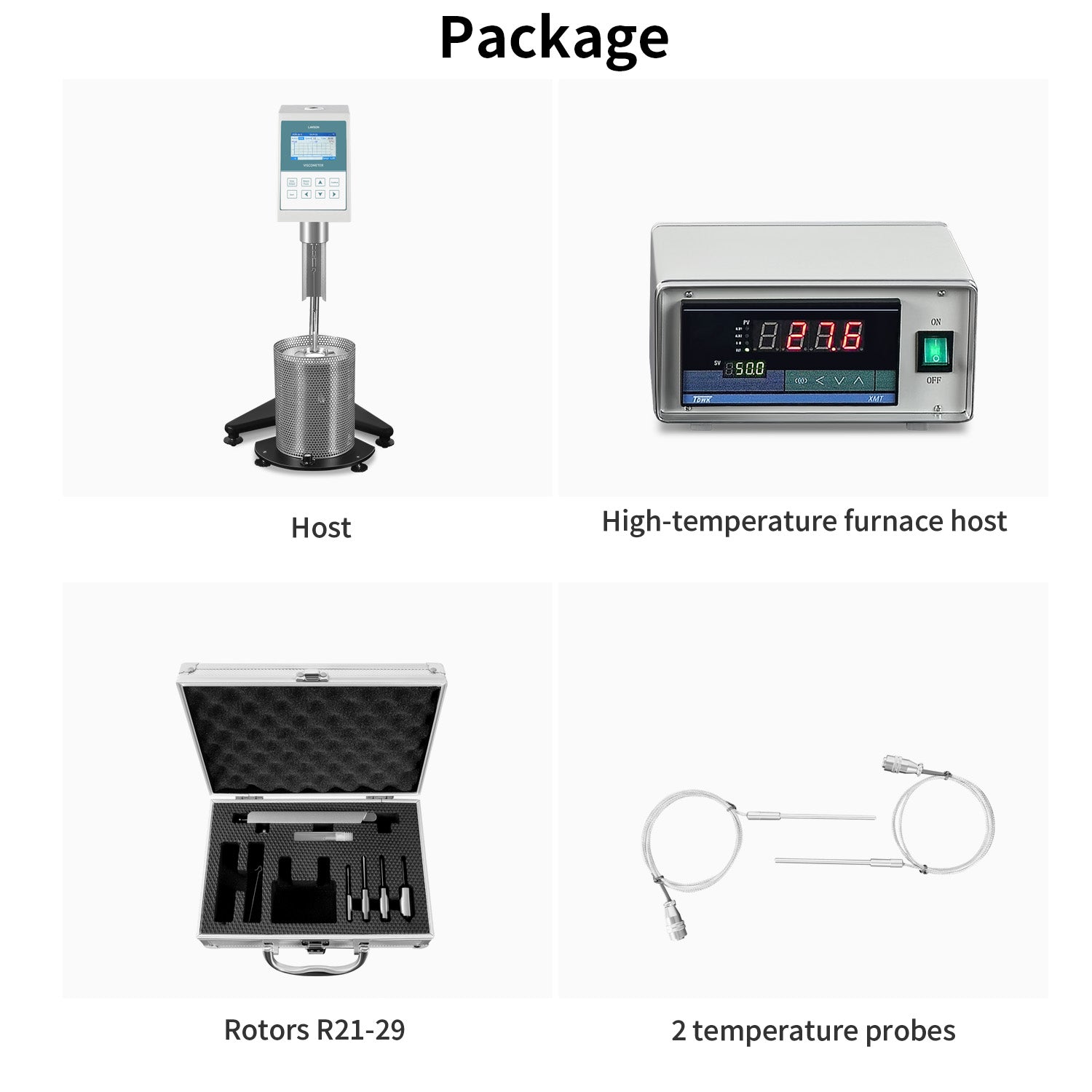

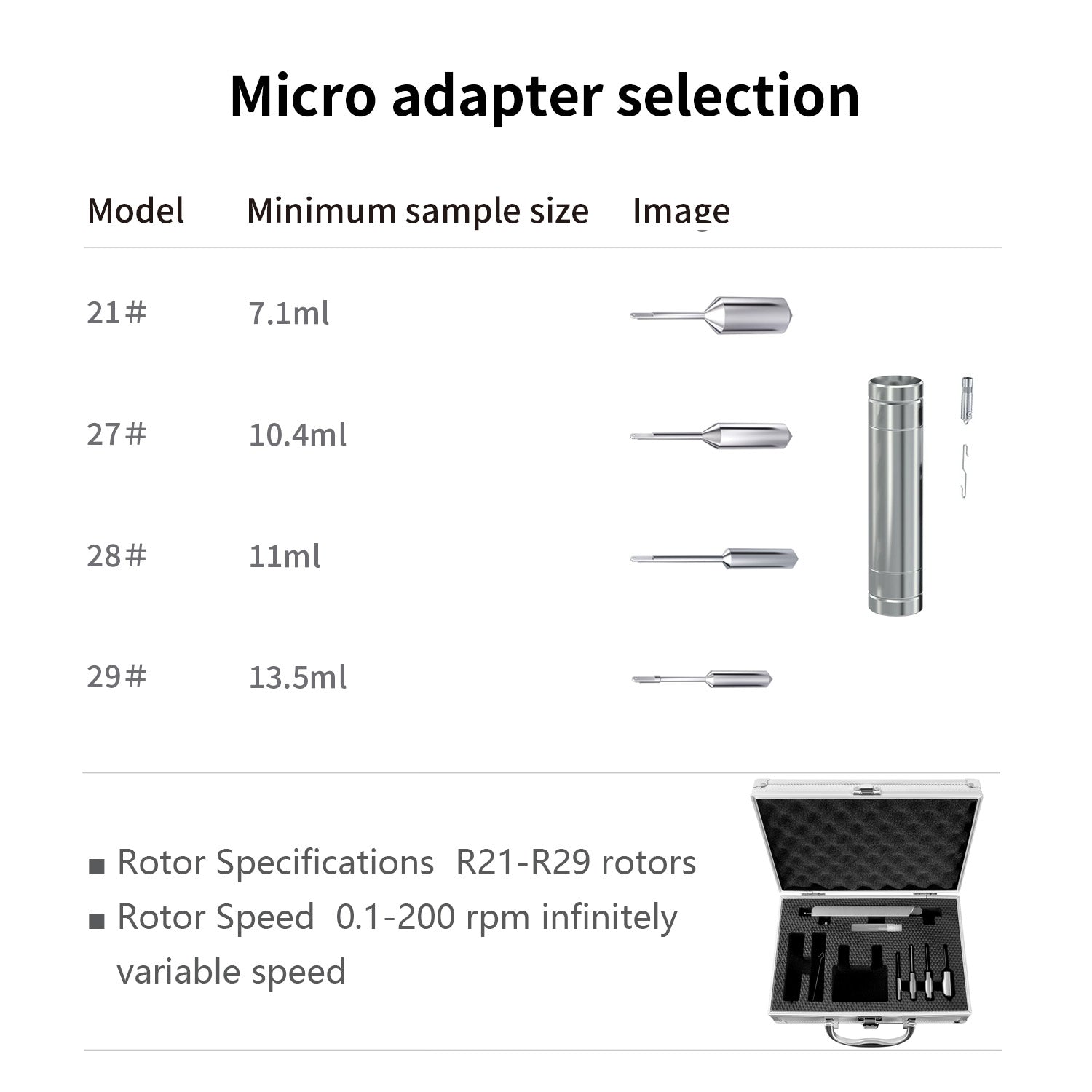

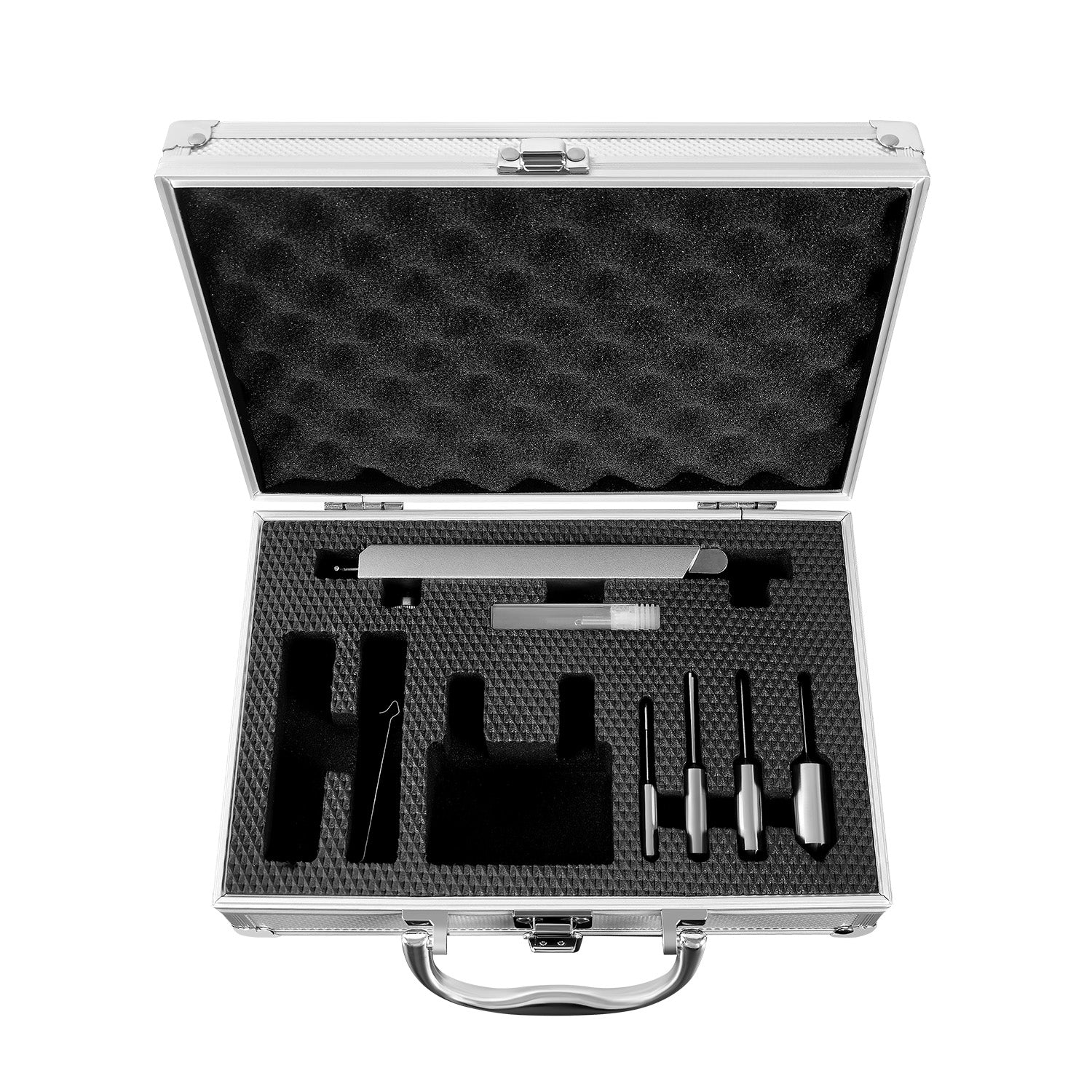

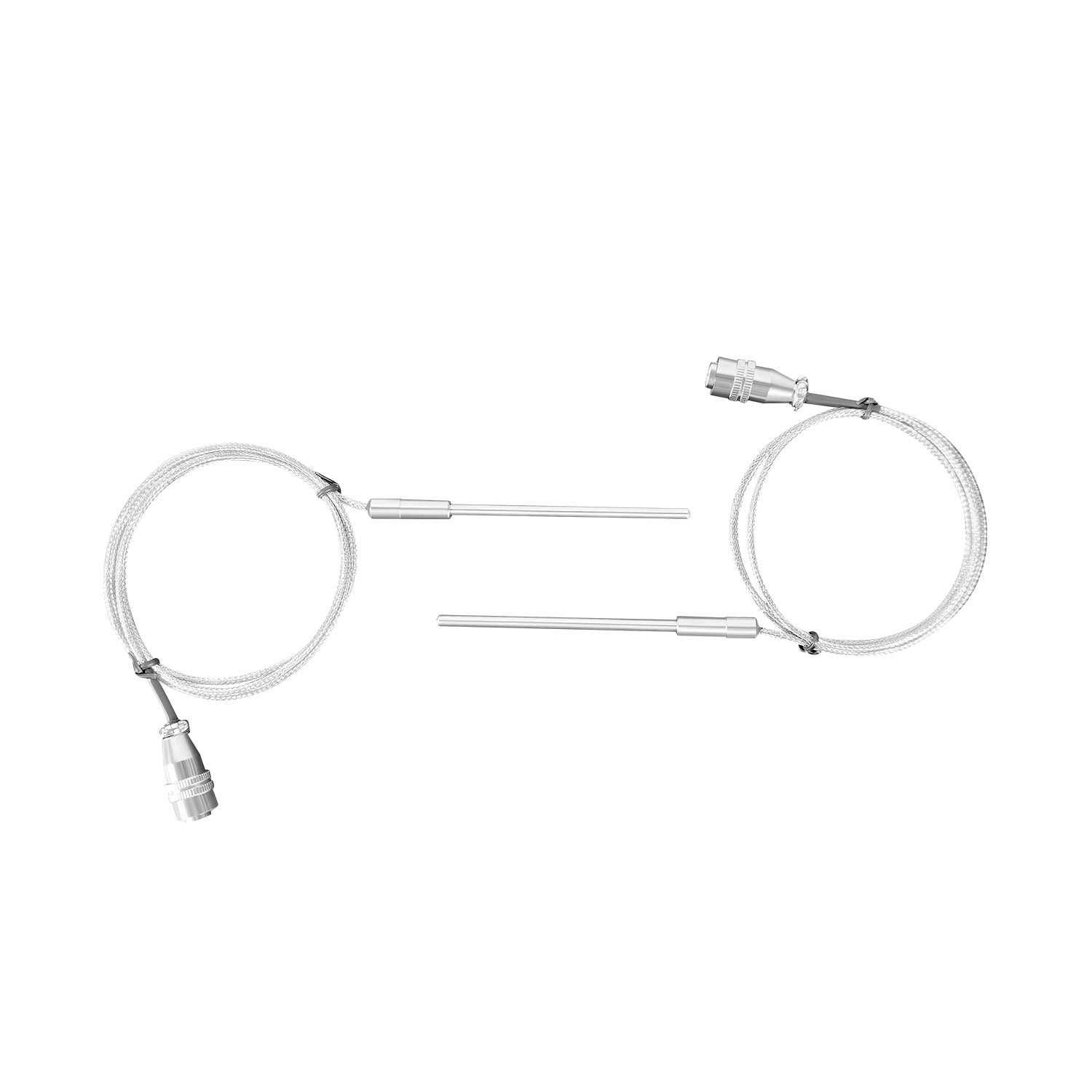

• It is equipped with 4 types of rotors (R21, R27, R28, R29) and two variable speed modes: infinitely variable speed and fixed speed. The fixed speed mode has 10 speed levels (0.5, 1, 2, 2.5, 4, 5, 10, 20, 50, 100 rpm), which form 40 combinations that can measure the viscosity values of various liquids within the measurement range. It is also equipped with a temperature measurement device, which can directly display the temperature on the screen, allowing the observation of the viscosity change caused by temperature variation.

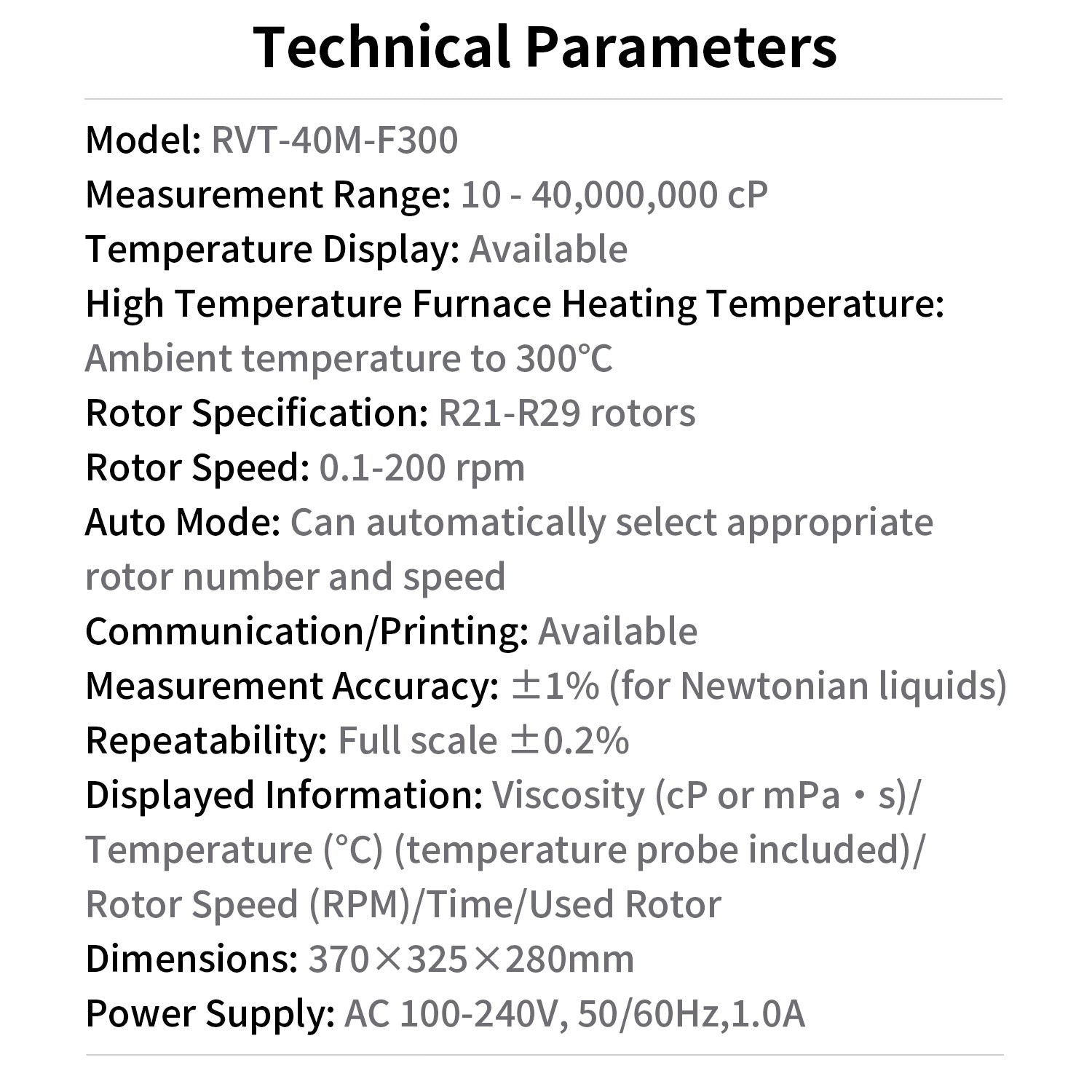

Technical Parameters
