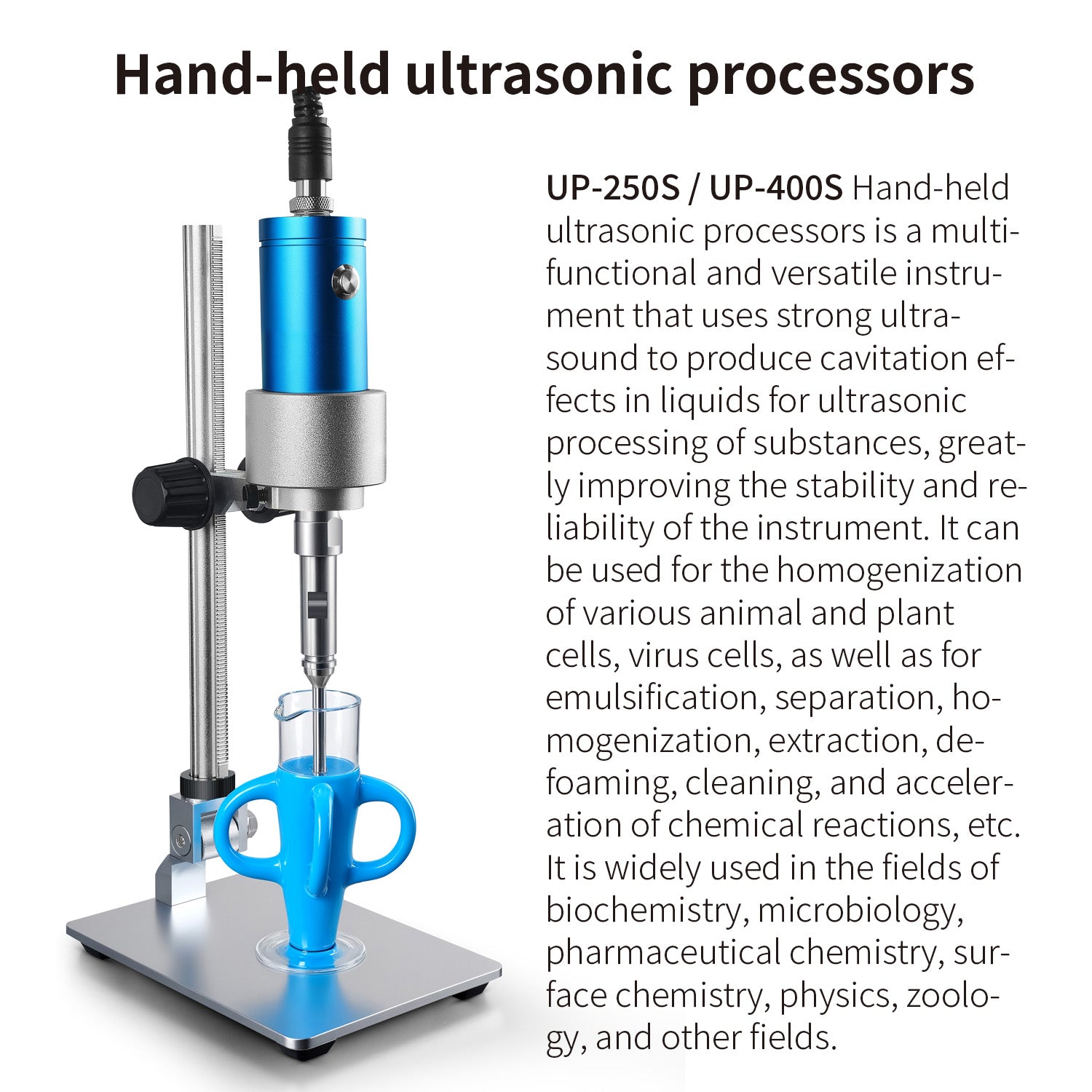

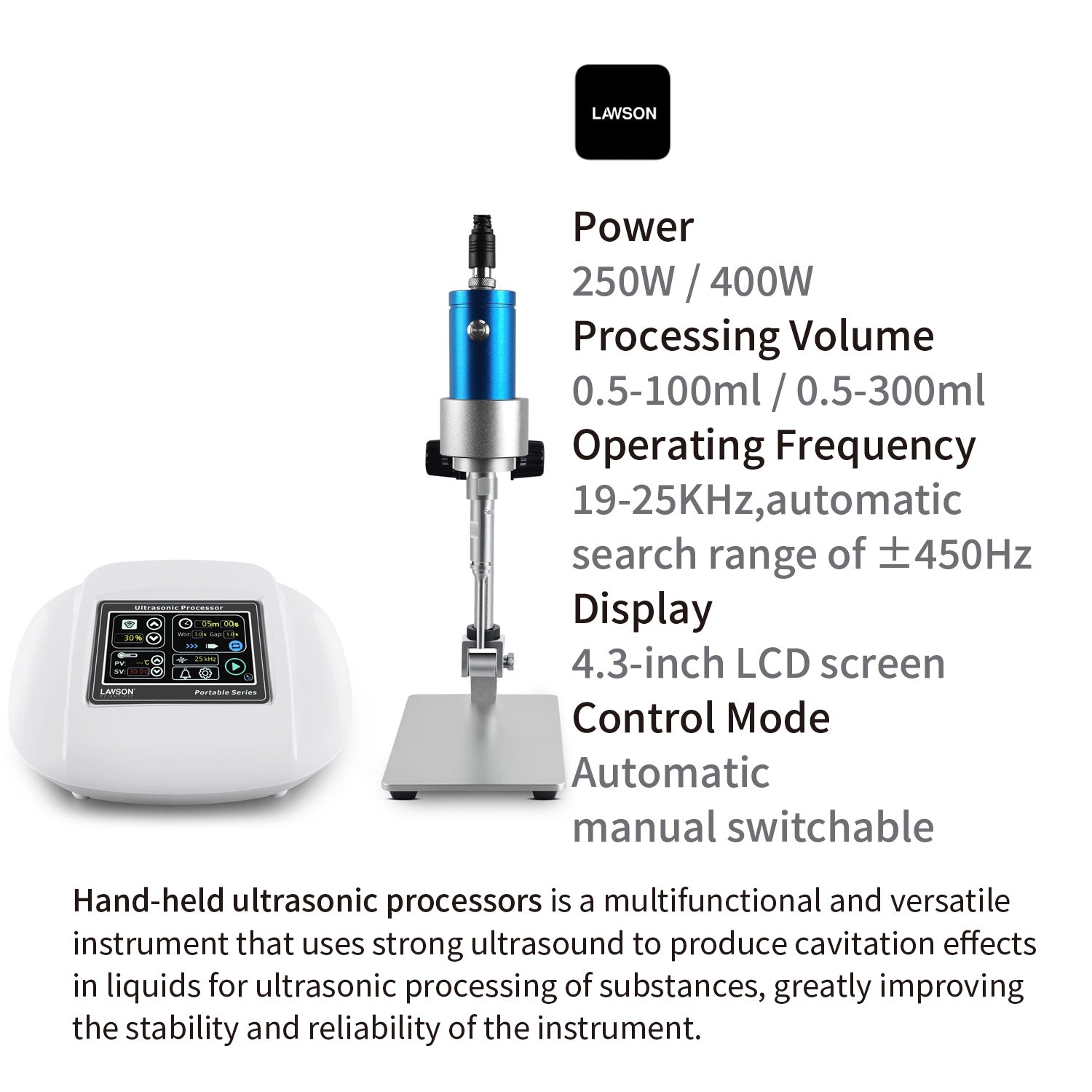

Product Introduction UP-250S / UP-400S Hand-held ultrasonic processors is a multifunctional and versatile instrument that uses strong ultrasound to produce cavitation effects in liquids for ultrasonic processing of substances, greatly improving the stability and reliability of the instrument.
Product Application(Laboratory & Research Use)

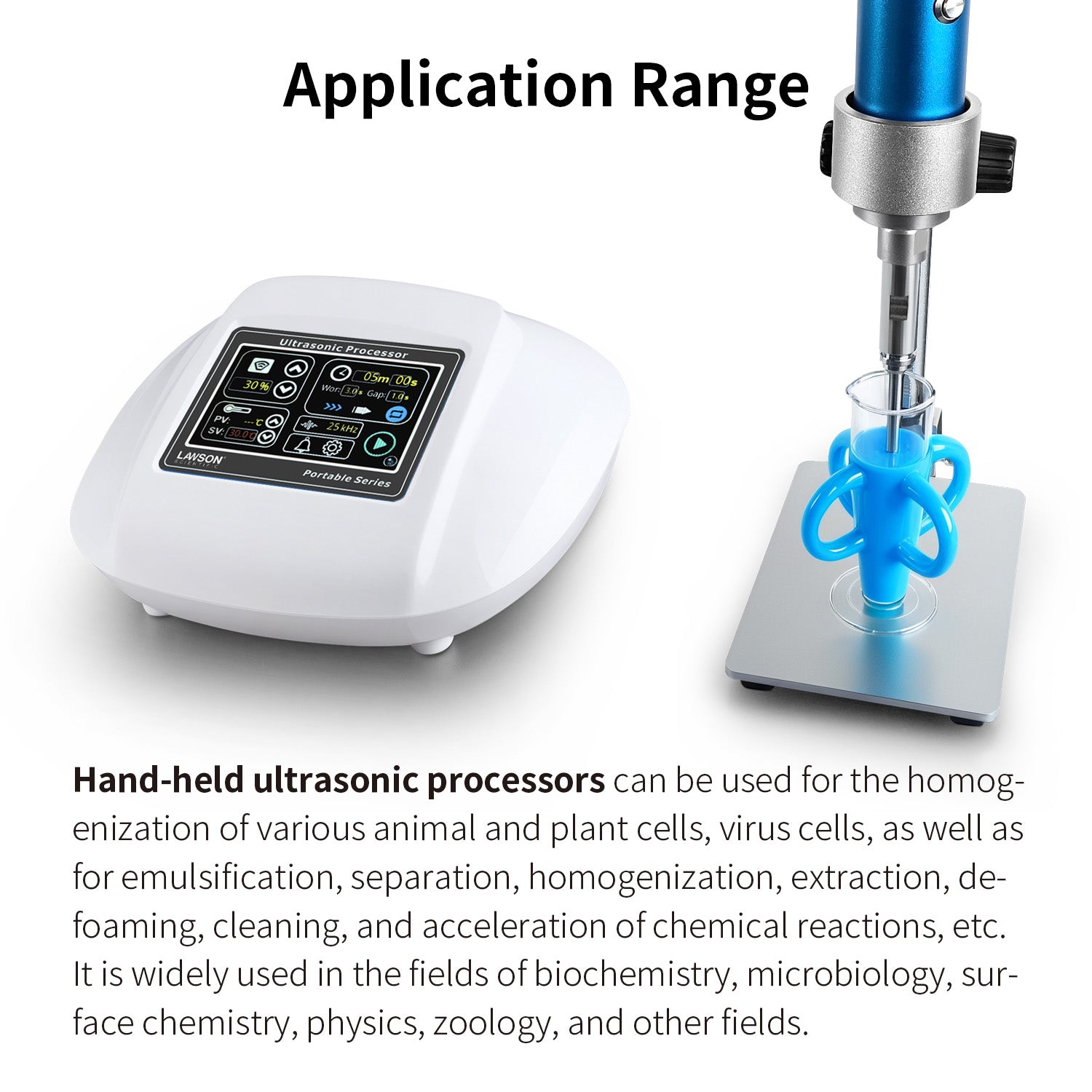

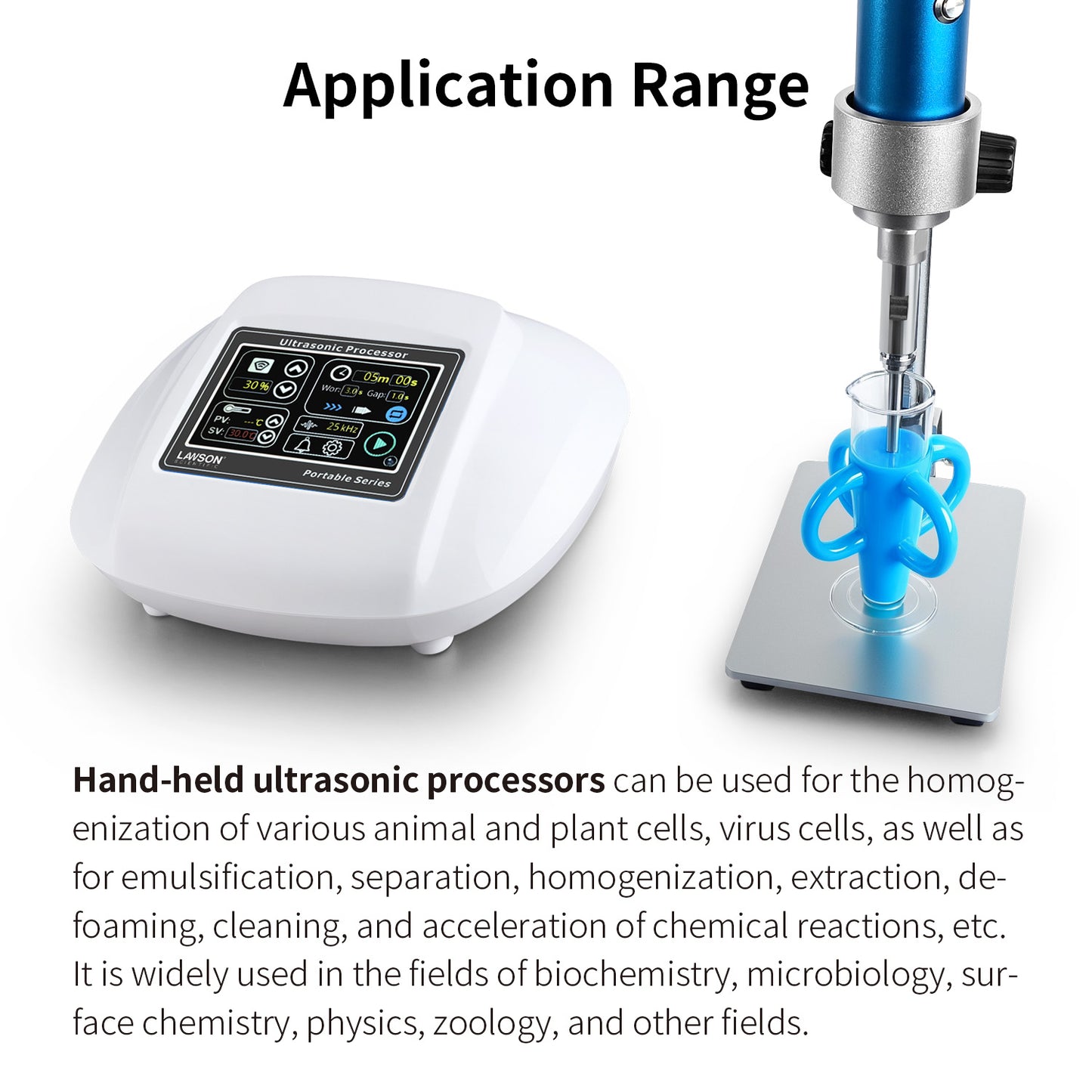

Hand-held ultrasonic processors can be used for the homogenization of various animal and plant cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning, and acceleration of chemical reactions, etc. It is used in the fields of biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physics, zoology, and other fields(Laboratory & Research Use).
Used for crushing animal and plant cells, spores or tissues, extracting proteins from cells, and conducting scientific culture experiments on viruses and vaccines.
Speeds up chemical and physical reactions and accelerates liquid degassing.
Used for scientific analysis of crude oil dilution, oil-water emulsification, acceleration of decrystallization, glass pulp homogenization, and more.
Disperses rare earths, various inorganic minerals, and prepares nearly nanometer-sized latex homogenized mixtures.
Product Features
Large touch screen display for intuitive parameter adjustment.
Compact transducer for easy handheld operation, equipped with momentary push-button for more convenient operation.
Versatile functions: cell disruption, homogenization, separation, extraction, defoaming, cleaning, and acceleration of chemical reactions.
Continuous and uninterrupted ultrasonic processing, with automatic frequency tracking, automatic resonance point and power control, eliminating the need for frequent manual energy adjustment.
Ultrasonic probe is made of standard TC4 titanium alloy, ensuring long-term use without wear and tear.
Automatic amplitude and pulse compensation function to ensure that the probe amplitude does not change due to load changes during sonication.

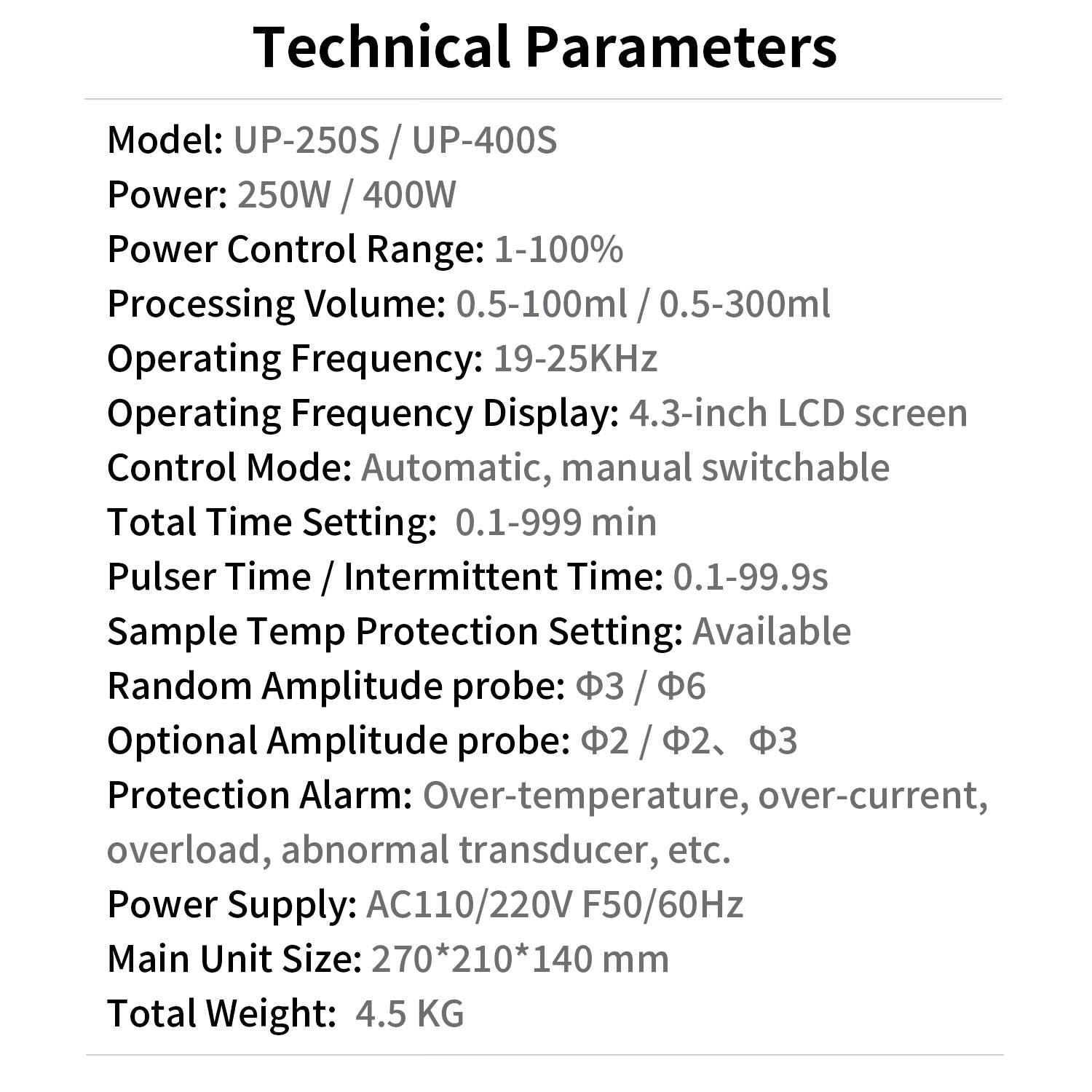

Technical Parameters
Model
UP-250S / UP-400S
Power
250W / 400W
Power Range
1-100%
Processing Volume
0.5-100ml / 0.5-300ml
Operating Frequency
19-25KHz, automatic search range up to ±450Hz
Display Mode
4.3-inch color LCD display
Control Mode
Automatic or manual switchable (foot switch optional)
Total Time Setting
0.1-999 min
Pulser Time
0.1-99.9s adjustable (gap/working)
Sample Temp Protection Setting
Available

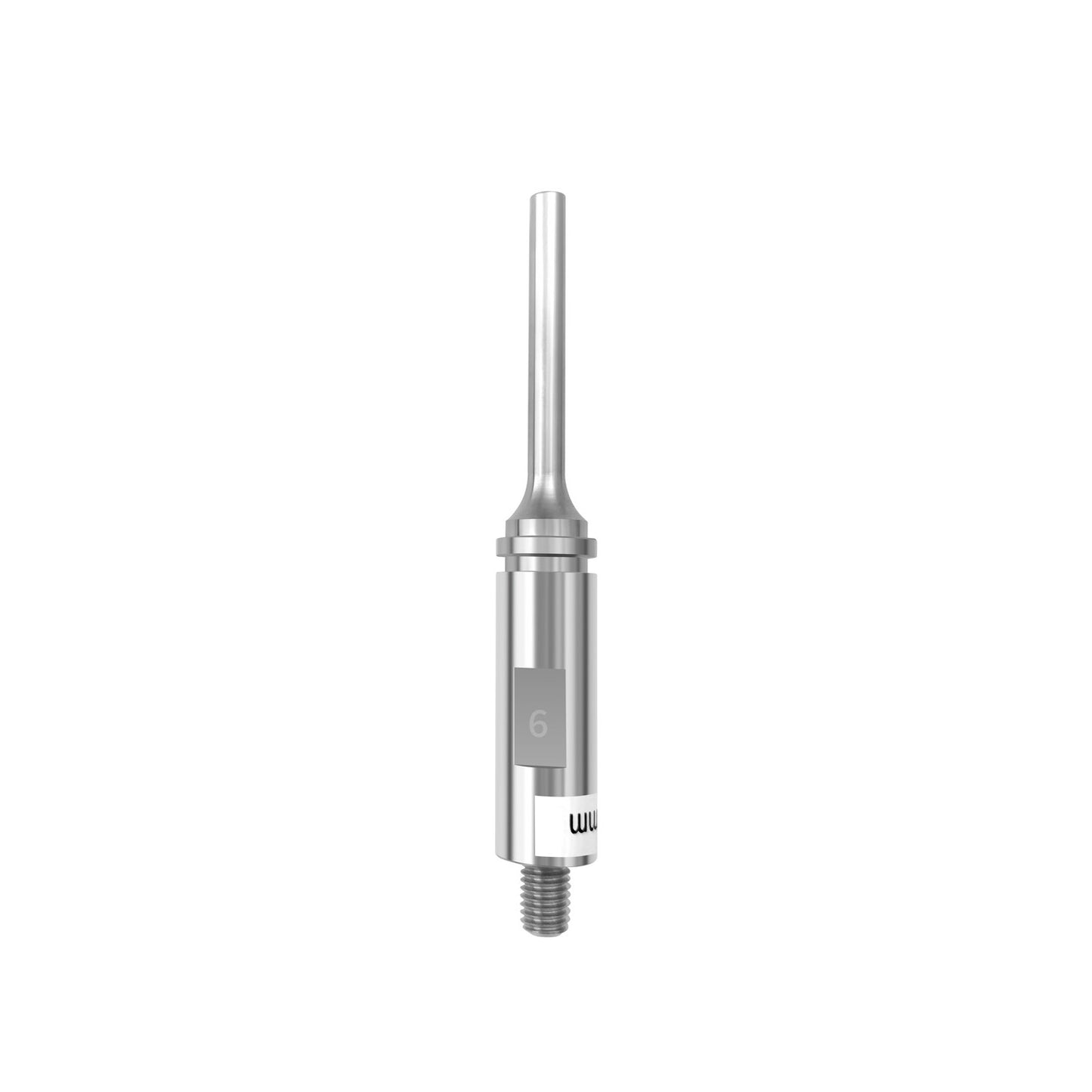

Random Amplitude probe
Φ3 / Φ6
Optional Amplitude probe
Φ2
Protection Alarm
Over-temperature, over-current, overload, transducer abnormality, etc.
Power Supply
AC110/220V F50/60Hz
Mainframe Size
270*210*140 mm
Total Weight
4.2 kg / 4.3kg
For laboratory and research use only. Not intended for clinical, medical, or direct food processing use.
