Product Introduction

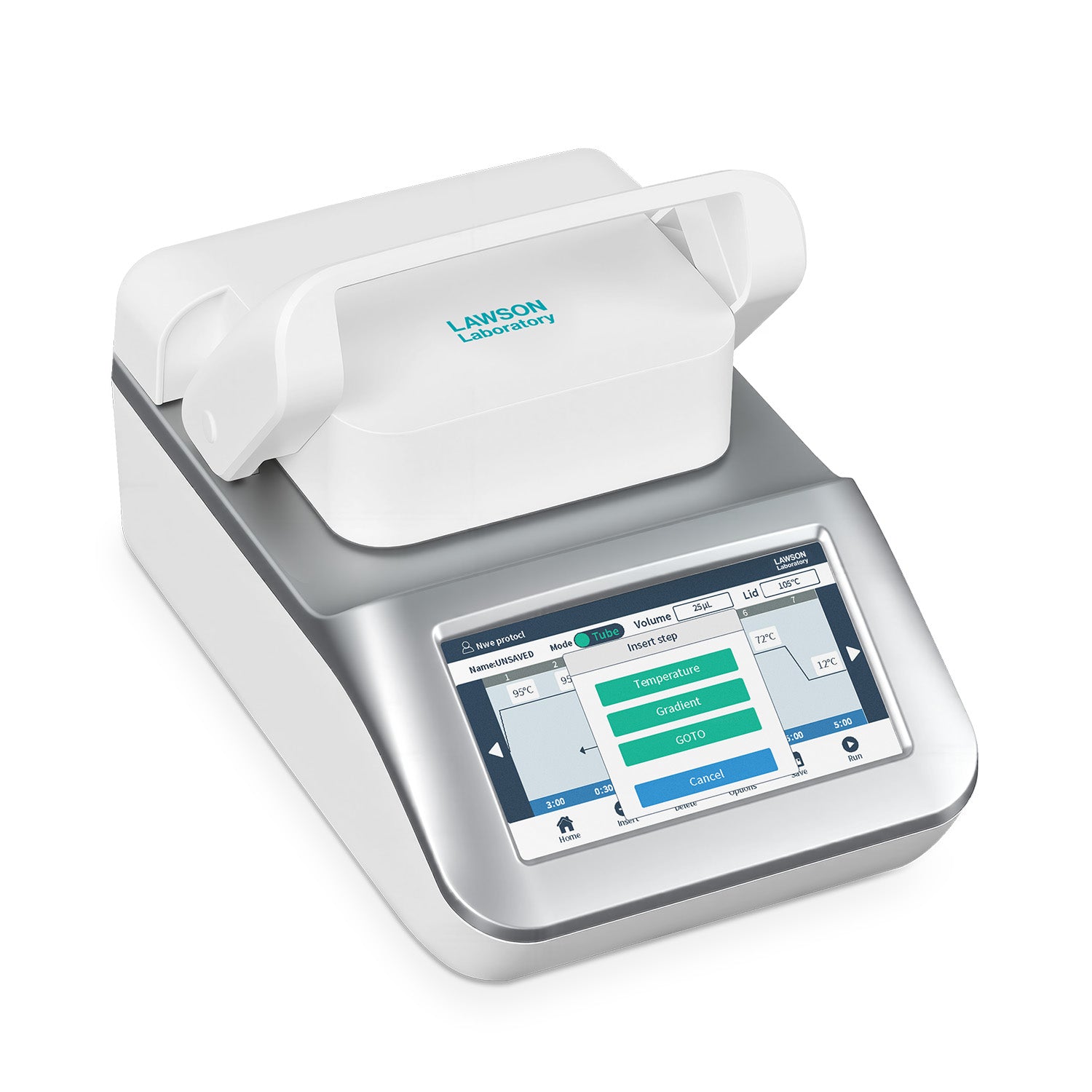

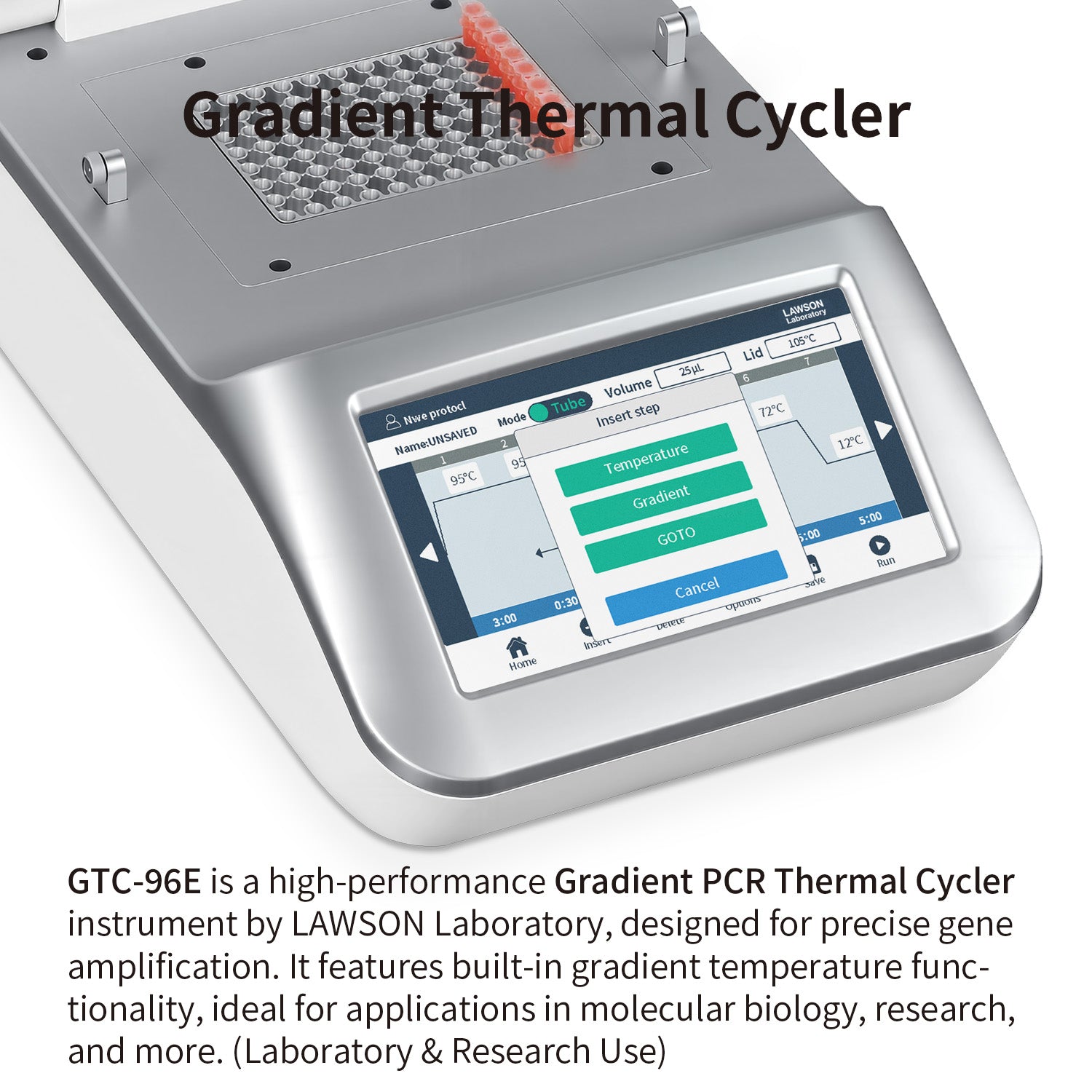

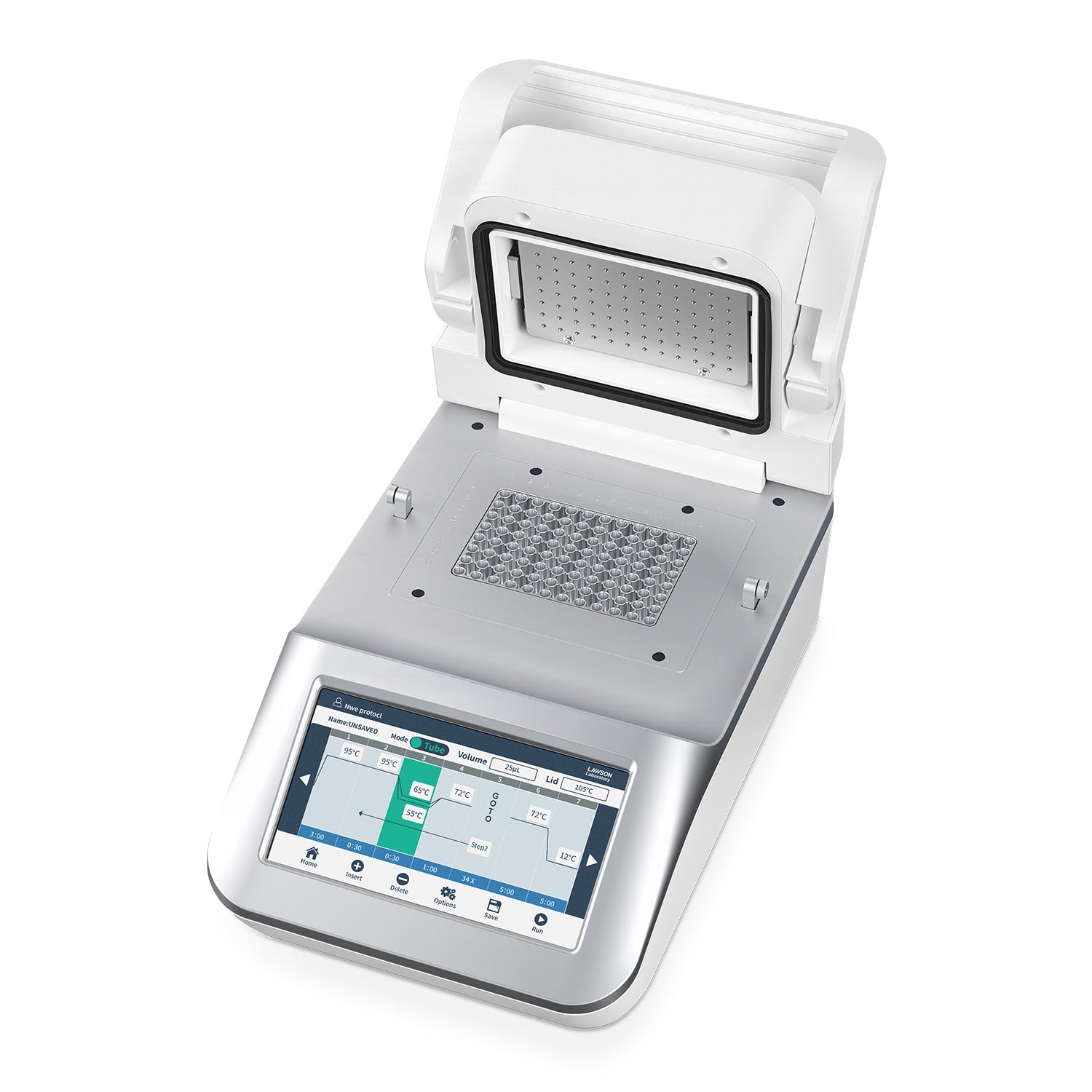

LAWSON Laboratory introduces a new generation of PCR instrument, GTC-F96 Thermal Cycler, which has a high degree of centralization of internal components, resulting in a small and compact appearance, great space savings and improved instrument stability. Peltier refrigeration technology combined with air-cooled systems, along with new heat pipe cooling technology, further amplifies temperature control advantages.
It is a very cost-effective PCR instrument with good temperature accuracy, high uniformity and fast heating and cooling rate, which the accuracy of the experimental results and improves the experimental efficiency.
Product Features

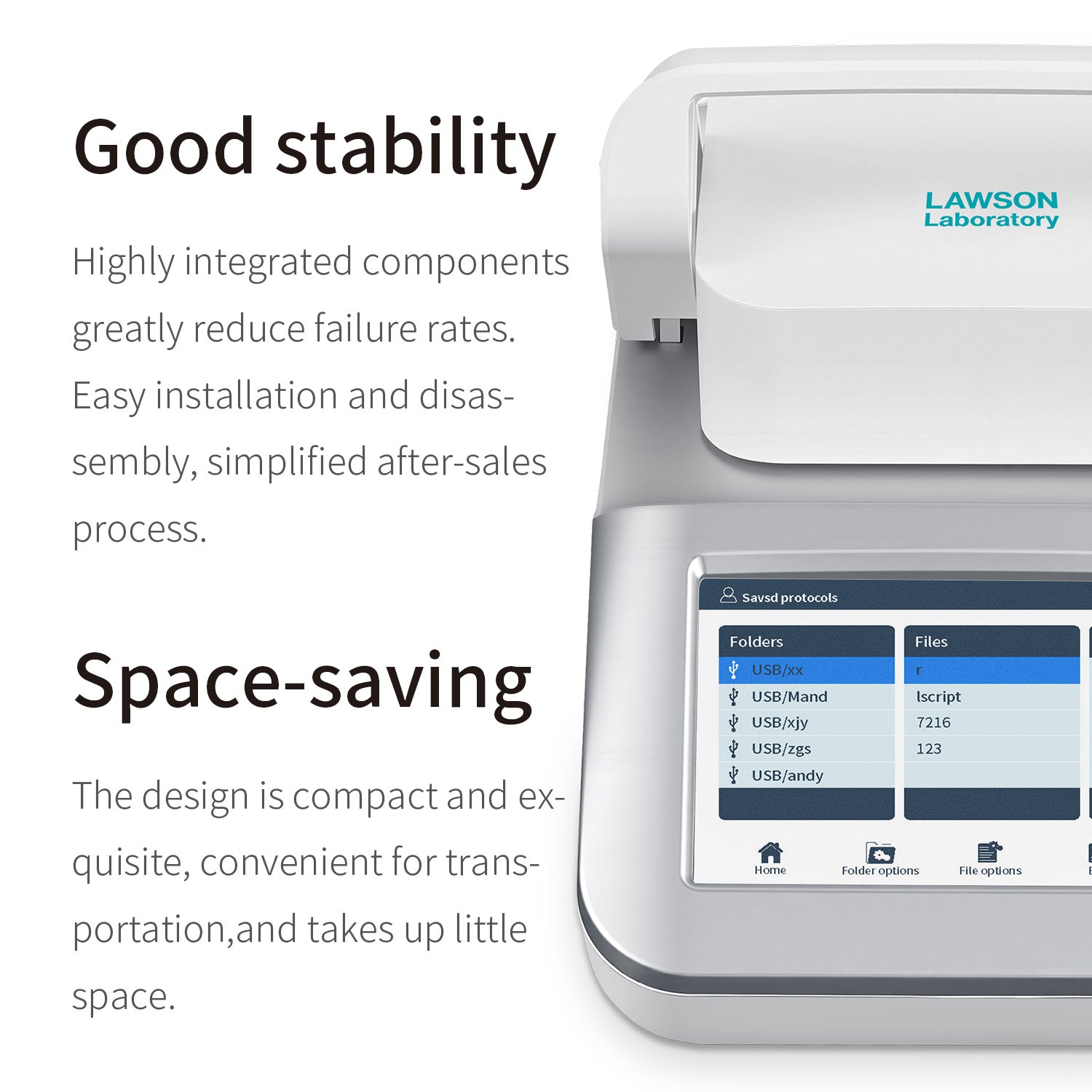

Space-saving- The design is compact and exquisite, convenient for transportation,and takes up little space.
Good stability- Highly integrated components greatly reduce failure rates. Easy installation and disassembly, simplified after-sales process.

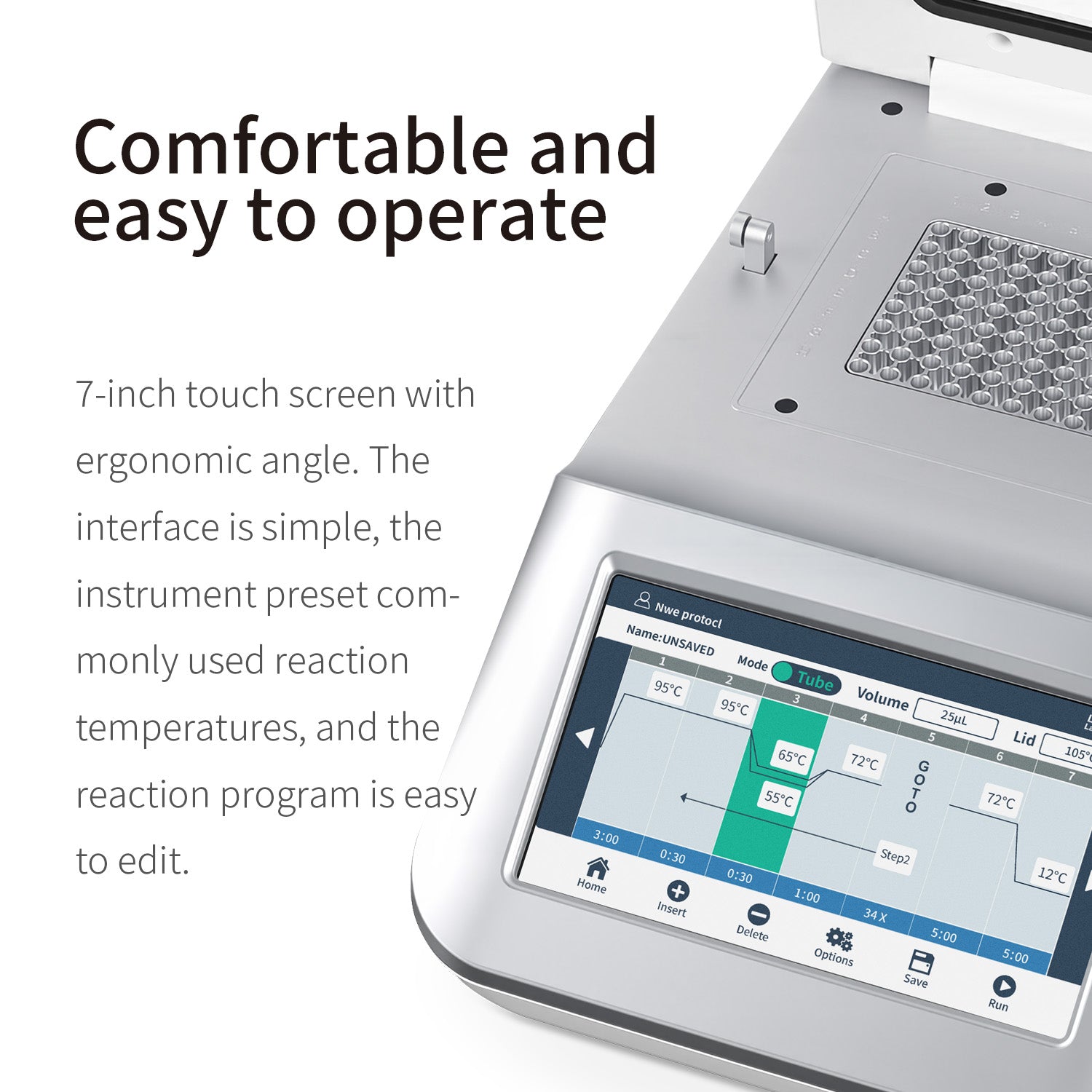

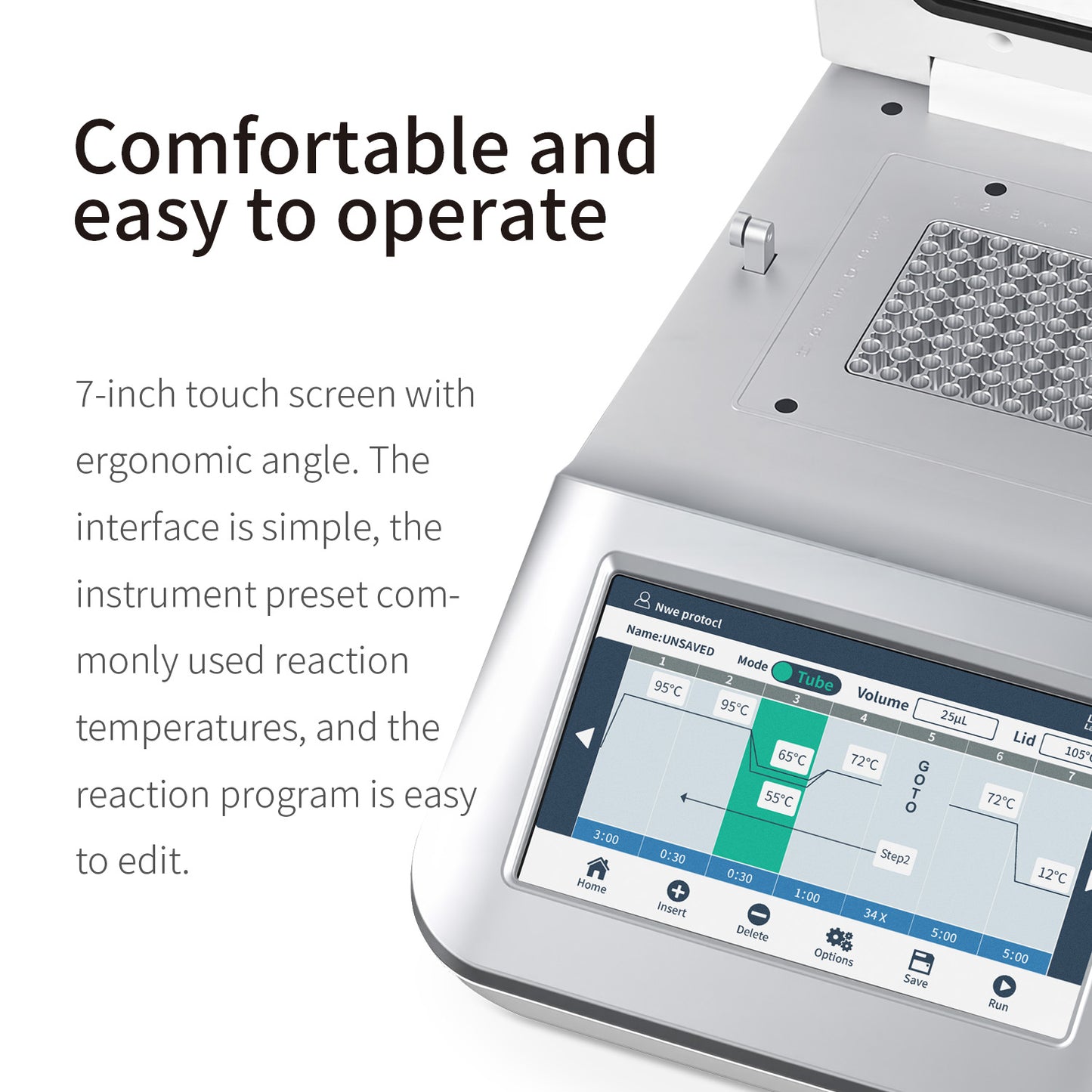

Comfortable and easy to operate- 7-inch touch screen with ergonomic angle. The interface is simple, the instrument preset commonly used reaction temperatures, and the reaction program is easy to edit.

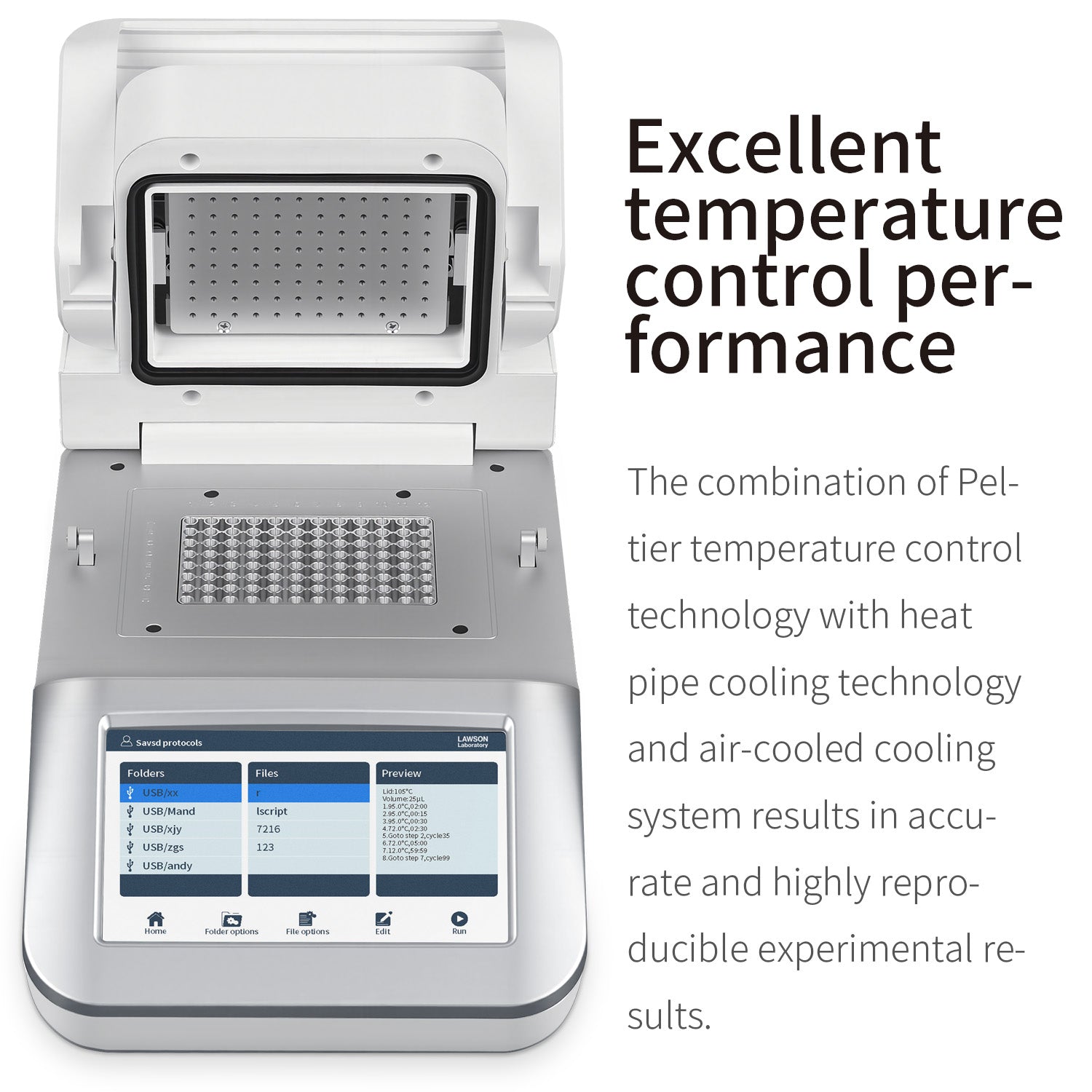

Excellent temperature control performance- The combination of Peltier temperature control technology with heat pipe cooling technology and air-cooled cooling system results in accurate and highly reproducible experimental.

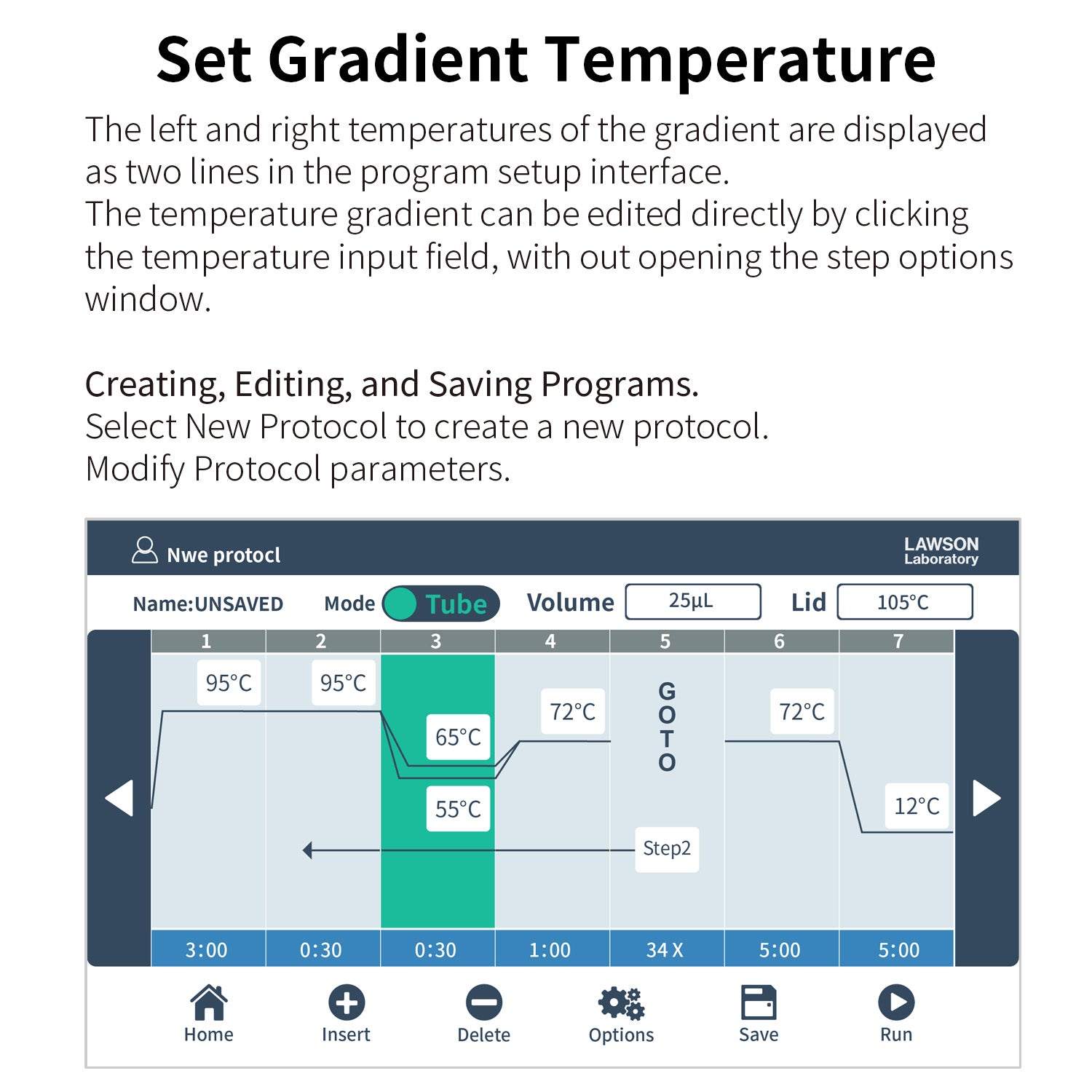

Scope of application- It is suitable for PCR reaction and gradient PCR reaction. It can also be used in Long PCR or Touchdown PCR experiments.

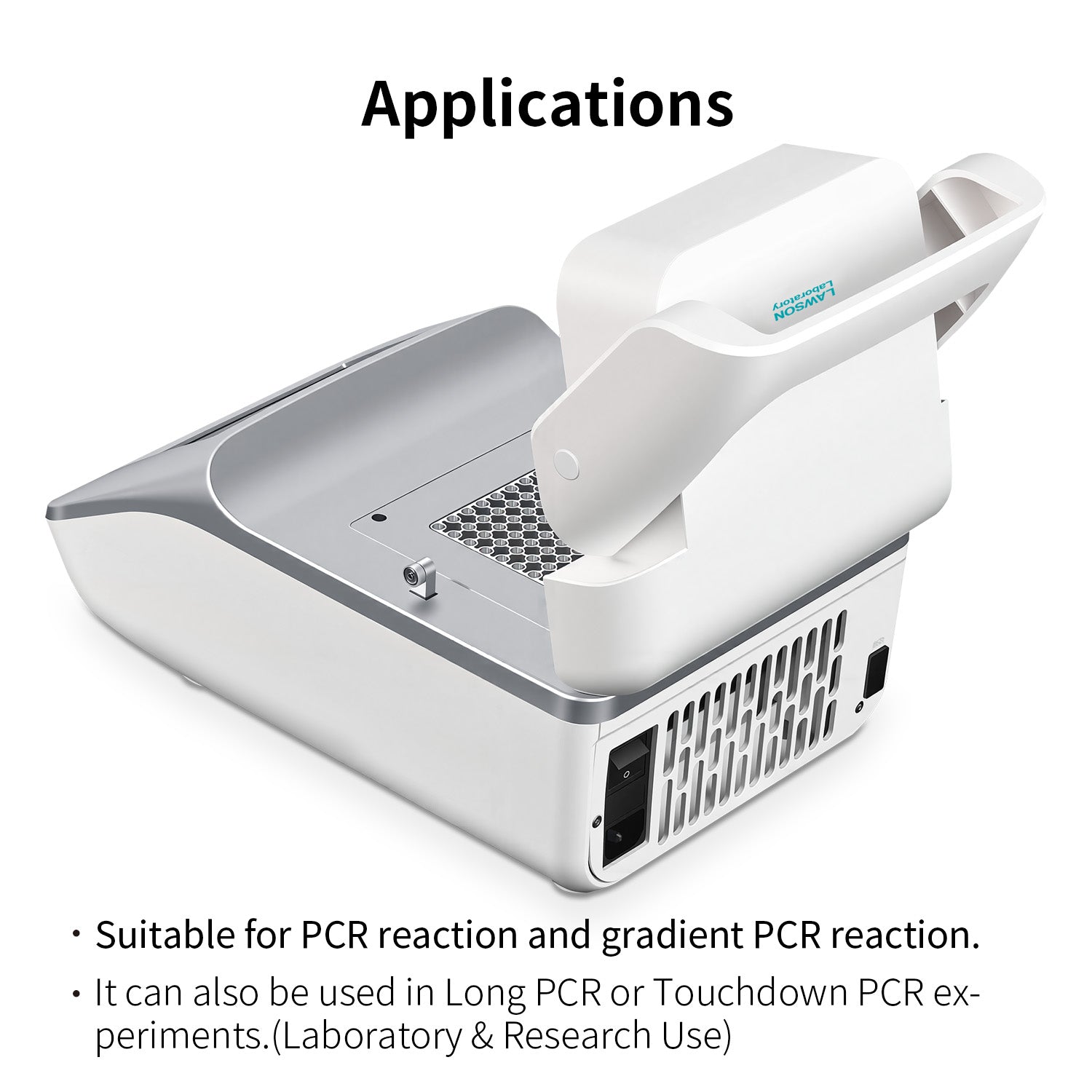

Applications(Laboratory & Research Use)
Suitable for PCR reaction and gradient PCR reaction.
It can also be used in Long PCR or Touchdown PCR experiments.(Laboratory & Research Use).

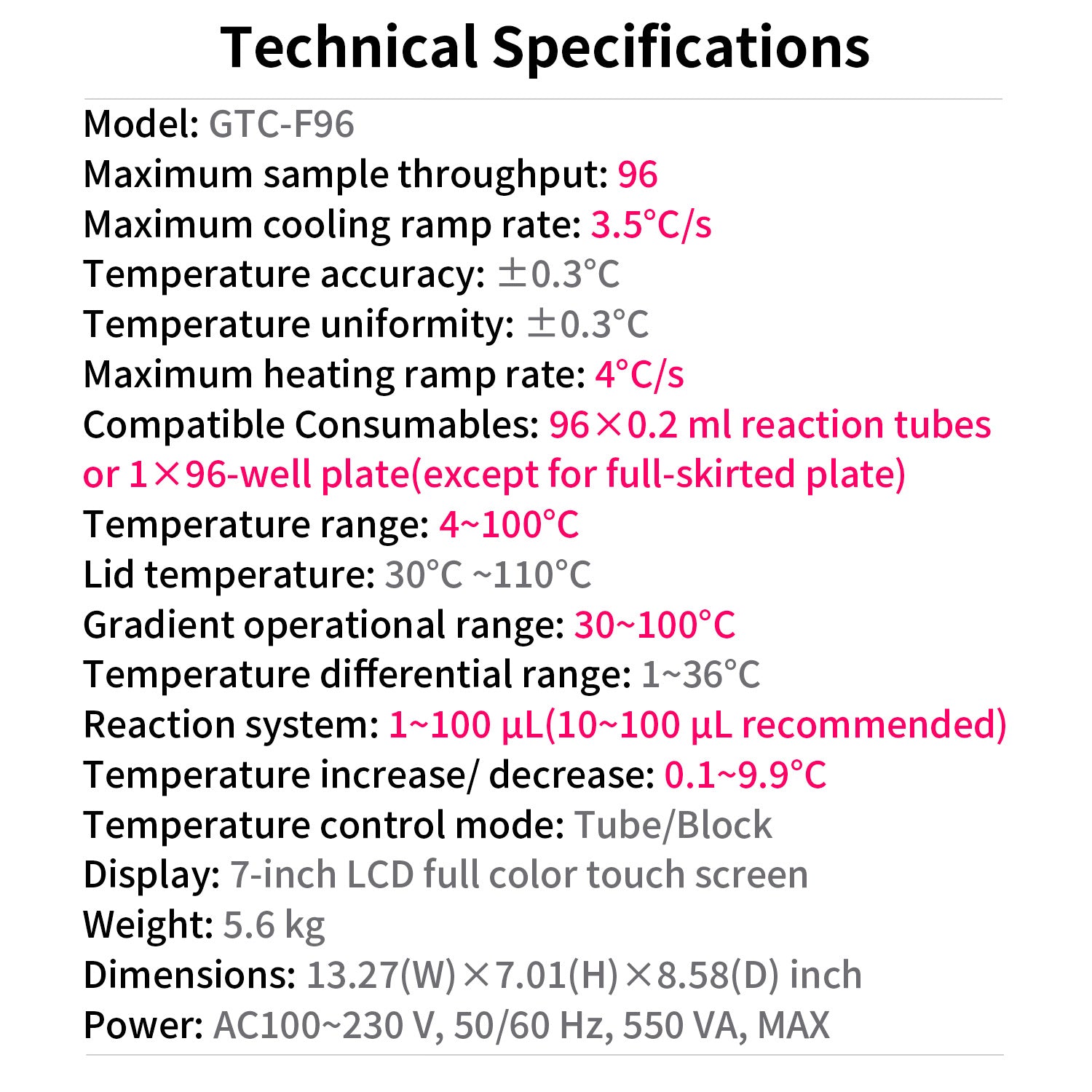

Technical Parameters
Model
GTC-F96
Maximum sample throughput
96
Maximum cooling ramp rate
3.5°C/s
Temperature uniformity
±0.3°C
Maximum heating ramp rate
4°C/s

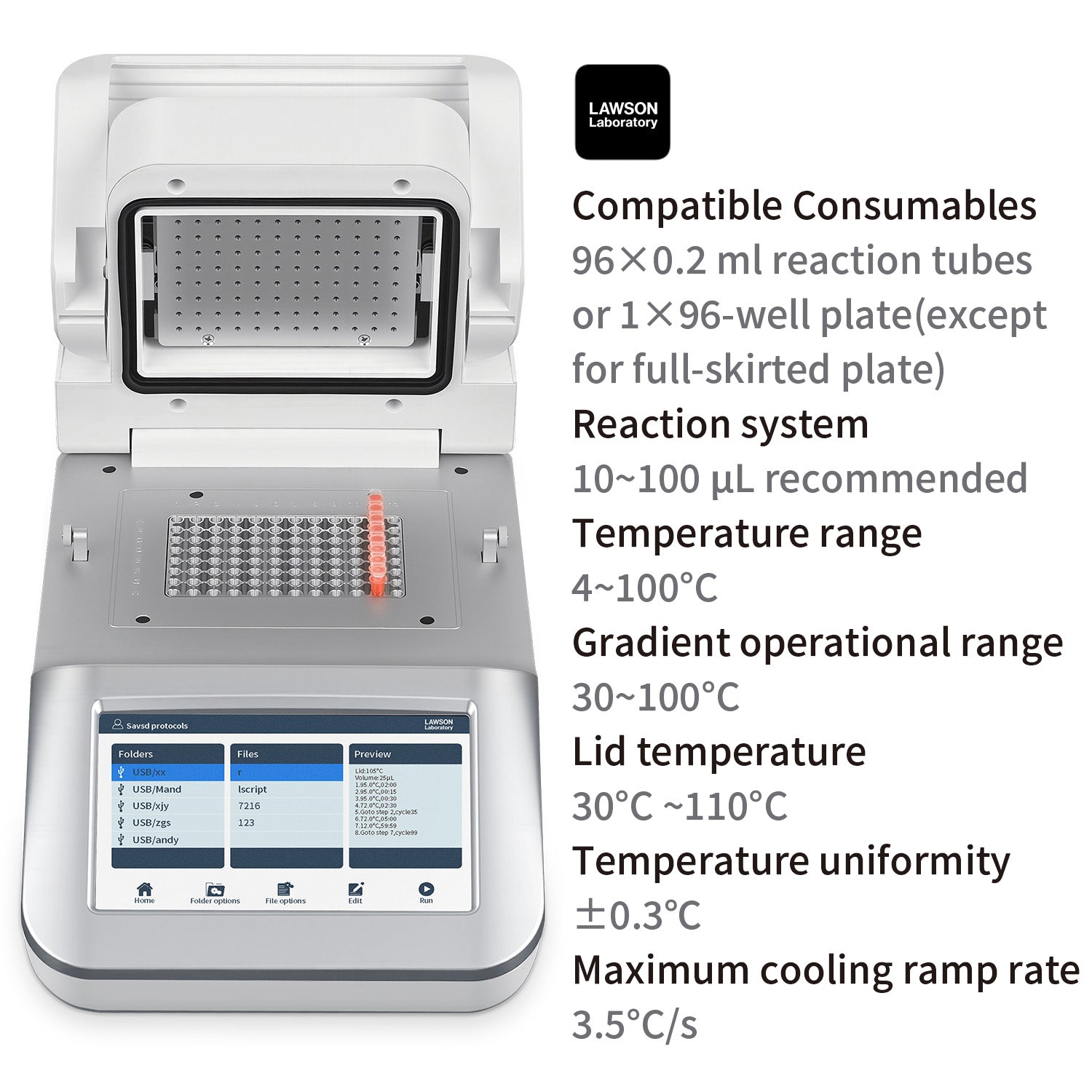

Compatible Consumables
96×0.2 ml reaction tubes or 1×96-well plate(except for full-skirted plate)
Temperature range
4~100°C
Lid temperature
30°C ~110°C
Gradient operational range
30~100°C
Temperature differential range
1~36°C
Reaction system
1~100 μL(10~100 μL recommended)
Temperature increase/ decrease
0.1~9.9°C
Temperature control mode
Tube/Block
Display
7-inch LCD full color touch screen

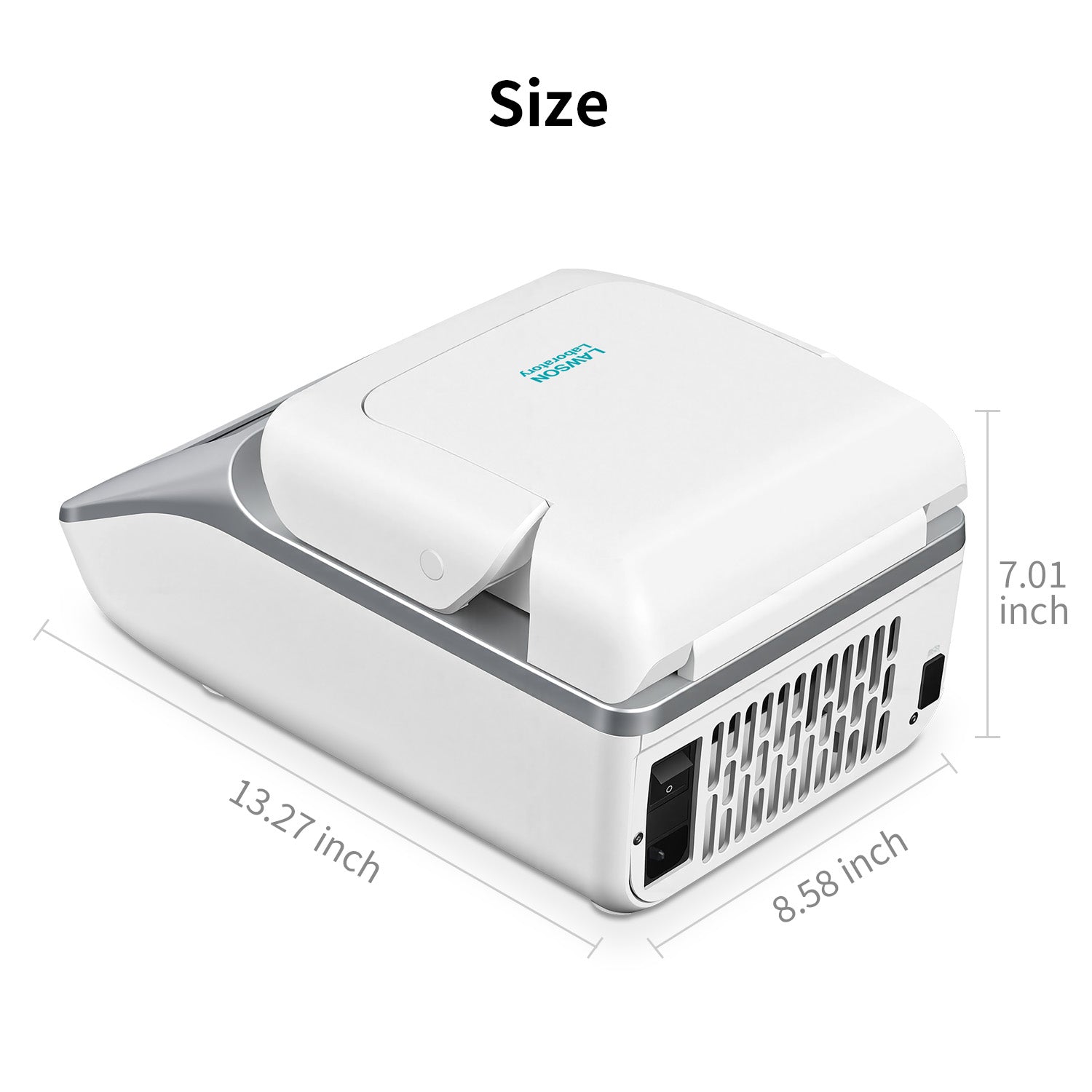

Dimensions / Weight
13.27(W)×7.01(H)×8.58(D) inch / 5.6 kg
Power
AC100~230 V, 50/60 Hz, 550 VA, MAX
For laboratory and research use only. Not intended for clinical, medical, or direct food processing use.
