Dry Bath Incubator,Block Heater,with Heating Timing,DH-10S,DH-20S

Dry Bath Incubator,Block Heater,with Heating Timing,DH-10S,DH-20S

$675.00 USD
Now Sold out
$675.00 USD
Free shipping Customs duties and taxes may apply depending on destination and are the responsibility of the customer.

Fast lead time available

Multiple configurations available

Model

Product Introduction

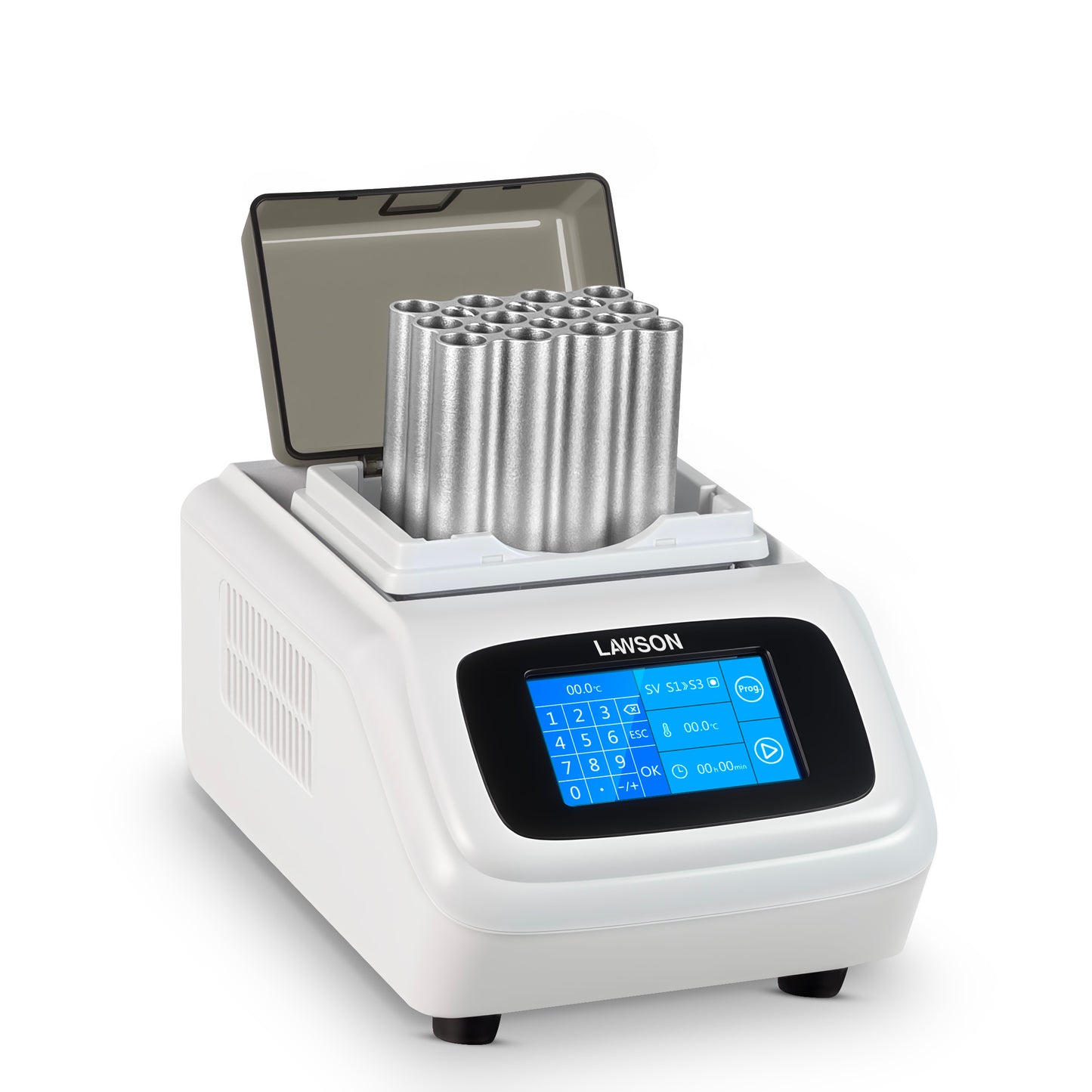

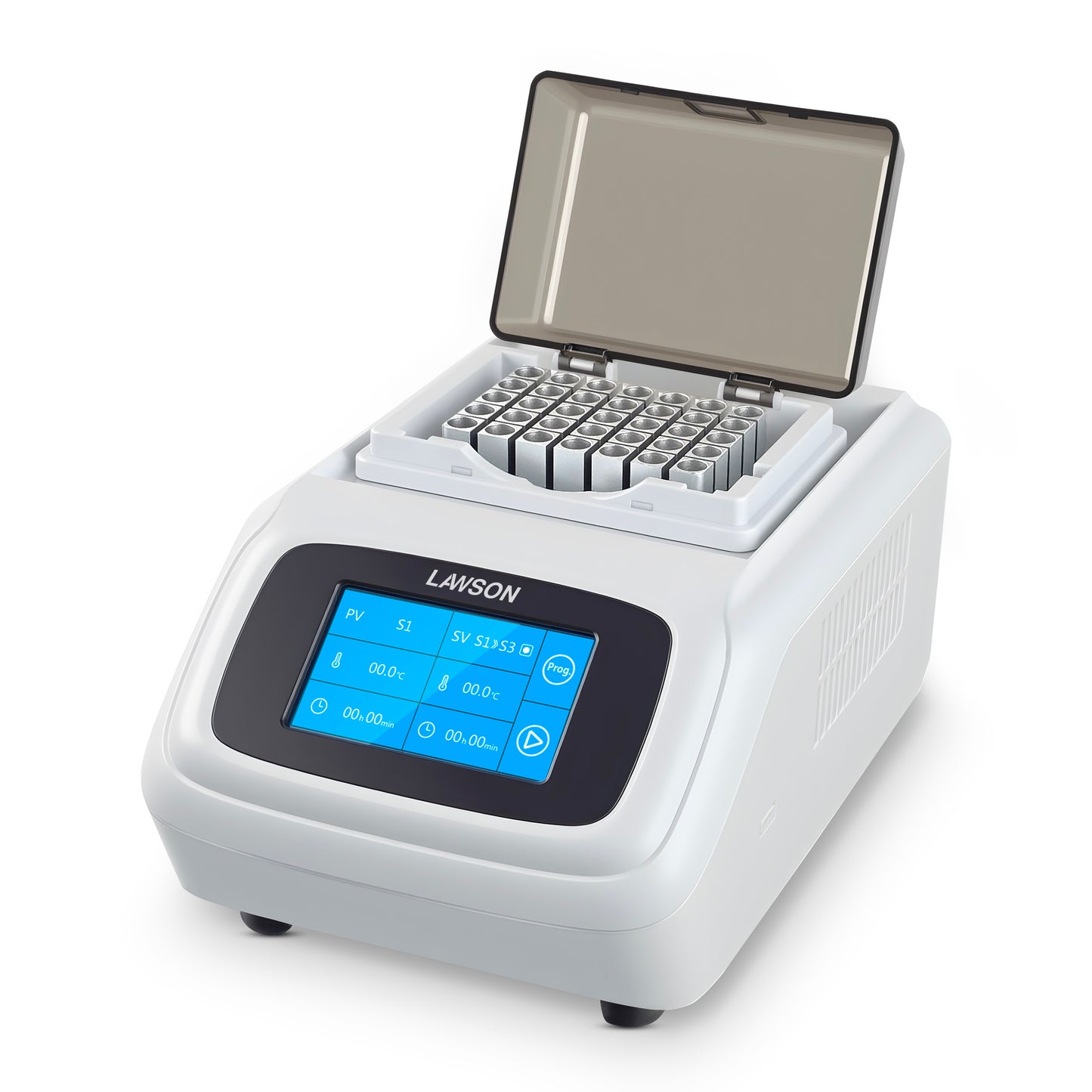

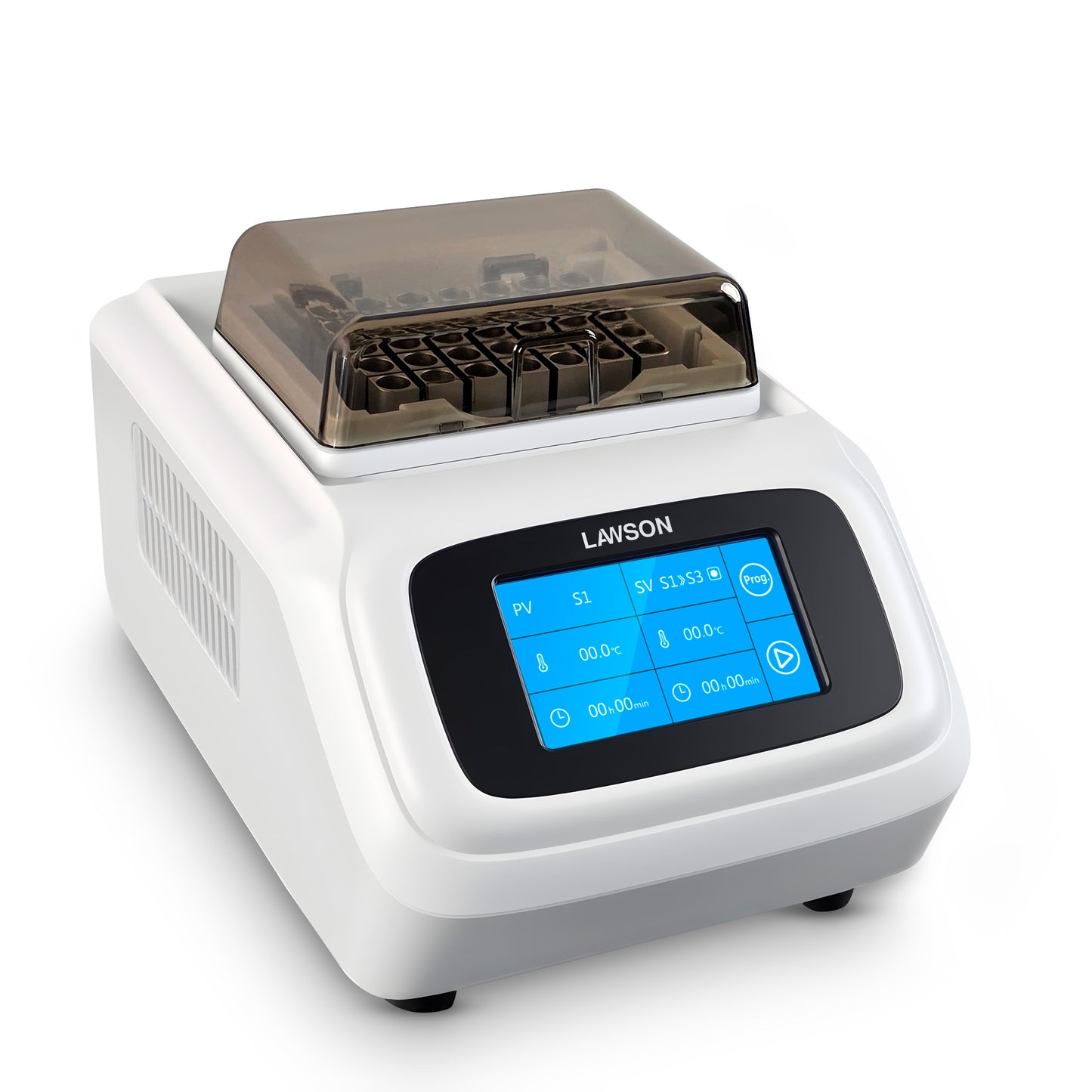

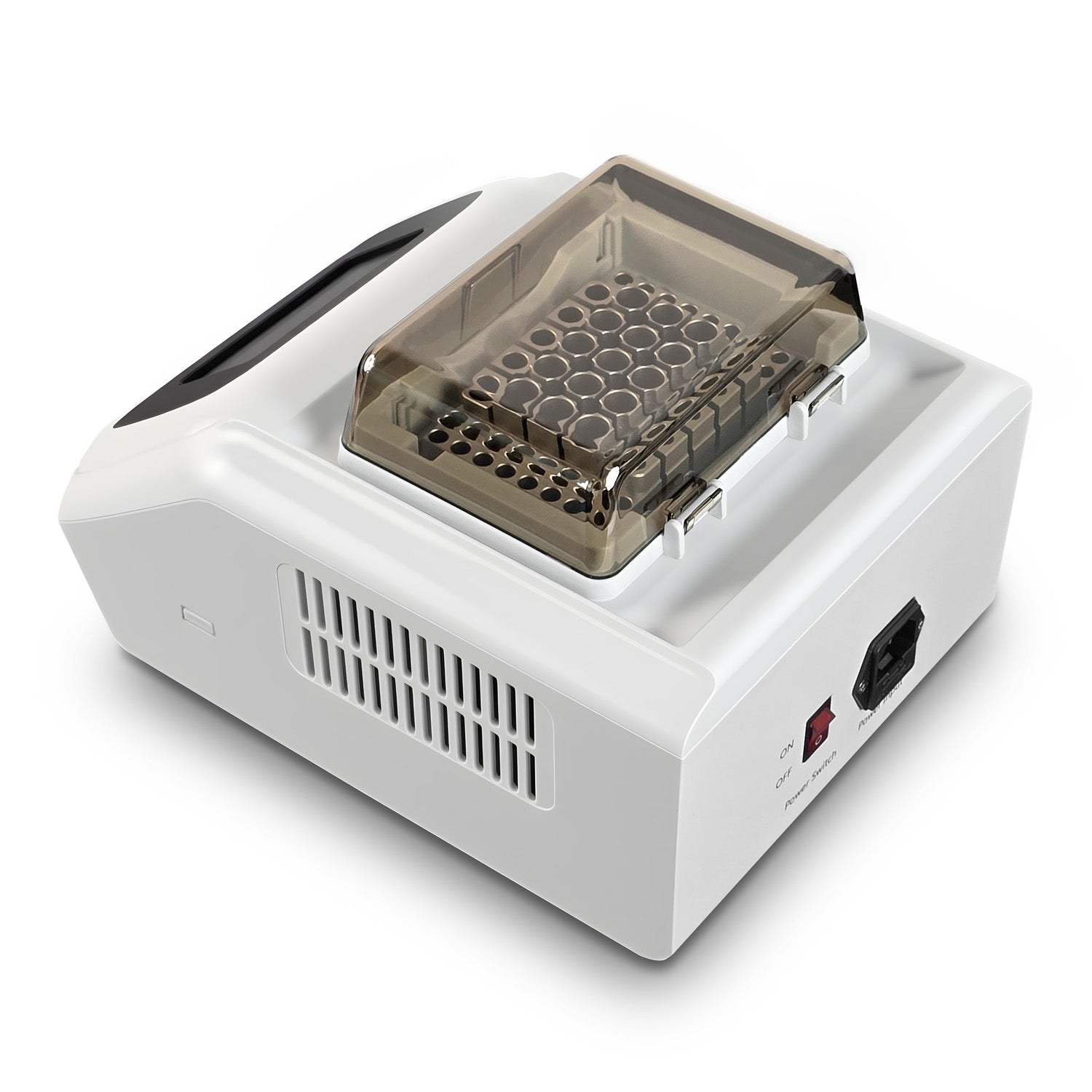

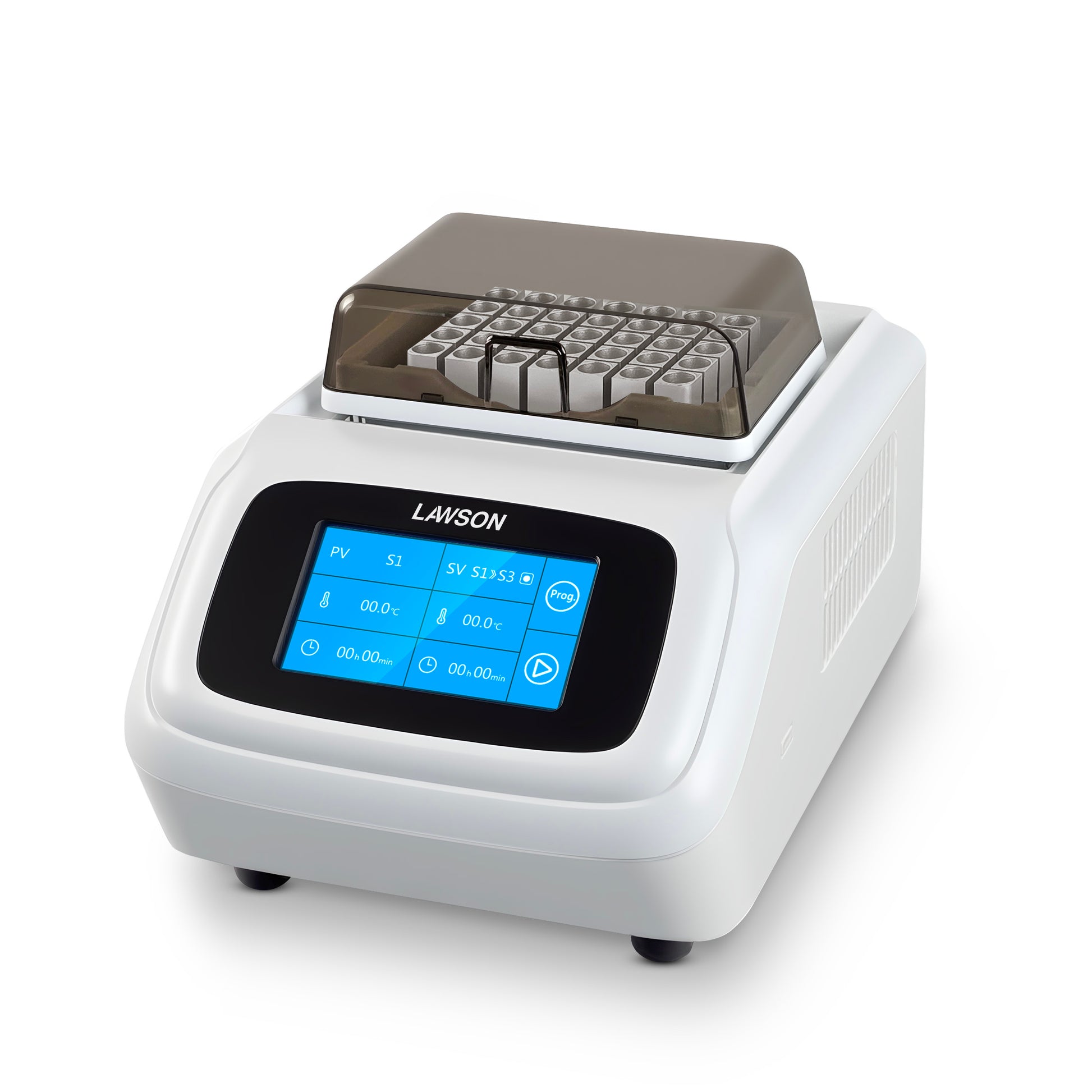

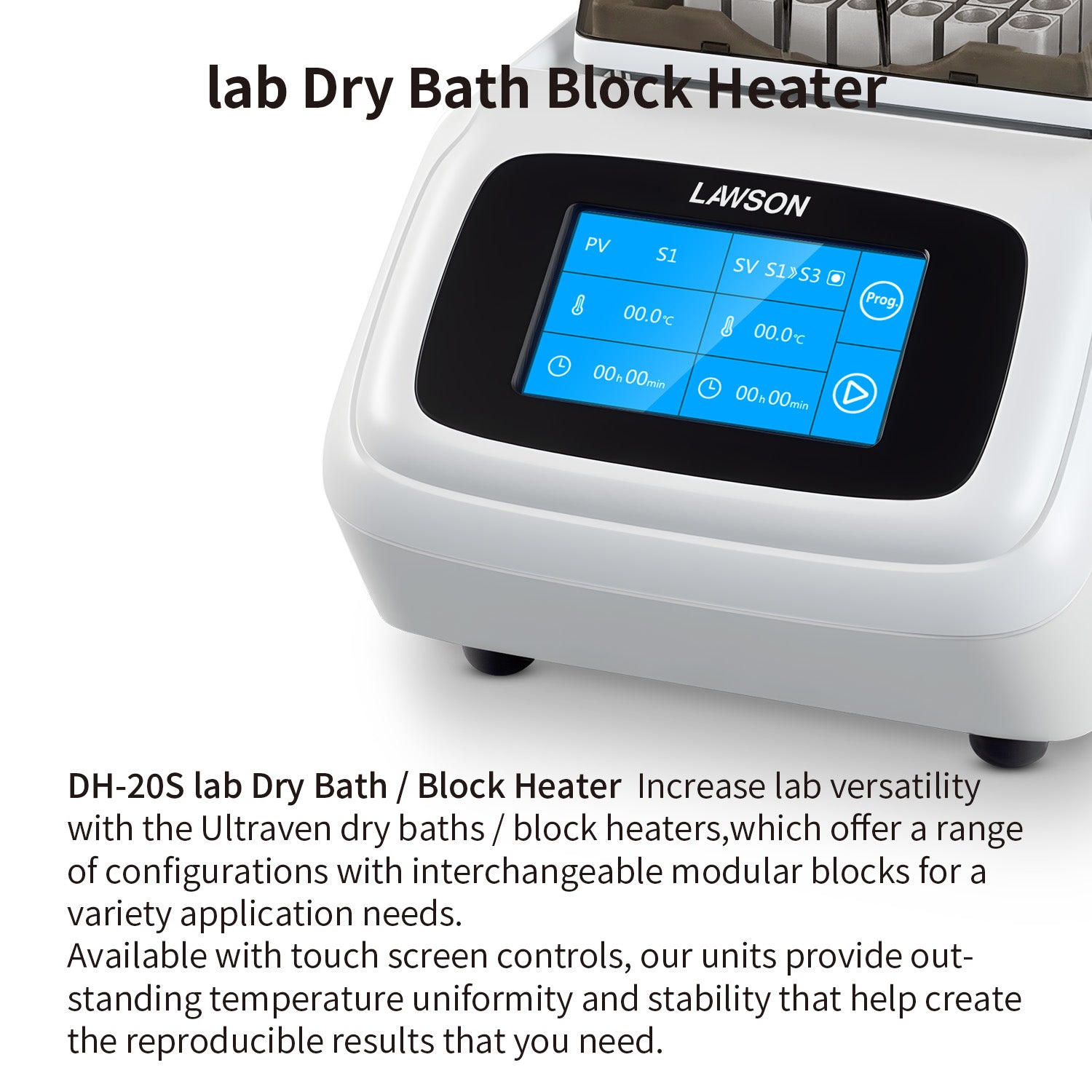

  • DH-10S / DH-20S Dry Bath Incubator Increase lab versatility with the LAWSON Laboratory dry baths / block heaters,which offer a range of configurations with interchangeable modular blocks for a variety application needs.
  • Available with touch screen controls, our units provide outstanding temperature uniformity and stability that help create the reproducible results that need.

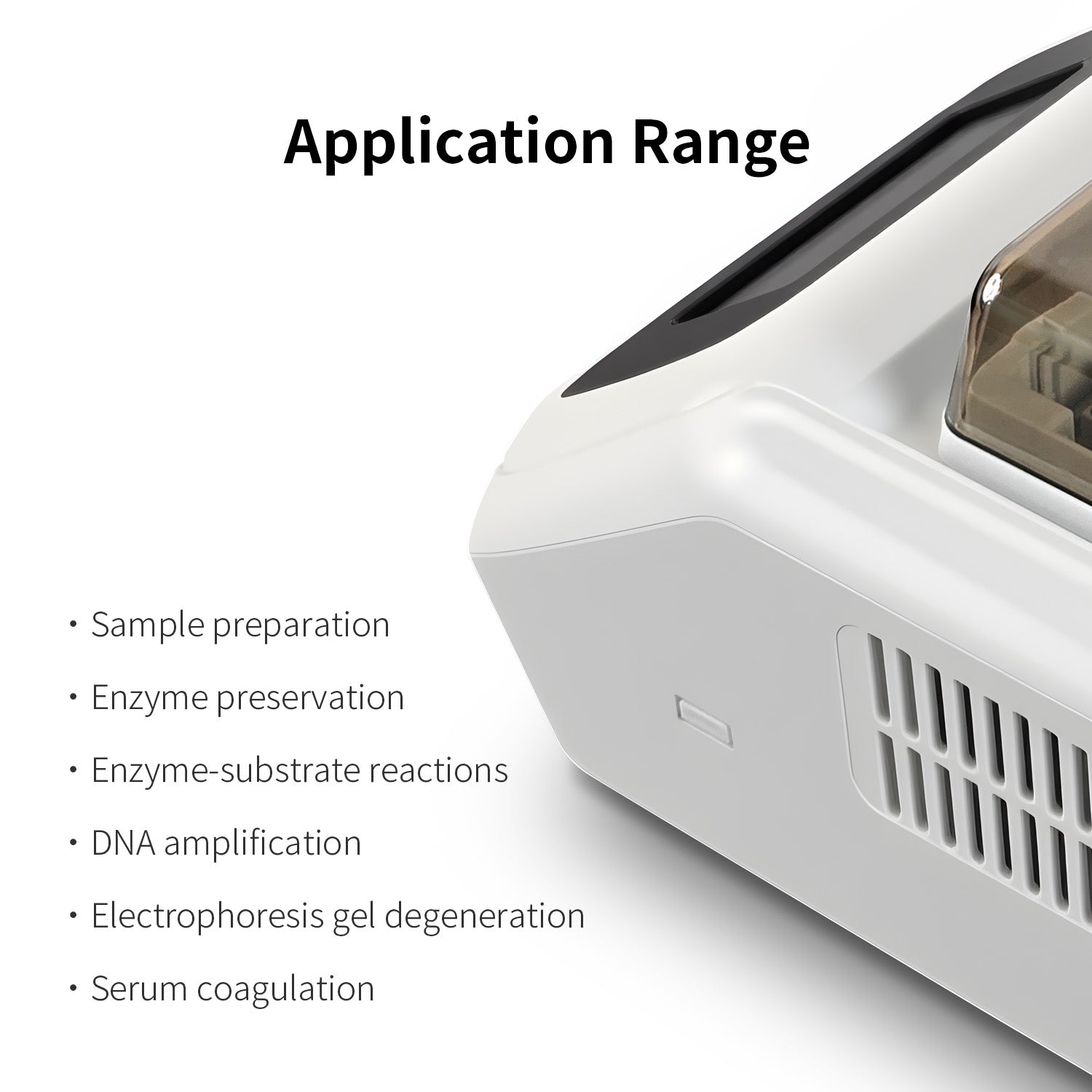

  • It is widely used for sample preservation and reactions, DNA amplification, as well as serum coagulation(Laboratory & Research Use).

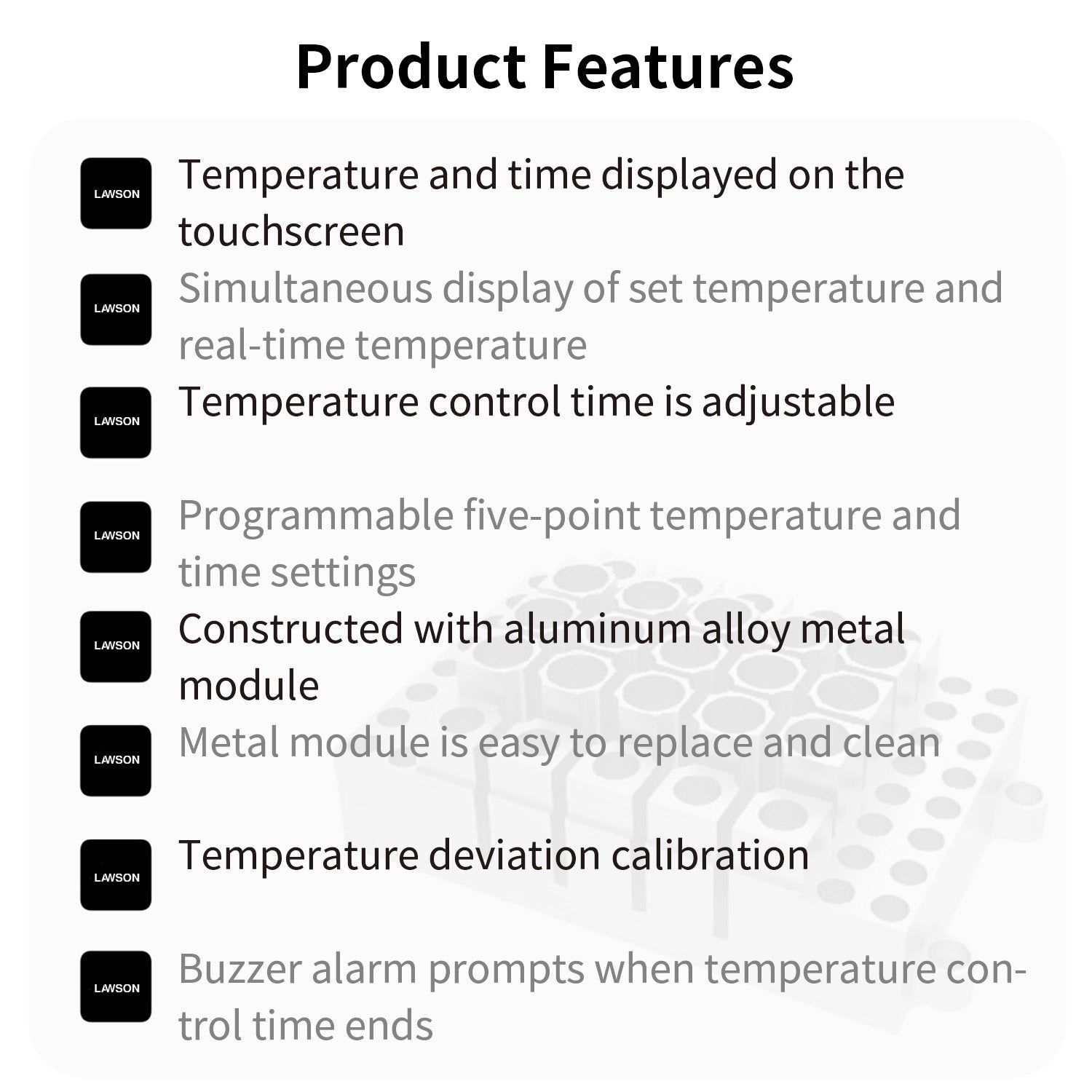

Product Features

  • Temperature and time displayed on the touchscreen
  • Simultaneous display of set temperature and real-time temperature
  • Temperature control time is adjustable
  • Programmable five-point temperature and time settings
  • Constructed with aluminum alloy metal module
  • Metal module is easy to replace and clean
  • Temperature deviation calibration
  • Buzzer alarm prompts when temperature control time ends

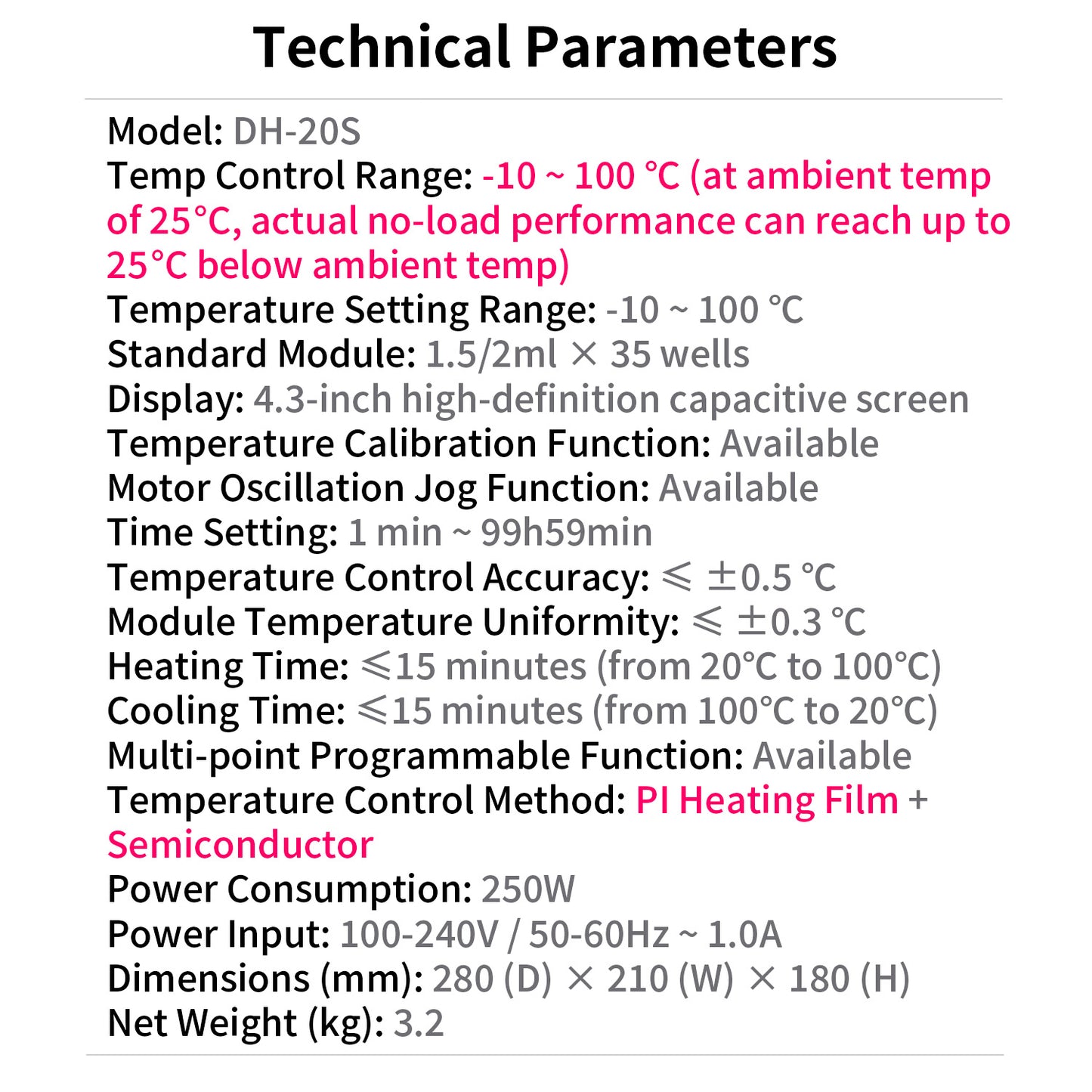

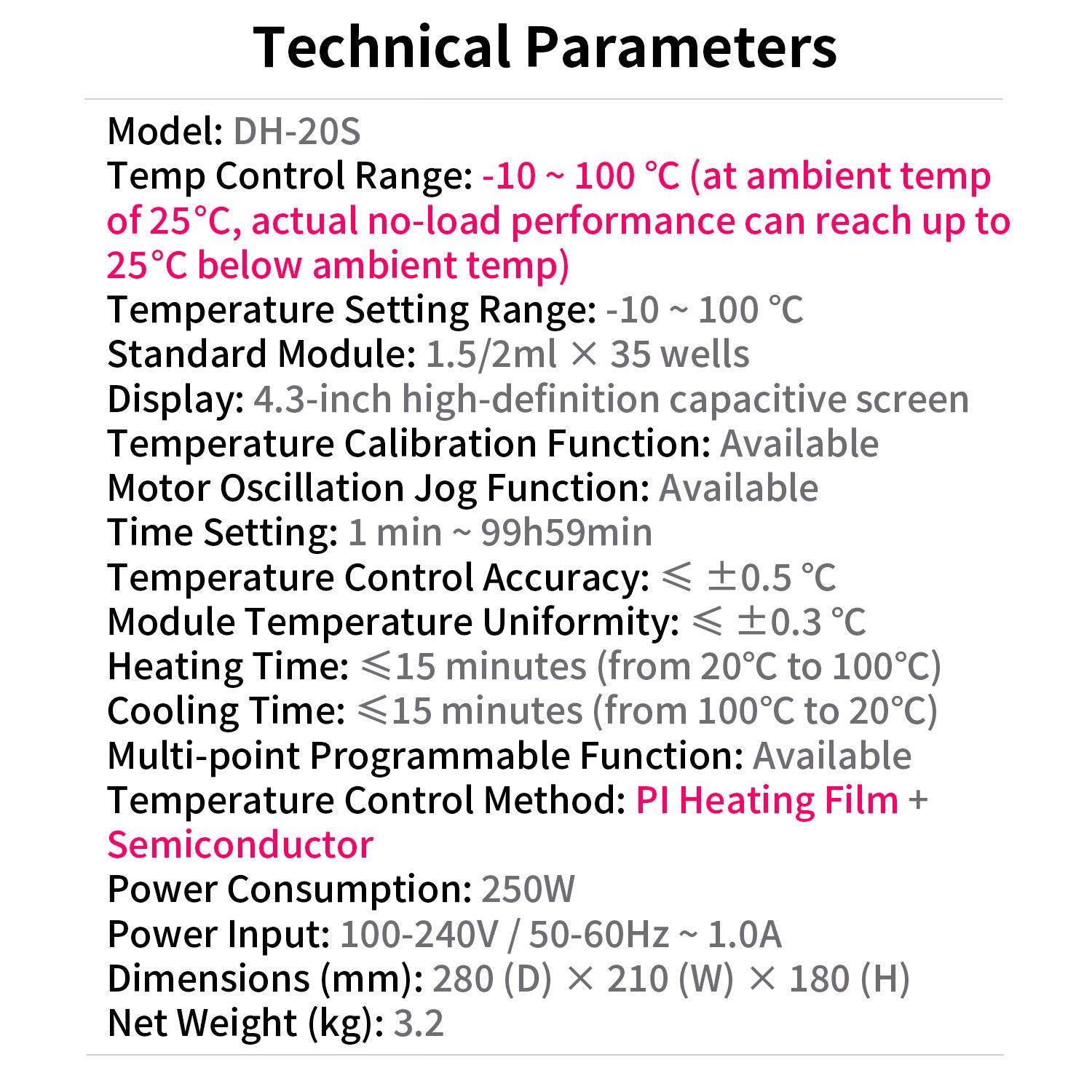

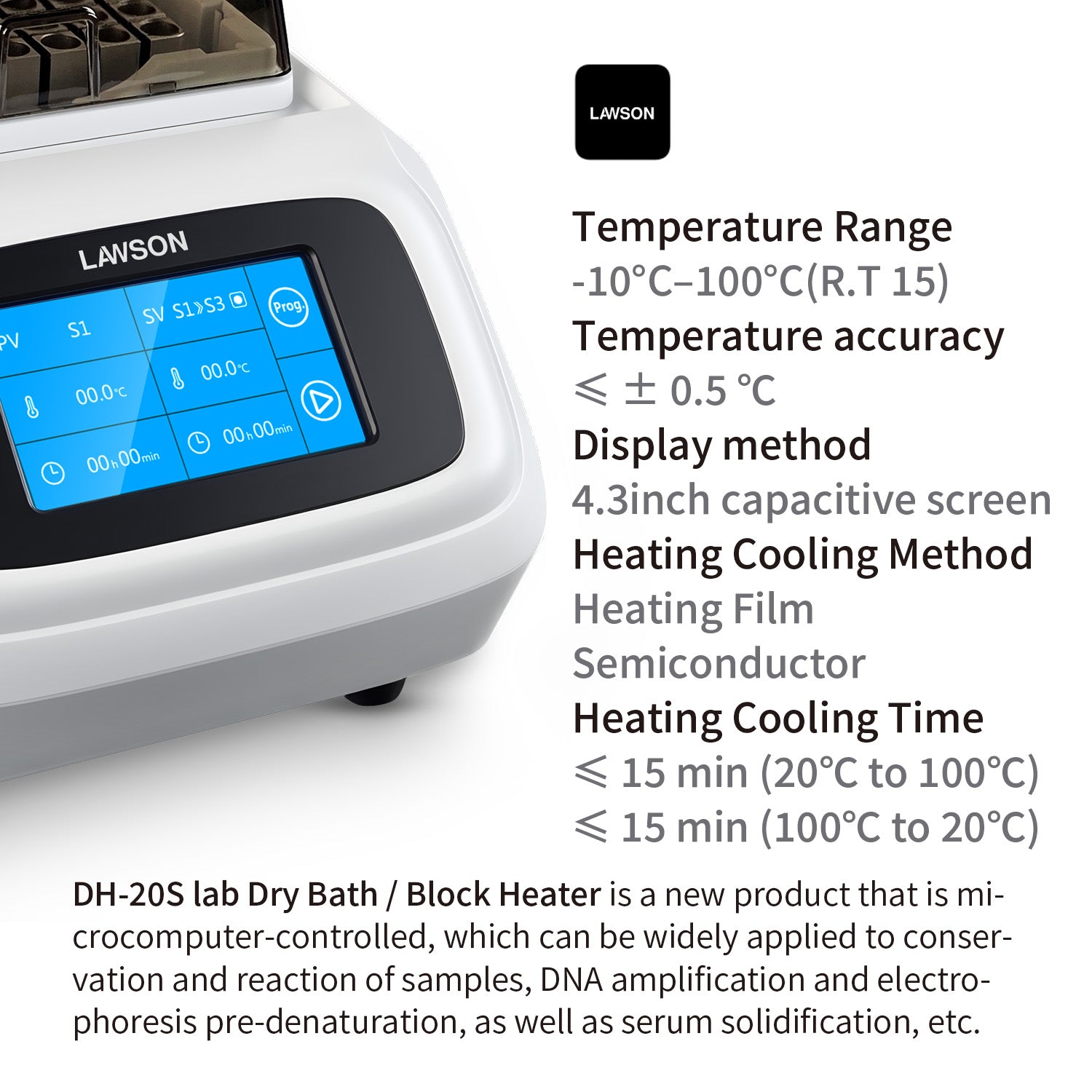

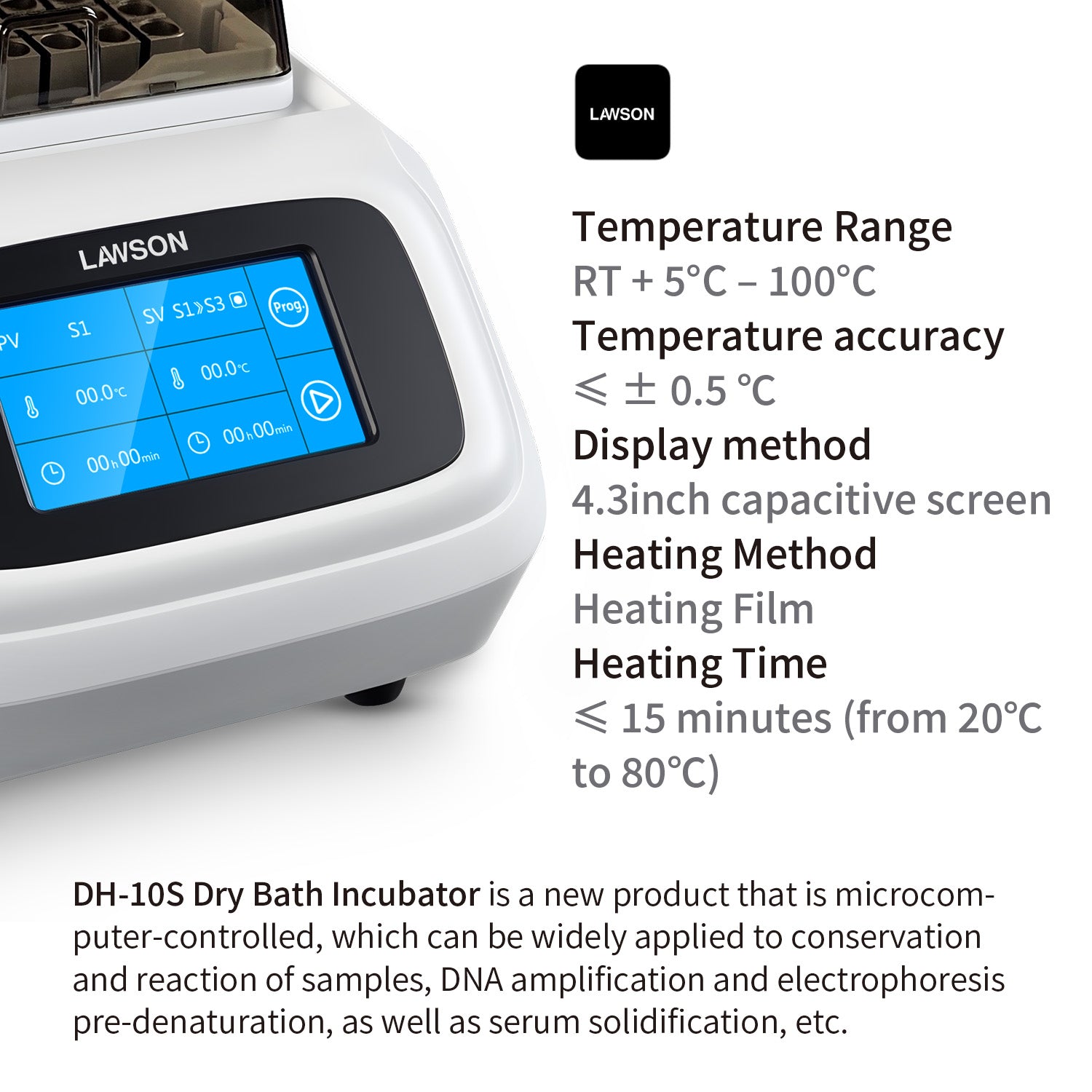

Technical Parameters

Model DH-10S / DH-20S
Temperature Control Range R.T +5 ~100 ℃ / R.T -25 ~100 ℃
Display Type 4.3-inch high-definition capacitive screen
Control Method Full-screen TFT touch operation
End or Fault Alarm Function Available
Temperature Calibration Function Available
Dynamic Temperature/Time Display Available
Time Setting 1 minute to 99 hours 59 minutes or continuous operation
Temperature Control Accuracy ≤ ±0.5 °C
Display Accuracy 0.1 °C
Block Temperature Uniformity ≤ ±0.3 °C
Heating Cooling Time ≤15 minutes (from 20 °C to 100 °C) / ≤15 minutes (from 100 °C to 20 °C)
Multi-step Programming Function Available (up to 5 sets selectable)
Standard Centrifuge Tube Block 1.5/2 ml × 35 wells
Temperature Control Method PI heating film / Thermoelectric semiconductor
Power Consumption 200W / 250W
Fuse 250V 3A Φ5×20
Power Supply Input 100–240V / 50–60Hz ~ 1.0A
Dimensions (mm) 280 (D) × 210 (W) × 180 (H)
Packaging Dimensions (mm) 340 (L) × 265 (W) × 240 (H)
Net/Gross Weight (kg) 2.5 / 3.2

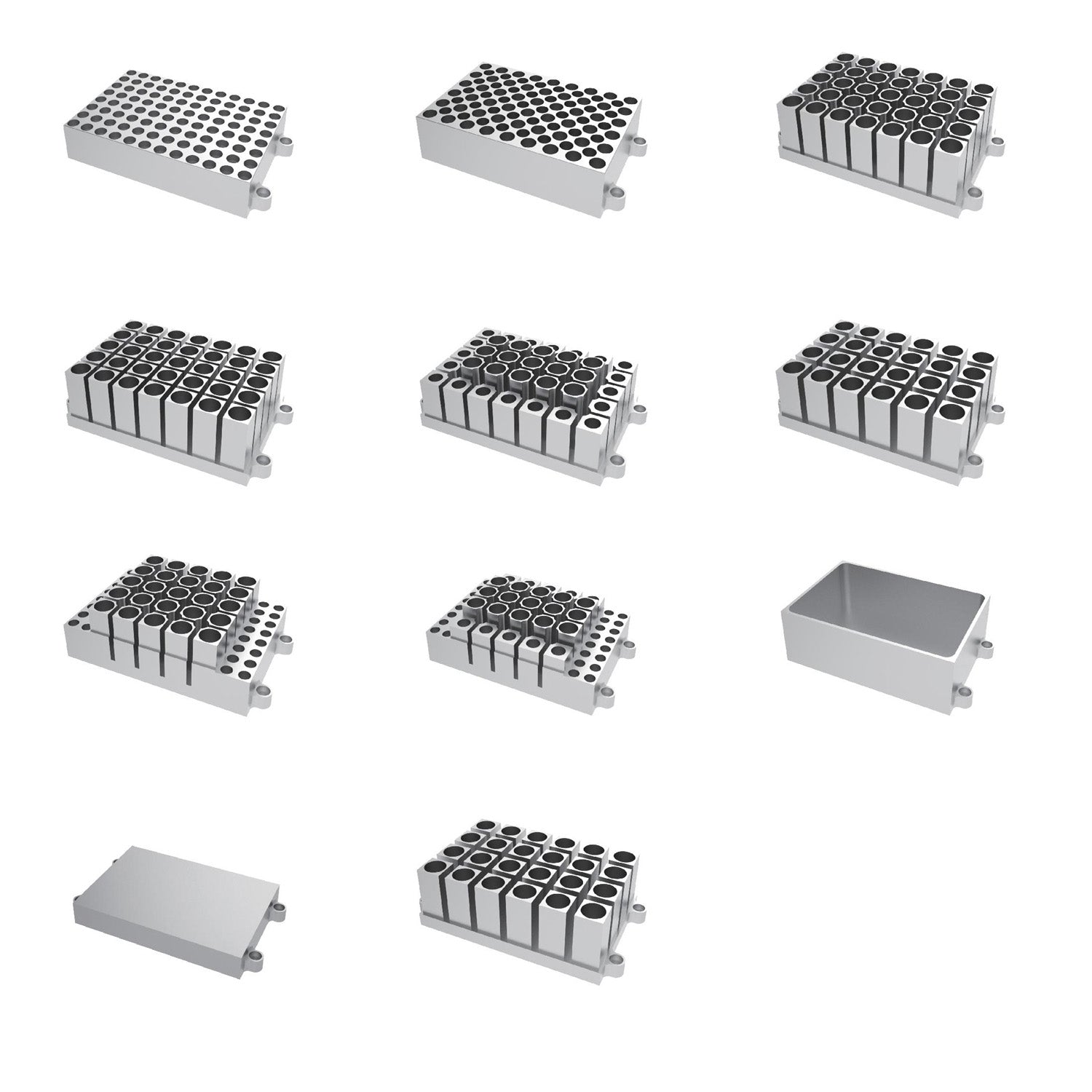

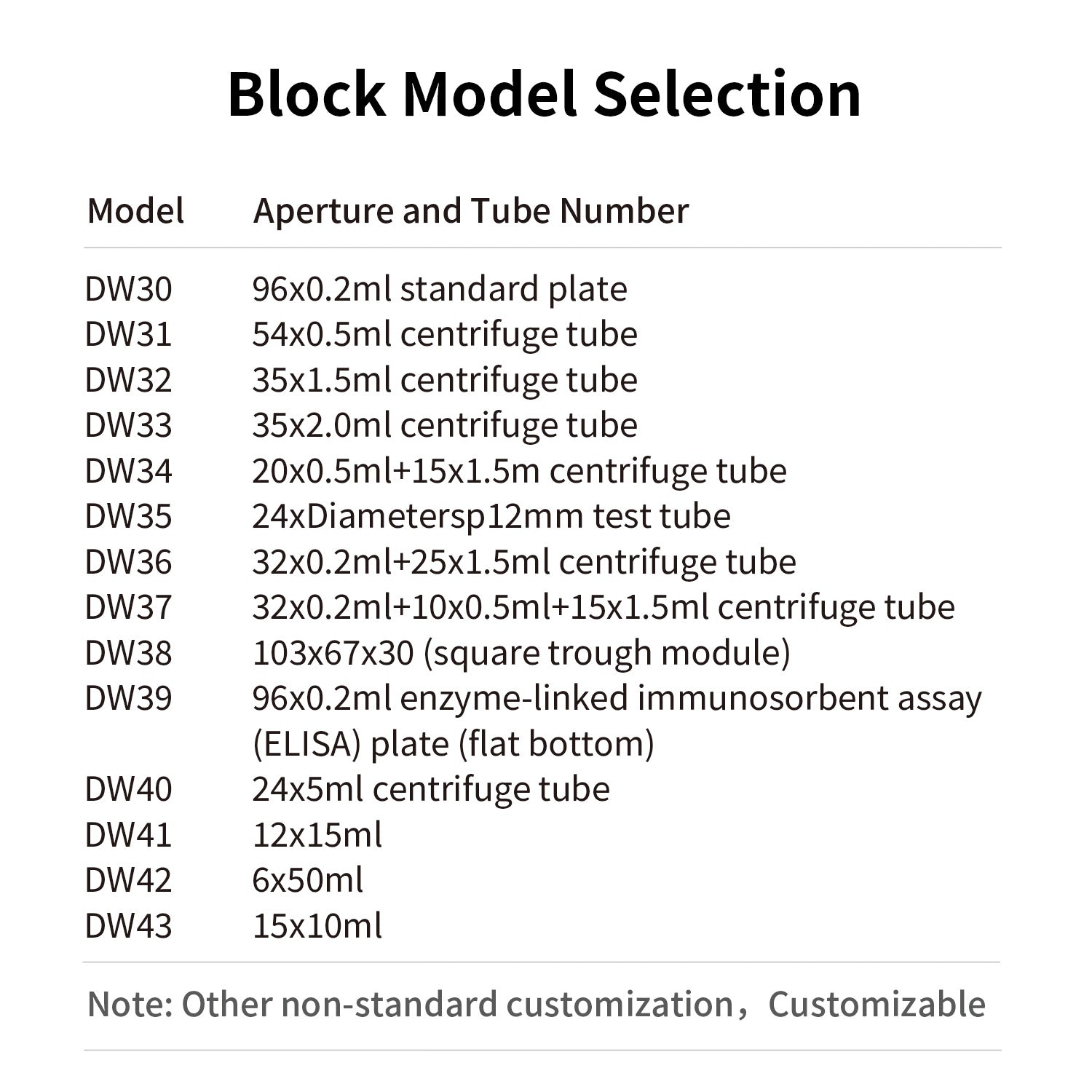

Block Model Selection Table

Model Aperture and Tube Number

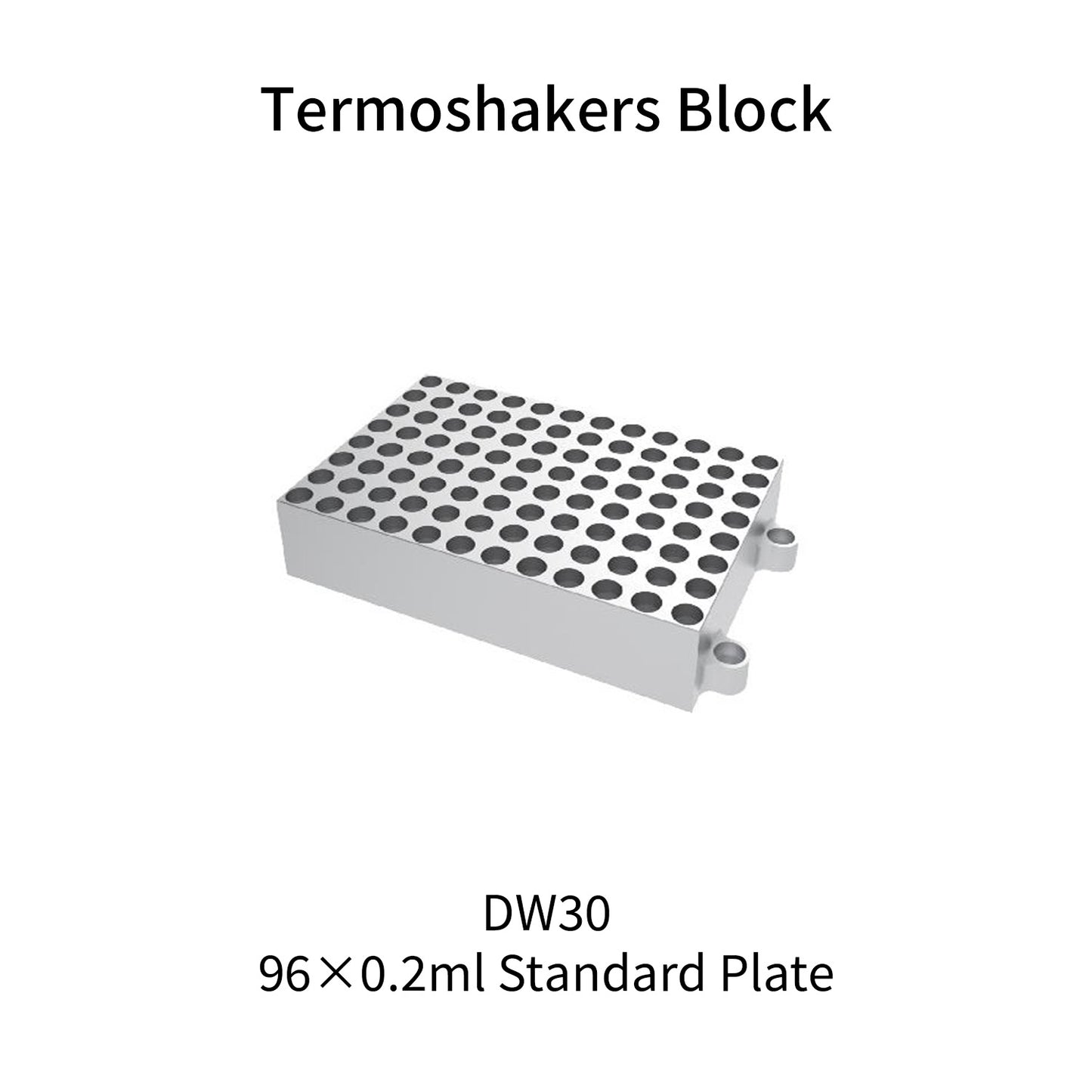

DW30 96x0.2ml standard plate

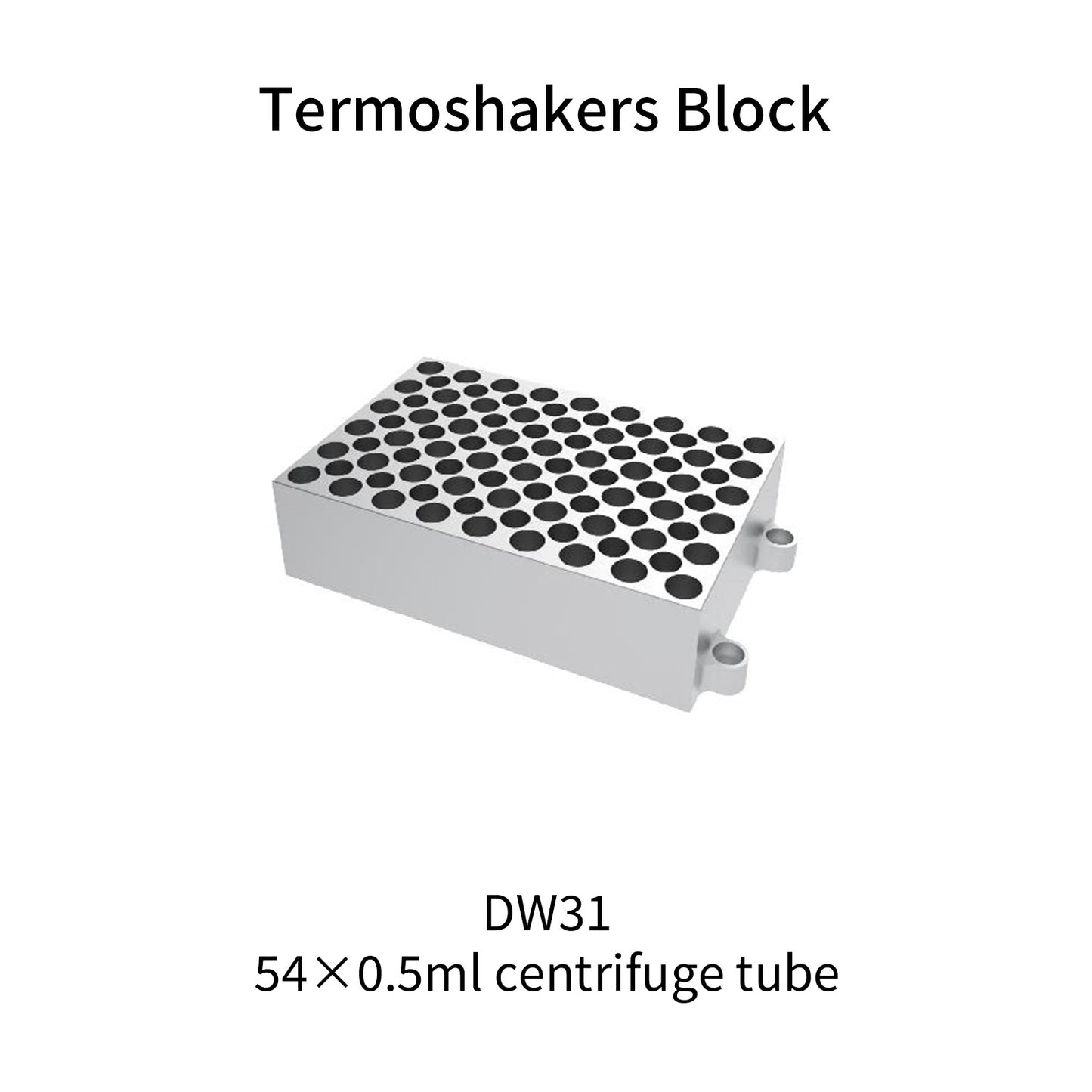

DW31 54x0.5ml centrifuge tube

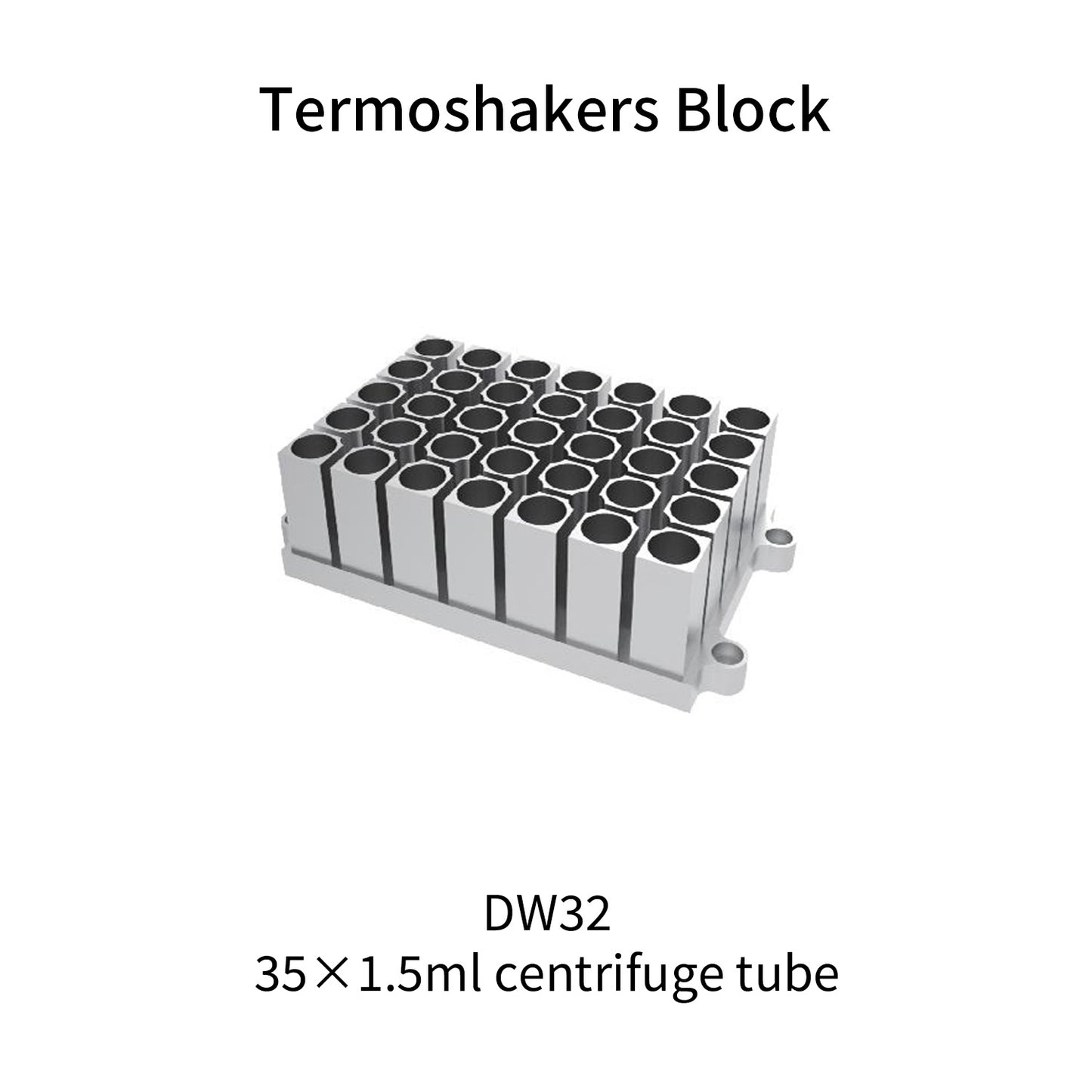

DW32 35x1.5ml centrifuge tube

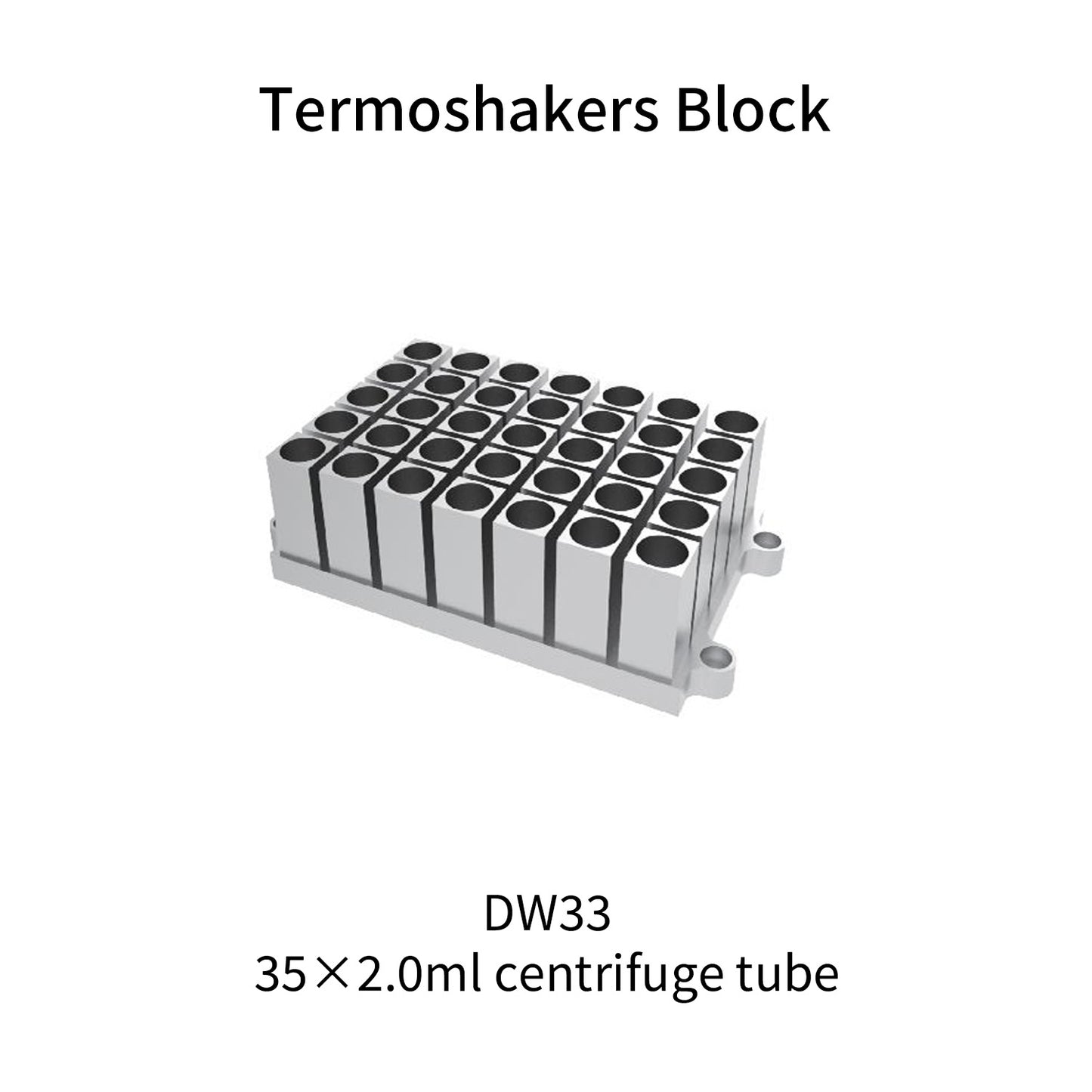

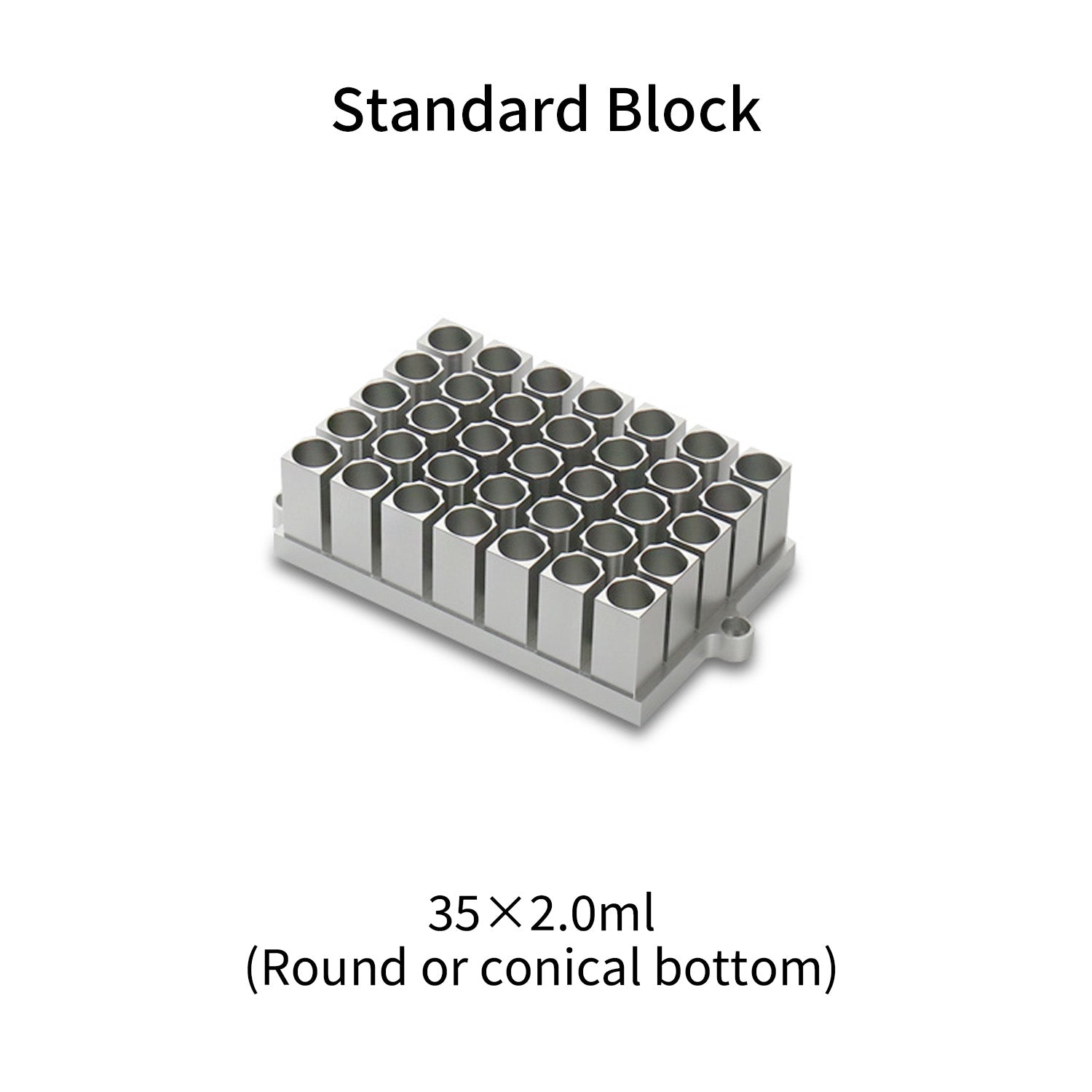

DW33 35x2.0ml centrifuge tube

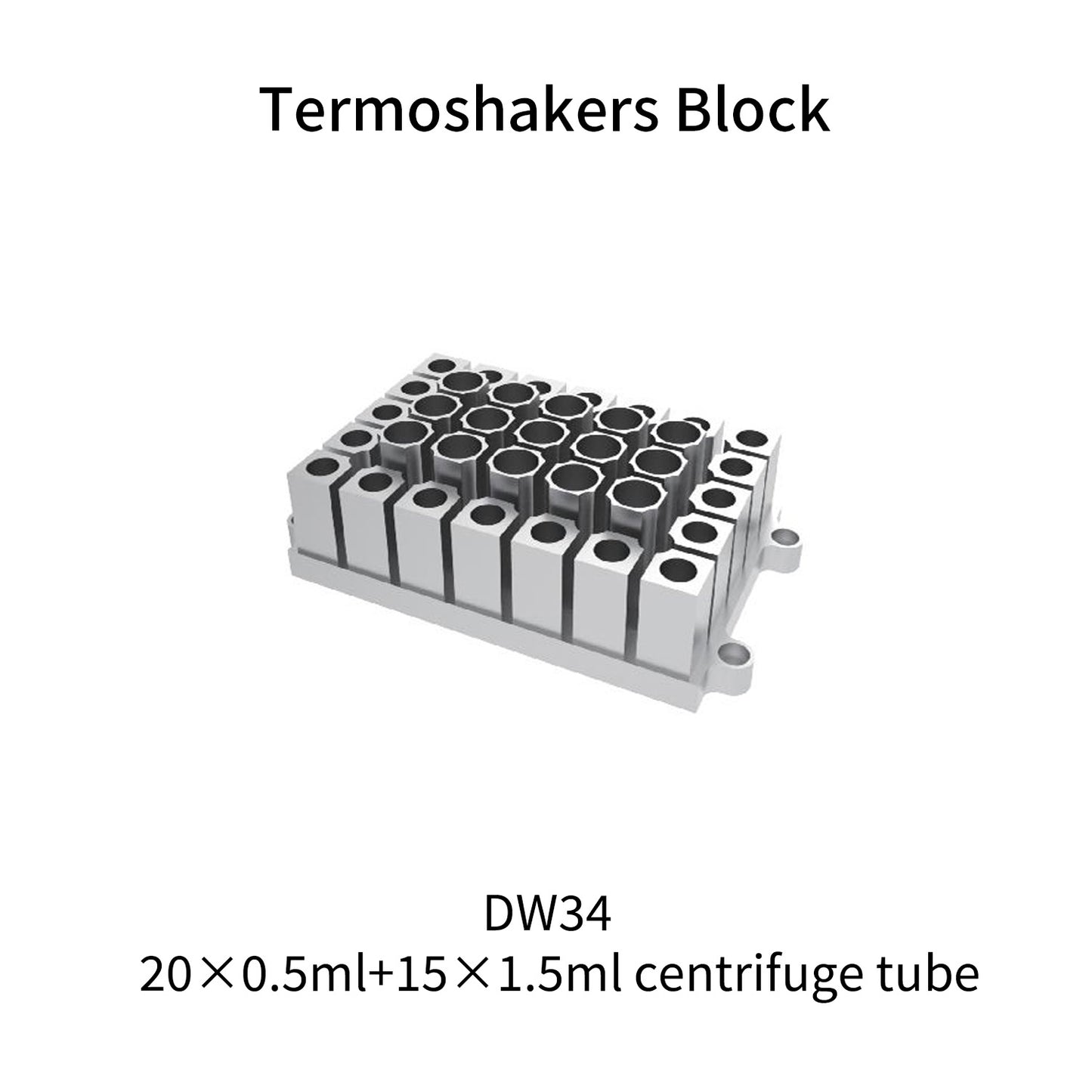

DW34 15x0.5ml+20x1.5m centrifuge tube

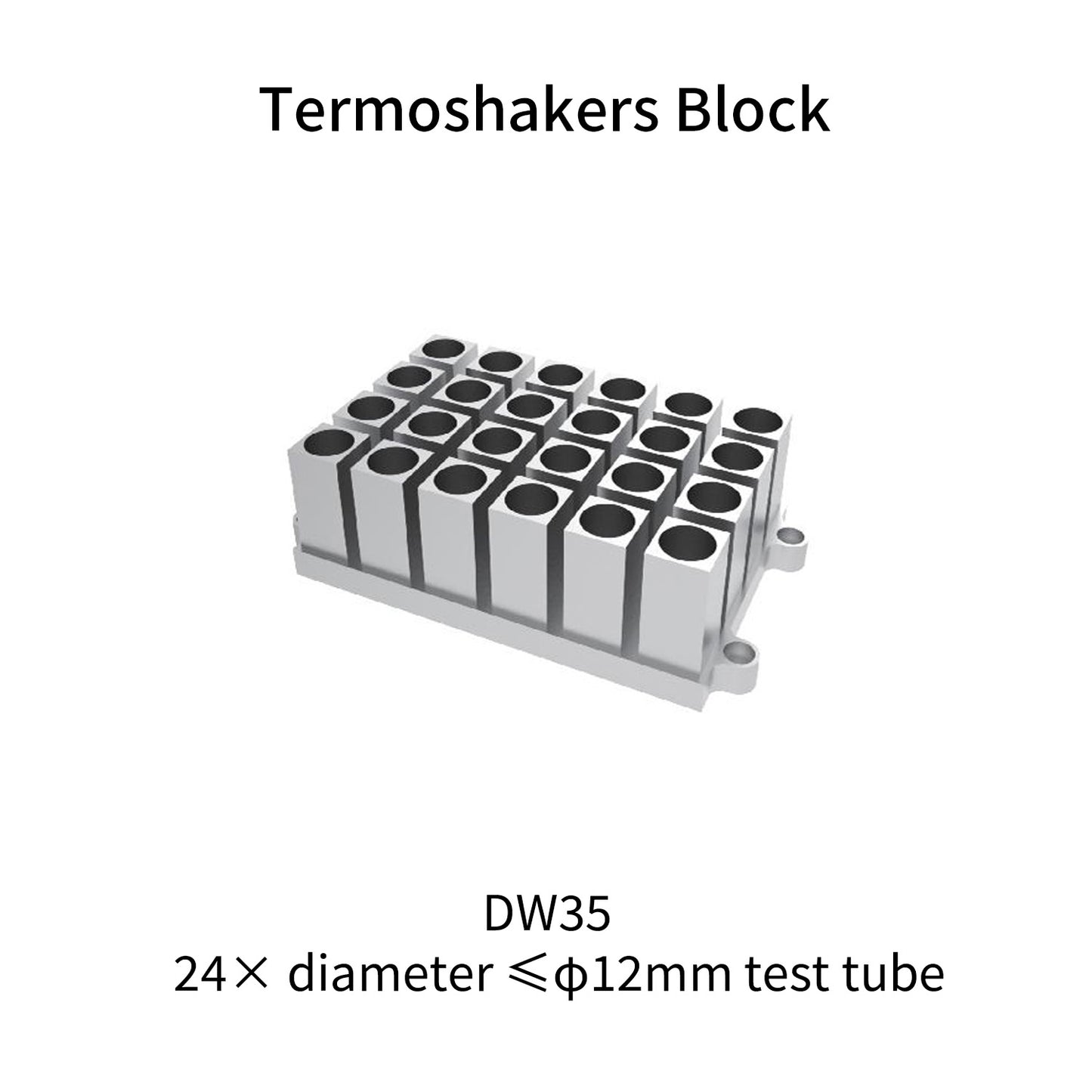

DW35 24xDiametersp12mm test tube

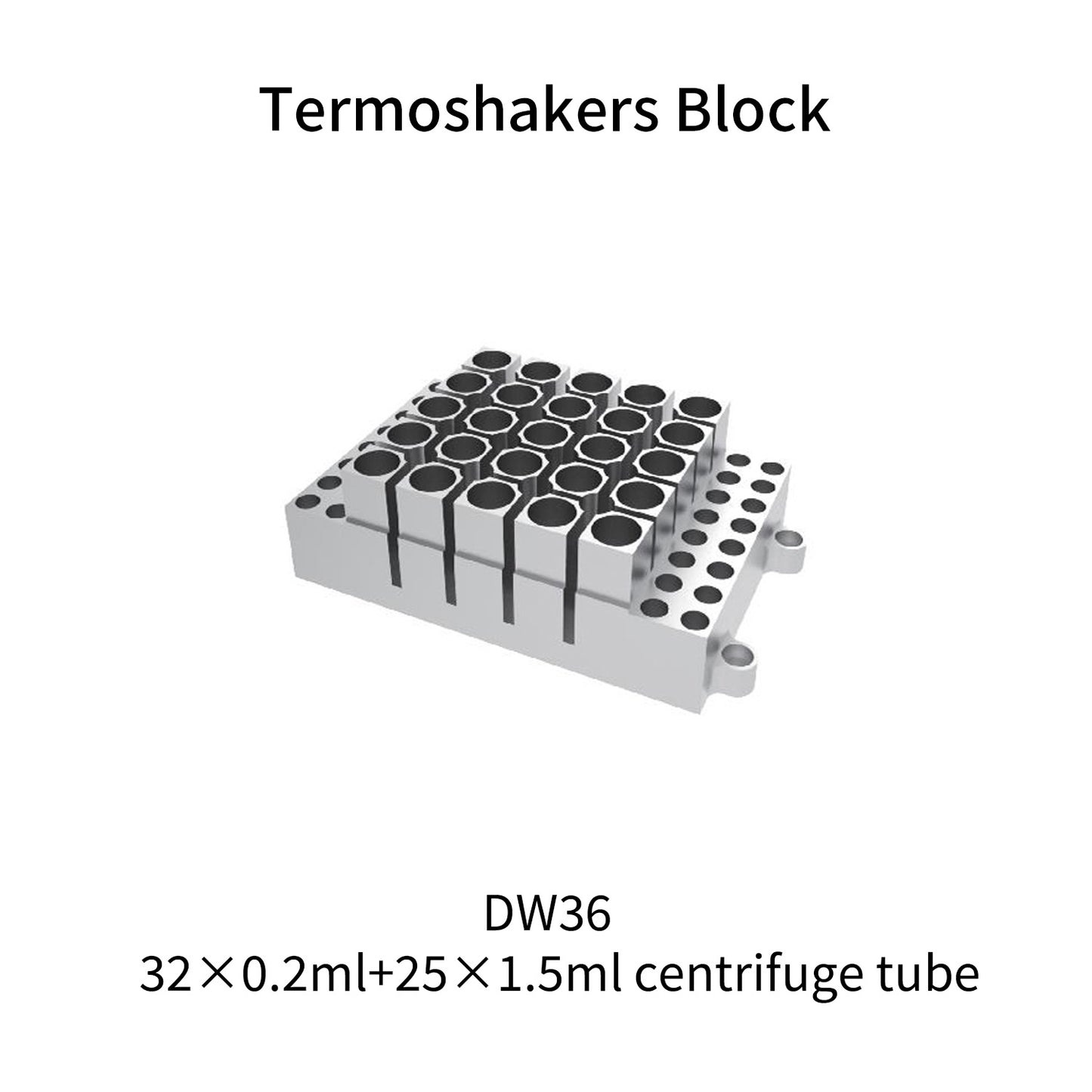

DW36 32x0.2ml+25x1.5ml centrifuge tube

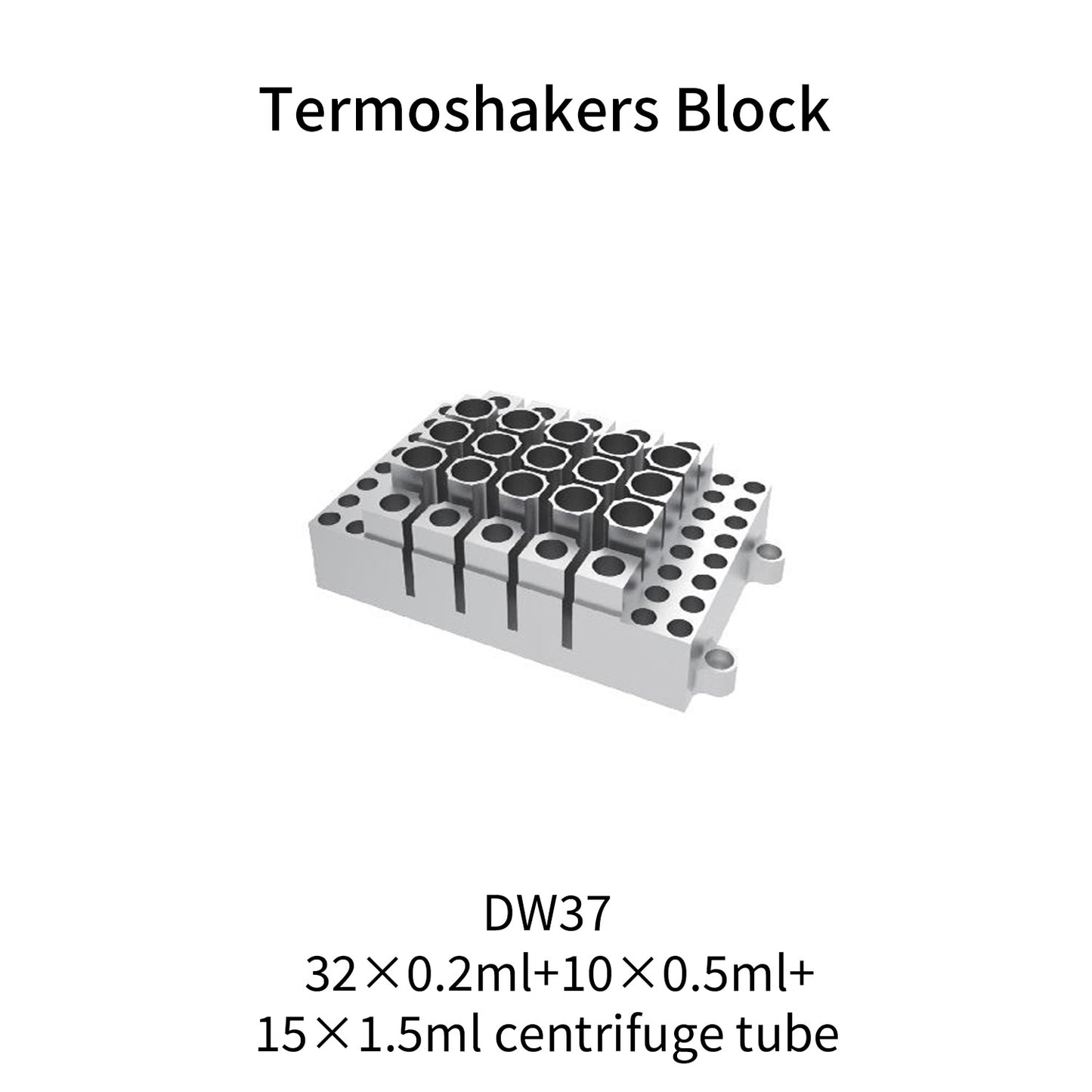

DW37 32x0.2ml+10x0.5ml+15x1.5ml centrifuge tube

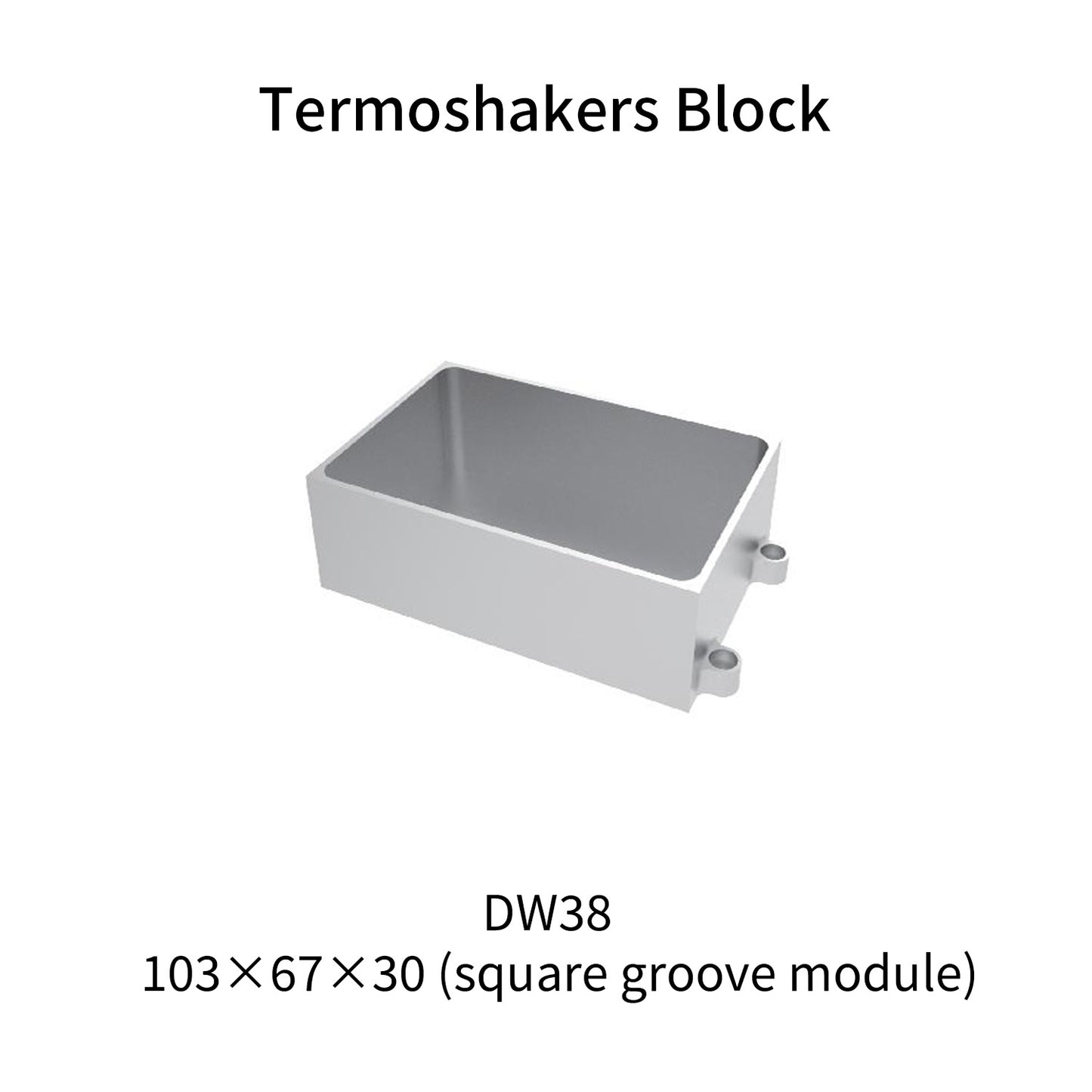

DW38 103x67x30 (square trough module)

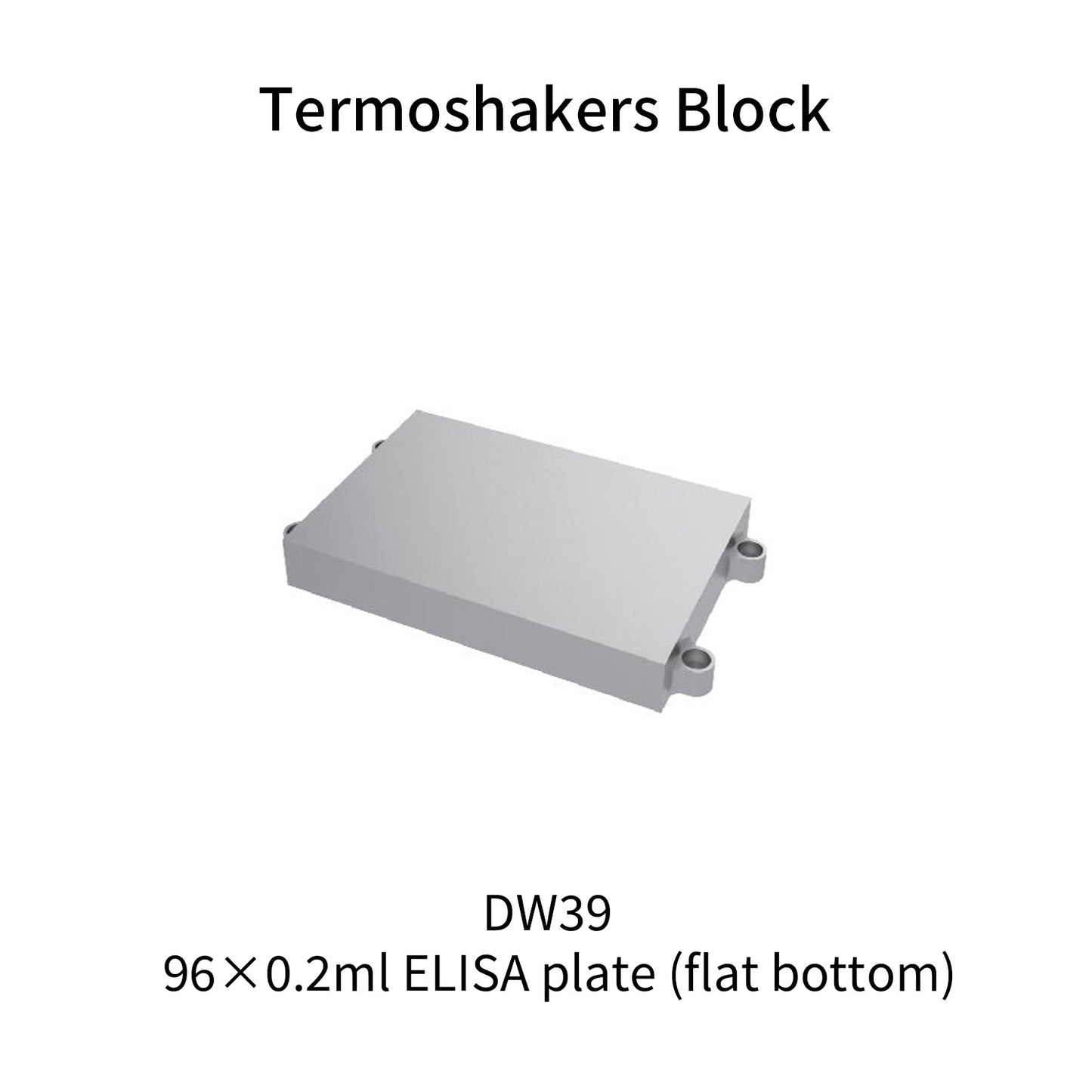

DW39 96x0.2ml enzyme-linked immunosorbent assay (ELISA) plate (flat bottom)

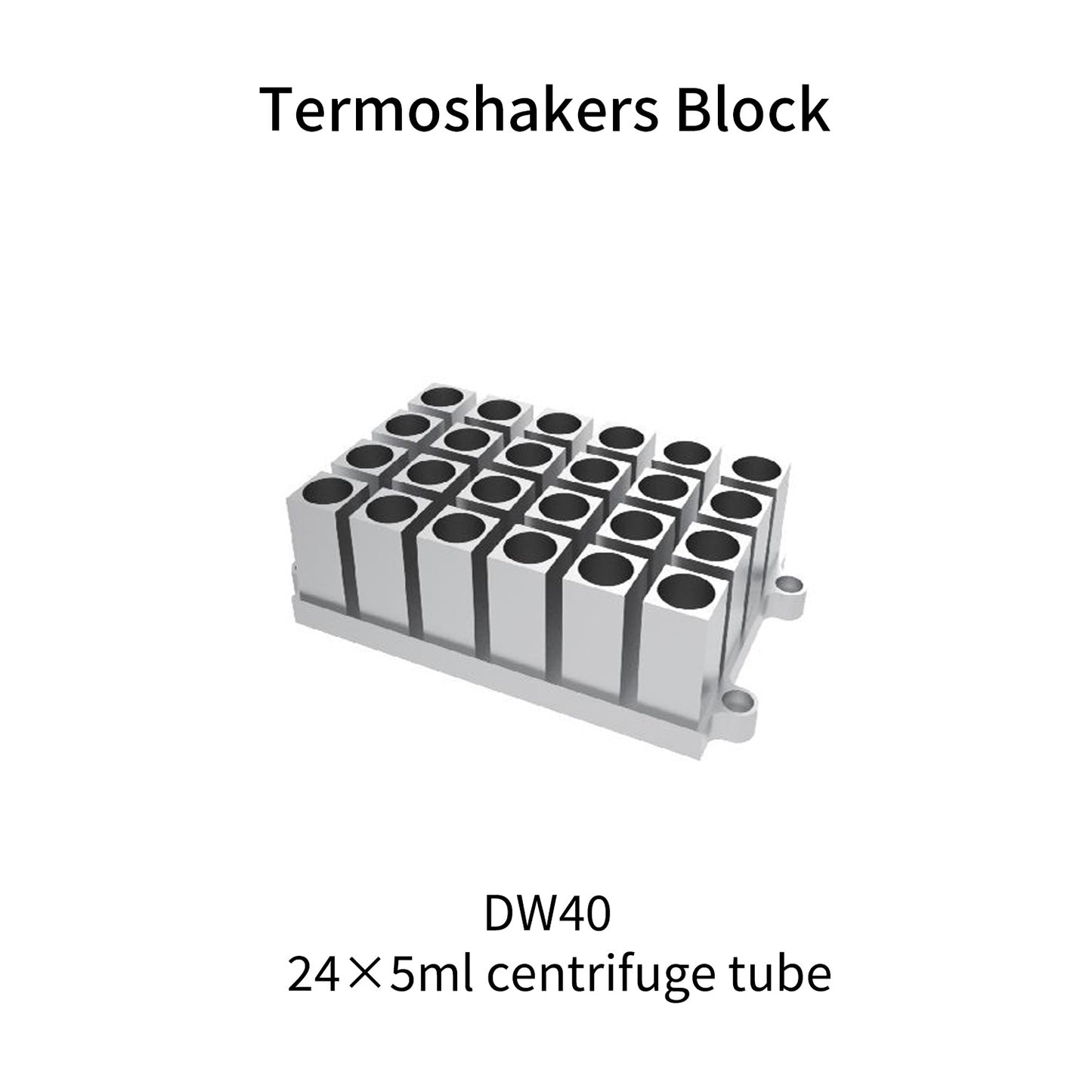

DW40 24x5ml centrifuge tube

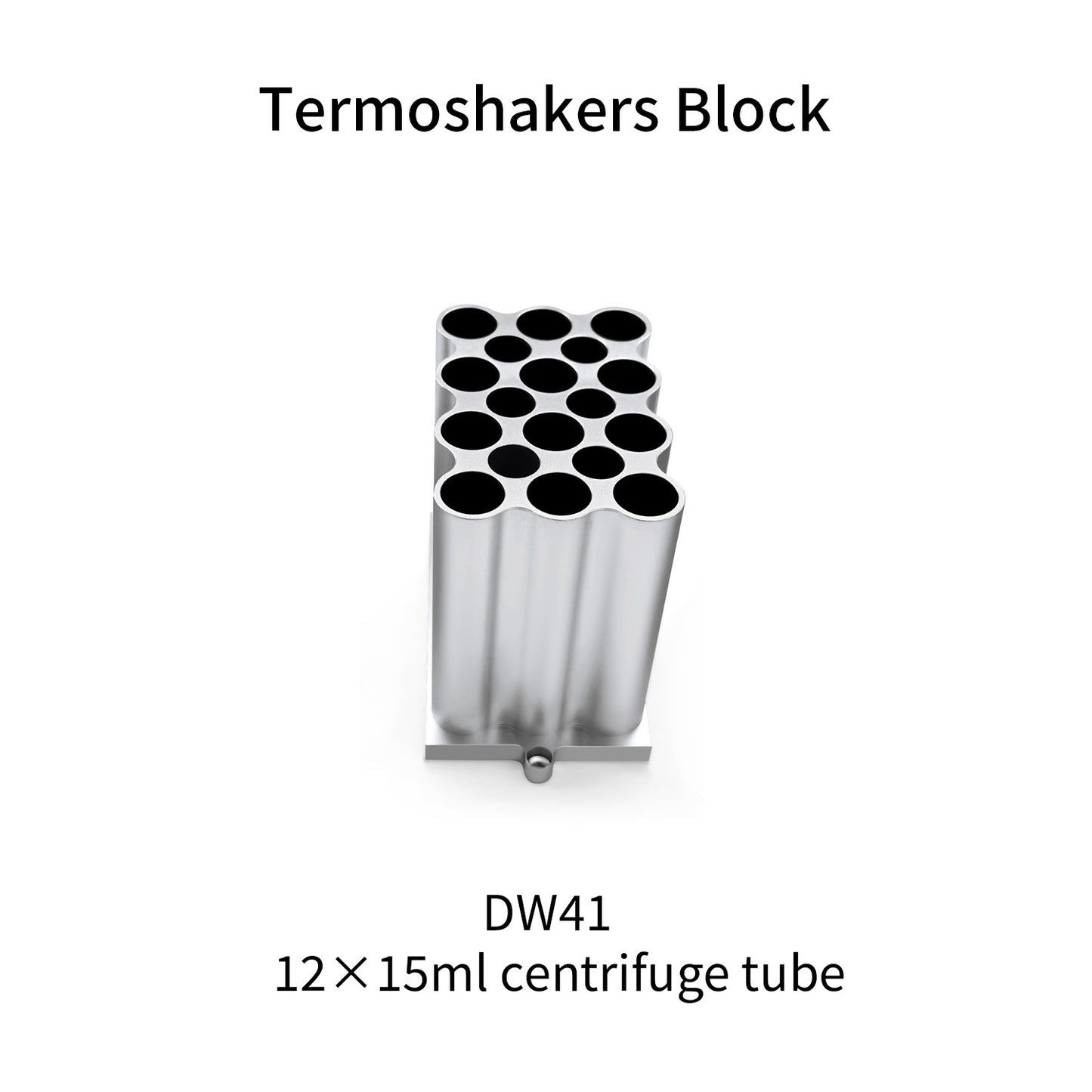

DW41 12x15ml

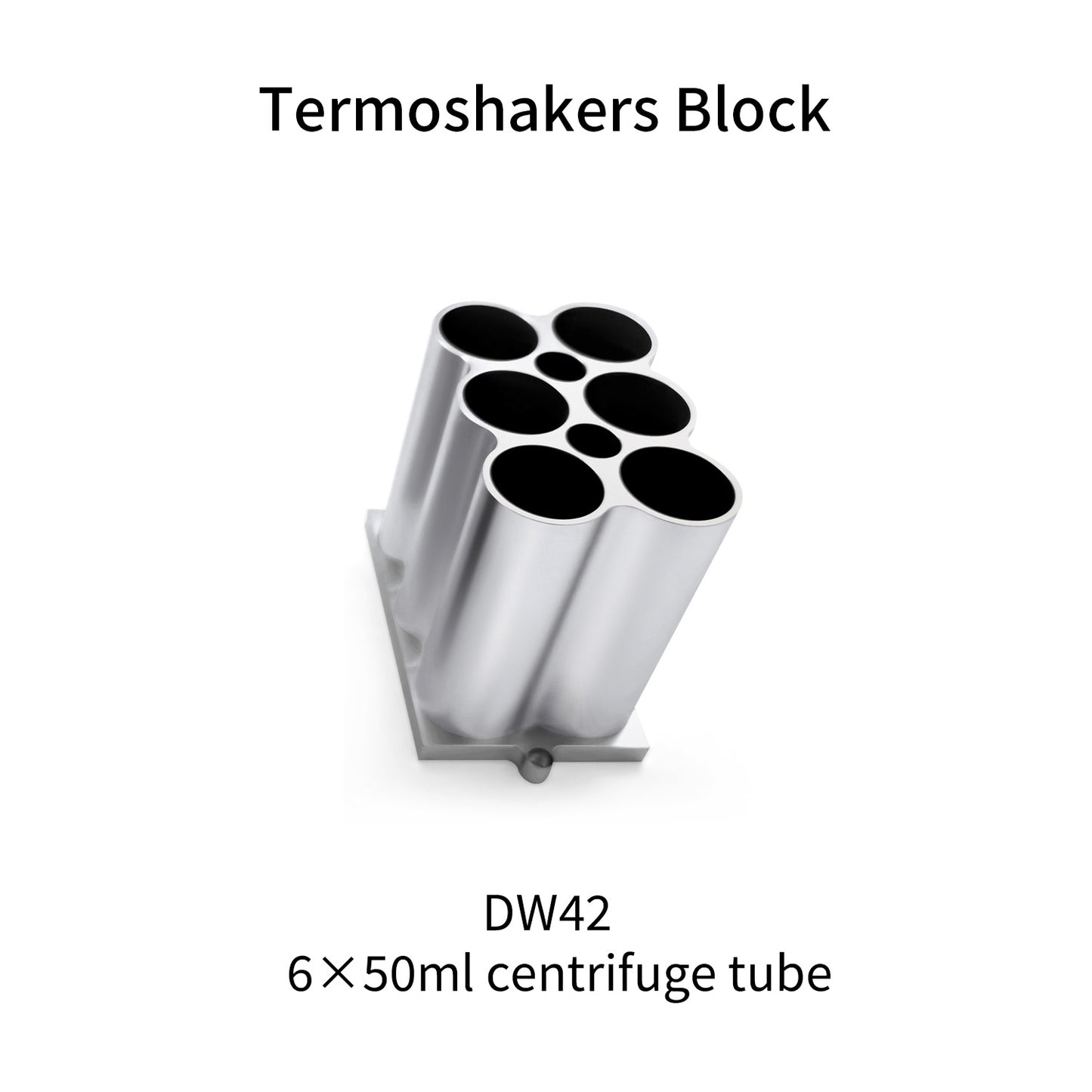

DW42 6x50ml

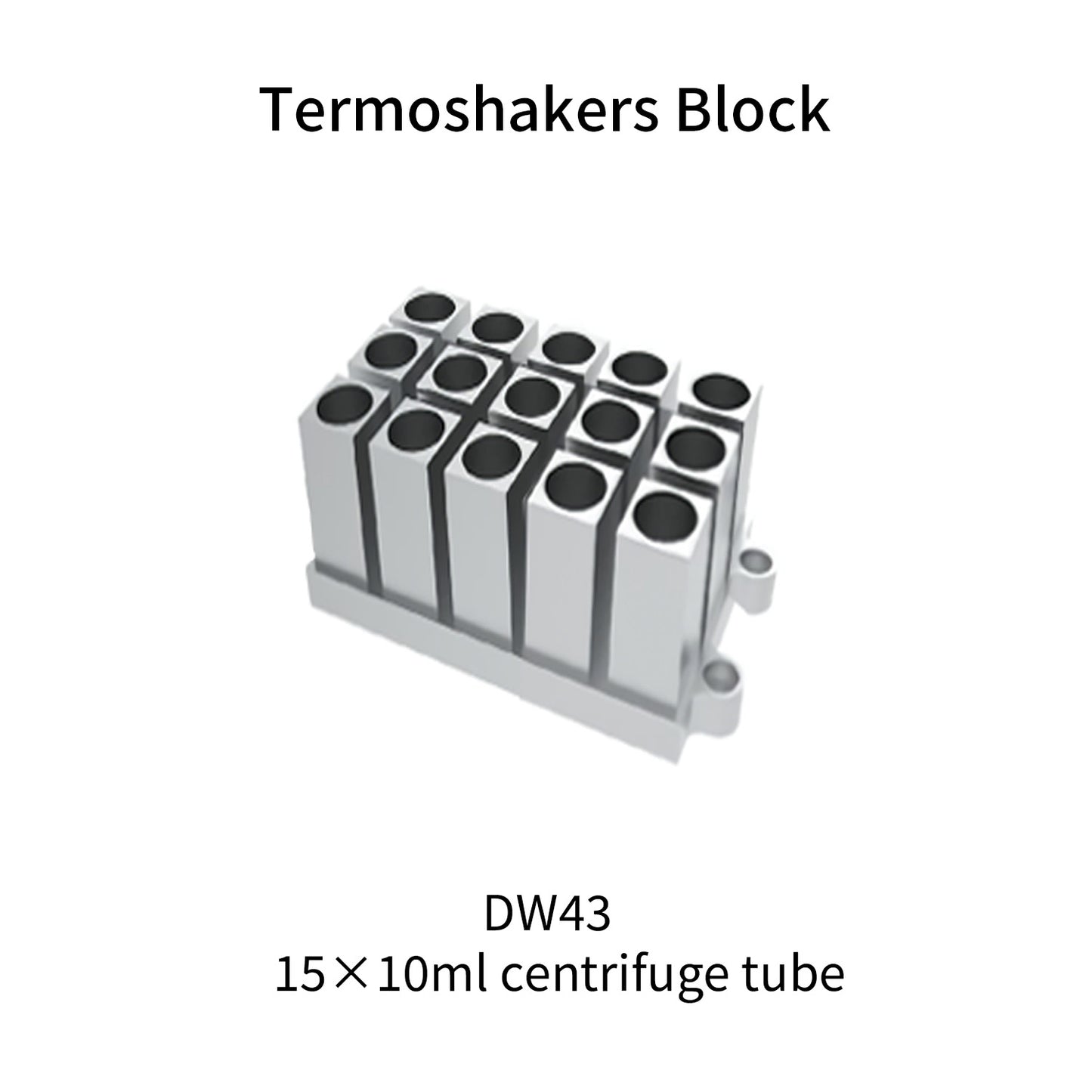

DW43 15x10ml
Note Additional module types are available for customization.


For laboratory and research use only. Not intended for clinical, medical, or direct food processing use.
