LAWSON Laboratory
Dry Bath,Digital Dry Bath,Dry Block Incubators,DH-10
Dry Bath,Digital Dry Bath,Dry Block Incubators,DH-10
Regular price
$495.00 USD
Now
Sold out
Sale price
$495.00 USD
Regular price
Unit price
/
per
Free shipping Customs duties and taxes may apply depending on destination and are the responsibility of the customer.
Fast lead time available
Multiple configurations available
Couldn't load pickup availability
Product Introduction
- DH-10 / DH-20 is Lawson Laboratory versatile dry baths / block heaters offer a wide range of blocks to accommodate various tubes.
- Units provide outstanding temperature uniformity and stability that help create the reproducible results that need.
- DH-10/DH-20 Dry Bath / Block Heater is a microcomputer-controlled constant temperature metal bath device with high temperature control accuracy and good sample parallelism.Widely used in the cultivation, preservation, and reaction of various samples(Laboratory & Research Use).
Product Features
- Digital controls and display of time and temperature
- Built-in temperature sensing probe for outstanding temperature accuracy and control
- Precise temperature control with PID/semiconductor circuit
- Timer allows the user to accurately monitor the heating time
- Interchangeable aluminum alloy sample blocks provide versatility and allow for easy cleaning
- LED display, clear and concise interface.
- Fast heating speed, uniform heating, accurate temperature control, high stability.
- Built-in temperature deviation calibration function,Temperature calibration enables to offset the temperature to desired value automatic fault detection and buzzer alarm function.
- Built-in over-temperature protection device, more reliable to use.
Technical Parameters
| Model | DH-10 / DH-20 |
| Temperature Range | Ambient + 5°C – 100°C / -10℃~100℃ |
| Heating time | ≤ 30 minutes (from 20℃ to 100℃) / ≤15 minutes (from 20℃ to 100℃) |
| Temp stability (at @40~100℃) | ≤±0.5℃ |
| Max. temp modules @40℃ | 0.3℃ |
| Temp Uniformity of Modules | ≤±0.5℃ |
| Temperature Display Accuracy | 0.1℃ |
| Controller Type | PID digital / Semiconductor refrigeration |
| Timer Range | 0-99:59 min or continuous |
| Block Capacity | 1 |
| Relative Humidity Tolerance | ≤ 80% |
| power | 150W / 250W |
| Dimensions | 270×190×170mm |
| Voltage/Hz | 110-220V 50/60Hz |
| Weight | 3.5kg |
Module Model Selection
- The device is equipped with a standard metal module. A variety of additional module types can be purchased to expand its functionality.
- Note: Additional module types are available for customization.
Module Model Selection Table
| Model | Aperture and Tube Number |

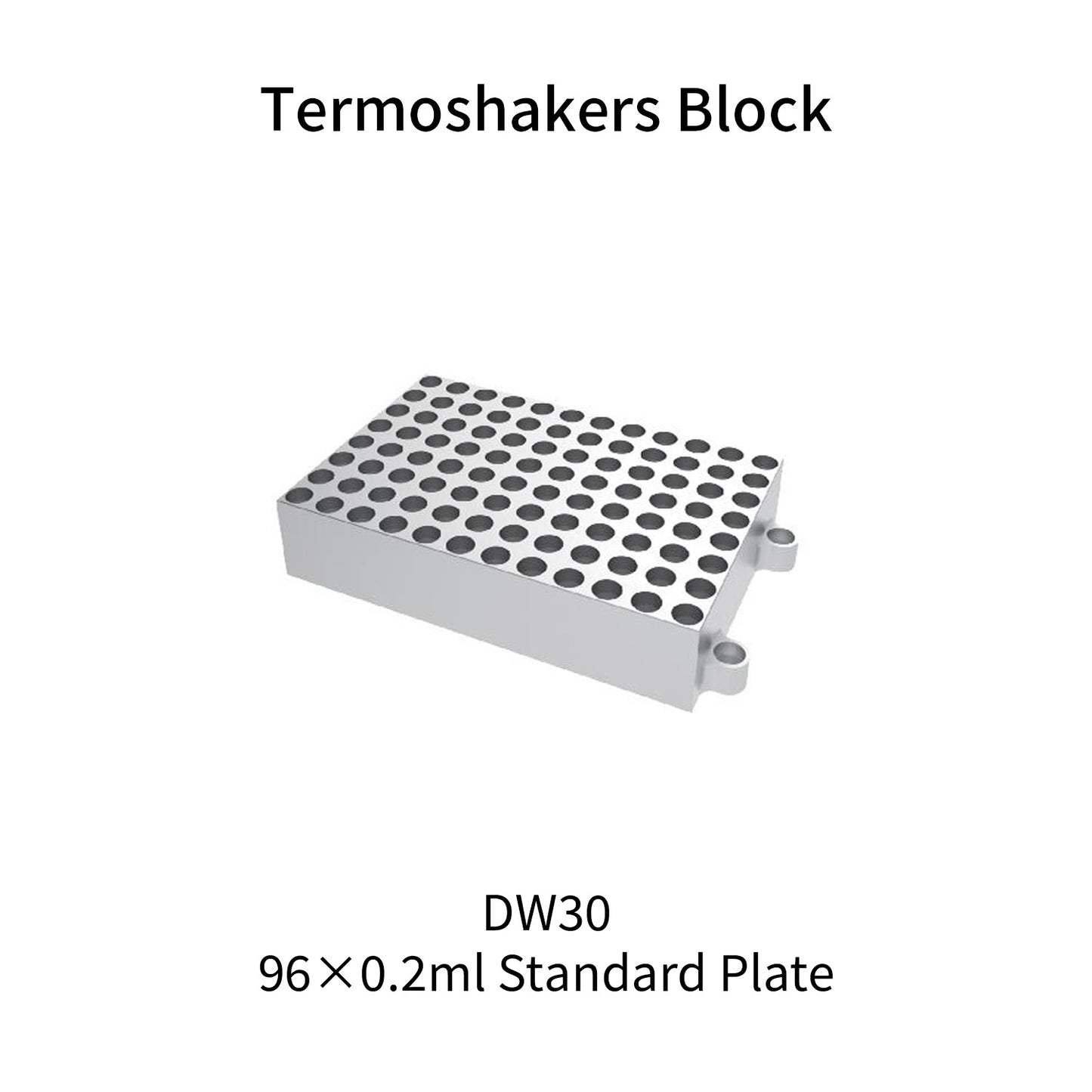

| DW30 | 96x0.2ml standard plate |

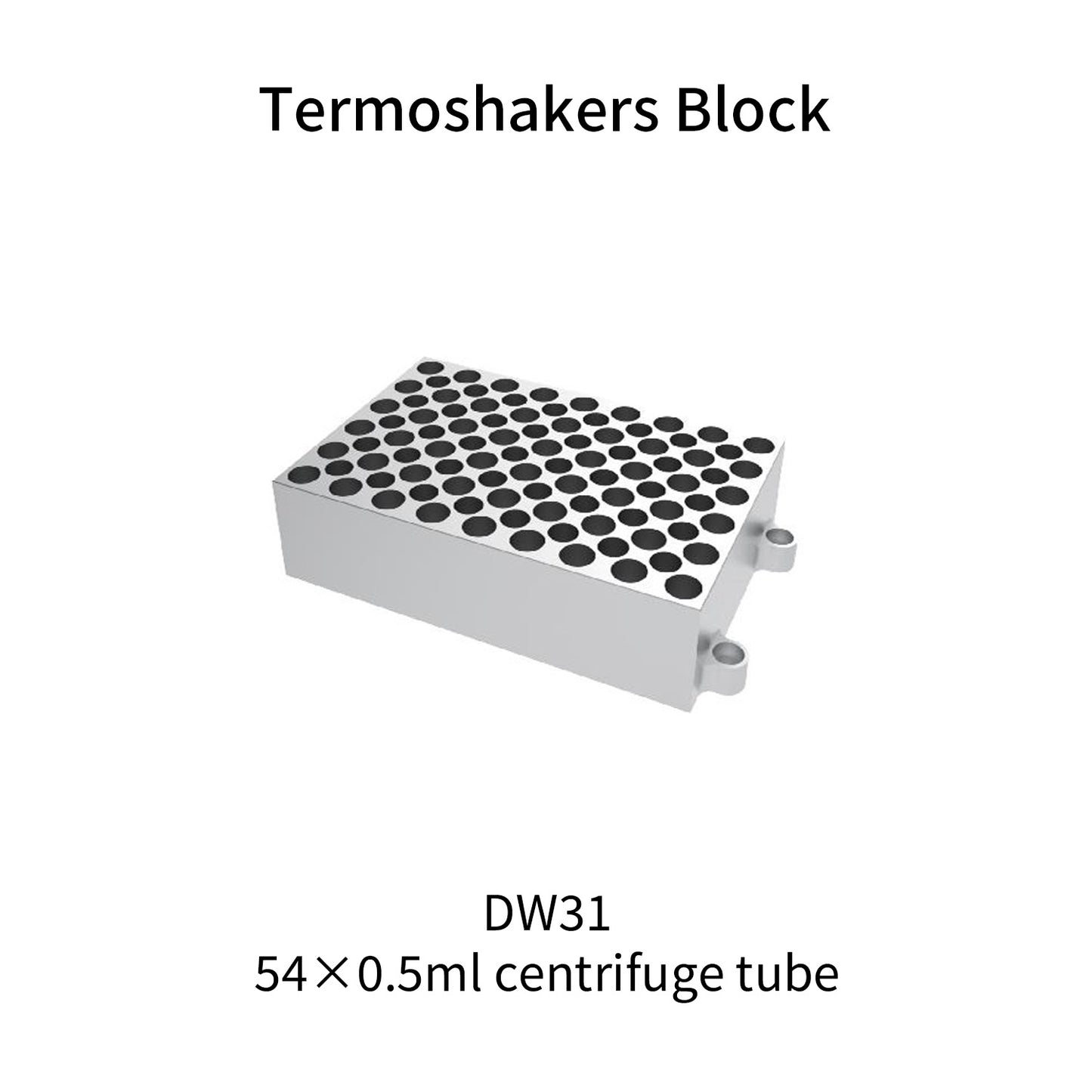

| DW31 | 54x0.5ml centrifuge tube |

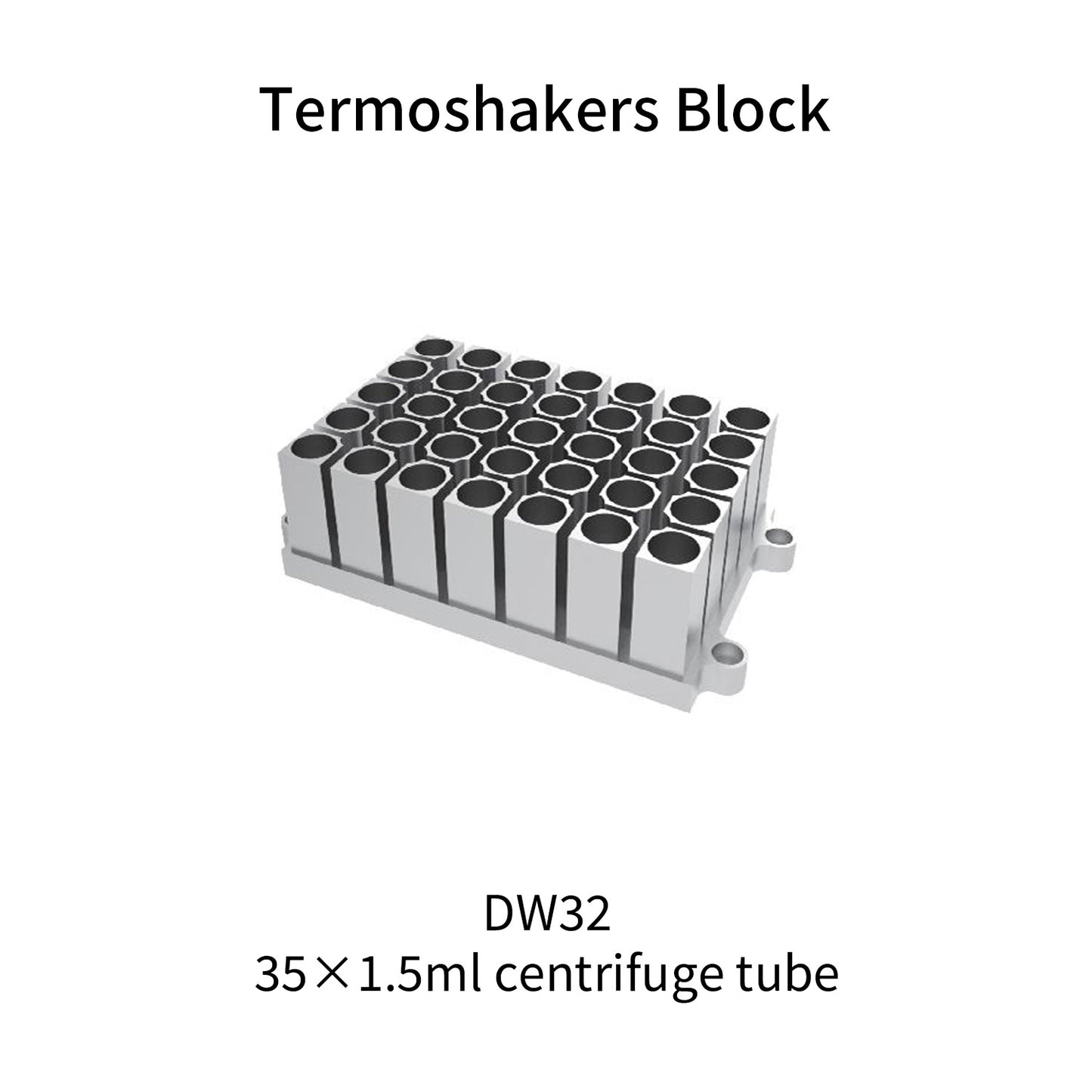

| DW32 | 35x1.5ml centrifuge tube |

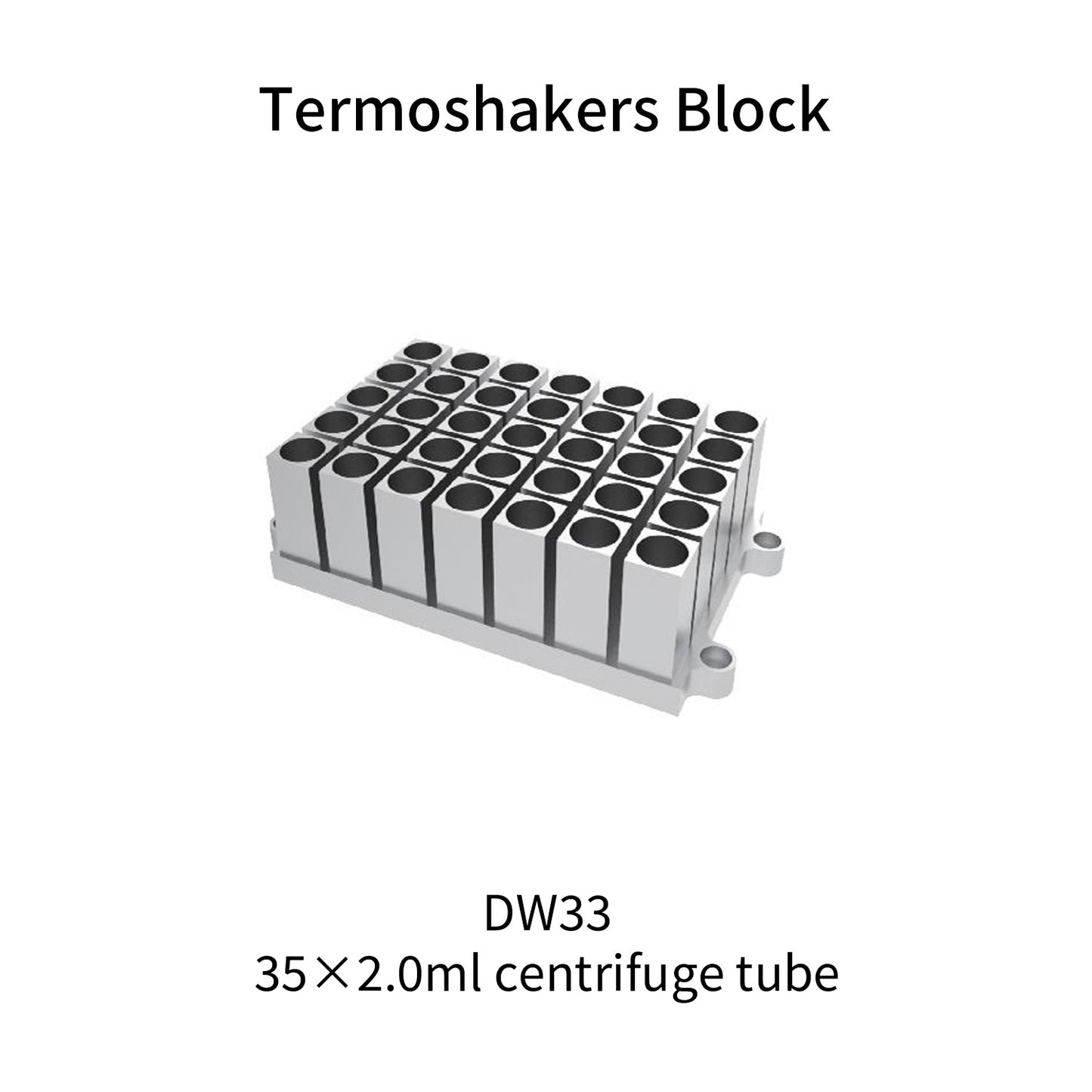

| DW33 | 35x2.0ml centrifuge tube |
| DW34 | 15x0.5ml+20x1.5m centrifuge tube |

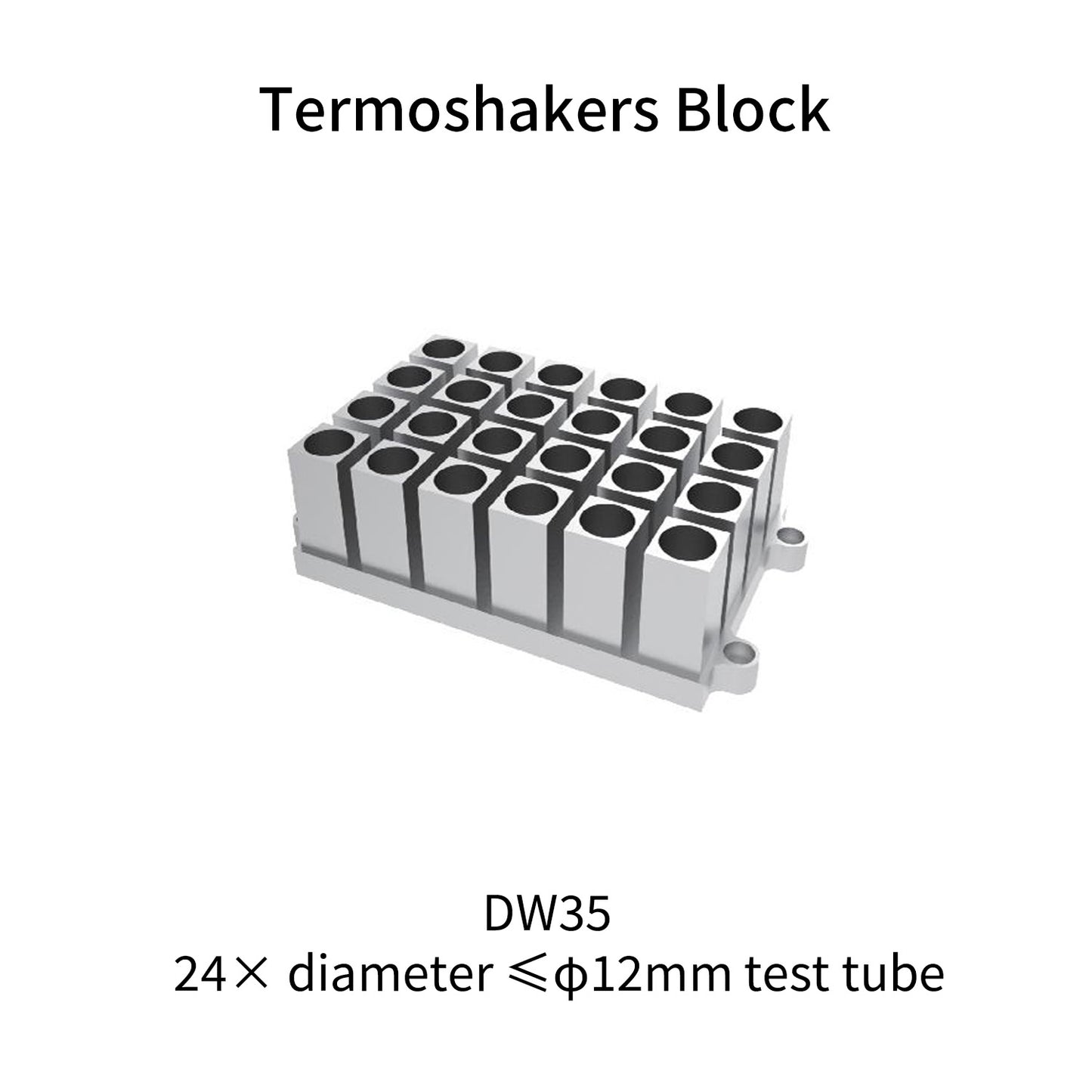

| DW35 | 24xDiametersp12mm test tube |

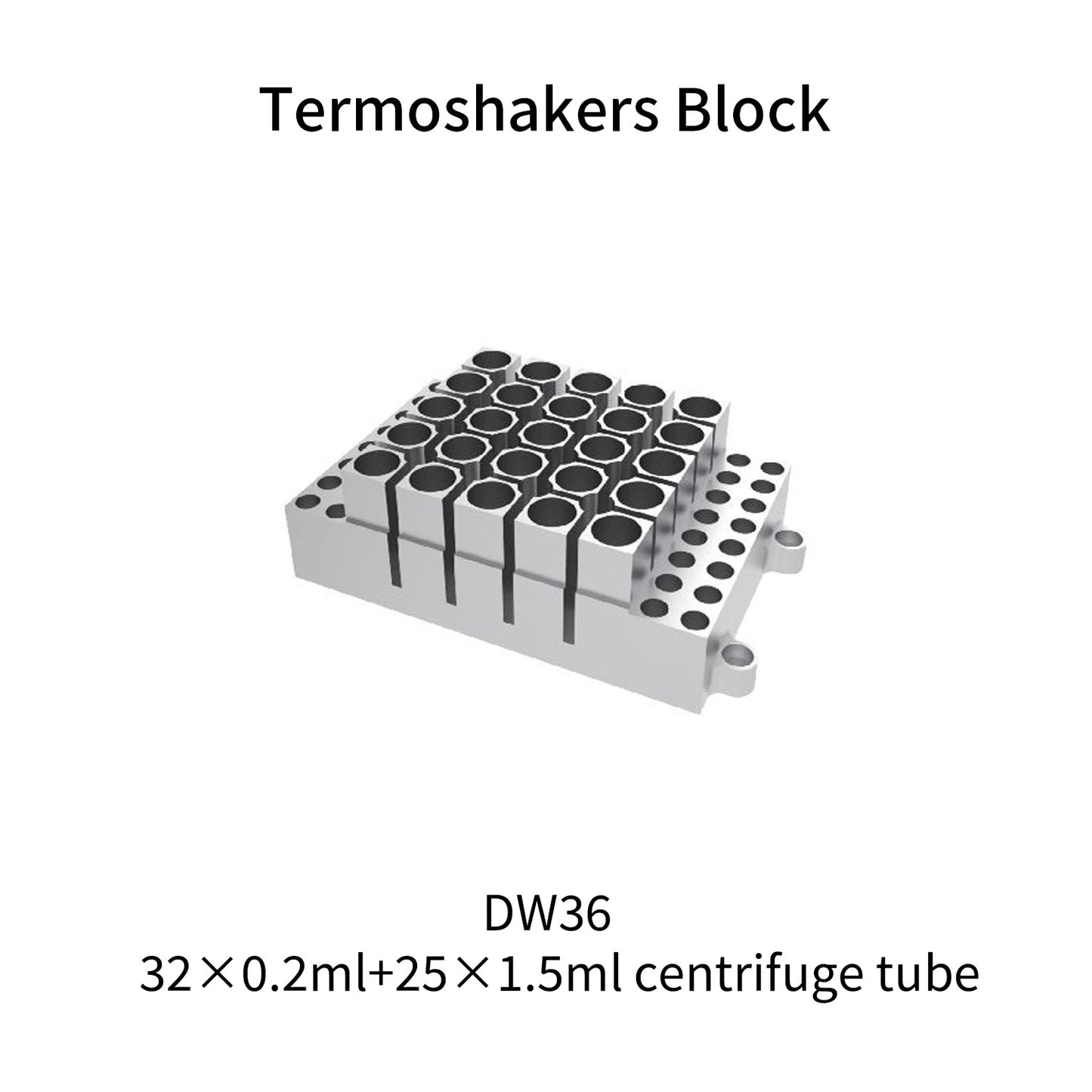

| DW36 | 32x0.2ml+25x1.5ml centrifuge tube |

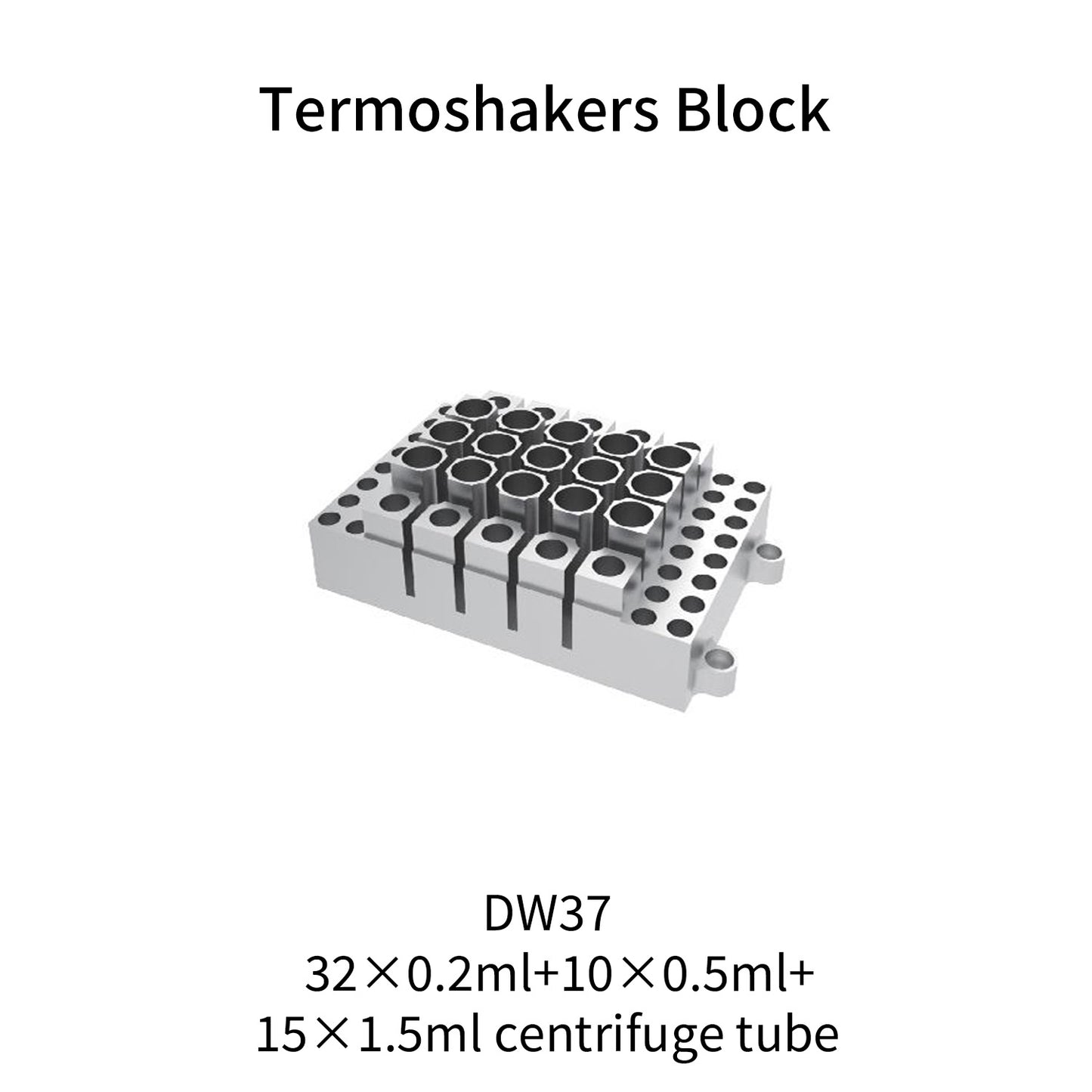

| DW37 | 32x0.2ml+10x0.5ml+15x1.5ml centrifuge tube |

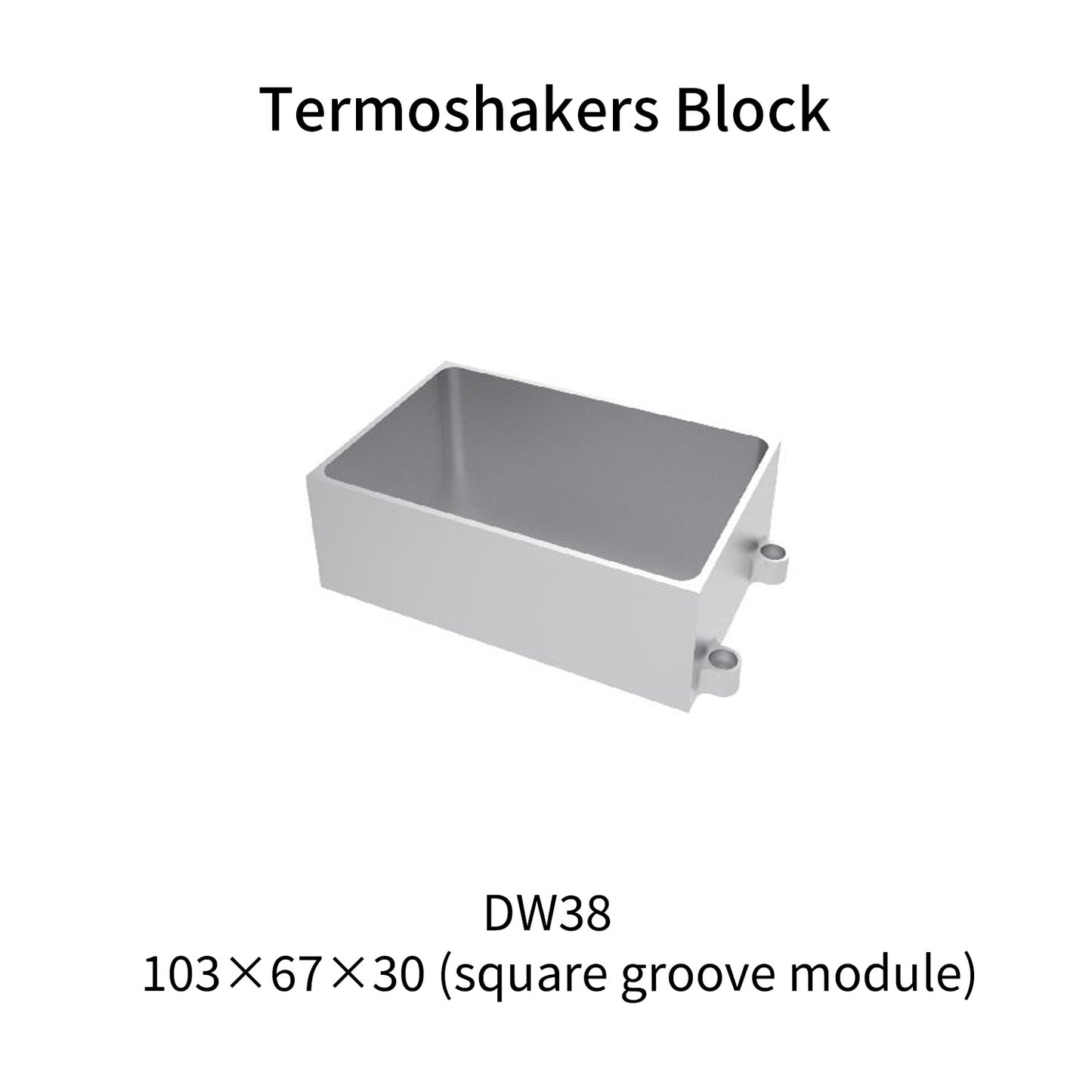

| DW38 | 103x67x30 (square trough module) |

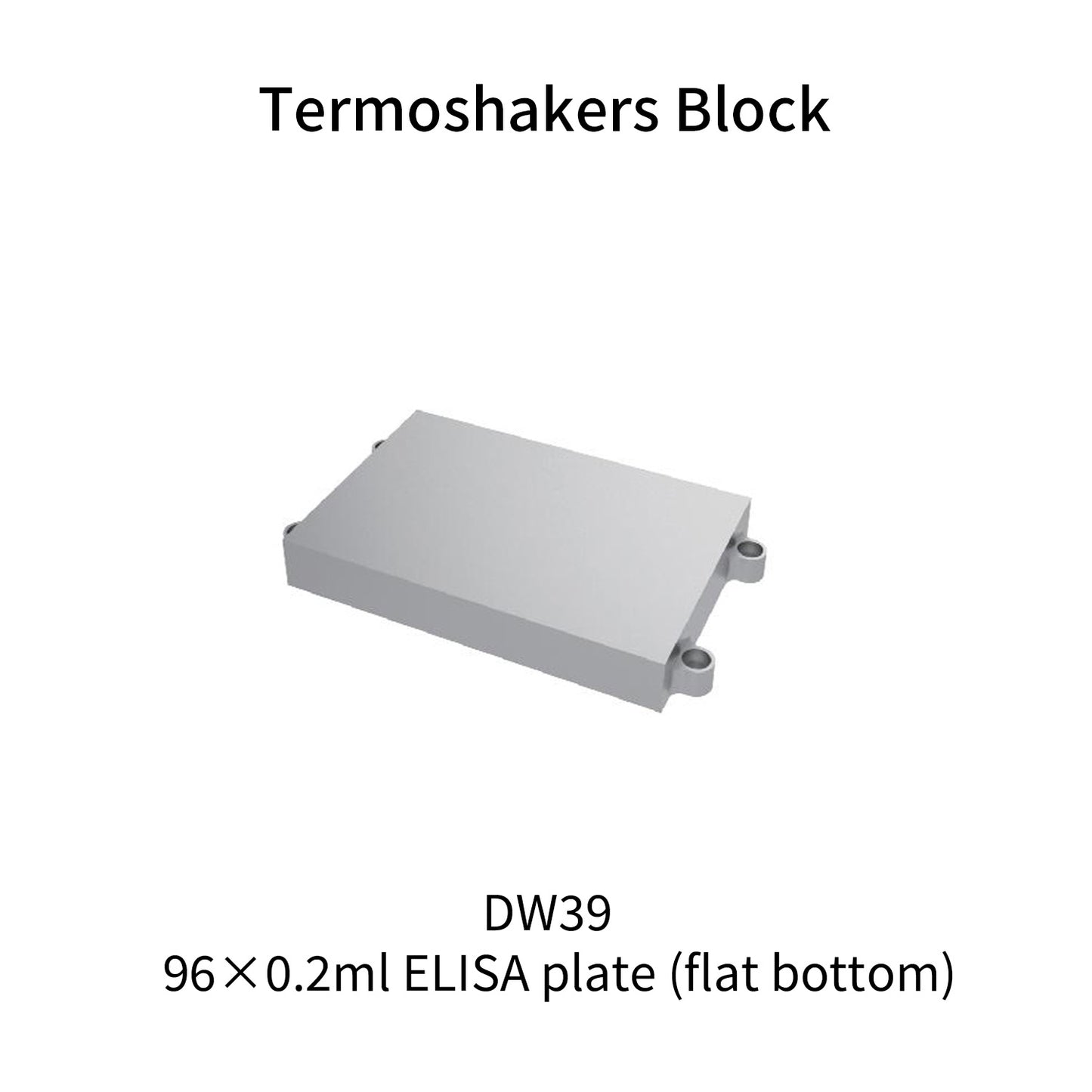

| DW39 | 96x0.2ml enzyme-linked immunosorbent assay (ELISA) plate (flat bottom) |

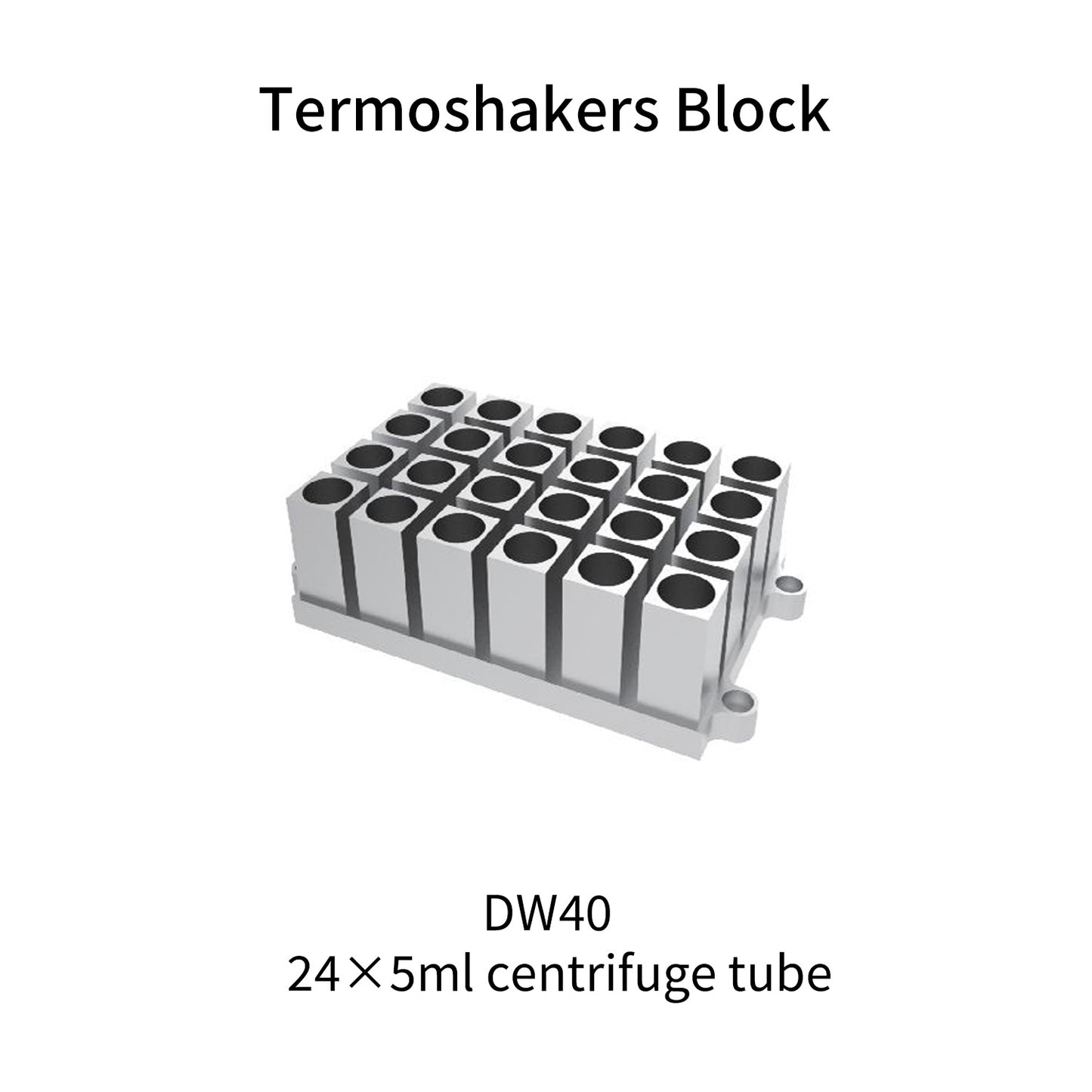

| DW40 | 24x5ml centrifuge tube |

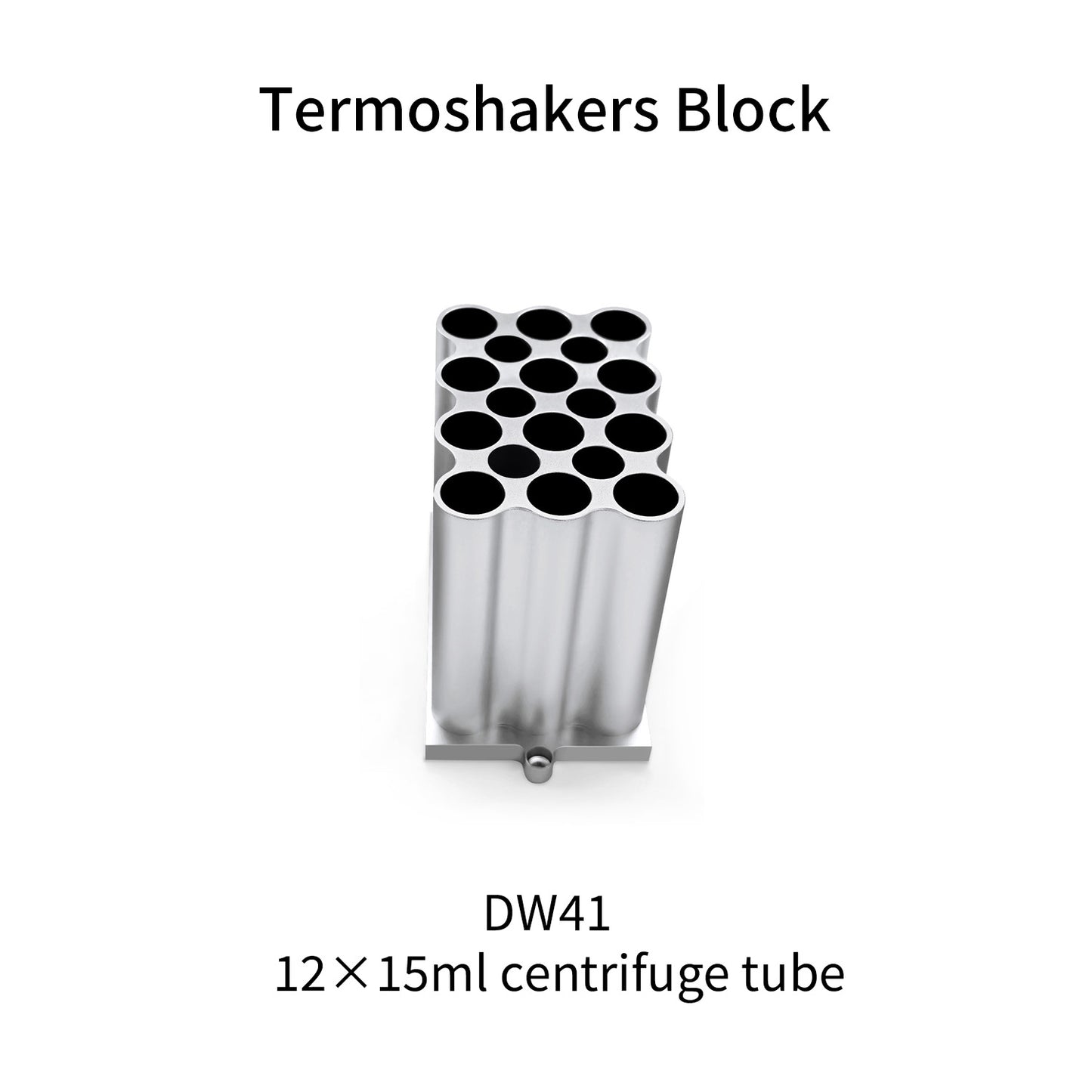

| DW41 | 12x15ml |

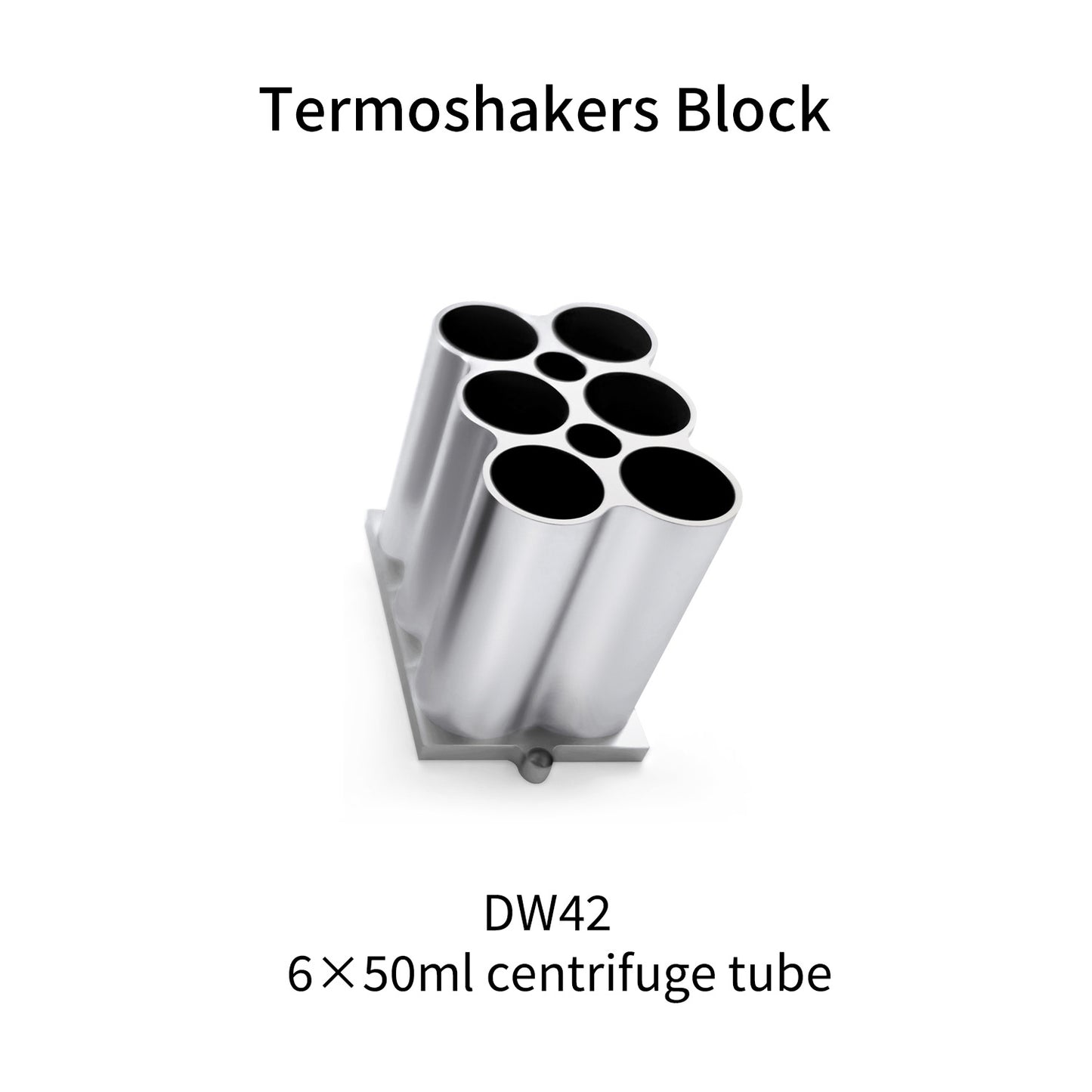

| DW42 | 6x50ml |

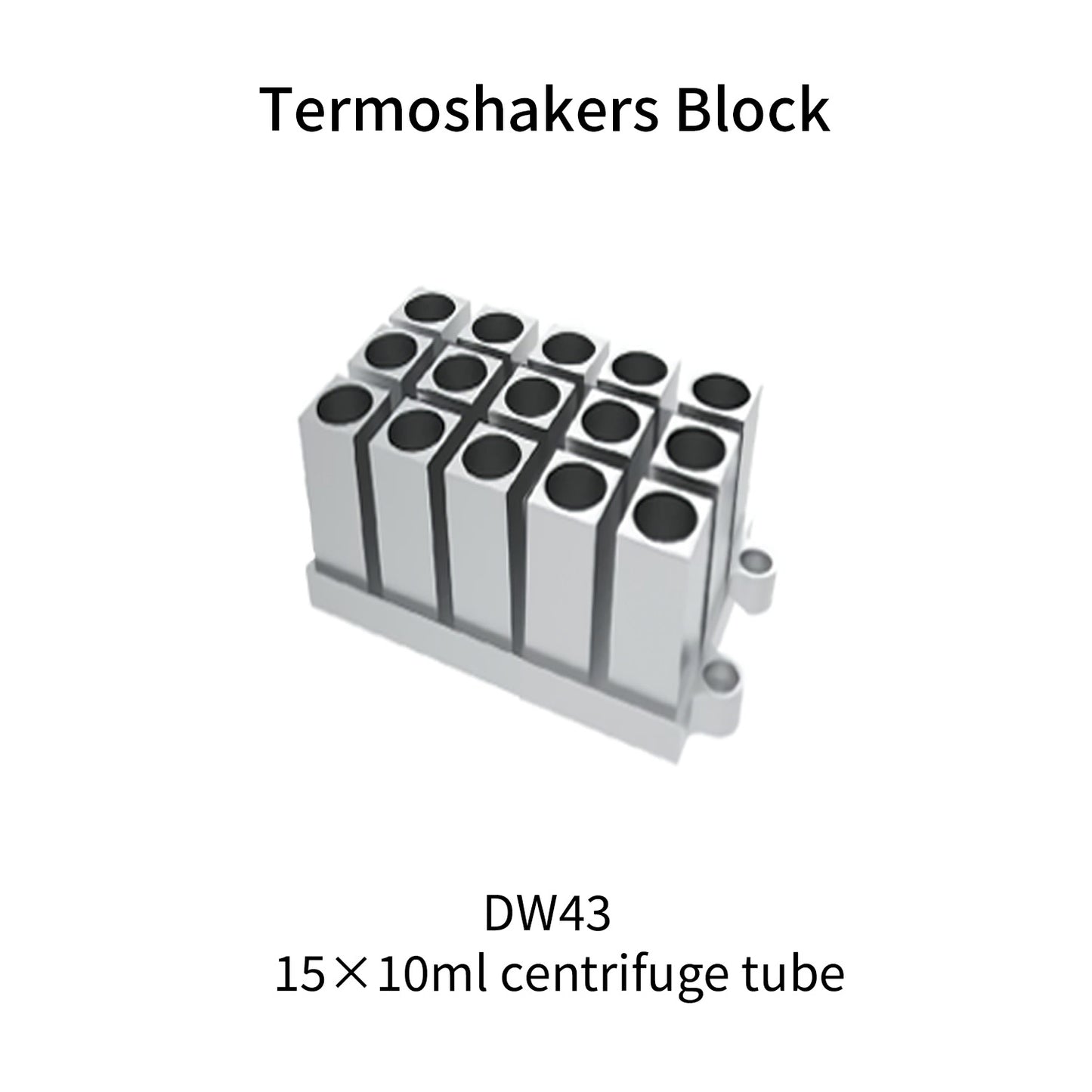

| DW43 | 15x10ml |
| Note | Additional module types are available for customization. |
For laboratory and research use only. Not intended for clinical, medical, or direct food processing use.
