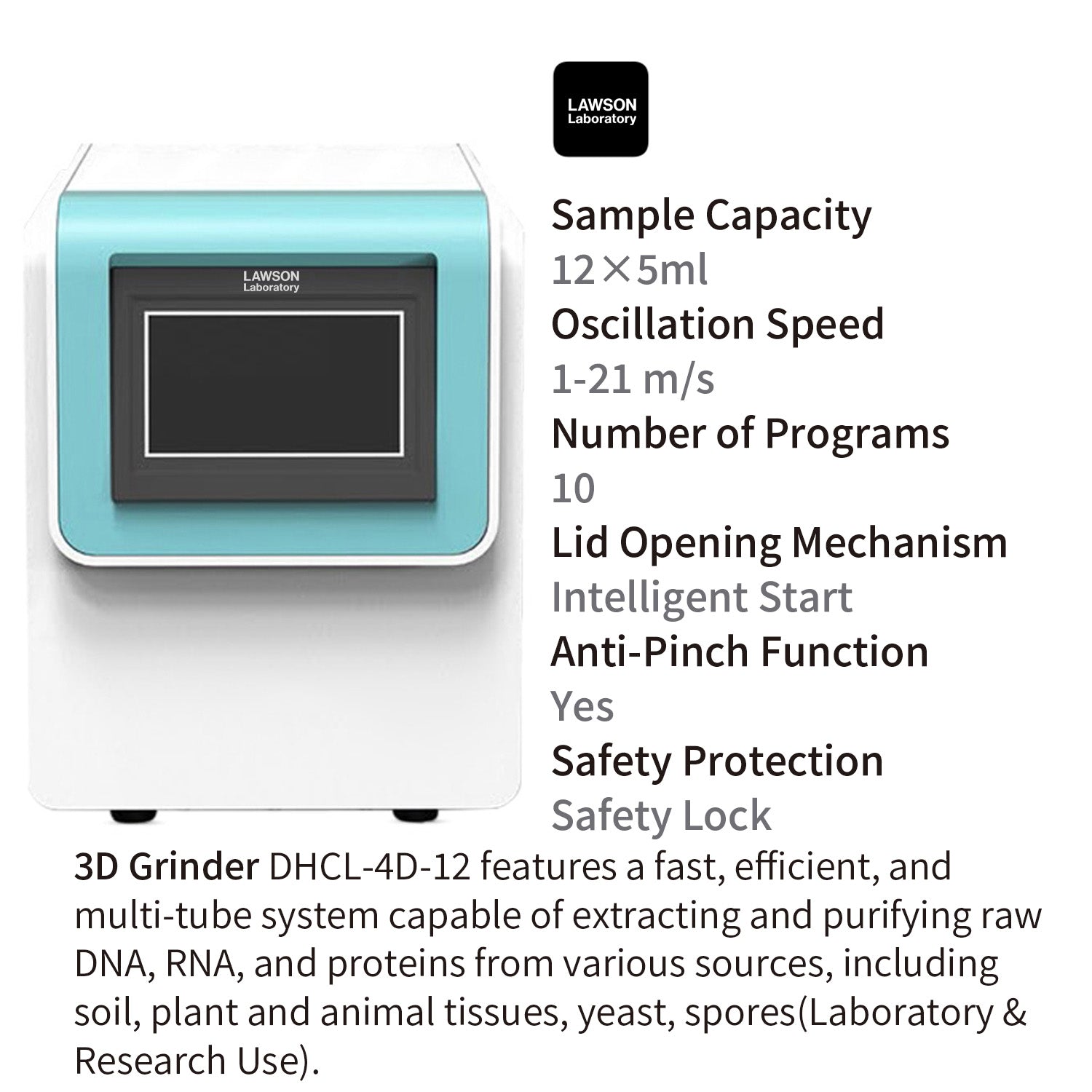

Ultraven 3D Grinder DHCL-4D-12 / DHCL-4D-24 features a fast, efficient, and multi-tube system capable of extracting and purifying raw DNA, RNA, and proteins from various sources, including soil, plant and animal tissues, yeast, spores.
Features
Flexible parameters:Microprocessor control allows for customization of various reagent kits, with a 5.7-inch color touch screen and easy program settings (up to 99 programs can be saved).
Good stability:With a unique fastening mechanism, sample tube fixation is more convenient. Program calls are fast, with noise levels ≤54db.
Professional and efficient:Sample fragmentation and lysis time is short, avoiding nucleic acid degradation and protein denaturation, ensuring the integrity of extracted nucleic acids or proteins. Innovative design with low-speed, ultra-long continuous operation function (up to 30min), suitable for whole-genome library construction, cloning, and sequencing.
High safety and easy maintenance:Uses a brushless frequency conversion motor that does not produce carbon particles and does not require carbon brush replacement. Long service life, no easily damaged parts, all-stainless steel inner chamber for easier cleaning and disinfection, and no need for dangerous materials such as liquid nitrogen for auxiliary processing.
Operating Principle
3D Sample Grinder / 3D Sample Homogenizer
Place the sample and grinding balls into the grinder (with a grinding jar or centrifuge tube/adapter).
Under high-frequency oscillation, the grinding balls move back and forth at high speed, impacting and grinding the sample. This process rapidly breaks cells, homogenizes samples, and disrupts cell walls within a very short time.
This allows for the quick release of native DNA, RNA, and proteins, facilitating subsequent extraction and purification.
Application Range
3D Homogenizer / 3D Grinder
Grinding and pulverization of samples for food, material, and ingredient analysis and testing.
Grinding and pulverization of various plant tissues (roots, stems, leaves, flowers, fruits, seeds, etc.) and fungal samples.
Grinding and pulverization of various animal tissue samples.
Note
The results may vary depending on the sample type and operating conditions.
This instrument is intended for Research Use Only (RUO) and is not for diagnostic or human therapeutic use.
