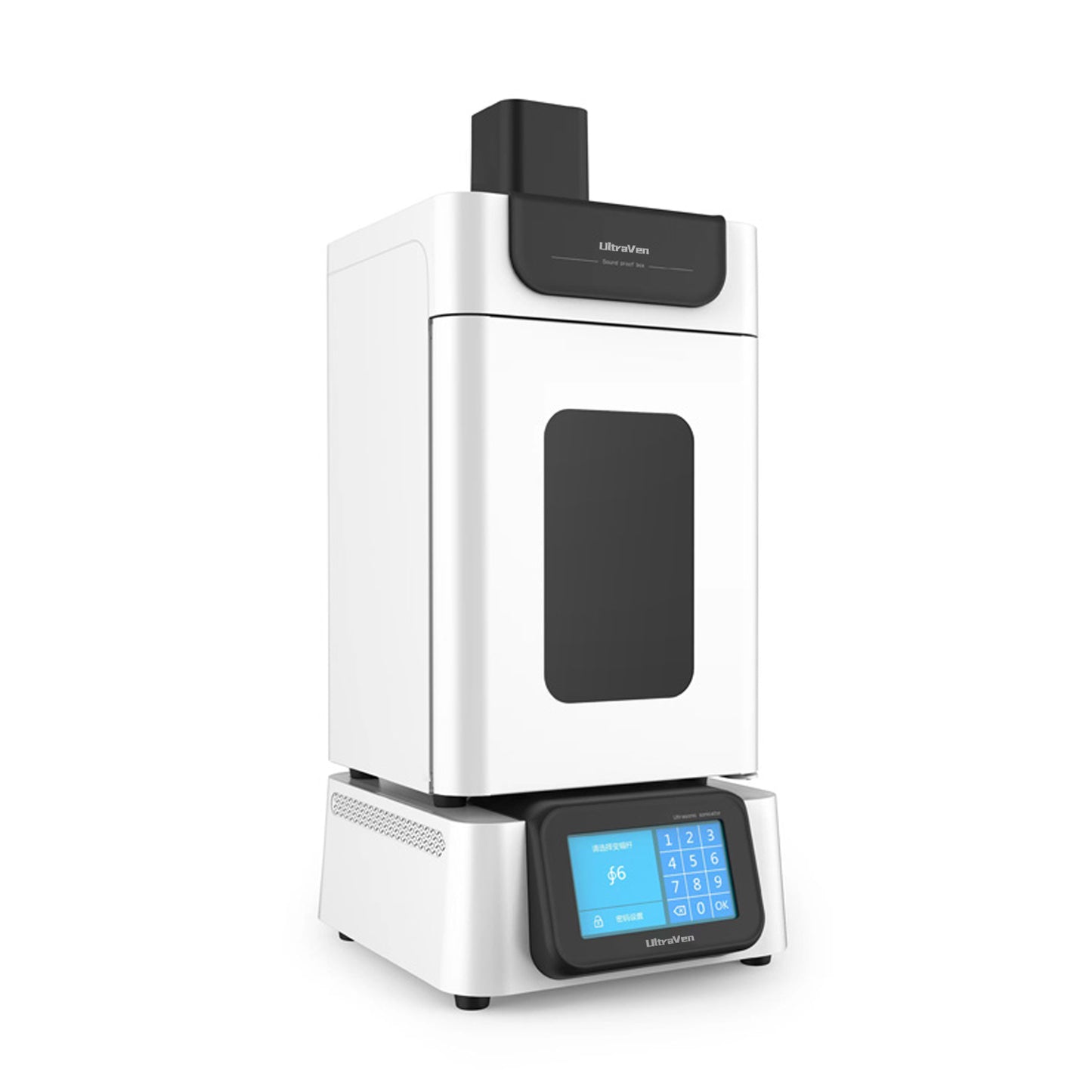

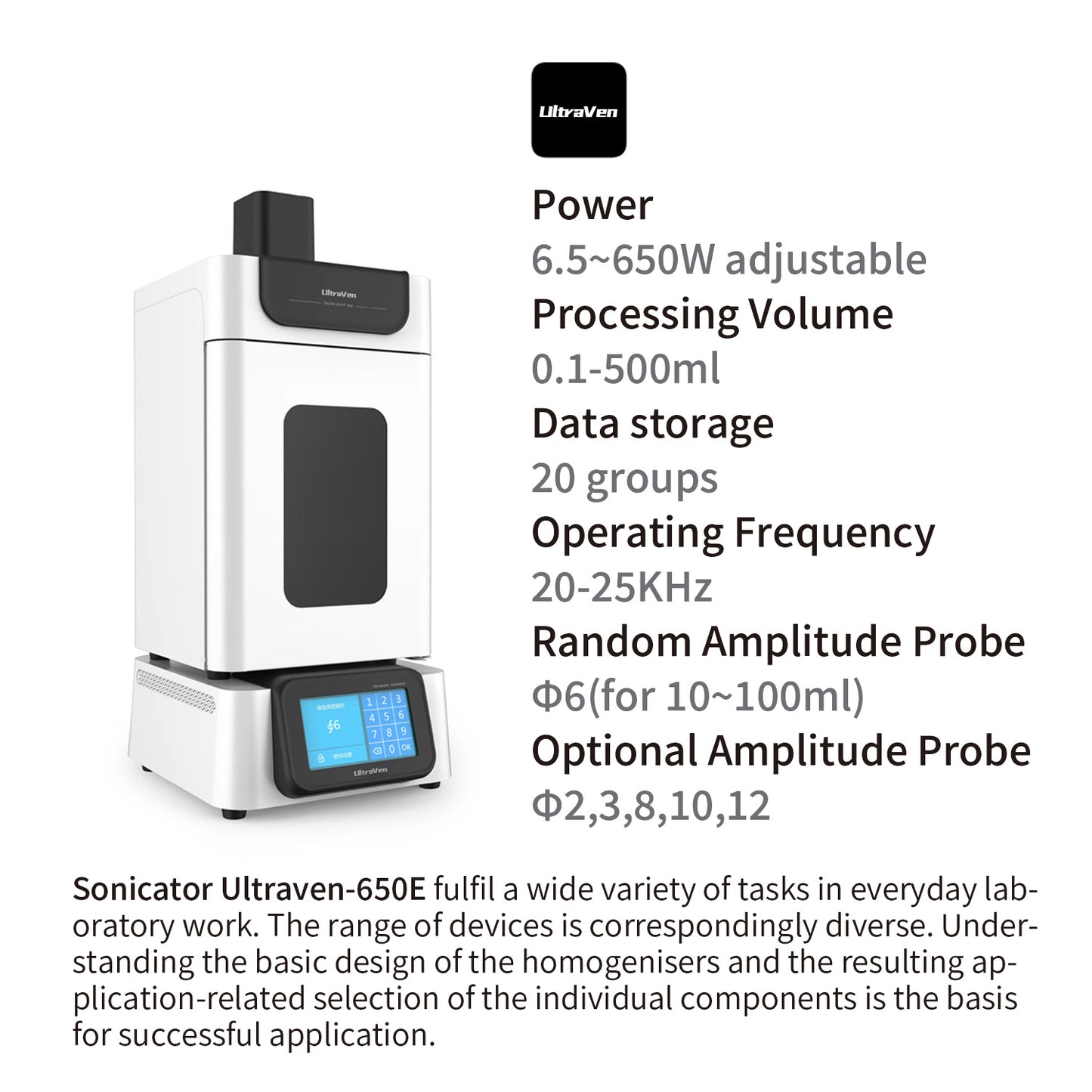

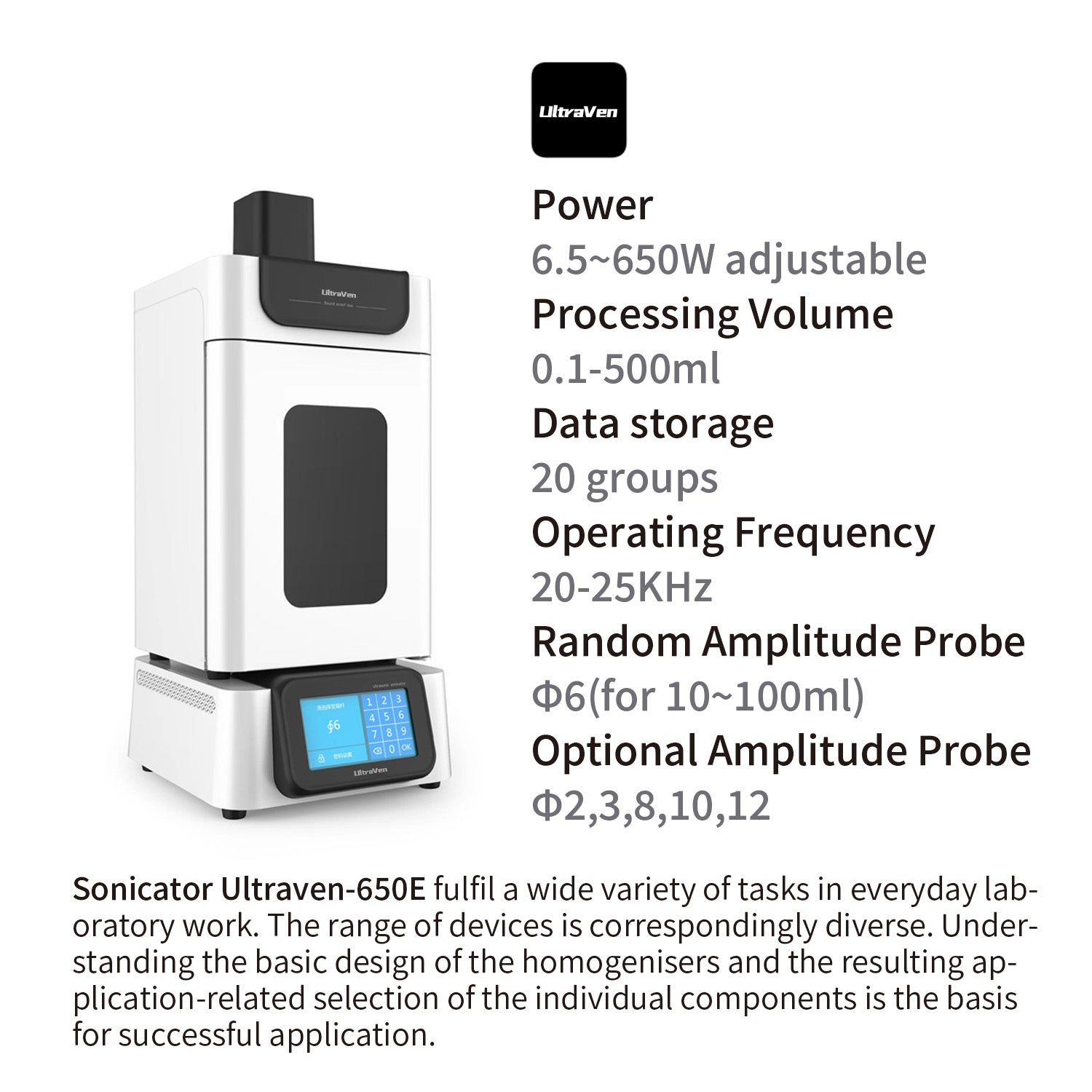

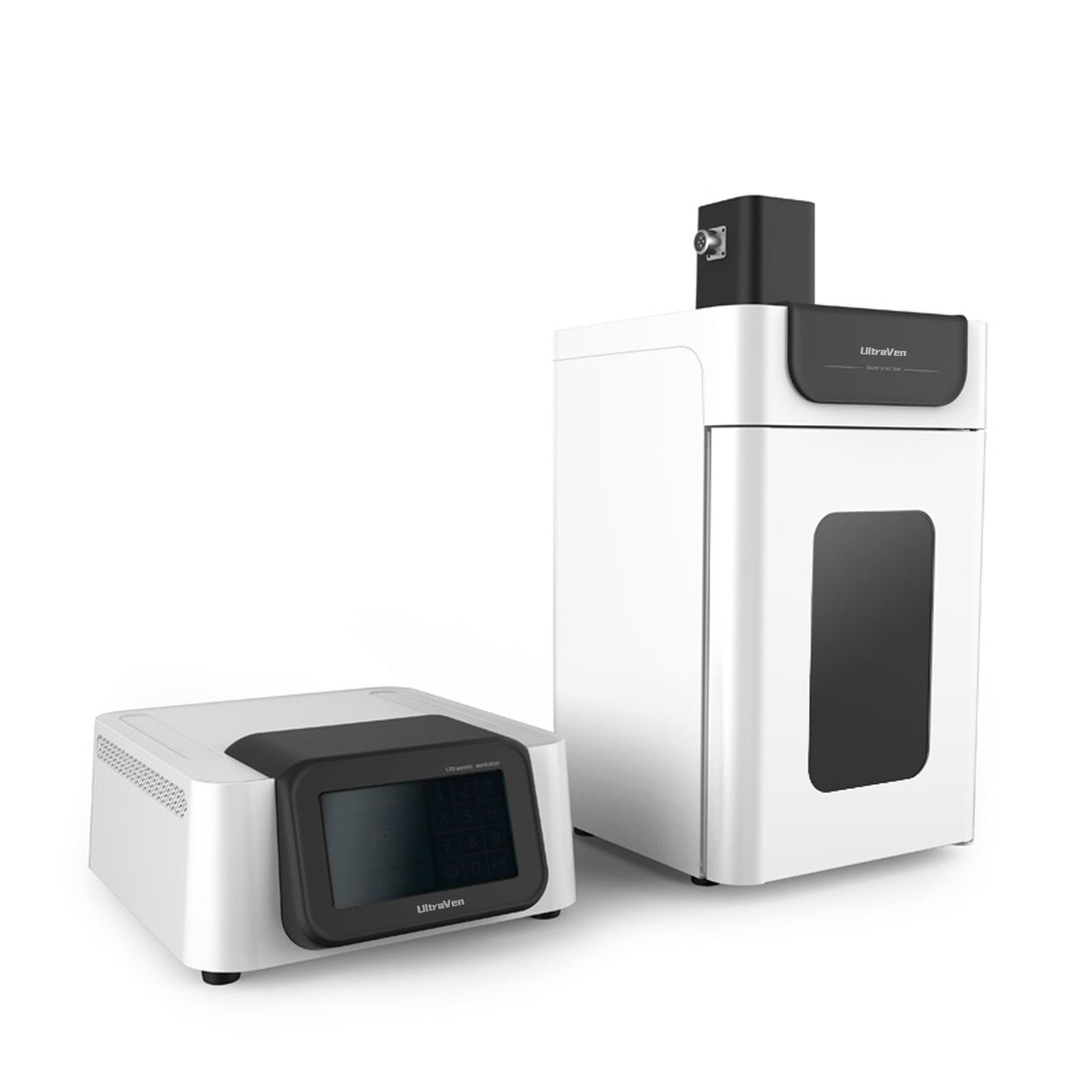

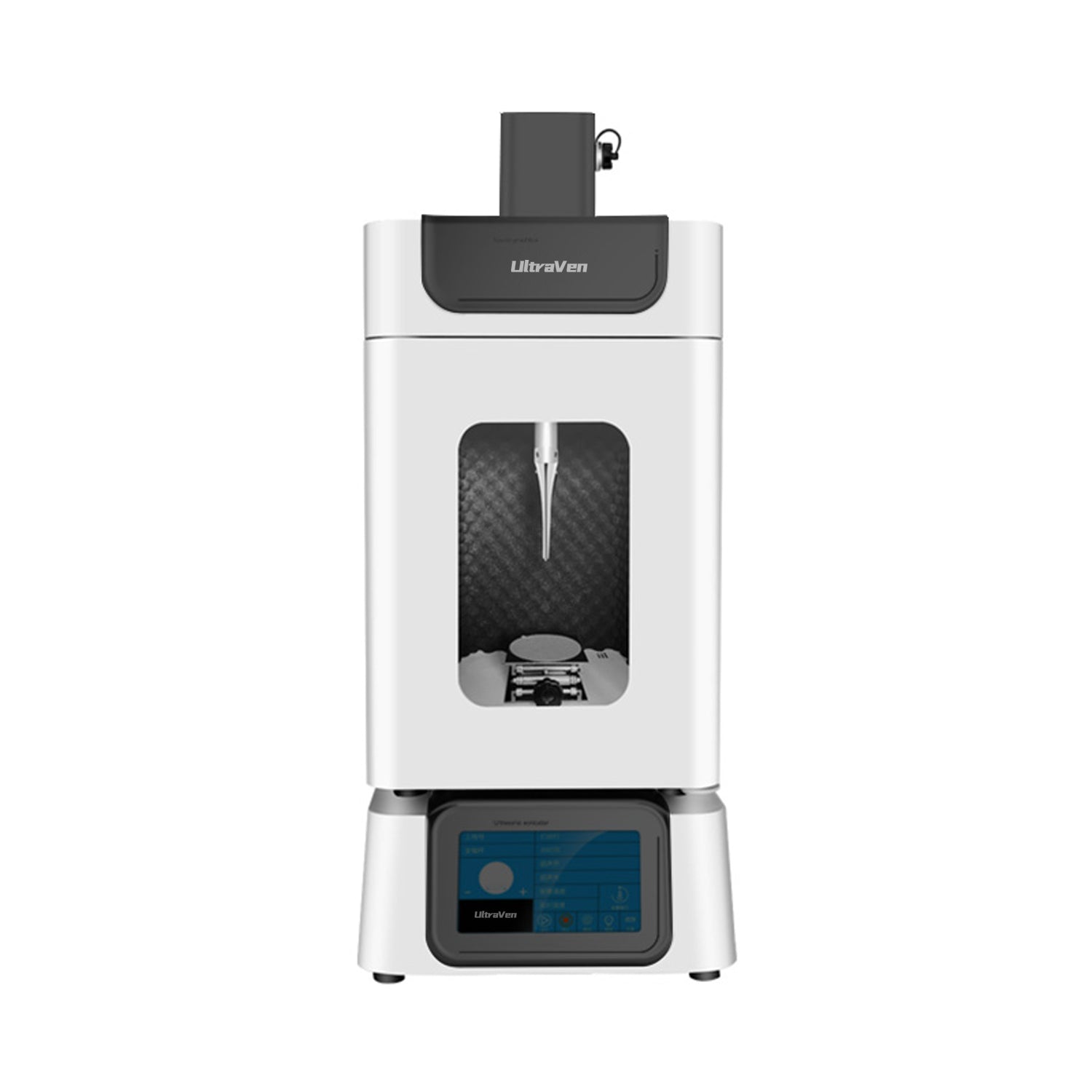

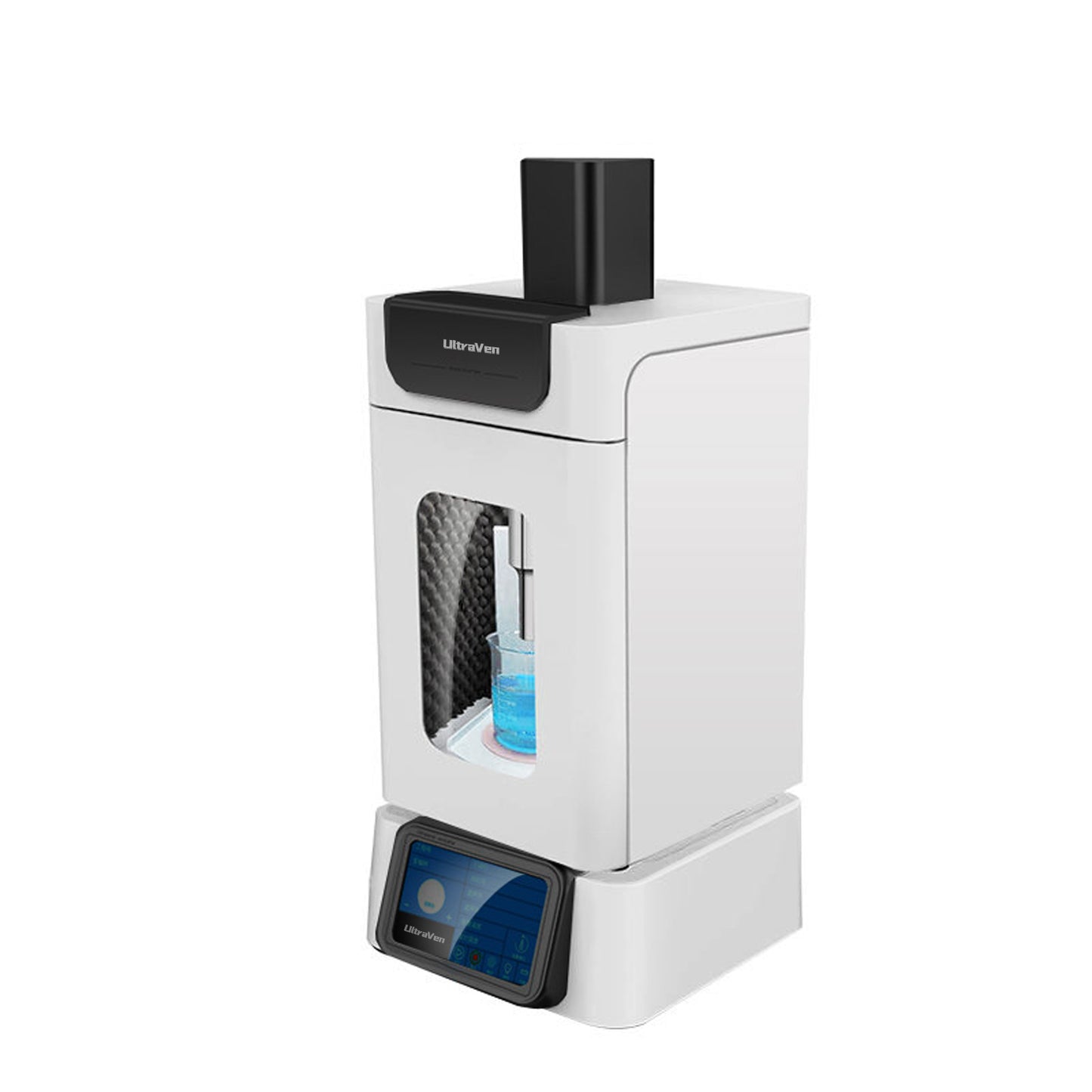

Sonicator,Ultrasonic homogenisers,Ultraven-650E

Product Description

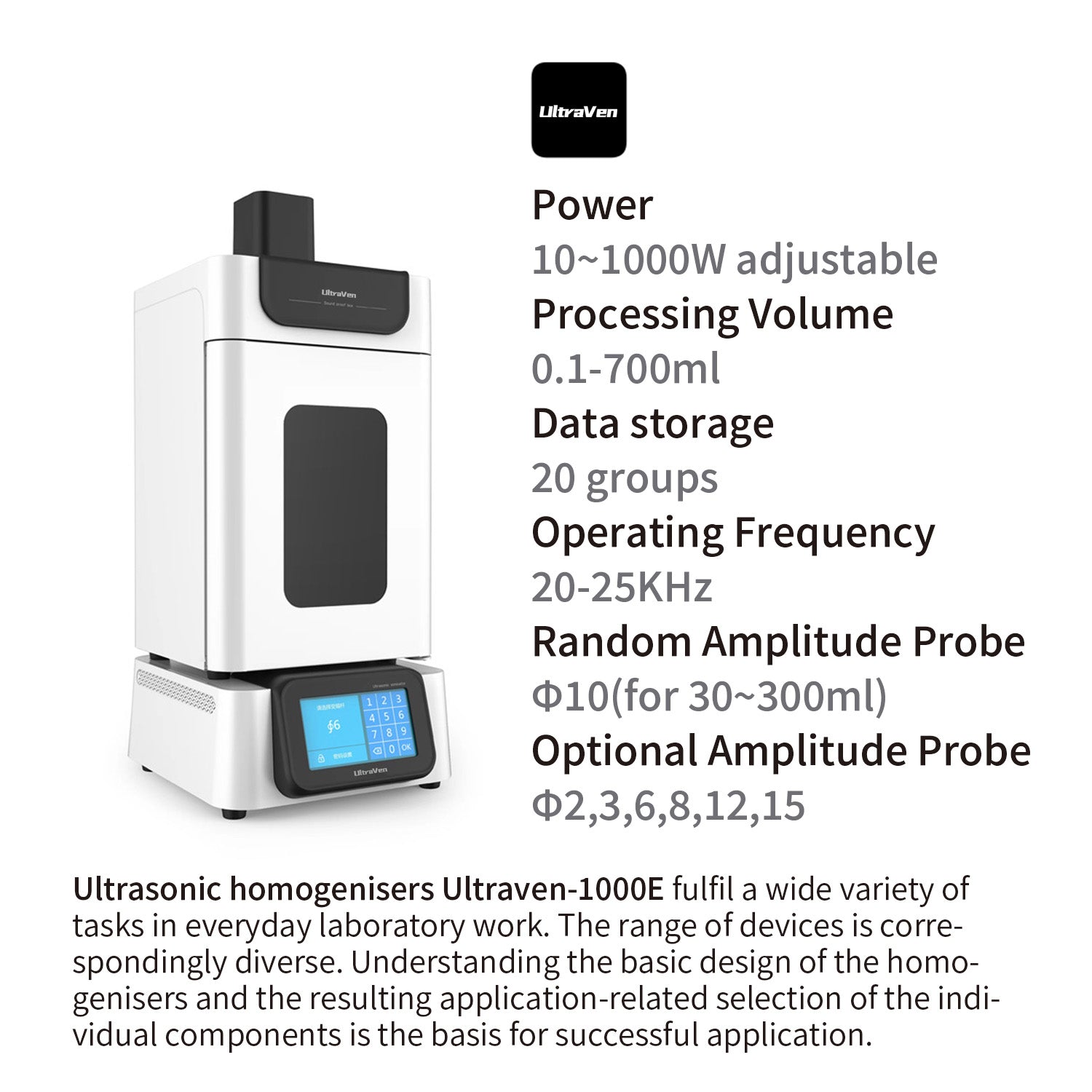

• Sonicator Ultraven-E series fulfil a wide variety of tasks in everyday laboratory work.
• The range of devices is correspondingly diverse. Understanding the basic design of the homogenisers and the resulting application-related selection of the individual components is the basis for successful application.

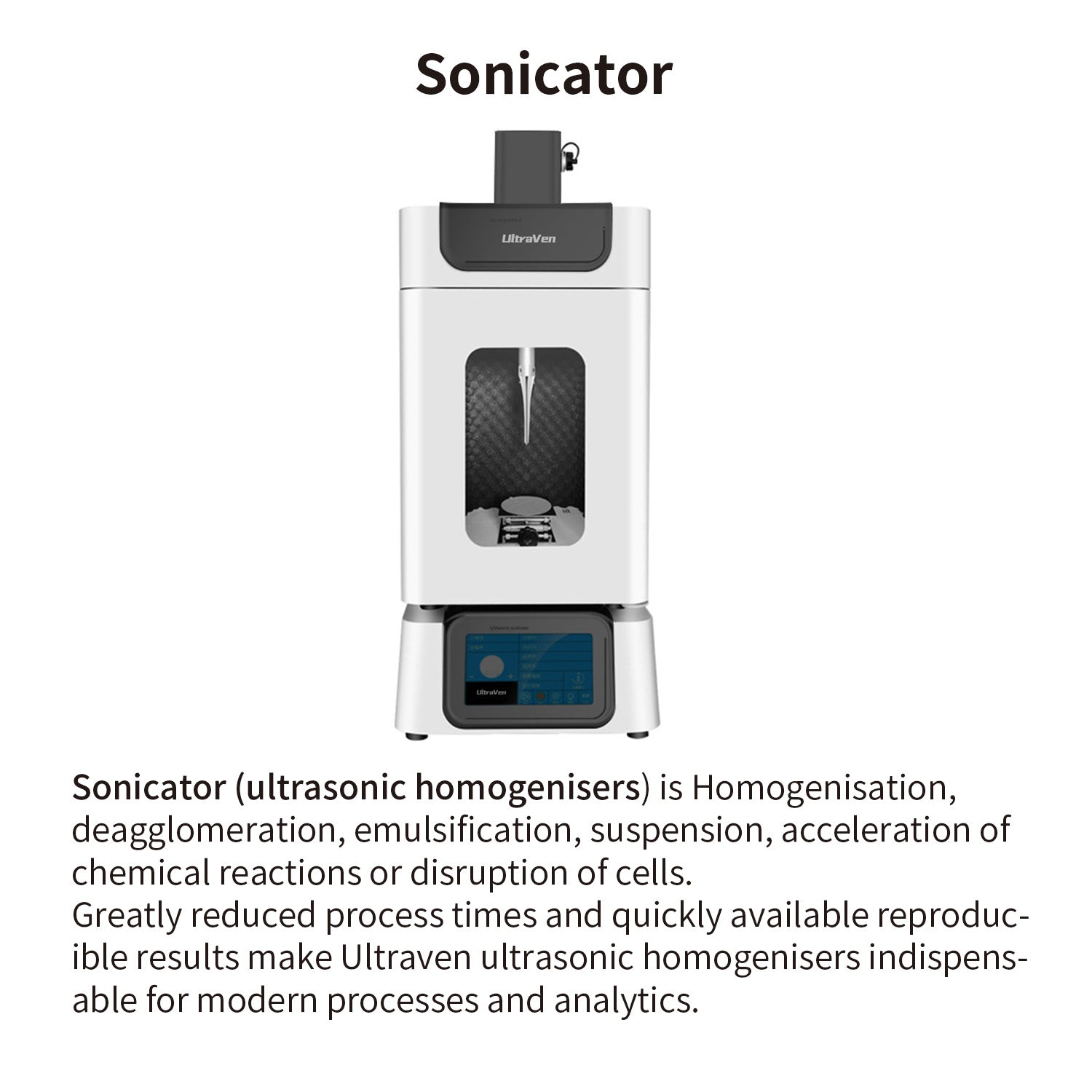

• Sonicator (ultrasonic homogenisers) is Homogenisation, deagglomeration, emulsification, suspension, acceleration of chemical reactions or disruption of cells.
• Greatly reduced process times and quickly available reproducible results make Ultraven ultrasonic homogenisers indispensable for modern processes and analytics.
• Experimental Objectives
• 1. Understand the basic principles of ultrasonic cell crushing.
• 2. Master the basic techniques of ultrasonic cell crushing.
• Experimental Principle
• When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.
• Materials and Reagents
• 10ml culture, beaker, ice shaver, 75% alcohol cotton ball.

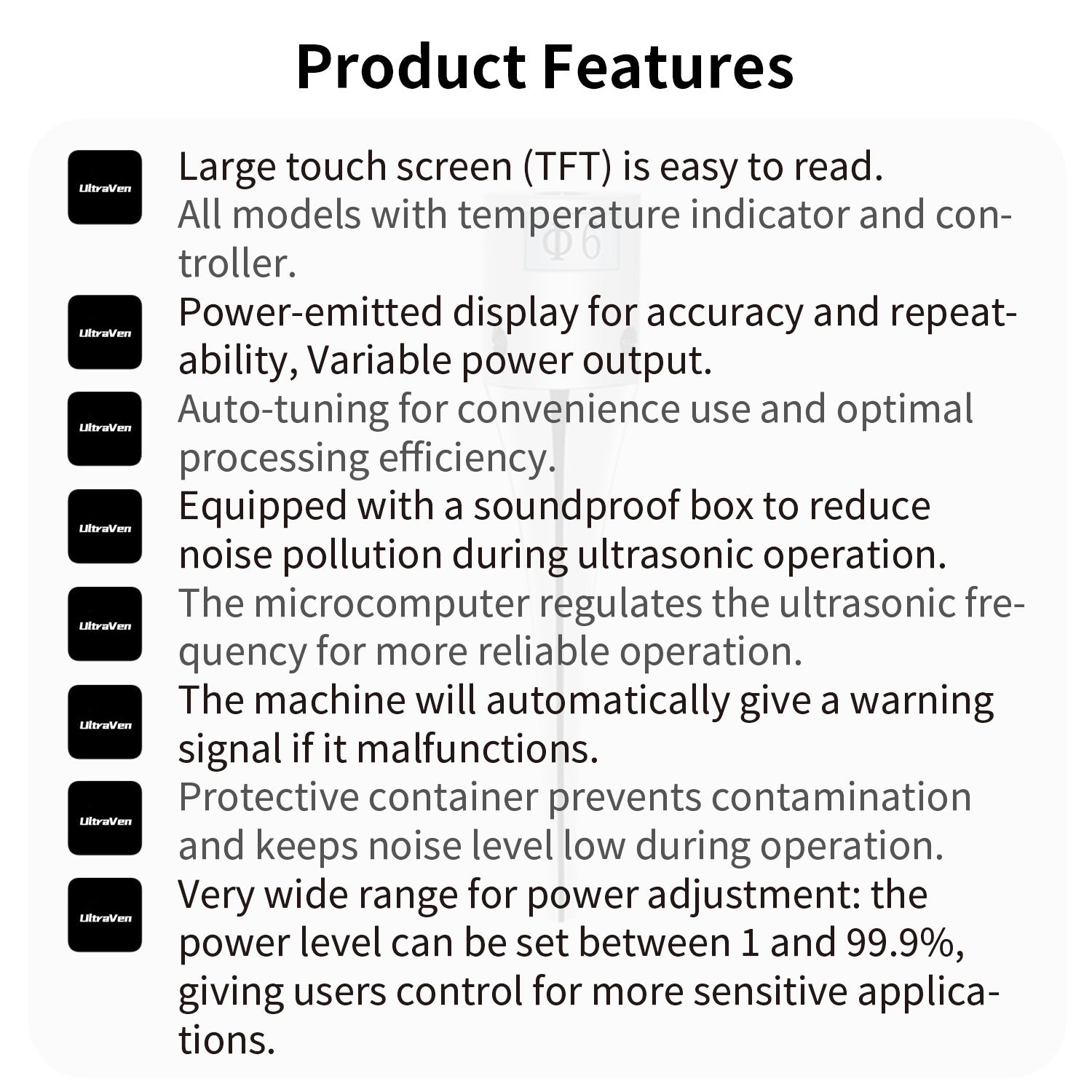

Product Features

• Large touch screen (TFT) is easy to read.
• All models with temperature indicator and controller.
• Power-emitted display for accuracy and repeatability, Variable power output.
• Auto-tuning for convenience use and optimal processing efficiency.

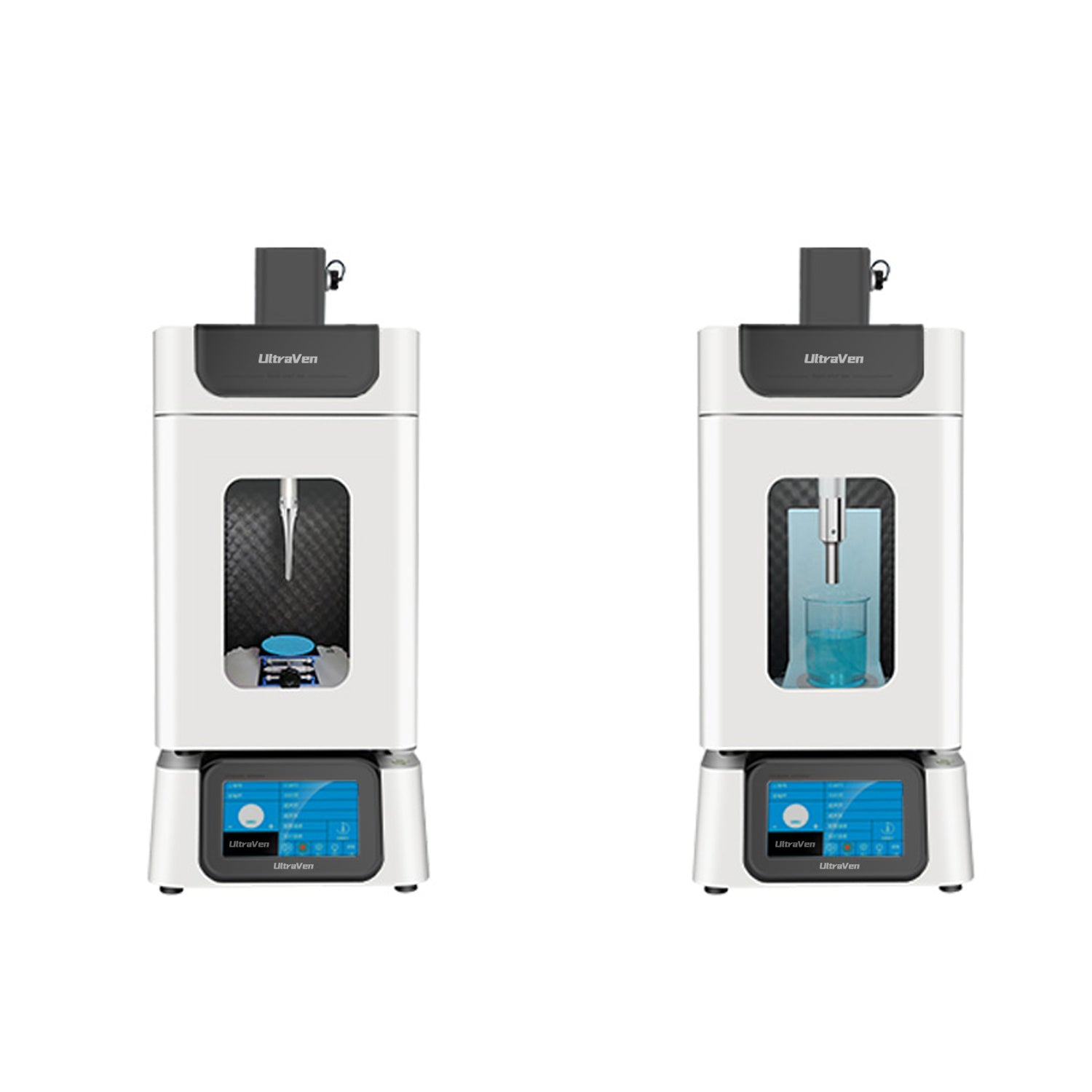

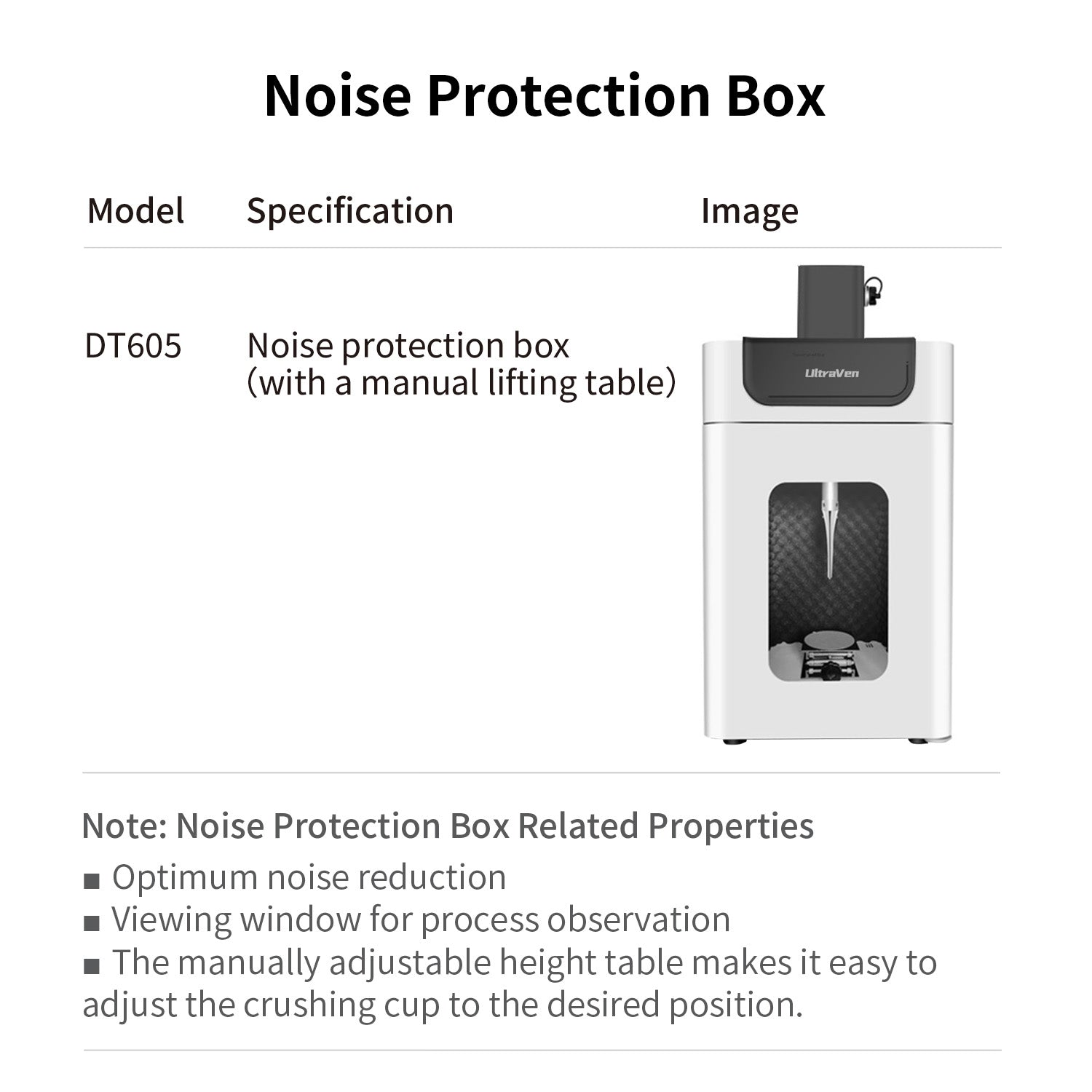

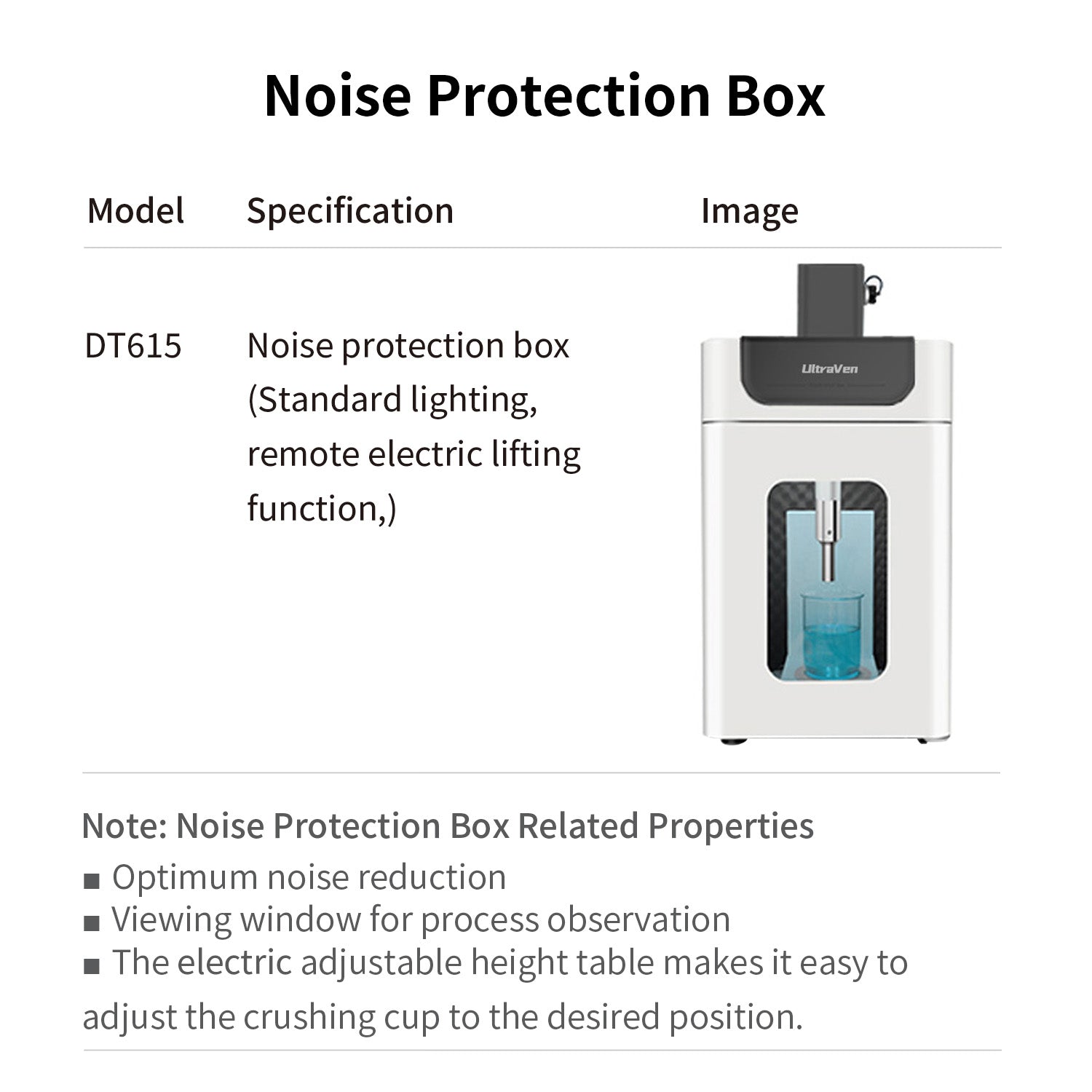

• Equipped with a soundproof box to reduce noise pollution during ultrasonic operation.
• The microcomputer regulates the ultrasonic frequency for more reliable operation.
• The machine will automatically give a warning signal if it malfunctions.
• These machines are controlled by microcomputers.
• Protective container prevents contamination and keeps noise level low during operation.
• Very wide range for power adjustment: the power level can be set between 1 and 99.9%, giving users control for more sensitive applications.

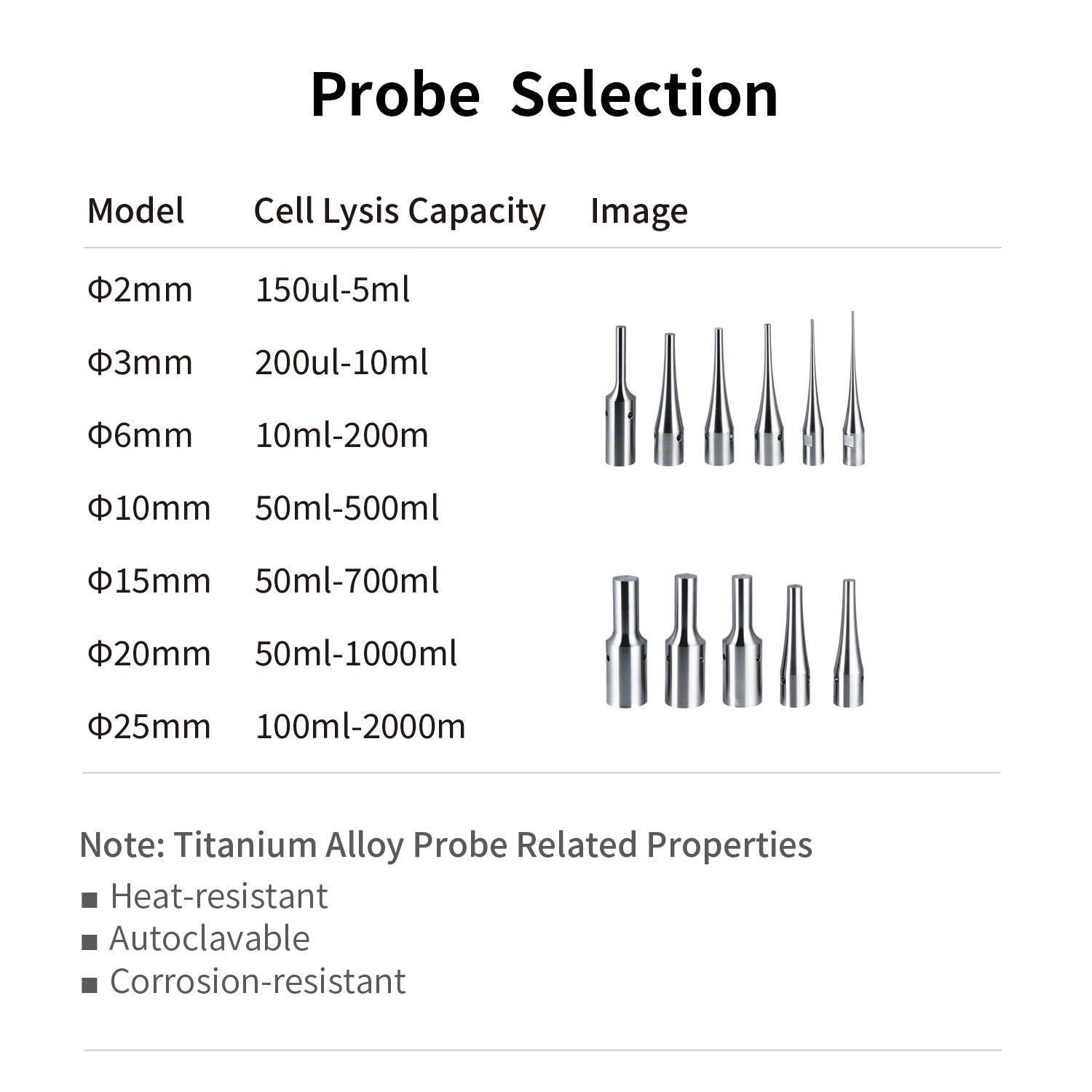

• Various sizes of ultrasonic poles can be purchased: very small-diameter probes can concentrate the power in very sma II volume sa m pies ( excellent for cell disruption of very small samples); larger-diameter probes are necessary for larger samples (especially useful for forming homogenous mixtures of larger volumes).

Application Range

• Sonicator (ultrasonic homogenisers) A functional, multi-purpose instrument that can be used to break a variety of animal and plant cells, and can be used for emulsification, separation, homogenization,extraction, defoaming, cleaning, and accelerating chemical reactions. It is widely used in biochemistry, microbiology, surface chemistry, physics, zoology and other fields.
• Used for crushing animal and plant cells, spores or tissues, extracting protein from cells, and conducting scientific culture experiments.
• Accelerate the reaction speed of chemistry and physics and accelerate the degassing of liquid.
• Scientific analysis of crude oil dilution, oil-water emulsification, accelerated decrystallization, and glass homogenization.
• Disperse rare earths, various inorganic minerals, and prepare a homogenized mixture of nearly one percent of nanometer emulsion.
• Quick, powerful and high-precision lotion for mold micro-holes and bl ind holes.

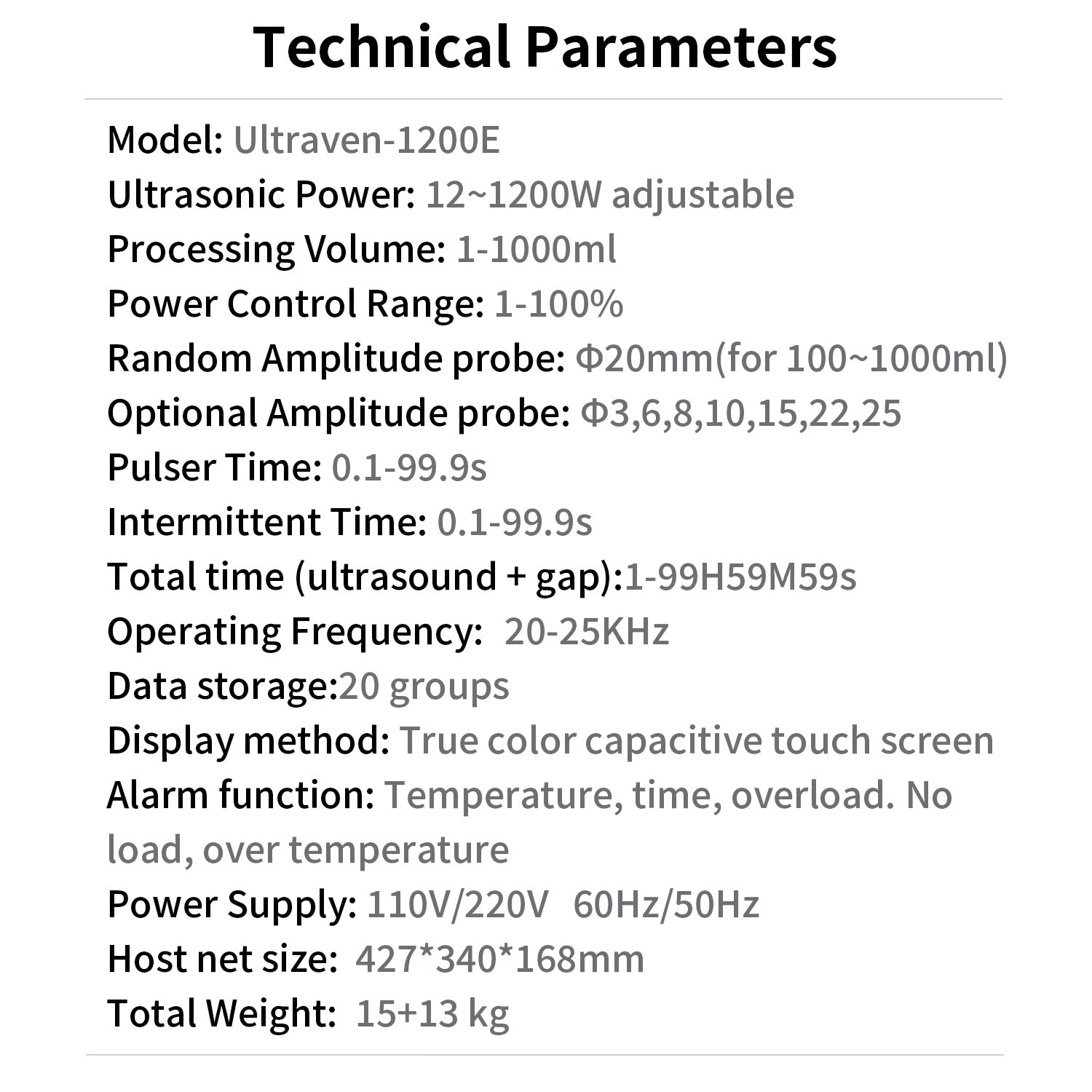

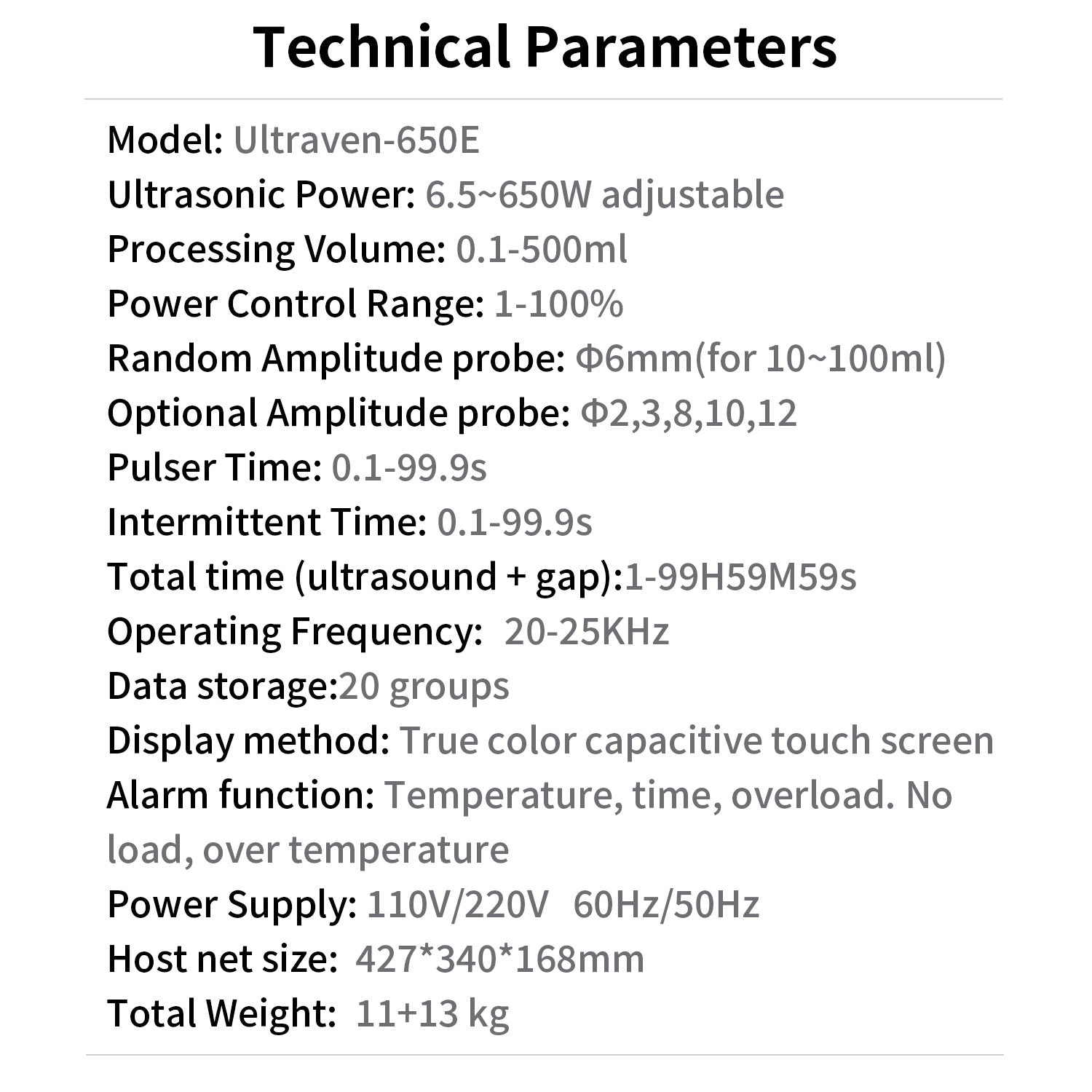

Technical Parameters

Options Accessories

Cooling vessel

■ Simultaneous sound reinforcement and cooling

■ Optimal process monitoring

Cooling vessel for sonication of temperature-sensitive samples.

The cooling jacket allows temperature control by liquid coolant during sonication.

The cooling medium is pumped through the coolingjacket in a circuit using a thermostat.This allows a quick response to atemperatureincrease.

Rosette cell

■ Optimal fluid circulation

■ Good heat dissipation

■ Homogeneous sound reinforcement results

A rosette cell enables intensive and uniform sonication of liquid media. The round shape of the side arms leads to an intensified circulation of the sample.
