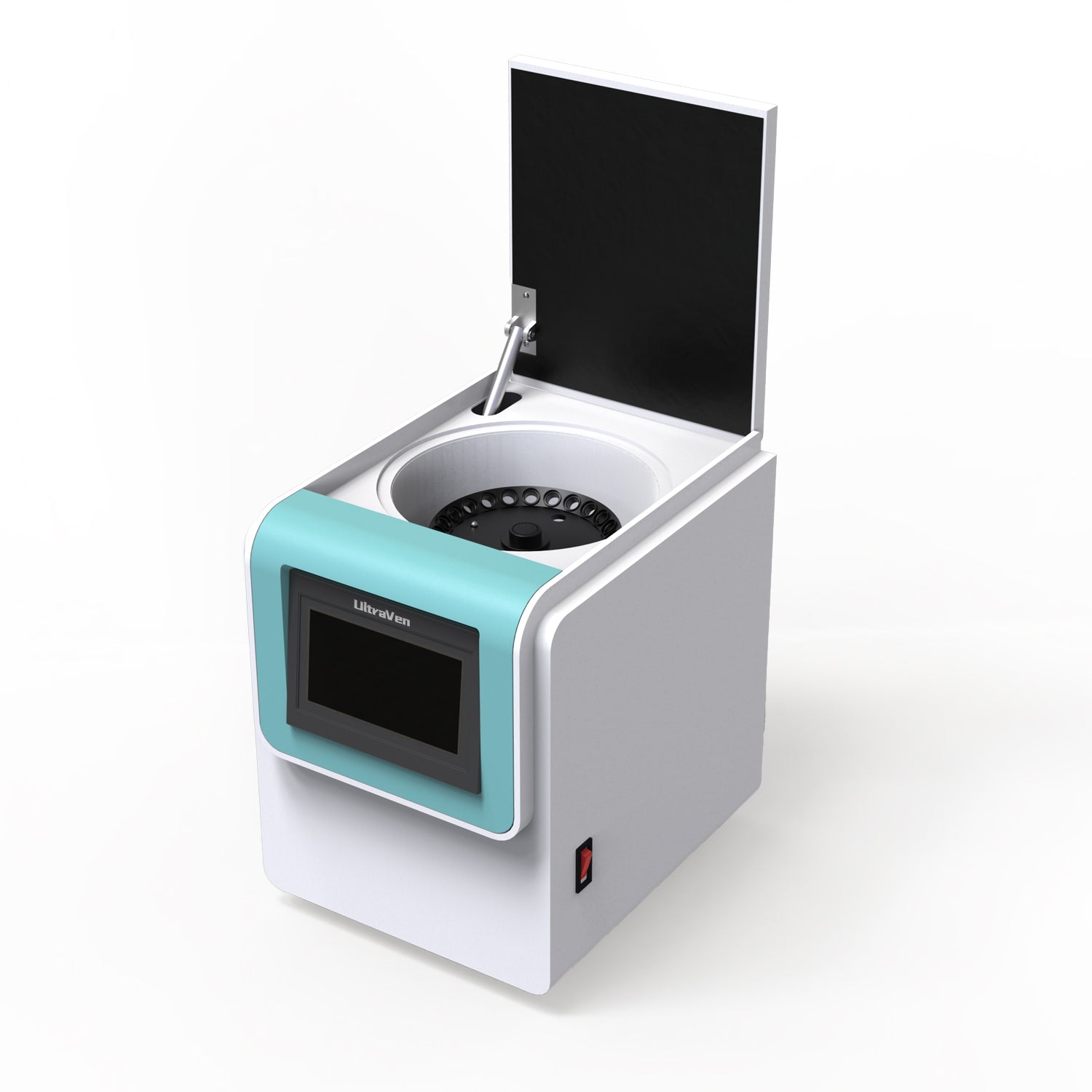

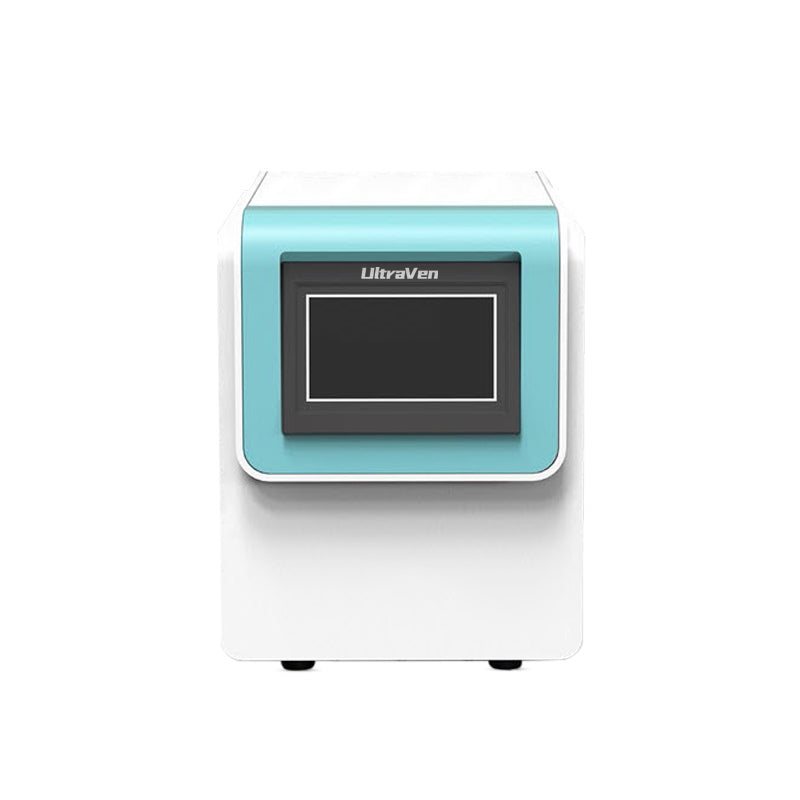

3D centrifuge Grinder,3D Grinder,DHCL-4D-24

Product Introduction

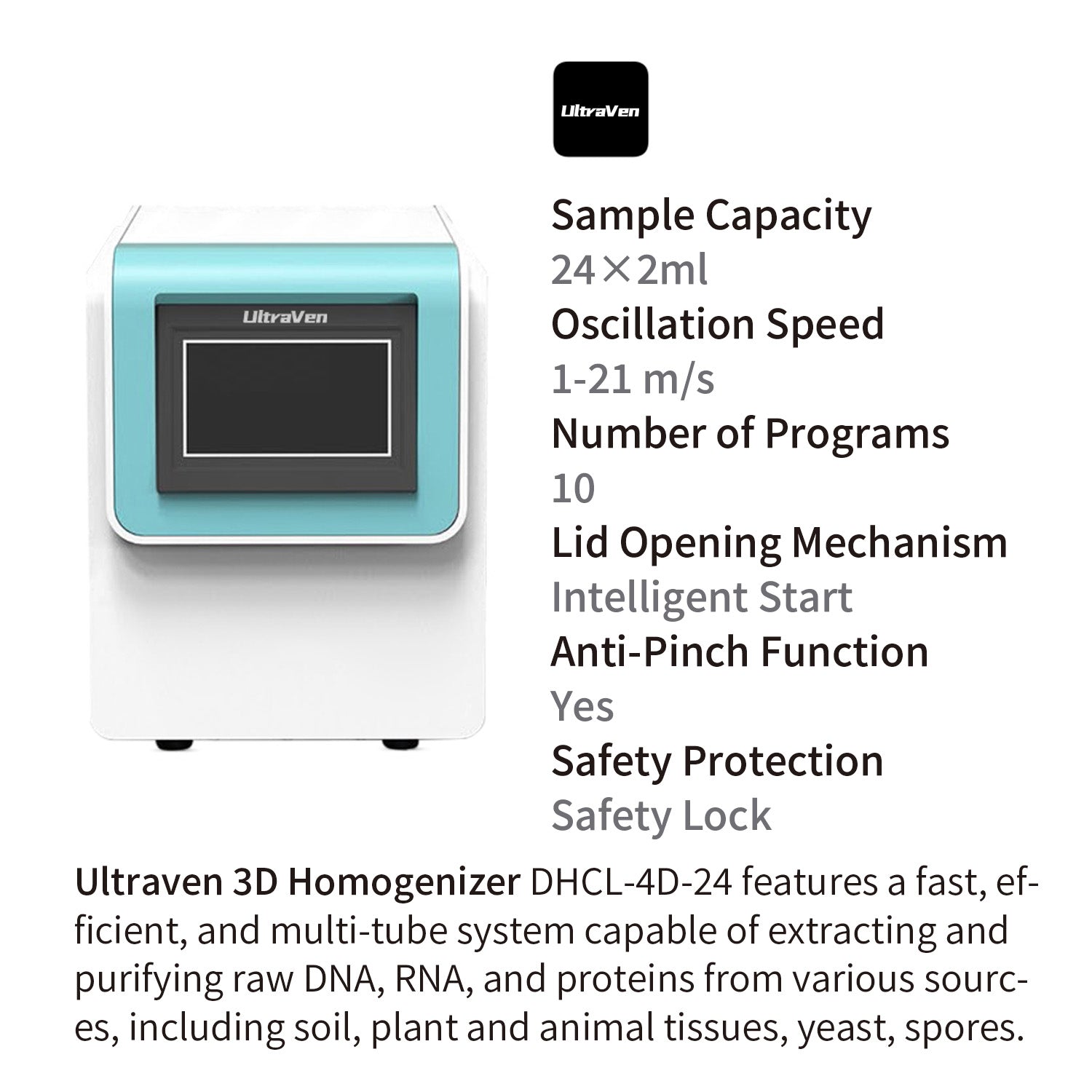

• Ultraven 3D Grinder DHCL-4D-12 / DHCL-4D-24 features a fast, efficient, and multi-tube system capable of extracting and purifying raw DNA, RNA, and proteins from various sources, including soil, plant and animal tissues, yeast, spores.

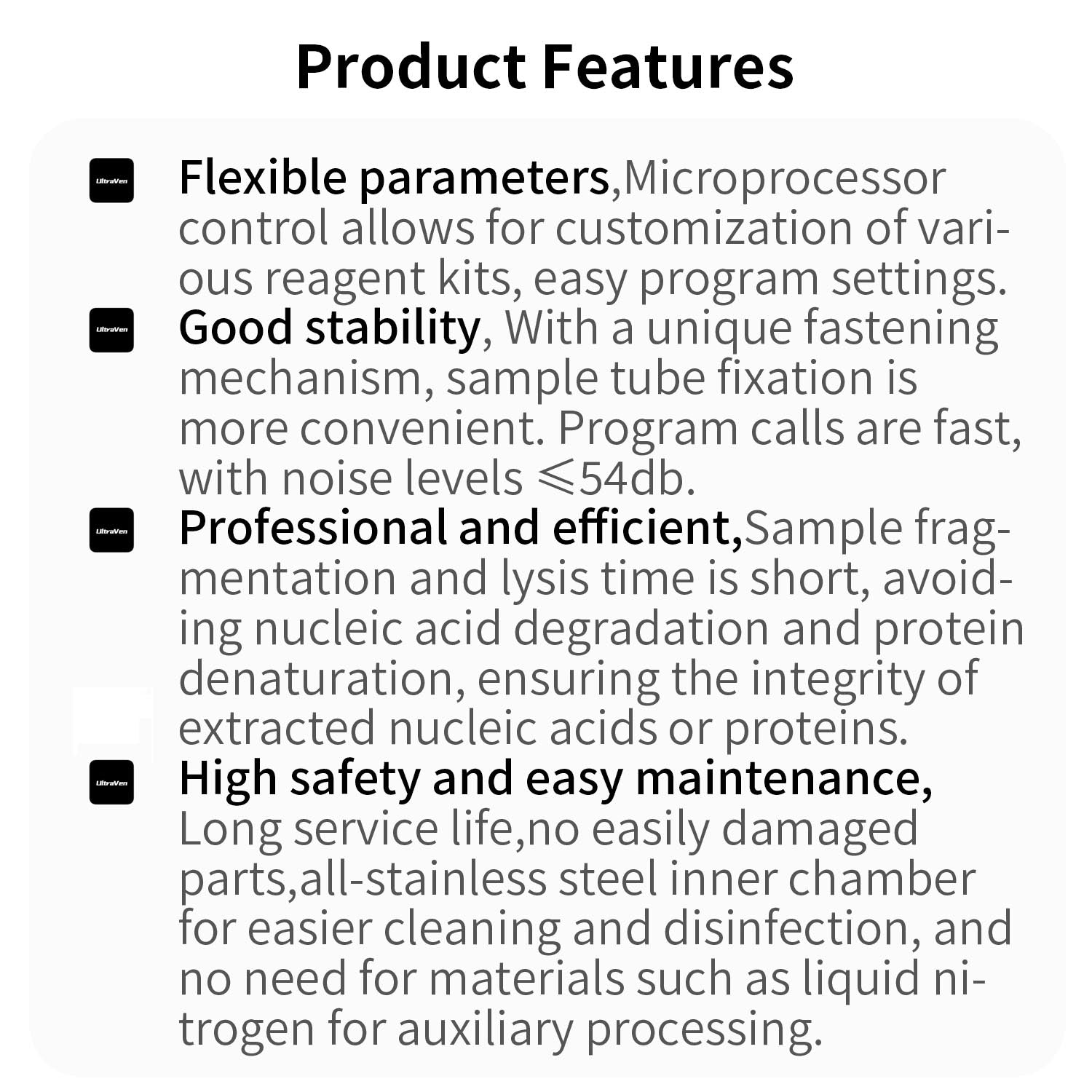

Features

• Flexible parameters: Microprocessor control allows for customization of various reagent kits, with a 5.7-inch color touch screen and easy program settings (up to 99 programs can be saved).
• Good stability: With a unique fastening mechanism, sample tube fixation is more convenient. Program calls are fast, with noise levels ≤54db.
• Professional and efficient: Sample fragmentation and lysis time is short, avoiding nucleic acid degradation and protein denaturation, ensuring the integrity of extracted nucleic acids or proteins. Innovative design with low-speed, ultra-long continuous operation function (up to 30min), suitable for whole-genome library construction, cloning, and sequencing.
• High safety and easy maintenance: Uses a brushless frequency conversion motor that does not produce carbon particles and does not require carbon brush replacement. Long service life, no easily damaged parts, all-stainless steel inner chamber for easier cleaning and disinfection, and no need for dangerous materials such as liquid nitrogen for auxiliary processing.

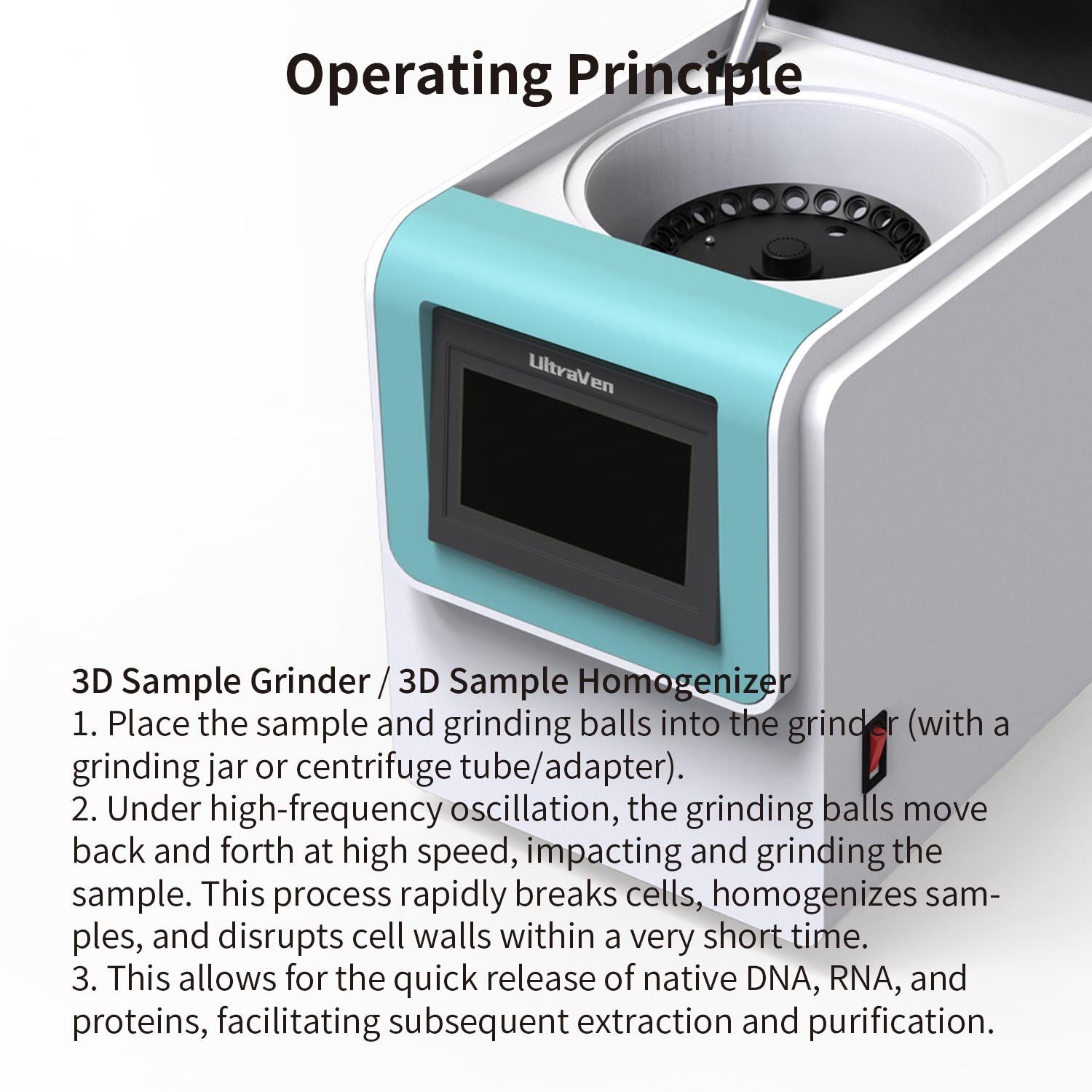

Operating Principle

• 3D Sample Grinder / 3D Sample Homogenizer

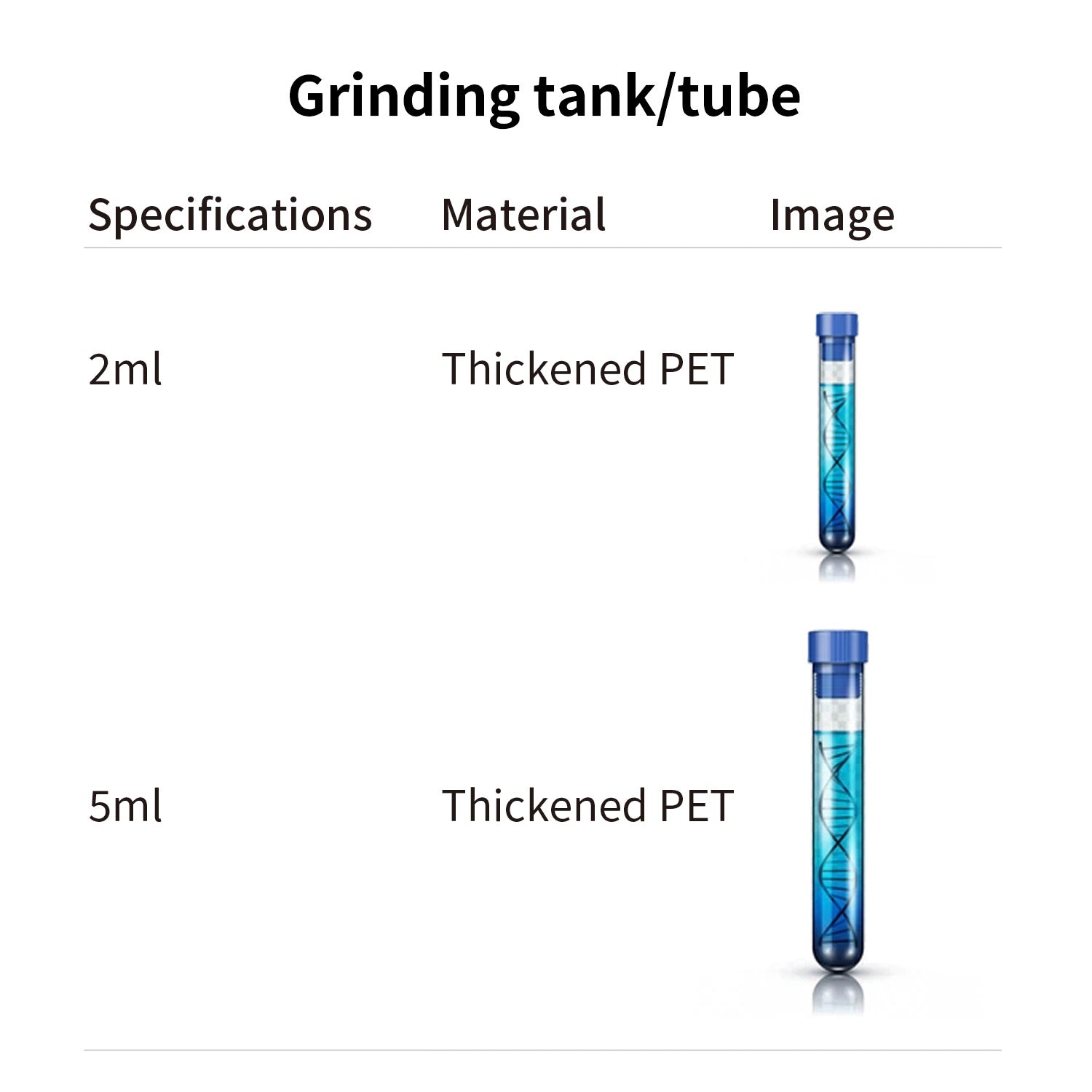

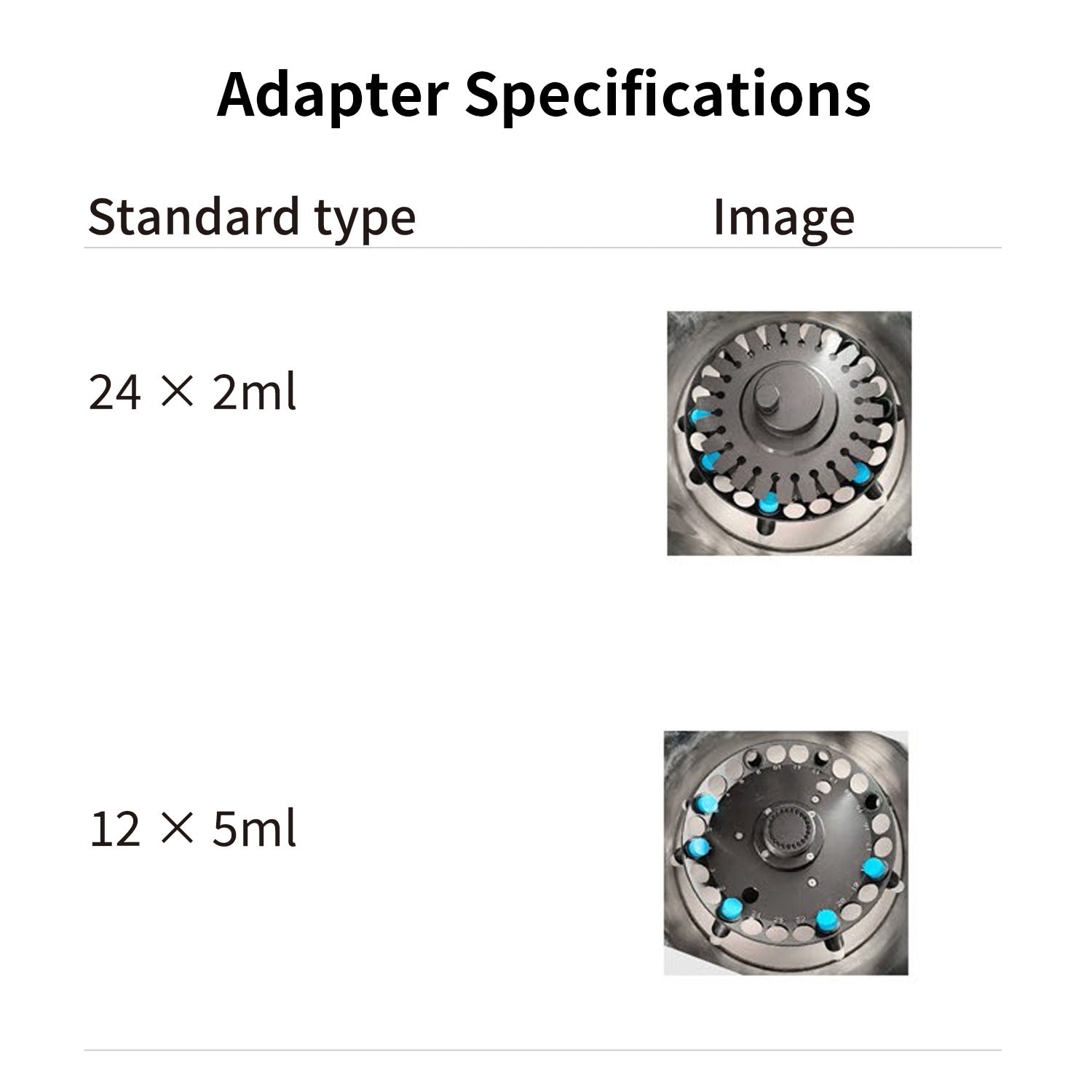

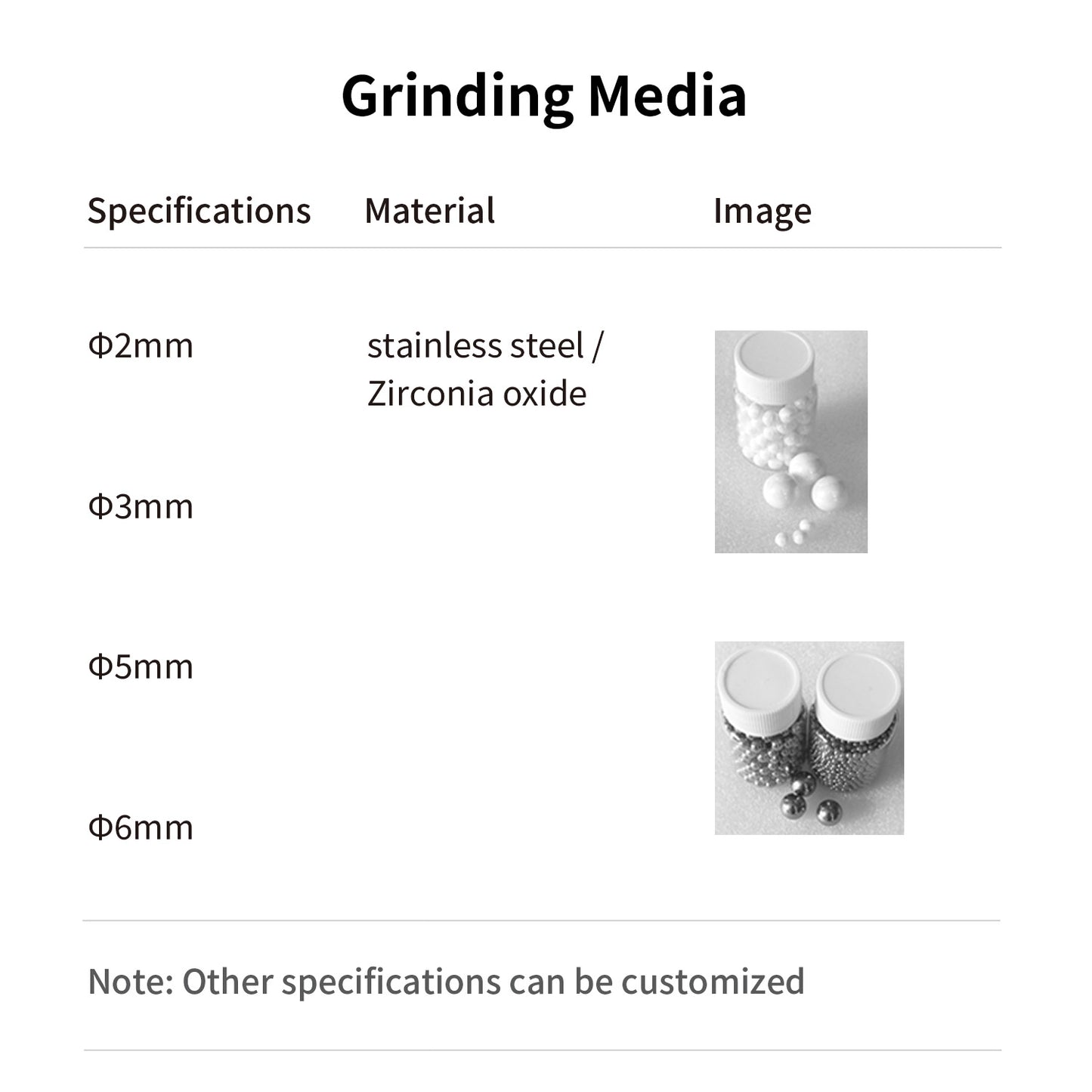

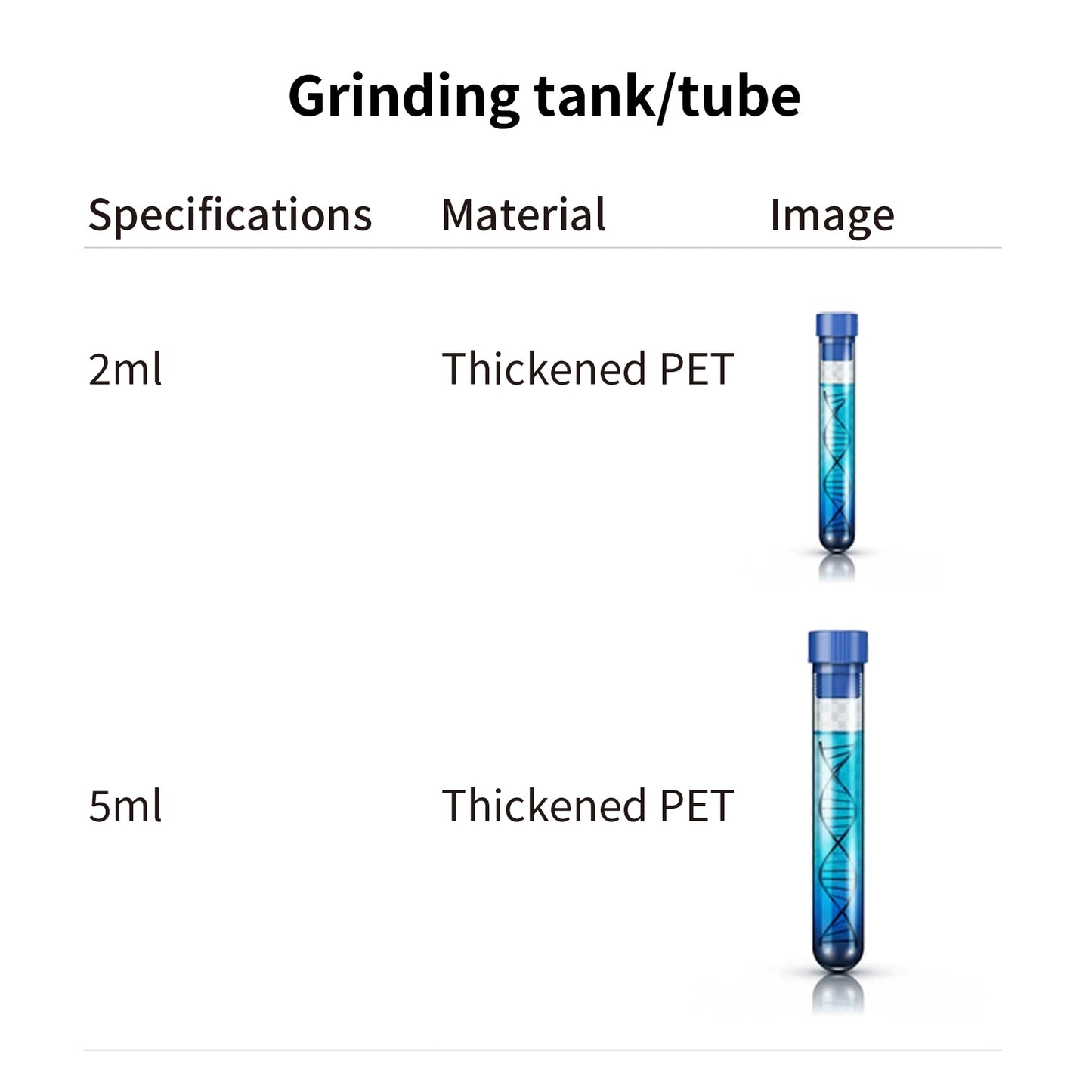

• Place the sample and grinding balls into the grinder (with a grinding jar or centrifuge tube/adapter).
• Under high-frequency oscillation, the grinding balls move back and forth at high speed, impacting and grinding the sample. This process rapidly breaks cells, homogenizes samples, and disrupts cell walls within a very short time.
• This allows for the quick release of native DNA, RNA, and proteins, facilitating subsequent extraction and purification.

Application Range

• 3D Homogenizer / 3D Grinder
• Grinding and pulverization of samples for food, material, and ingredient analysis and testing.
• Grinding and pulverization of various plant tissues (roots, stems, leaves, flowers, fruits, seeds, etc.) and fungal samples.
• Grinding and pulverization of various animal tissue samples.

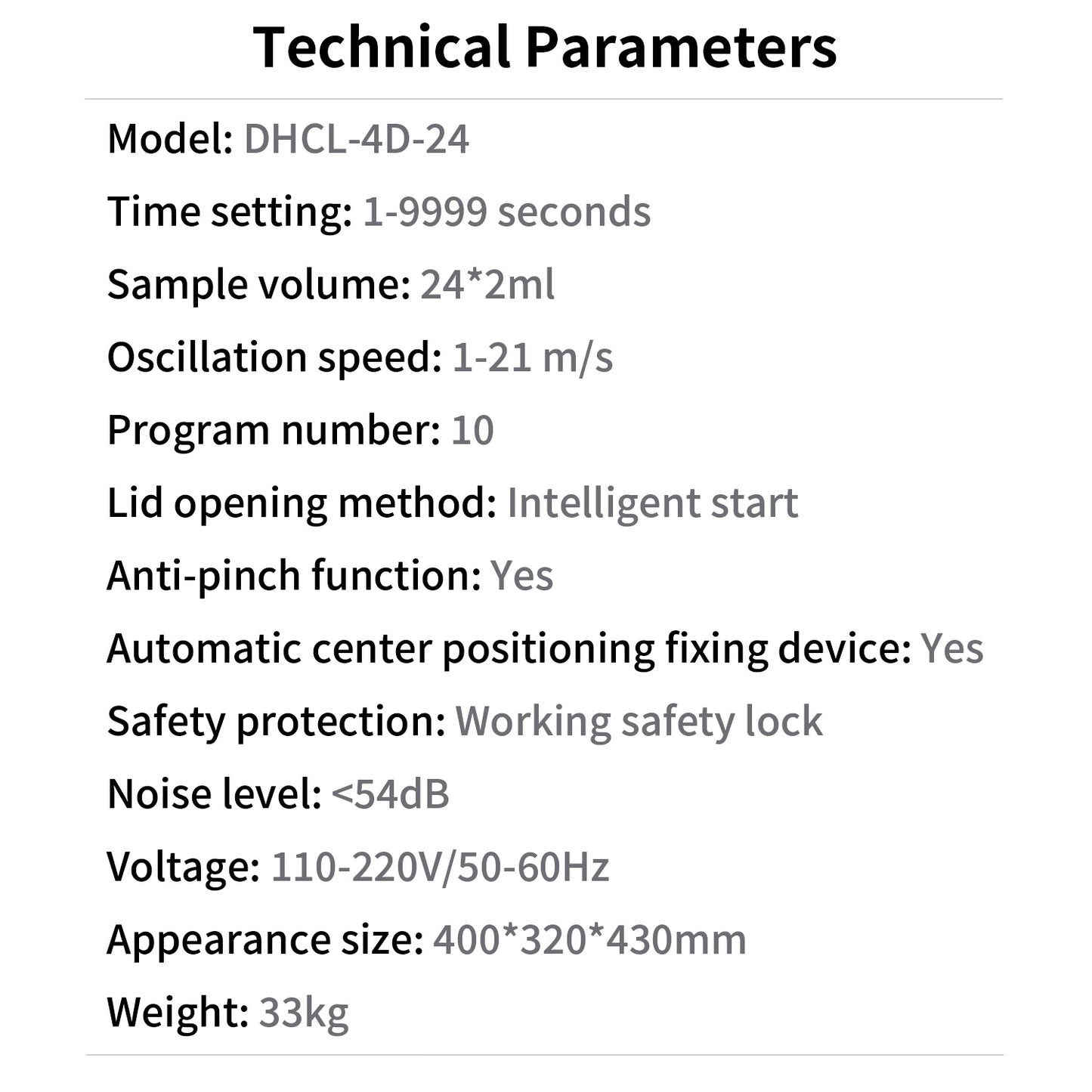

Technical Specifications
